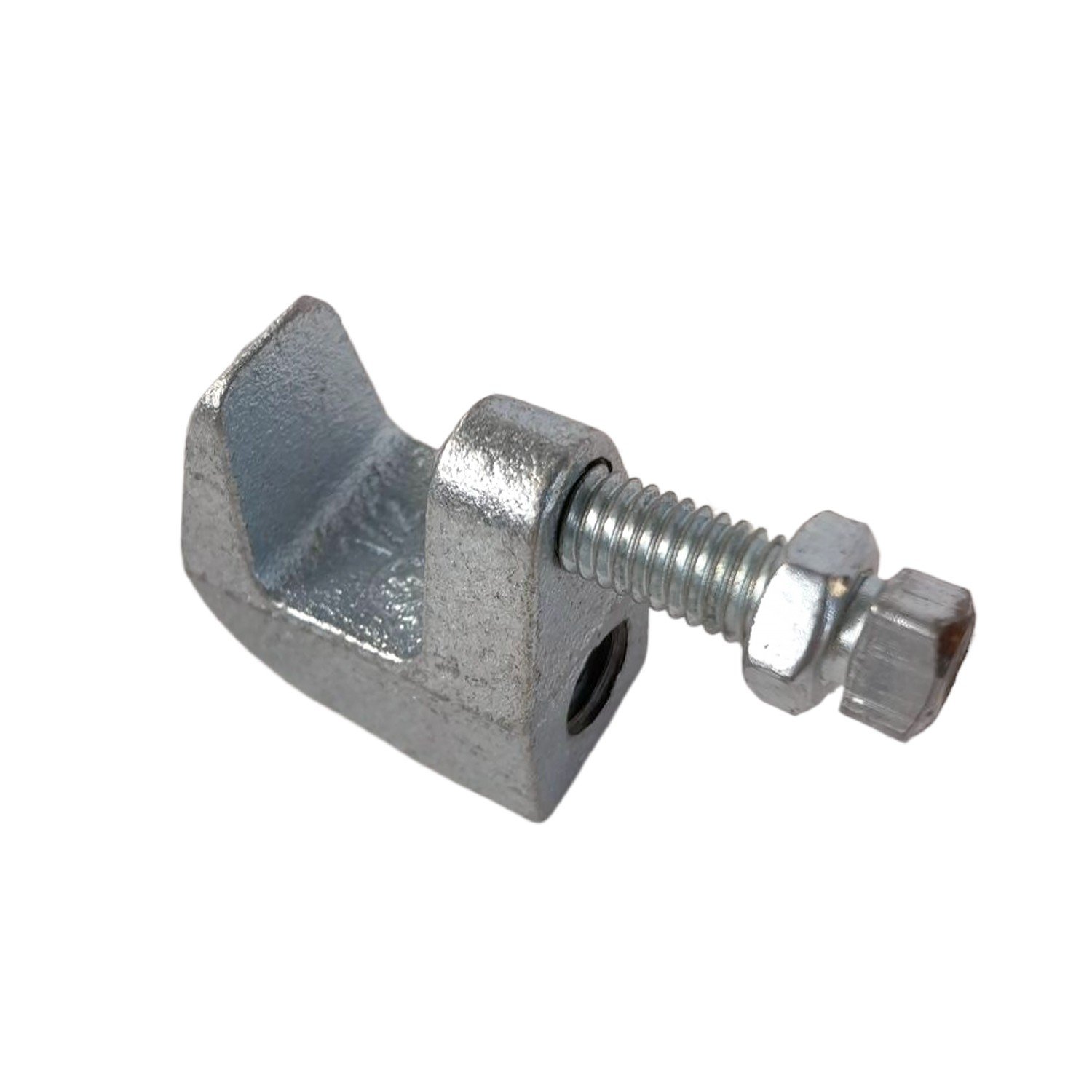

universal C-type beam clamp holding hanger rod on steel beam flange

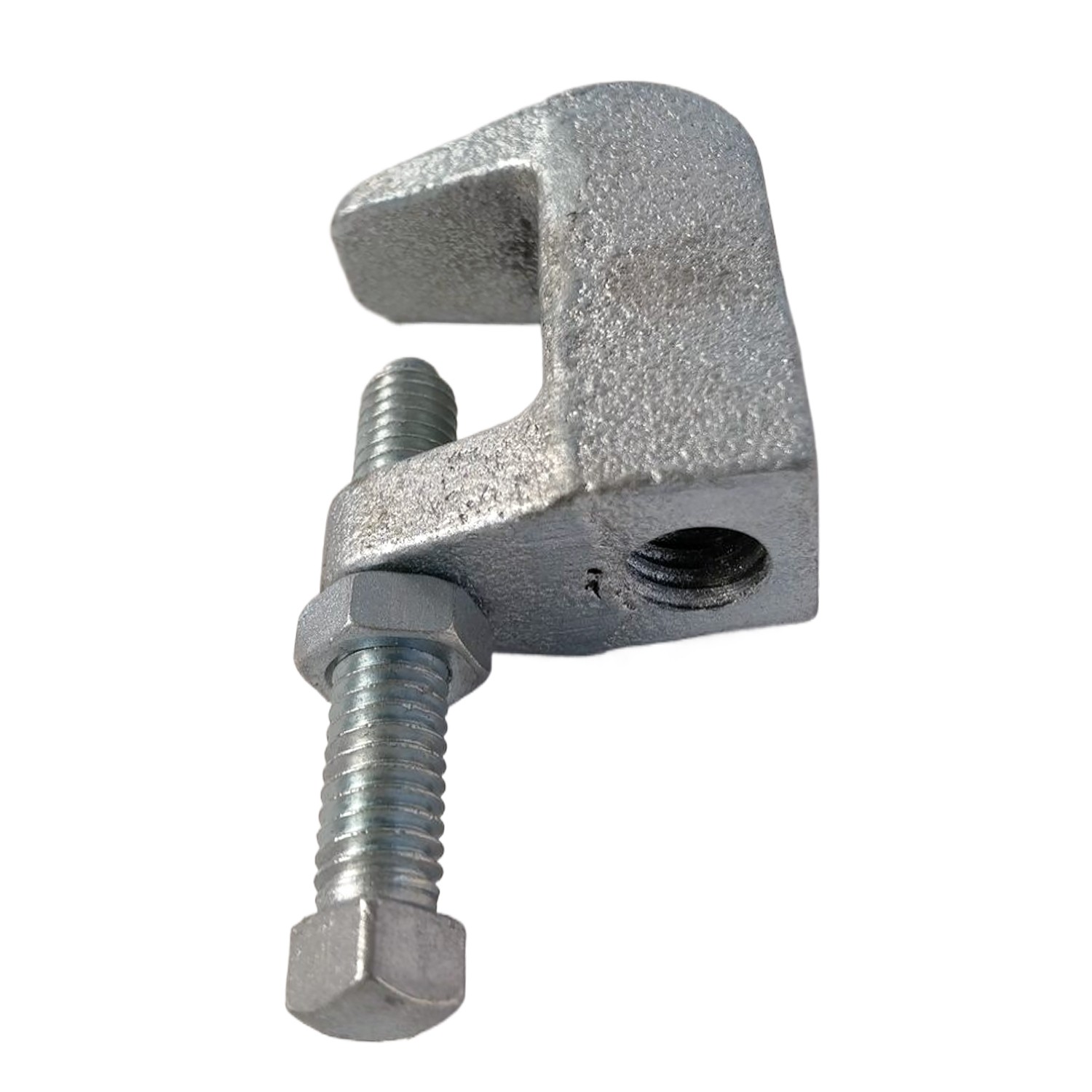

clamp screw and jaw detail of ductile iron C-type beam clamp

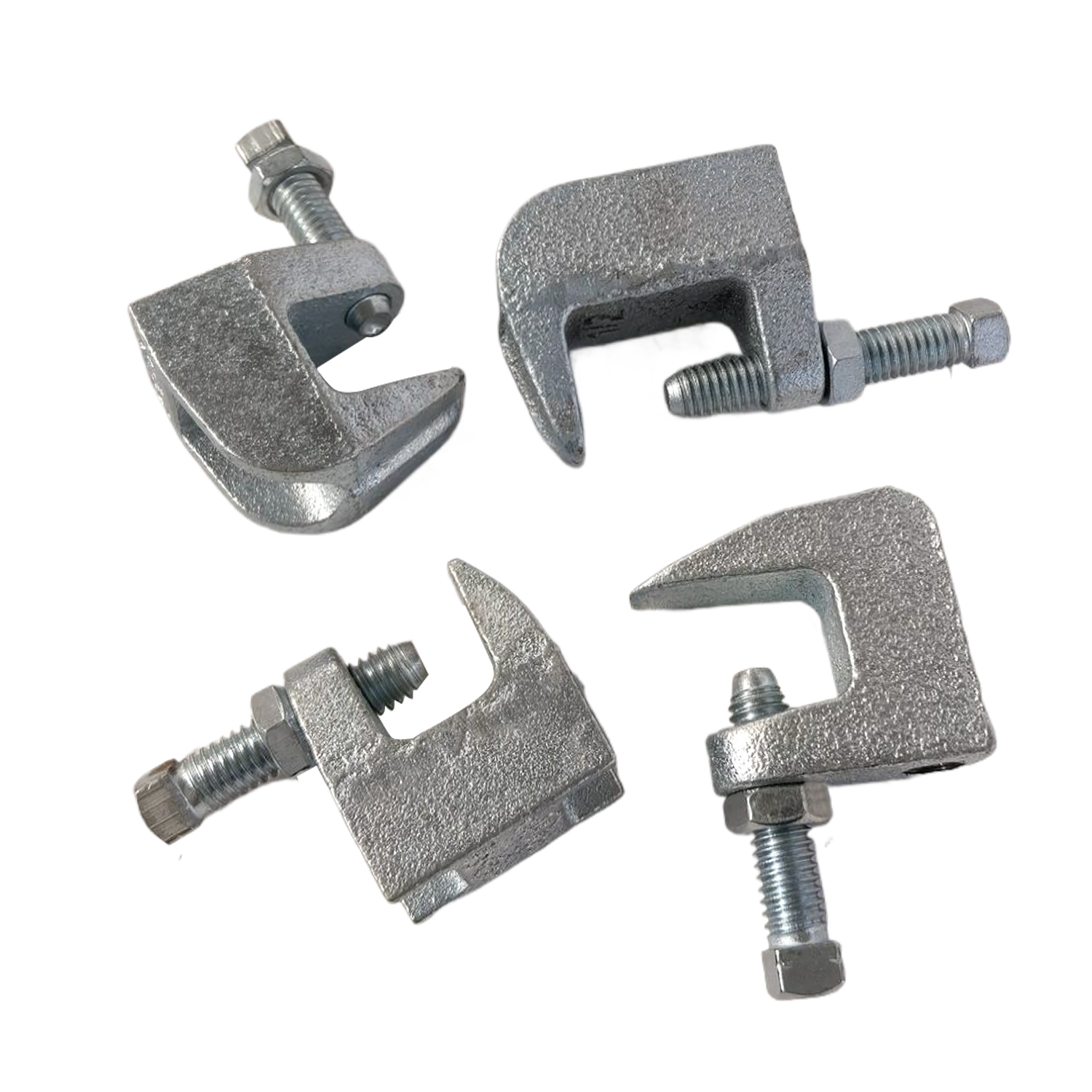

pipe run suspended from steel joists using C-type beam clamps

universal C-type beam clamp holding hanger rod on steel beam flange

Overview

A universal C-type clamp is a cast ductile iron fitting shaped like a wide "C" that grips a structural flange — a beam, channel, or angle — and provides a threaded top connection for a hanger rod. Typical designs accept rod sizes from 3/8" through 3/4" and jaw openings sized to common flange thicknesses, with rated loads confirmed per casting design. Its defining property is in the name: universal attachment without drilling or welding the structure. The clamp slides onto the flange, a set screw or clamp bolt draws the jaws tight, and the threaded boss above is ready to receive the drop rod.

Its core use is suspending pipe and equipment from existing steelwork where the structure must not be penetrated. Existing buildings, retrofits, temporary installations, and rented facilities all forbid drilling into primary steel; the C-type clamp solves this by becoming the structural connection itself. The ductile iron body matters here more than in most fittings: the clamp works in bending across its jaw, so ASTM A536's tensile strength and elongation give it the reserve that gray iron lacks when a clamp is loaded near its rating or struck during installation. Typical applications run from sprinkler mains hung off joist bottom flanges to process lines suspended from mill building trusses, always with the same installation logic — grip, thread, hang.

Specifications

ItemTypical Value
MaterialASTM A536 65-45-12 / EN-GJS-400-15 or 500-7
Rod / Thread Range3/8" – 3/4" hanger rod; UNC standard, metric optional
Jaw OpeningSized to common flange thicknesses per drawing
Load RatingTypical rated load by size, confirmed per drawing
AdjustmentClamp bolt/screw for jaw tightening; continuous rod thread above
CoatingHot-dip galvanized per ASTM A123 / black paint / epoxy / zinc plated
Casting ProcessGreen sand / resin sand casting
ToleranceISO 8062; clamp bolt holes machined where specified

Installation & Application

The clamp hooks over the flange, the clamp screw is tightened until the jaws bear positively on both flange faces, and the hanger rod is threaded into the top boss to depth. Installation takes minutes and is fully reversible — a property rental engineers and plant maintenance teams value. Typical applications include:

  • Suspending pipe hangers from beam and joist bottom flanges

  • Attachment points for sway braces on structural steel

  • Hanging electrical tray, conduit, and HVAC equipment from existing steel

  • Temporary or mobile piping in leased and demonstration installations

Where the structure is concrete and drilling is acceptable, a threaded ceiling flange serves the same role; where the suspended point must also take a diagonal brace, the clamp combines with sway brace swivel attachments.

Customization & Sampling

Jaw opening, throat depth, rod thread size, and clamp screw specification are cast to drawing. Options include jaw pads for painted flanges, swivel bosses, and widened bodies for heavy loads. First-article samples support jaw-fit trials on your actual beam section.

Quality Inspection & Packaging

Clamp jaws and screw holes are inspected for geometry; threads are gauge-checked; castings are verified to ISO 8062 and the ASTM A536 heat record. Galvanized coating thickness is checked per ASTM A123. Clamps ship with screws bagged per clamp in cartons on export pallets.

FAQ

Will the clamp damage the beam's paint or coating?

Jaw pads and controlled screw torque minimize marking; for coated structural steel, specify padded jaws and confirm bearing pressure with the structural engineer.

How does it compare with a drilled ceiling flange?

The C-type clamp needs no drilling or welding, installs in minutes, and is removable — the trade-off is that it requires a suitable flange to grip.

What secures the rod in the boss?

The machined threaded boss engages the rod over the required engagement length; a jam nut locks the set height where vibration is present.
