Combination Guy Hook / Pole Eye Attachment (Lower Bolt Clevis Hole) – Ductile Iron Casting

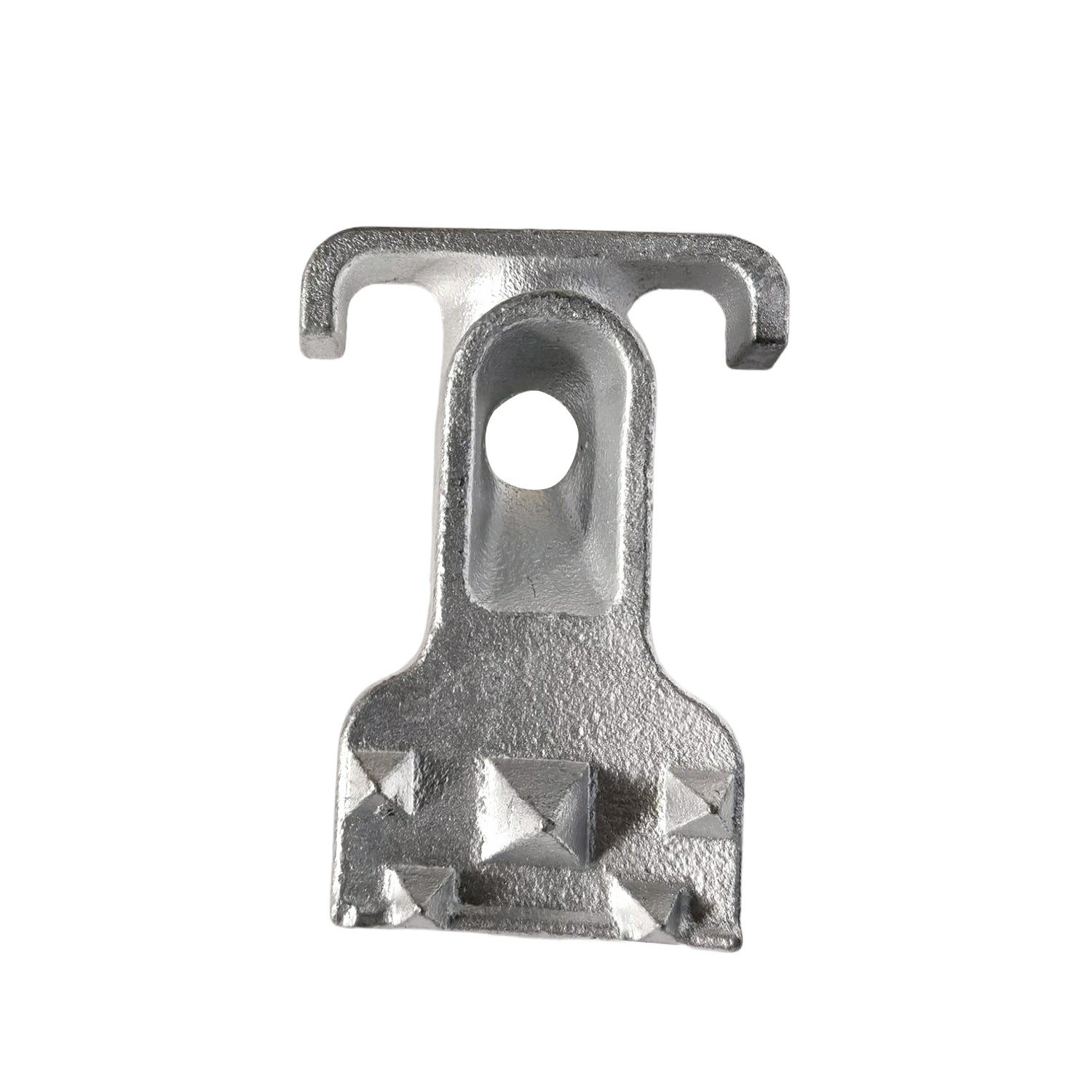

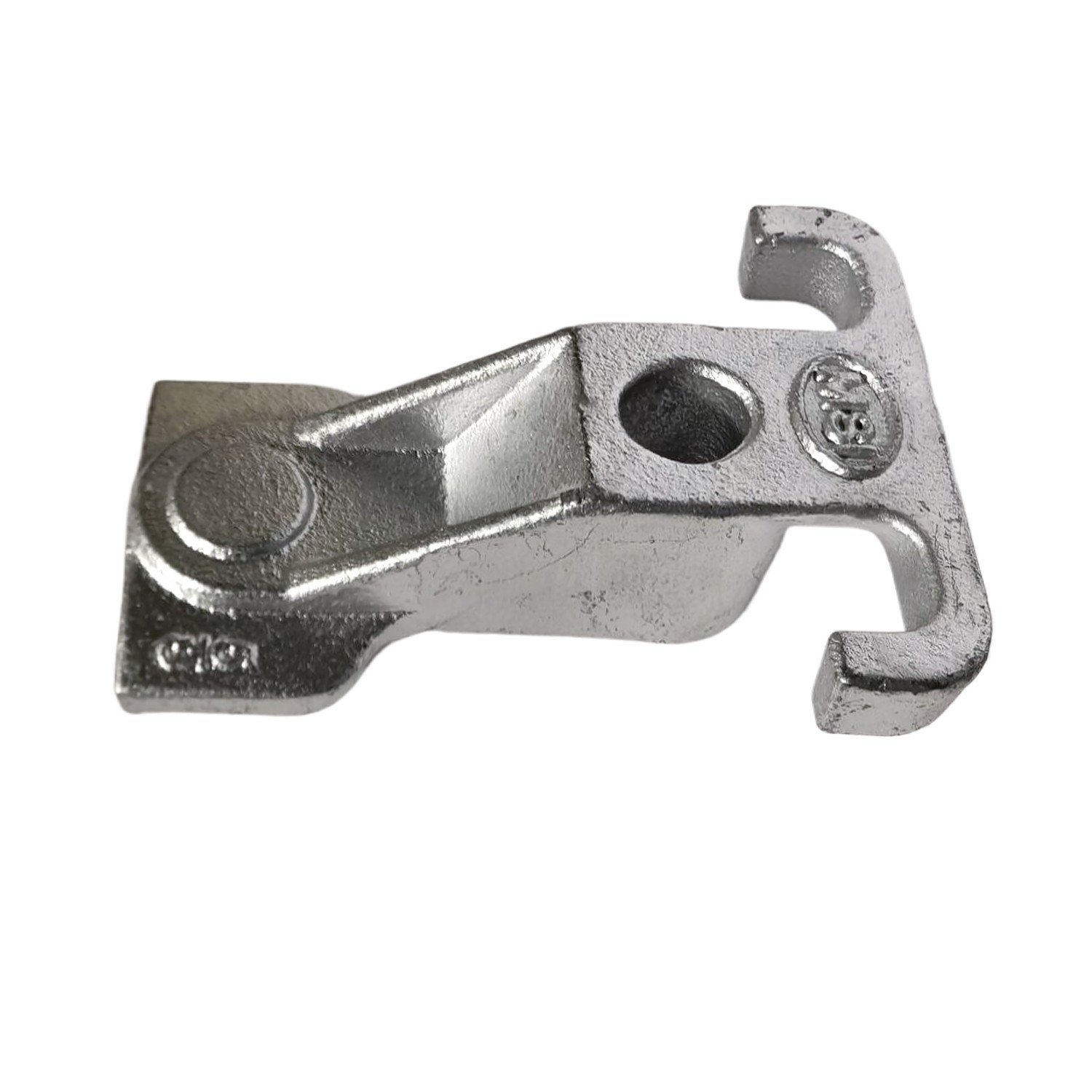

Ductile iron combination guy hook attachment with machined lower bolt clevis hole

Combination attachment on pole with clevis-ended assembly pinned at lower bolt hole

Drawing showing clevis hole diameter, tolerance, and bolt spacing of combination attachment

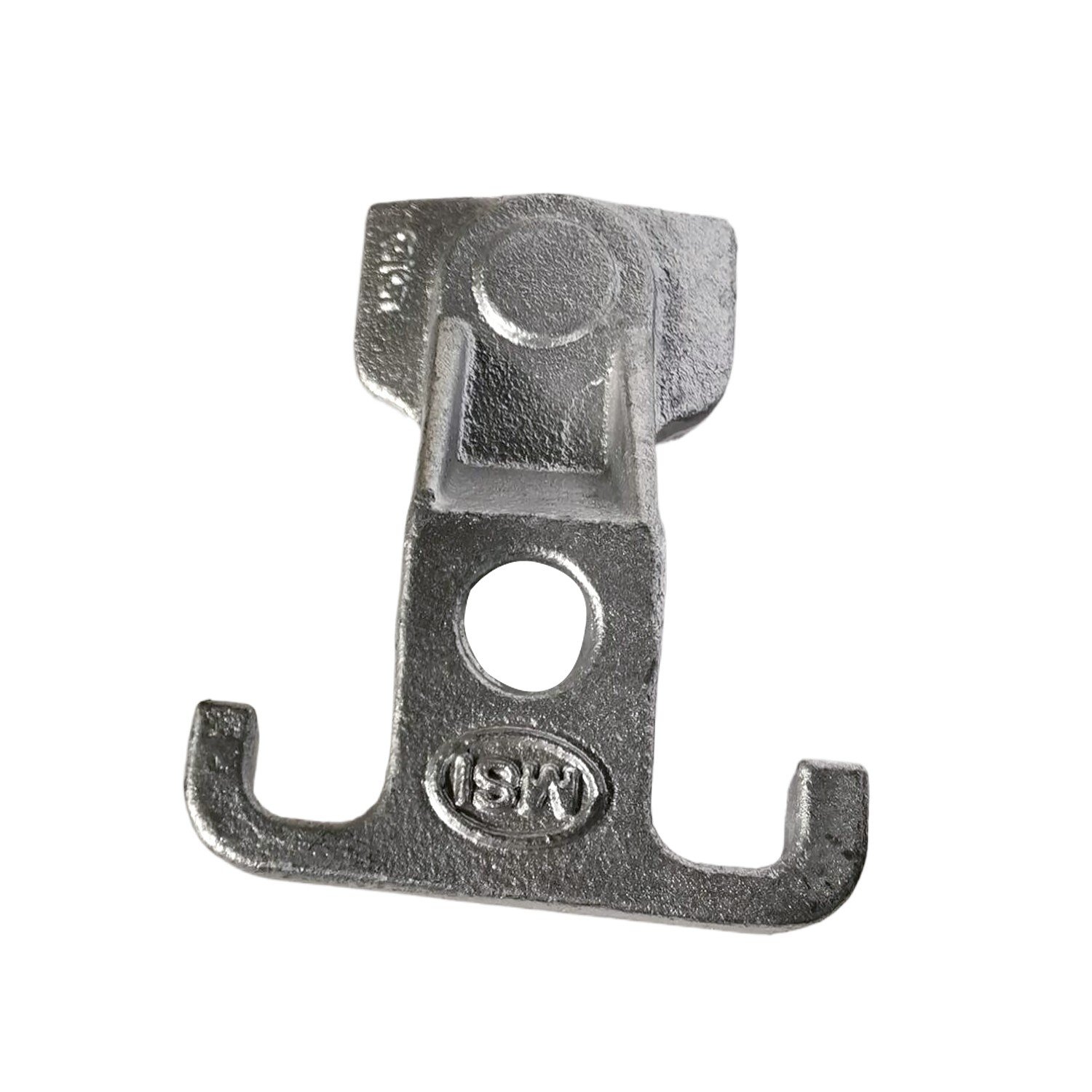

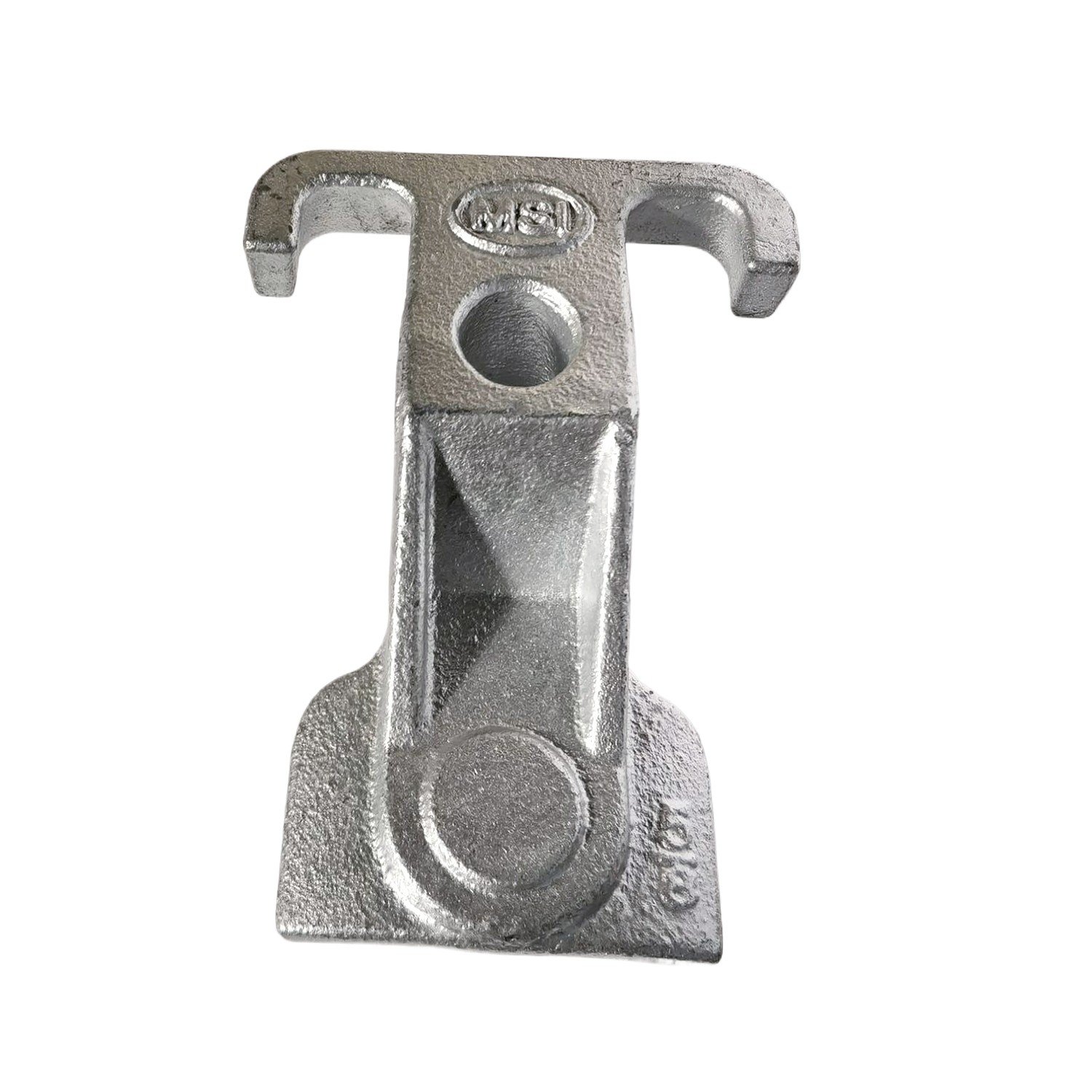

Ductile iron combination guy hook attachment with machined lower bolt clevis hole

Overview

This variant of the combination guy hook / pole eye attachment adds one decisive feature: the lower bolt position is machined as a clevis hole, sized to accept a clevis-ended assembly directly. While the standard combination fitting terminates secondary leads with an open eye, this version lets line crews hang a clevis-type component—such as a hot-line link, ball clevis, or socket clevis—onto the lower bolt, creating a pinned, articulating connection rather than a looped one. The result is a single cast body that provides a hook for the primary guy strand and a clevis-ready station for hooking up assemblies that arrive with clevis tongues or sockets.

The value shows up in restoration and live-line work. When crews replace or inspect components below the attachment, a clevis connection can be opened and re-pinned without cutting or re-looping strand. Cast in ductile iron to ASTM A536 (Grade 65-45-12 or 80-55-06 as load requires), the fitting keeps the strength, ductility, and hot-dip galvanized protection per ASTM A153 expected of load-bearing pole line hardware. The clevis hole is machined to a tight tolerance so the bolt or clevis pin fits without play—critical for assemblies that articulate under wind loading. Because we produce the part by sand casting, the clevis hole diameter can be matched exactly to your pin size, whether that is a standard 5/8" or 3/4" bolt or a utility-specific clevis pin.

Specifications

ParameterTypical Value
MaterialDuctile iron ASTM A536 (65-45-12 / 80-55-06) or EN-GJS-450-10
Rated Load8,000–15,000 lbs (36–67 kN) per connection point, per drawing
Hook OpeningSized for 3/8"–1/2" EHS strand or matching thimble
Eye Diameter1-1/4"–1-3/4" (32–44 mm) inside diameter
Lower Bolt Clevis HoleMachined for 5/8" (16 mm) or 3/4" (19 mm) bolt/clevis pin, close tolerance
Hole Diameter & SpacingUpper bolt holes 11/16"–13/16" (17.5–20.6 mm); spacing per drawing
FinishHot-dip galvanized per ASTM A153
Suitable Guy Wire Size3/8", 7/16" or 1/2" EHS guy strand
Weight Range1.1–3.5 kg per piece
Casting ProcessGreen sand casting, clevis hole and hook machined

Installation & Application

Mounting follows the same practice as the standard combination fitting: a single 5/8" machine bolt through the pole on wood construction, or a two-bolt pattern for concrete poles and heavier loads. The primary guy strand seats into the hook along the guy lead; the clevis hole at the lower position receives the clevis-ended assembly secured with the supplied bolt and nut. Field crews value this arrangement during replacement cycles: the clevis bolt can be removed to swap a hot-line link or insulator assembly below the attachment without disturbing the primary guy, and the pinned connection articulates naturally under wind and temperature movement.

Typical applications include angle poles where a guy and a jumper-support assembly share one attachment zone, and dead-end structures where a socket clevis–terminated lead is hung below the main down guy. We recommend torquing the clevis bolt to the utility standard and confirming that the assembly articulates freely before final tensioning.

Customization & Sampling

We manufacture from your drawing or sample in our sand casting foundry. Clevis hole diameter and tolerance, hook opening, eye diameter, bolt spacing, and body thickness are all configurable. If your crews work with non-standard clevis pins, send the pin dimensions and we will machine the hole to match. Reverse-engineering of legacy fittings, first-article inspection, and material certificates are standard parts of our sampling process, typically completed in 2–4 weeks.

Quality Inspection & Packaging

Quality control includes: dimensional inspection with particular focus on clevis hole diameter and position; mechanical testing of companion cast bars per the specified ASTM A536 grade; galvanizing thickness verification by magnetic gauge; and 100% visual inspection, with magnetic particle inspection of the hook root available on request. Export packaging uses cartons on pallets, 25–50 kg per carton, with moisture-proof liners and customer-specified marking.

FAQ

1. Which clevis components fit the lower bolt hole?

Any clevis or socket assembly whose pin or bolt matches the machined hole—commonly hot-line links, ball clevises, and socket clevises with 5/8" or 3/4" pins.

2. Should I choose this version or the standard combination fitting?

Choose this version when the lower connection is a clevis-ended assembly or when pinned articulation is required; choose the standard version for looped strand leads.

3. Can both the hook and the clevis position be loaded at the same time?

Yes, within the rated load of each connection point; confirm the combined case against your pole loading design.
