Double Groove Trunnion Clamp — Pivoting Pipe Connection

By Nico Yin · Qingdao Zhaoyuqi Machinery Co., Ltd.

Overview

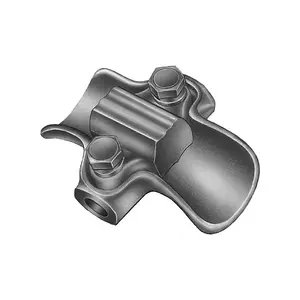

A double groove trunnion clamp is a cast ductile iron pipe clamp featuring two machined or as-cast grooves — typically one on each side or at right angles — that let a bolt, pin, or rod end ride in the groove while the clamp pivots around it. This trunnion action is what separates it from a plain clamp: the connected rod or brace can change angle relative to the pipe as the system moves, loads, or settles, without binding the fastener or prying on the pipe. Typical pipe sizes range from 1/2" through 12" nominal, sized by pipe outside diameter.

Its core use is at the junctions of support systems where forces arrive from more than one direction. A vertical hanger rod may land in one groove while a diagonal sway brace lands in the other, and the double-groove geometry lets each member articulate to its natural angle. That makes the clamp a favored fitting at the tops and bottoms of sway bracing runs, at hanging points where the pipe route turns, and wherever a fixed bolt hole would be overstressed by rotation. The grooves locate the rod axially, resisting slip along the clamp, while the pivot prevents moment loads from feeding into the pipe wall — a combination that prolongs both the fitting and the pipe coating life. Rated loads depend on clamp size and the connected hardware and are confirmed per drawing.

Specifications

Installation & Application

The clamp is placed around the pipe, drawn closed by its bolt, and the rod or pin ends are seated into the grooves. Because the rod locates in the groove rather than a fixed hole, field alignment tolerances are generous. Typical applications include:

• Connection points for sway braces on sprinkler and process piping

• Trunnion points for multi-directional hangers at pipe route turns

• Pivot ends on adjustable support links and tie rods

• Attachment points for equipment tie-downs subject to angular movement

For braced systems, the double groove pairs naturally with a sway brace swivel attachment at the structure end and a pipe hanger flange at the pipe end, completing a fully articulated support chain.

Customization & Sampling

Groove angle, groove width, clamp bore, and bolt pattern are cast and machined to your drawing. We produce matched pin-and-groove sets, widened bodies for heavy bracing, and metric hardware. First-article samples are submitted for groove-fit and dimensional approval.

Quality Inspection & Packaging

Grooves are inspected for width, depth, and position; bodies are dimensionally checked to ISO 8062 and material-verified to the ASTM A536 heat. Galvanized lots are thickness-checked per ASTM A123. Clamps ship with hardware bagged per clamp on export pallets.
