Sway Brace Swivel Attachment — Pivoting End for Pipe Bracing

By Nico Yin · Qingdao Zhaoyuqi Machinery Co., Ltd.

Overview

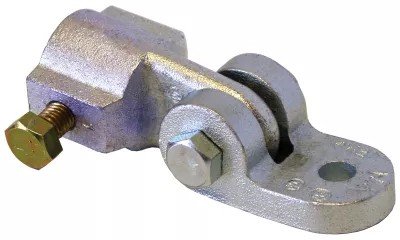

A sway brace swivel attachment is a cast ductile iron end fitting that connects a diagonal sway brace to a pipe, hanger, or structure while allowing the brace to swivel through an angular range. The swivel — typically a spherical or pin-jointed eye machined into the casting — is the feature that distinguishes it from a fixed brace lug: diagonal bracing almost never lands at the exact angle the drawing intended, and a fixed eye would force the brace into bending or leave the connection loose. The swivel self-aligns to the installed angle, keeping the brace in axial tension or compression as designed.

Its core use is restraining pipe systems against sway — the side-to-side and end-to-end motion caused by seismic events, wind on exposed piping, equipment vibration, or valve closure transients. Typical rod sizes run 3/8" through 1", with rated capacities confirmed per casting design and drawing. In a braced hanger assembly, the swivel attachment sits at one end of the diagonal brace, a double groove trunnion clamp or similar fitting grips the pipe at the other end, and a ceiling flange or structural attachment anchors the brace to the building. Because the swivel rotates, one casting serves braces at many different field angles — a real advantage for distributors stocking one part instead of several angle-specific fittings.

Specifications

Installation & Application

The swivel body threads onto the brace rod, the eye engages the pin or bolt at the pipe-side connection, and the rod thread sets brace length before final tightening. The swivel absorbs the angular misalignment, so the brace loads axially as intended. Typical applications include:

• Lateral and longitudinal sway bracing on sprinkler and process piping

• Braced hanger assemblies in mechanical rooms and pipe racks

• Restraint of equipment piping subject to vibration or transients

• Wind bracing of exposed rooftop and trestle piping

Bracing spacing, angles, and capacity follow the governing piping and building standards for the project; the attachment provides the articulated connection within that design, and seismic acceptability is confirmed by the responsible engineer for each installation.

Customization & Sampling

Swivel eye diameter, thread size, body shape, and pin arrangement are cast to drawing. Options include double-swivel bodies for two-plane braces, integral rod sockets, and machined seats for tight pin fits. First-article samples are submitted for swivel action and fit approval.

Quality Inspection & Packaging

Swivel seats are inspected for geometry and free articulation; threads are gauge-checked; castings are verified to ISO 8062 dimensions and the ASTM A536 heat record. Galvanized lots receive coating-thickness checks per ASTM A123. Parts ship thread-protected in cartons on export pallets.

FAQ

Why a swivel instead of a fixed brace eye?

Diagonal braces rarely land at the exact design angle; the swivel self-aligns so the brace works axially instead of bending the eye loose — one part also covers many field angles.

Can this be used in seismic bracing systems?

It is commonly used as the articulated end of sway braces; conformance with project seismic requirements — such as installations following NFPA 130 or FM conventions — is confirmed by the responsible engineer, as the attachment itself is supplied without certification claims.

Does the swivel loosen over time?

The thread is locked per the brace hardware practice (e.g., jam nut), while the swivel joint itself rotates only under installation and movement loads.
