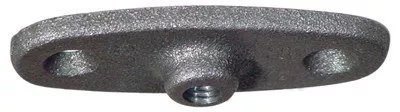

A threaded ceiling flange rod is a cast ductile iron fitting that anchors a suspended pipe hanger to an overhead surface — a concrete soffit, steel deck, or ceiling grid — and provides a threaded interface for the hanger rod. The flange face sits flat against the structure and distributes the hanger load over a bearing area, while the integral threaded boss or through-connection engages standard continuous-thread rod. Typical rod sizes are 3/8" through 1" diameter, with rated loads confirmed per size and casting design.
The core purpose is to convert a point attachment on the ceiling into an adjustable hanging point. Because the rod threads into the flange, hanging depth is continuously adjustable — the installer sets the pipe to level by screwing the rod up or down instead of cutting rod to length. In a typical overhead installation chain, this flange is the top element, feeding a hanger rod that may pass through a swivel attachment, a pipe hanger flange at the pipe, or a beam clamp alternative such as our universal C-type clamp where drilling the slab is not permitted. Cast in ASTM A536 ductile iron, the fitting provides the strength margin expected of a primary support element in HVAC, fire protection, and process piping systems.
| Item | Typical Value |
|---|---|
| Material | ASTM A536 65-45-12 / EN-GJS-400-15 or 500-7 |
| Rod / Thread Range | 3/8" – 1" threaded rod; UNC standard, metric optional |
| Load Rating | Typical rated load by rod size, per drawing |
| Adjustment | Continuous thread engagement for hanging depth |
| Flange Face | Flat or countersunk bolt-hole base per drawing |
| Coating | Hot-dip galvanized per ASTM A123 / black paint / epoxy / zinc plated |
| Casting Process | Green sand / resin sand casting, threads machined |
| Tolerance | ISO 8062; thread gauge verified |
The flange is anchored with bolts, wedge anchors, or suitable concrete inserts, then the rod is threaded in to depth. Thread engagement length should follow the hanger standard applicable to the project. Typical applications include:
Overhead suspension of fire protection mains and branch lines
HVAC duct and pipe hangers from concrete soffits and steel decks
Suspended equipment and control-box drop rods
Adjustable-height hanger points in plant rooms and parking structures
Base plates for rod-supported sway brace assemblies
Where the structure is steel and drilling is restricted, pair the flange with a universal C-type clamp on the beam; where the pipe end needs pivoting restraint, combine with a sway brace swivel attachment.
Flange diameter, thickness, bolt-hole pattern, thread size, and boss height are cast to drawing. Integral swivel bosses, double-rod versions, and slotted flanges for position adjustment are available. Samples are provided for thread gauge and load-fit approval before production.
Threads are gauge-checked on every size in the lot; castings are dimensionally inspected to ISO 8062 and verified to the ASTM A536 heat record. Coated lots receive coating-thickness verification per ASTM A123. Parts ship with thread protection in cartons on export pallets.
Can this flange be used in seismic bracing systems?
It commonly serves as the structural end of a braced hanger; the project engineer confirms acceptability under the governing seismic standard for the installation.
What thread standards do you offer?
UNC continuous thread is standard; metric and BS thread forms are produced to order, all machined and gauge-verified.
How is load capacity determined?
Rated loads are set by casting design and rod size and confirmed by drawing; we can support qualification testing on request.
