Support Bracket — Cast Wall-Mounted Pipe Support

By Nico Yin · Qingdao Zhaoyuqi Machinery Co., Ltd.

Overview

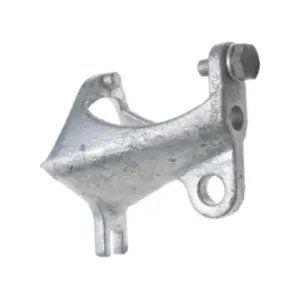

A support bracket is a cast ductile iron arm or shelf that projects from a wall, column, or steelwork and carries a pipe, valve, or small equipment item on its top face. Typical sizes serve pipe lines from 1/2" through 24" nominal diameter, with rated loads set by bracket geometry and anchorage and confirmed per drawing. Unlike a saddle or roll, which the pipe lies in along the run, the bracket is a fixed-point support: it locates the line vertically and laterally at intervals, at direction changes, and at heavy concentrations of mass such as valves and meters.

Its core engineering value is adjustability without machining. The wall face and the top face carry slotted holes, so the installer can shift the bracket horizontally on its anchors, slide the pipe position along the arm, or mount two pipe lines on one bracket by adding clamp hardware. This is why brackets remain standard on mechanical room walls, building columns, and pipe chases where blockouts never land where the drawing says they should. Cast in ASTM A536 ductile iron, the bracket arm carries bending load with a visible margin over gray iron equivalents, and the casting can integrate gussets, raised pipe cradles, and bolt bosses at negligible added cost.

Specifications

Installation & Application

The bracket is anchored through its slots to concrete, block, or steelwork, leveled, and then loaded with the pipe resting on the arm — held by clamps, U-bolts, or pipe shoes as the design requires. Slot adjustment absorbs construction tolerance and lets one bracket casting serve several pipe elevations. Typical applications include:

• Wall support of horizontal mains in plant rooms and basements

• Valve and strainer stations where mass concentrates at one point

• Column-mounted supports along structural steel lines

• Multi-pipe chases carrying parallel lines on stacked brackets

• Equipment shelves for small pumps, tanks, and control assemblies

Along a run, brackets act as the fixed points between which single pipe rolls allow thermal movement; at vertical drops, they pair with pipe hanger flanges above.

Customization & Sampling

Arm length, slot pattern, cradle radius, and gusset layout are cast to your drawing. Options include raised pipe saddles on the arm, double-arm brackets for two elevations, and integral ribs for heavy loads. First-article samples support anchor-fit and load approval before production.

Quality Inspection & Packaging

Brackets are dimensionally inspected to ISO 8062 and the customer drawing, slot positions checked for clamp fit, and material verified to the ASTM A536 heat record. Galvanized coating thickness is verified per ASTM A123. Parts nest in cartons on export pallets, hardware bagged separately.

FAQ

How is the bracket adjusted on site?

Through slotted mounting and top holes — the bracket shifts horizontally and the pipe position slides along the arm before final torquing.

Can one bracket carry two pipes?

Yes, with suitable clamps or a double-arm design; send the two pipe sizes and spacing and we cast the bracket to suit.

What limits the rated load?

The arm's cast section, the anchorage, and the supporting wall — the rated value is confirmed per drawing, and anchorage must be designed for the same load.
