Adjustable Pipe Saddle Support with U-Bolt

By Nico Yin · Qingdao Zhaoyuqi Machinery Co., Ltd.

Overview

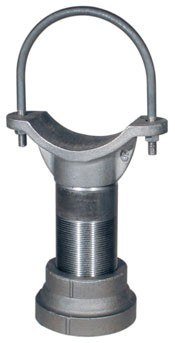

An adjustable pipe saddle support with U-bolt is a floor- or structure-mounted pipe support that combines a cast ductile iron saddle — a curved cradle matched to the pipe outside diameter — with a U-bolt that wraps over the top of the pipe and threads into the saddle lugs. The saddle carries the pipe's weight and transfers it to a base plate or structural member, while the U-bolt restrains the pipe against uplift, lateral kick, and small axial movements. Typical sizes cover pipe from 1/2" through 24" nominal diameter, with each saddle radius matched to the pipe OD.

Its core use is supporting horizontal runs of pipe above grade: on stands alongside compressor stations, on pump skids, in plant rooms, and along pipe racks where hangers from above are not available. The "adjustable" function works two ways. Height is set through a threaded stem, spacers, or multiple mounting hole positions in the base, letting the installer level the pipe line after the structure is fixed. The U-bolt then provides fine clamping adjustment — it is the difference between a pipe merely resting in a cradle and a pipe positively held through thermal cycling and vibration. Rated loads depend on saddle size and mounting configuration and are confirmed per drawing.

Specifications

Installation & Application

Installation follows a simple sequence: anchor the base to concrete or steel, set the saddle to height, lay the pipe in the cradle, then swing the U-bolt over and torque the nuts evenly. Because height is adjustable after anchoring, one saddle design can absorb foundation tolerance across a whole pipe run. Typical applications include:

• Above-grade support of water, HVAC, and process piping where ceiling hangers are impractical

• Pump suction and discharge headers on skids and slabs

• Pipe rack lines requiring periodic re-leveling as structures settle

• Runs subject to moderate vibration where U-bolt restraint prevents pipe walking

Saddle spacing follows the governing piping code and pipe size; where thermal growth is significant, alternate supports with rollers — such as our single pipe roll — are used at intervals between fixed saddles.

Customization & Sampling

We cast saddles to your pipe OD, hole pattern, and stem specification. Options include integral base plates, extended stems, double U-bolts for tall stands, and slotted holes for post-set adjustment. First-article samples are submitted for dimensional approval before volume production, and pattern amortization is available for distributor programs.

Quality Inspection & Packaging

Each lot is dimensionally inspected to ISO 8062 casting grades and customer drawing, material-verified against the ASTM A536 heat, and — for galvanized lots — coating-thickness checked per ASTM A123. Parts ship nested in cartons on export pallets, with U-bolts and hardware bagged per support.

FAQ

Why use a U-bolt on a saddle support?

The saddle carries weight; the U-bolt restrains movement. Together they stop uplift, lateral drift, and creep from thermal cycling — a bare cradle only works where the pipe can never move.

How is height adjusted?

Through a threaded stem or stepped mounting holes depending on the design; both allow the line to be leveled after the base is anchored.

Do you supply the U-bolts with the saddle?

Yes, matched U-bolts, nuts, and washers are quoted with the casting so the clamp radius and thread length arrive as a kit.

Related Products

• Single Pipe Roll — roller support for axial thermal movement

• Pipe Hanger Flange — overhead hanger counterpart to floor saddles

• Support Bracket — wall-mounted support from the same program

• Universal C-Type Clamp — beam attachment for hanger rods

• Square Flat Washer — bearing washers under saddle anchor bolts
