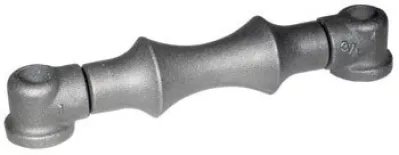

A single pipe roll is a pipe support in which the pipe rests on a cylindrical roller carried in a cast ductile iron frame, rather than on a fixed saddle. Typical sizes cover pipe from 1/2" through 24" nominal diameter, with the roll radius matched to the pipe outside diameter and rated loads confirmed per size and frame design. The roller is the entire point of the design: as the pipe heats and cools, it grows and shrinks axially, and a fixed cradle would fight that movement — scraping coatings, adding stress to anchors, and transmitting loads into the structure. A roll lets the pipe slide by rolling, with far less friction than sliding contact.
Its core use is on long horizontal runs where thermal expansion is real: steam and hot water mains, district heating lines, exposed rooftop piping, and any outdoor run crossing wide temperature swings. In a correctly engineered system, fixed points — saddles, brackets, and anchors — locate the line, and single pipe rolls are placed between them to carry weight while the pipe moves freely. Side shields or frame bosses keep the roller aligned as the pipe rolls, and the frame top accepts a hanger rod or stand attachment depending on whether the support hangs or stands. Cast in ASTM A536 ductile iron, the frame and roll resist crushing and corrosion once coated, and the rolling action preserves pipe coatings for decades of thermal cycling.
| Item | Typical Value |
|---|---|
| Material | Frame ASTM A536 65-45-12 / EN-GJS-400-15 or 500-7; roll steel or ductile iron |
| Pipe Size Range | 1/2" – 24" nominal pipe; roll radius per pipe OD |
| Load Rating | Typical rated load by size, confirmed per drawing |
| Movement | Free axial rolling; side retention by frame shields |
| Adjustment | Threaded rod connection or stepped stand holes |
| Coating | Hot-dip galvanized per ASTM A123 / black paint / epoxy |
| Casting Process | Green sand / resin sand casting |
| Tolerance | ISO 8062 |
The roll frame is hung from a rod or mounted on a stand, the roller is set in the frame, and the pipe is laid on top — no clamping, so axial freedom is preserved from the first day. Roll spacing follows the piping design and is typically alternated with fixed supports. Typical applications include:
Steam, condensate, and hot water mains with seasonal expansion
District heating and cooling distribution piping
Long rooftop and trestle pipe runs exposed to sun and weather
Plant piping where anchor loads must be minimized between fixed points
Where the run passes through a fixed point or needs restraint, the roll is replaced or supplemented by an adjustable saddle support with U-bolt; at braced zones, hangers are combined with sway brace attachments.
Roll diameter, frame width, rod size, and stand height are produced to drawing. Options include extended frames for insulated pipe, grooved rolls for small bores, and stainless or bronze roll surfaces for special service. First-article samples confirm roll fit and rotation before production.
Frames are inspected to ISO 8062 dimensions and verified to the ASTM A536 heat record; rolls are checked for diameter, roundness, and free rotation in the frame. Galvanized lots are thickness-checked per ASTM A123. Parts ship assembled or kit-packed on export pallets.
When should I choose a roll instead of a saddle?
Wherever axial thermal movement occurs. Fixed saddles belong at anchors and direction changes; rolls carry the load in between so expansion does not fight the support.
Does the pipe stay aligned on the roller?
Yes — frame shields or side bosses retain the roll, and the pipe's own weight keeps it in the cradle during normal service.
Can rolls handle insulated pipe?
Yes, with extended frames sized to the insulation OD; send the insulation thickness and we size the roll accordingly.
