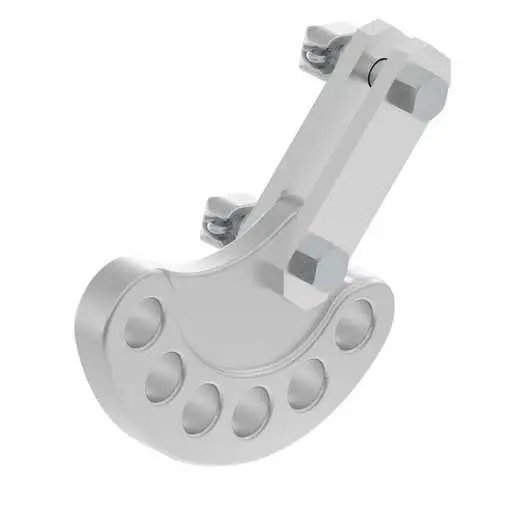

The yoke tension adjusting fitting is a cast pole line component designed to connect and fine-tune the tension of guy wires in an overhead distribution or transmission guying system. Unlike a standard fixed yoke plate, this fitting incorporates an adjusting mechanism—typically a threaded or slotted interface—so line crews can increase or decrease guy tension after initial installation, compensating for strand stretch, pole settlement, or seasonal loading changes. Cast from ductile iron (commonly specified to ASTM A536 Grade 65-45-12 or EN-GJS-400-15), the part combines the tensile strength required for permanent guying duty with enough ductility to resist brittle fracture under shock loads such as ice shedding or wind gusts.
In a typical distribution line application, the yoke tension adjusting unit sits between the guy strand assembly and the pole attachment hardware, allowing the utility to maintain specified sag and tension values throughout the life of the line. Proper guy tension is critical: under-tensioned guys allow excessive pole movement, while over-tensioned guys impose unnecessary compressive loads on the pole. This fitting gives maintenance crews a practical, repeatable way to keep the guying system within design limits without cutting and re-splicing strand. Because the component is produced by sand casting, hole positions, thread specifications, and overall geometry can be adapted to match utility standards at modest tooling cost, making it a practical choice for both standard and utility-specific pole line hardware programs.
| Parameter | Typical Value |
|---|---|
| Material | Ductile iron ASTM A536 (65-45-12) / EN-GJS-400-15, EN-GJS-450-10 or EN-GJS-500-7 on request |
| Rated Load | 5,000–15,000 lbs (22–67 kN), rated to match guy strand class |
| Hole Diameter & Spacing | 13/16" (20.6 mm) or 17/32" (13.5 mm) holes; spacing 1-1/2"–3" per customer drawing |
| Bolt Size | 5/8" (16 mm) or 3/4" (19 mm) machine bolts |
| Adjusting Range | Threaded adjustment of approx. 2"–6" (50–150 mm) depending on model |
| Finish | Hot-dip galvanized per ASTM A153 |
| Suitable Guy Wire Size | 3/8", 7/16" or 1/2" high-strength guy strand (EHS) |
| Weight Range | 0.8–3.5 kg per piece |
| Casting Process | Green sand casting (sand mold), machining of threads and critical faces |
Field experience shows that tension adjusting fittings deliver the most value on long tangent spans, river crossings, and lines subject to large temperature swings. On wood poles, the fitting is mounted below the pole top with a 5/8" through bolt; on concrete or spun poles, a suitable bolt-and-eye arrangement or dedicated eye plate is used. Crews should back off the locknut, adjust tension with the appropriate tool until the target guy tension is reached, then re-torque the locknut so vibration cannot loosen the thread. We recommend checking adjustment once after the first few months of service, when strand and fittings have bedded in.
In urban retrofits, this fitting is often combined with a yoke plate or a span type attachment to share loads across multiple guy leads. Utilities in coastal areas frequently request a heavier galvanized coating; please advise us at the RFQ stage so the zinc weight can be specified.
As a casting factory, we manufacture from your drawings or from a physical sample: send us the part and we will reverse-engineer it, confirm material grade by spectrometer analysis, and supply first-article castings for approval. Tooling for sand casting is inexpensive compared with forged or machined-only alternatives, so custom hole spacing, thread sizes (UNC/UNF, metric), or modified adjusting lengths are economically viable even at moderate volumes. Sample lead time is typically 2–4 weeks after drawing confirmation, and we support utility approval procedures with material certificates (EN 10204 3.1 equivalent).
Every production lot is checked for dimensional accuracy against the approved drawing, thread fit, galvanizing thickness (magnetic gauge), and mechanical properties of companion test bars cast with the lot. Visual inspection covers surface defects, and a magnetic particle check can be applied to critical stress areas on request. Parts are galvanized after machining of load-bearing faces where the drawing requires it. Packaging uses export-grade cartons on pallets, typically 25–50 kg per carton, with moisture-proof liners; custom labeling and barcode marking are available.
1. Can the adjusting thread be supplied in metric sizes?
Yes. We can cast and machine metric threads (e.g., M16, M20) as well as UNC threads to match your existing hardware stock.
2. How do you guarantee the cast part matches the strength of the original fitting?
We cast companion test bars with each lot and verify tensile and yield properties against the specified ASTM A536 grade, and we run first-article dimensional inspection before mass production.
3. What is the minimum order quantity for a custom version?
Because sand casting tooling is low-cost, custom variants are practical from around 500–1,000 pcs depending on size; smaller pilot quantities can be arranged after sampling.
