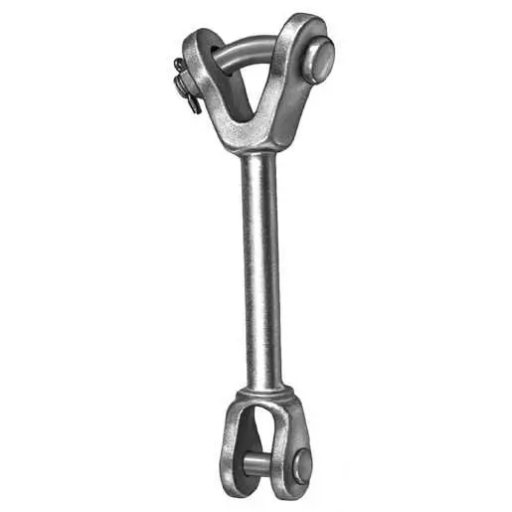

A hot line link is a disconnectable link fitting installed in overhead insulator strings so that line crews can open the string with a hot-line stick — without unpinning hardware or de-tensioning the conductor. This version combines a Y-clevis end, which captures a ball or socket tongue, with a clevis end that pins to the next fitting in the string. In normal service the link behaves like any other string hardware, carrying the rated tension of the assembly; during maintenance, the lineman pulls the locking pin with a stick hook and the string separates at the link, creating a working gap for insulator replacement, recloser work, or conductor lifting.
The value of a hot line link shows up in outage statistics. Strings without a disconnect point force crews to rig slings and hoists just to break a connection; with a link at the right position, the swap becomes a two-minute stick operation. Foundry practice matters here as much as design: the hook-in jaw must hold its geometry under repeated open/close cycles, so we cast the link in ductile iron, machine the pin bores, and verify the locking features dimensionally on every lot before hot-dip galvanizing.
| Item | Typical Value |
|---|---|
| Material | Ductile iron ASTM A536 (65-45-12 typical); malleable iron option |
| Strength Rating | Ultimate tensile strength typically 15,000–25,000 lbs class, matching string hardware |
| Hole Diameter | 13/16" clevis and y-clevis bores typical; 11/16" light-duty variants |
| Hole Spacing | Pin center distance per customer drawing |
| Finish | Hot-dip galvanized per ASTM A153 |
| Suitable Insulator String | Suspension (ball-and-socket) strings and polymer long-rod assemblies |
| Weight Range | Approx. 1.0–2.2 kg per piece |
| Casting Process | Green sand casting, shot-blasted, bores and jaw faces machined |
| Standard | Manufactured to ANSI C29-series line hardware conventions |
Install the hot line link at the upper end of the string, between the structure's yoke or ball eye and the insulator, so crews reach it with a stick from the pole or bucket. Field recommendations drawn from customer experience:
Position the link on the tension side, not in jumper loops, so the disconnect gap is meaningful.
Use the supplied cotter or locking ball and replace any pin that shows wear after repeated live-line operations.
Inspect galvanizing at the jaw contact points annually in coastal or industrial atmospheres — this is where coating wears first.
Typical users include investor-owned utilities doing routine insulator replacement, rural cooperatives planning storm restoration, and contractors building switchable transformer drops. The Y-clevis end accepts standard ball hardware; the clevis end pins to the string's next link, keeping the whole assembly within one strength class.
We cast hot line links to drawing or sample. Common variants include a tongue (clevis-to-clevis) configuration, extended y-clevis jaws for oversized ball ends, and stainless locking pin options for high-corrosion routes. Sample lead time is typically 2–3 weeks, with first-article dimensional reports for utility approval.
Every lot receives: go/no-go gauging of both pin bores and jaw width; magnetic-thickness verification of hot-dip galvanizing per ASTM A153; and scheduled tensile sampling to confirm the rated strength class. Locking feature engagement is function-checked on sample pieces per lot. Parts ship 50 per carton, palletized with lot traceability.
Q: How does a hot line link differ from a Y-clevis clevis?
A: A Y-clevis clevis is a fixed adapter link — once pinned, it is opened only by hand with the string de-tensioned. The hot line link adds a stick-operable disconnect function for live-line maintenance.
Q: Can it be used on dead-end assemblies?
A: It is typically specified for suspension strings and switchable drops; dead-end tension points usually use dedicated strain hardware.
Q: What pin system does it use?
A: Standard 13/16" bore cotter-pinned hardware; stainless locking balls are available as an option.
Y-Clevis Clevis — fixed adapter version
Specify your string hardware and preferred locking system — we will quote the hot line link with matched pins and return samples for field trial.
WhatsApp: +86 185 6156 7088, or send the RFQ through the inquiry form.
Need a formal quotation? Send your Hot Line Link (Y-Clevis / Clevis) for Live-Line Disconnect drawing, quantity and target price through our request for quotation form — it goes straight to the foundry inbox, and we reply with a priced offer, material certificate draft and production lead time within one business day.
