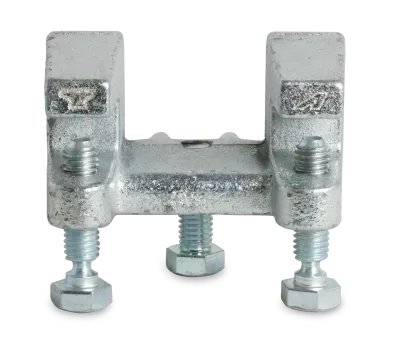

A universal structural seismic brace attachment is a cast ductile iron fitting that anchors the structure-side end of a lateral or longitudinal brace to beams, concrete, or equipment supports. "Universal" refers to its connection layout: multiple holes and slots oriented in different directions let the same casting accept a diagonal brace, a straight restraint strut, or a hanger rod, singly or in combination. Typical rod and brace sizes run 3/8" through 1", with rated capacities confirmed per casting design and drawing.
Its core purpose is to complete seismic restraint systems for pipe and equipment — the last, most heavily loaded element between the bracing scheme on paper and the building structure. Where a sway brace swivel attachment provides the articulated end at the pipe, this attachment provides the structural end: it is anchored with bolts or wedge anchors, and its slotted holes absorb the position tolerance between the brace geometry the design calculated and the structure as built. In installations following NFPA 130 or FM engineering conventions, the bracing layout, angles, and capacities are set by the responsible design engineer; this attachment supplies the cast connection point within that scheme, without any certification claim from the manufacturer. Cast in ASTM A536 ductile iron, the body carries the tension-compression cycling expected of restraint hardware with the ductility that gray iron cannot offer.
| Item | Typical Value |
|---|---|
| Material | ASTM A536 65-45-12 / EN-GJS-400-15 or 500-7 |
| Rod / Brace Range | 3/8" – 1" rod or brace members; hardware per drawing |
| Connection Layout | Multi-directional holes and slots for universal use |
| Load Rating | Typical rated capacity by size and bolt pattern, per drawing |
| Attachment | Anchored to steel or concrete; fasteners per design |
| Coating | Hot-dip galvanized per ASTM A123 / black paint / epoxy |
| Casting Process | Green sand / resin sand casting |
| Tolerance | ISO 8062; slot edges deburred, critical holes machined |
The attachment is fixed to the structure through its base holes, the brace is connected through the appropriate hole or slot, and hardware is torqued per the bracing design. Slot orientation lets one casting serve braces arriving from several directions — the reason stockists carry one part instead of a family of angle-specific lugs. Typical applications include:
Structure-end anchoring of lateral and longitudinal seismic braces on piping
Four-way restraint of suspended equipment and tanks
Tie points between braced hanger runs and building frames
Equipment skid restraint where multi-direction loads converge
Brace spacing, angles, and component capacity are established by the governing project standard; the attachment is selected for its geometry and rated capacity within that design. Combined with sway brace swivel attachments at the pipe side and double groove trunnion clamps at the braced point, it completes a fully cast restraint chain.
Slot positions, hole diameters, base pattern, and brace-connection geometry are cast to your drawing. Options include reinforced ribs for high-capacity braces, double-attachment bodies, and machined pin seats. First-article samples support structural fit-up review before production.
Critical holes and slots are inspected for position and size; castings are verified to ISO 8062 and traced to the ASTM A536 heat record; galvanized coating thickness is checked per ASTM A123. Parts ship in cartons on export pallets, hardware bagged per attachment.
What does "universal" mean for this attachment?
One casting carries holes and slots in several directions, so it accepts diagonal braces, straight struts, and hanger rods in different combinations — simplifying both design and stock.
Is the attachment certified for seismic use?
We supply the casting with material certificates and rated capacities. Acceptance for seismic installations — including projects following NFPA 130 or FM conventions — is determined by the responsible engineer and any required qualification of the complete assembly, which we support with test data on request.
How are loads confirmed?
Rated capacities are established by casting design and confirmed per drawing; anchorage to the structure must be designed for the same loads.
Sway Brace Swivel Attachment — articulated pipe-side end of the brace
Universal C-Type Clamp — no-drill attachment for steel beams
Pipe Hanger Flange — pipe-end hanger in braced runs
Support Bracket — wall supports for the same piping systems
Double Groove Trunnion Clamp — pivoting clamp at braced pipe points
Send brace sizes, connection layout, and anchor pattern — we confirm the casting design, rated capacity, and pricing within one business day. WhatsApp: +86 185 6156 7088 for drawings, samples, and engineering support.
Need a formal quotation? Send your Universal Structural Seismic Brace Attachment drawing, quantity and target price through our RFQ form — it goes straight to the foundry inbox, and we reply with a priced offer, material certificate draft and production lead time within one business day.
