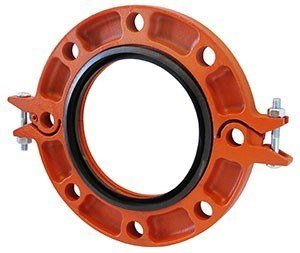

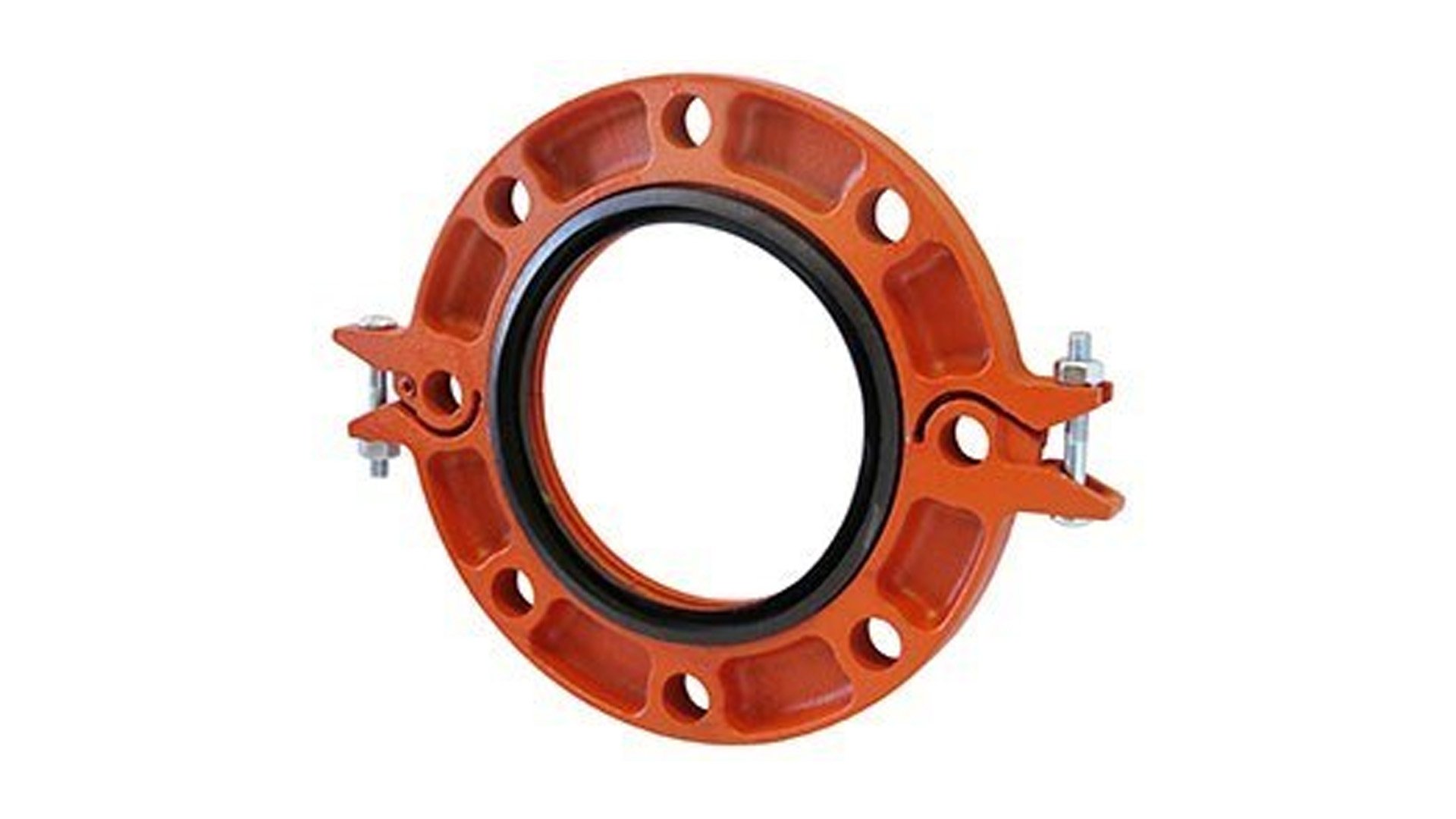

A grooved flange adapter gives grooved piping systems a direct bolt-up to flanged equipment. One end is roll-grooved or cut-grooved pipe interface — a circumferential groove machined to the grooving standard — and the other is a fully machined, drilled flange face. The adapter drops into the housing of a rigid grooved coupling, engages the pipe groove exactly like a length of grooved pipe, and presents a flange to bolt against a valve, pump, strainer, or heat exchanger. For fire protection mains, large HVAC water systems, and plant process lines built on grooved technology, this is the cleanest way to meet flanged equipment: no field welding, no flange kits, no hot work permits inside occupied buildings.
The adapter body is sand cast in ASTM A536 ductile iron (typically 65-45-12, with 80-55-06 and the EN-GJS series quoted to project specification), a material well suited to the job because the flange rim sees bolt bending while the groove barrel sees coupling clamp loads. Groove dimensions are produced referenced to ANSI/AWWA C606 and ISO 6187 grooving systems, so the adapter seats correctly in couplings from the major grooved-system brands. The flange face and drilling pattern are machined after casting — flat or raised face, ANSI/BS/DIN patterns per your order — and concentricity between groove barrel and flange face is checked, because an out-of-true adapter will misload the coupling seal.
| Item | Details |
|---|---|
| Material & Grade | ASTM A536 Grade 65-45-12 typical; 80-55-06 / EN-GJS-400-15 / -450-10 / -500-7 optional |
| Casting Process | Sand casting, barrel and flange rim near net shape |
| Standard Reference | Groove per ANSI/AWWA C606 and ISO 6187; flange drilling to ANSI B16.1/B16.5, BS 10, or DIN |
| Size Range | 1" – 12" typical grooved range |
| Pressure Rating | To grooved system class and flange pattern; typical system ratings apply |
| Grooved End | Machined groove barrel for standard rigid coupling housing |
| Flange End | Machined face, flat or raised; drilled bolt pattern |
| Gasket/Seal | Coupling gasket at grooved end (EPDM standard); gasketed flange joint at flange end |
| Weight Range | Approx. 1 kg – 32 kg per piece |
| Tolerance | ISO 8062 CT10–CT12 as-cast; groove and face machined |
| Surface Finish | Epoxy or paint standard (fire red common); hot-dip galvanized optional |
| Quality System | Quality management system conforming to ISO 9001:2015 requirements |
Because the adapter serves as the meeting point of two standards, we customize on both ends independently: groove depth and width to C606 or a project's specific grooving spec, flange drilling to any of the common patterns or a legacy bolt circle, face type per mating equipment, and coating color per system coding. Fire protection contractors frequently order red-epoxy adapters pre-matched to their coupling brand's groove spec; HVAC distributors order blue or black with mixed flange patterns in one container. Sampling includes groove gauge verification against a reference pipe groove and a flange pattern report, typically within 3–5 weeks of drawing release.
Inspection concentrates on the two load zones: groove diameter, width, and edge condition checked with groove gauges; flange face flatness, bolt-pattern position, and raised-face height verified on sampled pieces. Standard testing — ASTM A536 chemistry and mechanicals, ISO 8062 dimensional audit, coating thickness — completes the file, and assembled leak trials with a mating coupling are available on request. Packaging protects both interfaces: groove barrel sleeved, flange face foam-ringed, sets bagged by size and pattern, cartons palletized with a size/pattern packing list for accurate receiving of mixed shipments.
Q1: Will the adapter fit couplings from other grooved system brands?
Yes, provided the groove is machined to the same C606/ISO 6187 reference dimensions your couplings and pipe use. Tell us the coupling brand and groove spec with your inquiry, and we will confirm dimensional compatibility in writing and supply groove gauge readings with the samples so your first installation is verified before the container arrives.
Q2: Roll groove or cut groove pipe — does it matter for the adapter?
The adapter's groove is machined, which sits between the two pipe grooving styles in edge finish. Both roll-grooved and cut-grooved pipe systems work with it when groove dimensions match. For thin-wall pipe where roll grooving is preferred, confirm the groove profile with us at order stage so the coupling gasket compression band stays correct across the joint.
Q3: Can it replace a welded flange on a fire main?
That is its core value in fire protection work: a listed-system-style bolt-up to flanged equipment with zero hot work — no fire watch, no drain-down, and a demountable joint for future equipment swaps. We supply fire-red epoxy finish as a standard option and can align coating and marking with your AHJ and distributor requirements.
