Fire Protection Butterfly Valve (Ductile Iron)

Feb 10th, 2025

Fire Protection Butterfly Valve (Ductile Iron)

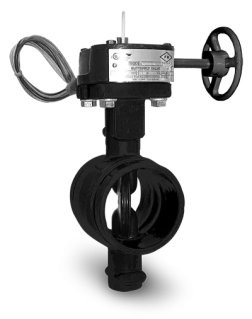

Ductile iron fire protection butterfly valve with red epoxy coating and gear operator

Overview

A fire protection butterfly valve is the isolating valve installed on sprinkler risers, fire pump suction and discharge lines, and underground fire mains, allowing a section of the system to be shut off for testing, maintenance, or emergency control while the rest of the building stays protected. It is a quarter-turn valve: a 90° rotation of the stem turns a circular disc inside the body, and the disc moves edge-on through the flow when open and seats face-on to seal when closed. Bodies are sand cast in ductile iron to ASTM A536, with typical working pressures of 200/250 PSI WOG and nominal sizes from 2" to 24".

What distinguishes a fire protection butterfly valve from a general-duty butterfly valve is its duty environment and documentation. It must hold pressure reliably for years in a standby state, open fully when needed, and in many installations it carries a supervisory switch (a "signal" gear operator) that reports valve position to the fire alarm panel so a partially closed valve is detected immediately. Our valves are cast and machined in-house, fitted with EPDM seats, and supplied with lever, gear, or signal operators. For projects requiring listed products, UL/FM listed versions are available upon request — to be confirmed case by case before order.

Specifications

ItemSpecification
Body / Disc MaterialDuctile iron ASTM A536 (65-45-12)
Seat MaterialEPDM (NBR available for non-potable service)
Stem MaterialStainless steel (typical)
Pressure Class200 / 250 PSI WOG (typical)
Nominal Size2" – 24" (DN50 – DN600, typical)
ConnectionWafer, lugged, or grooved ends (per drawing)
OperatorLever (2"–8" typical), gear or signal gear (larger sizes / supervisory duty)
Applicable MediaWater (fire mains, sprinkler systems); also oil, gas for industrial versions
Temperature Range0°C to +65°C with EPDM seat (typical for fire service)
Casting ProcessSand casting (resin sand), fully machined
Surface CoatingFusion-bonded epoxy, RAL red or per requirement

Typical values for reference only — final parameters to be confirmed against customer drawings.

Working Principle

The valve operates on the quarter-turn principle. Turning the handwheel or lever rotates the stem 90°; the disc, mounted on the stem by a pin or splined connection, swings through the bore. At 0° the disc is edge-on to the flow, offering a short, low-turbulence path; at 90° its face presses concentrically into the EPDM seat, and seat compression — not metal-to-metal force — creates the bubble-tight shutoff. The gear operator multiplies handwheel torque through a worm drive so one person can seat large discs, and it is self-locking so line pressure cannot drift the disc open. The signal version adds supervisory switches that change state within the first few degrees of travel, alerting the fire alarm panel whenever the valve leaves or returns to full open — a requirement in supervised sprinkler systems. Because throttling damages the seat, the valve is used fully open or fully closed.

Customization & Sampling

As the casting factory, we adapt the valve to the project: grooved ends for grooved piping, wafer or lugged drilling to ANSI or EN standards, stainless steel stem and disc, epoxy color and thickness for buried or exposed service, and lever, gear, or signal operators wired to your termination standard. For UL/FM listed requirements, we confirm the applicable listing scope and documentation with you at enquiry stage — certification is handled case by case and never assumed. Sampling: send a specification or sample; first articles with dimensional and material reports are typically ready in 2–4 weeks. OEM branding and project-batched deliveries for contractors are supported.

Quality Inspection & Packaging

Production lots pass casting integrity inspection before machining; dimensional control of wafer width, flange or groove dimensions, and stem alignment; then shell hydrostatic pressure test and seat leakage test with reference to API 598 / MSS SP-67 practice. Operators are cycled to verify smooth 90° travel and full-open/full-close stops; signal operators are function-tested with their switches. ASTM A536 material certificates traceable to heat numbers are available with each shipment. Valves are packed in cartons with end protectors inside export plywood cases, the red epoxy finish protected by foam interleaving; mixed-container loading with our fittings is routine.

FAQ

1. Does this valve have UL/FM certification?

UL/FM listed versions are available upon request — to be confirmed against the specific size and configuration before ordering. We do not claim blanket certification; instead we confirm the listing scope and provide the relevant documentation per project so inspectors and AHJs accept the product.

2. Why is a signal (supervisory) operator required on fire mains?

In supervised sprinkler systems, a valve accidentally left partially closed is a leading cause of fire protection failure. A signal gear operator integrates switches wired to the fire alarm panel that report when the valve is not fully open, so the fault is detected immediately rather than during a fire.

3. Fire protection butterfly valve vs check valve — do I need both?

They perform different jobs. The butterfly valve isolates a section for maintenance or emergency shutoff (manual, quarter-turn). A check valve, such as our Dual Disc Check Valve, prevents reverse flow automatically at pump discharges. Most fire pump installations use both.

Related Products

  • Check Valve — swing type for fire main and water system lines

Get a Quote

Send us the size, end connection, operator type, and project requirements — our engineers will confirm the specification, certification options, and factory price within one working day.

WhatsApp: +86 185 6156 7088 — reach our sales engineers directly for drawings, samples, and quotations.

Need a formal quotation? Send your Fire Protection Butterfly Valve (Ductile Iron) drawing, quantity and target price through our request for quotation form — it goes straight to the foundry inbox, and we reply with a priced offer, material certificate draft and production lead time within one business day.
