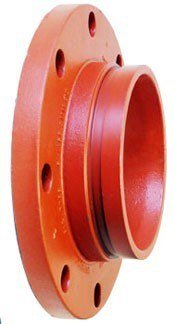

A flange adapter is the bridge between two connection worlds: one end is a female thread that screws onto standard pipe or a threaded equipment nozzle, and the other end is a machined flange face drilled for bolting into a flanged system. With a single fitting, contractors can connect threaded pipework to flanged valves, pumps, strainers, and meters without welding a flange onto the pipe — no hot work permits, no welding consumables, and full demountability afterward. Flange adapters are therefore standard stock for mechanical contractors and pump OEMs: at suction and discharge spools, ahead of control valves, and at any tie-in where a threaded field run meets a flanged piece of equipment.
We cast the adapter body in ASTM A536 ductile iron by sand casting (typically 65-45-12; 80-55-06 and EN-GJS-400-15 / -450-10 / -500-7 to specification), then machine the three functional zones that make the fitting work: the internal thread, the flange face, and the bolt-hole pattern. Ductile iron is the right casting material here because the flange rim carries bolt bending loads; the spheroidal graphite structure tolerates clamp-up stress far better than grey iron. Drilling patterns are produced to your specified standard — ANSI B16.1 / B16.5 class patterns, BS 10, or DIN patterns are all within our machining capability — and face type is selected at order time: flat face for cast-iron equipment, raised face for steel systems.
| Item | Details |
|---|---|
| Material & Grade | ASTM A536 Grade 65-45-12 typical; 80-55-06 / EN-GJS-400-15 / -450-10 / -500-7 optional |
| Casting Process | Sand casting, flange rim cast close to net shape |
| Standard Reference | Flange drilling to ANSI B16.1 / B16.5, BS 10, or DIN patterns; thread per ASME B1.20.1 / ISO 7 |
| Size Range | 1/2" – 12" typical; class ratings to pattern |
| Pressure Rating | Class 125/250 typical for cast patterns; higher to drawing |
| Thread End | Female NPT or BSP/BSPT |
| Flange End | Machined face, flat or raised; bolt holes drilled to pattern |
| Gasket/Seal | Gasketed flange joint (gasket by installer or to order) |
| Weight Range | Approx. 0.5 kg – 30 kg per piece |
| Tolerance | ISO 8062 CT10–CT12 as-cast; flange face machined flat |
| Surface Finish | Black bituminous paint standard; hot-dip galvanized / epoxy optional |
| Quality System | Quality management system conforming to ISO 9001:2015 requirements |
Adapters are highly pattern-and-drill specific, so our customization service is built around that: mixed drilling patterns in one shipment, special bolt-hole count or diameter to match legacy equipment, extra flange thickness for higher clamp loads, integral tapping bosses for gauges, and one-piece adapters with custom overall length. OEM customers often combine several thread sizes onto one flange pattern family to consolidate tooling — we engineer that with them from a sketch. Sampling includes a face-flatness and bolt-pattern gauge report, typically within 3–5 weeks of drawing release, so your trial installation can be bolt-checked before batch production.
Inspection is strongest at the flange: face flatness check, bolt-hole pattern verification against a drilled template or CMM report on sampled pieces, thread gauging at the pipe end, and coating thickness on machined faces. Chemistry and mechanical tests follow ASTM A536 and the dimensional audit follows ISO 8062 CT10–CT12. Adapters are packed with flange faces protected — foam or cardboard rings prevent gasket-surface damage in transit — bagged by size, and cartoned on plywood pallets with a size/pattern packing list so mixed-pattern shipments are received without re-sorting.
Q1: Which flange drilling standards can you supply?
ANSI B16.1 and B16.5 class patterns, BS 10 tables, and DIN patterns are all routine in our machining shop. For unusual or legacy equipment — an old pump with a non-standard bolt circle — send a hand sketch with bolt-circle diameter, hole count, and hole size; we will machine to it and confirm feasibility with the quotation before tooling.
Q2: Flat face or raised face — how do I choose?
Match the mating equipment. Cast iron valves and pump casings usually require flat faces, because a raised face can crack a brittle casing when bolts are clamped; steel flange systems use raised faces with ring gaskets. If your line mixes both, we supply adapters with different face types in one shipment so every joint mates correctly.
Q3: Can the adapter replace welding a flange onto threaded pipe?
That is exactly its purpose. Screw the adapter on, bolt up, and the joint remains demountable for maintenance — no hot work, no welder, and no heat-affected zone near coatings or in confined spaces. For high-vibration lines, add thread sealant and confirm the pipe has adequate thread engagement; our engineers can review the arrangement from a photo or drawing.
