Lightweight Rigid Coupling — Weight-Optimized Ductile Iron Coupling Housing

By Nico Yin · Qingdao Zhaoyuqi Machinery Co., Ltd.

Overview

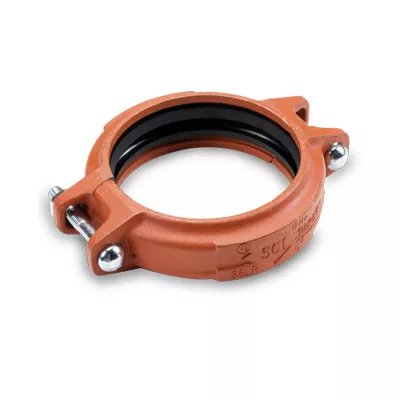

The lightweight rigid coupling is a weight-optimized housing casting for rigid grooved pipe connections. In a grooved system, two coupling halves wrap around grooved pipe ends and are pulled together by bolts; the "rigid" configuration locks the joint against angular deflection and torsion, so the pipeline behaves like a welded line while remaining demountable. The lightweight version reduces housing mass through controlled section design — thinner ribs, optimized pad geometry — without giving up the clamping behavior the rigid joint depends on. The practical payoffs are lower lifting effort on overhead installations, cheaper freight per fitting, and less strain on hangers in suspended ceiling runs and modular skids.

Because the housing is a complex three-dimensional shape, casting — not fabrication — is the economic way to produce it. We sand cast the housings in ASTM A536 ductile iron (65-45-12 standard, 80-55-06 and EN-GJS grades to specification); ductility matters here because the housing flexes slightly under bolt torque every time the joint is made. Key surfaces — the groove-engaging lips, bolt pad faces, and key seats — are machined after casting so bolt loads transfer through defined faces rather than as-cast skin. Tongue and gasket halves, bolts, and gaskets are assembled or supplied loose per your packing instruction, with EPDM gaskets standard for water service.

Specifications

Customization & Sampling

Lightweight housings are always drawing-driven, so customization is the norm rather than the exception. We adjust key width and gap for your pipe grooving standard, change pad geometry to accept your bolt hardware, add lug features for hanger tabs, and match coating color to system coding (red for fire, blue for chilled water, and so on). Because mass reduction is the selling point, we support sampling with weight reports: each sample is weighed and recorded against the target, typically within 3–5 weeks from drawing release. OEM buyers can have their logo cast into the housing exterior.

Quality Inspection & Packaging

Inspection adds casting-specific checks for this geometry: section thickness verification at ribs and pads, hardness mapping to confirm heat treatment response, and load-oriented checks on sampled housings (bolt torque seating and lip engagement against a grooved dummy pipe). Standard chemistry, tensile per ASTM A536, ISO 8062 dimensional audit, and coating thickness tests complete the file. Housings are packed nested to cut freight volume, gaskets and hardware bagged separately or pre-fitted, and cartons palletized with per-size labels. We can print your system color code on each carton face for fast site sorting.

FAQ

Q1: How does a rigid coupling differ from a flexible grooved coupling?

A flexible coupling permits a small angular and linear movement to absorb thermal growth; a rigid coupling clamps the joint so the line acts as a continuous, straight member — important on pump suction and discharge where movement would stress equipment nozzles. The lightweight housing described here is the rigid type; tell us your system and we will confirm which style the drawings call for.

Q2: Will the lightweight housing handle the same bolt torque?

The section optimization is placed away from load paths, and the bolt pads and lips are machined to defined faces, so seating torque performance is maintained for the rated class. Still, torque limits are project-specific: send the pipe size, grooving standard, and test pressure, and we will confirm the rating in writing before sampling.

Q3: Can you supply complete kits with gaskets and bolts?

Yes. We deliver housings as full kits — two castings, EPDM or NBR gasket, bolts and nuts — assembled or bagged as you prefer. Kits reduce site loss of small parts and let your crew install without sourcing hardware separately. Spare gasket packs are available against the same part number for maintenance stock.

Related Products

• Grooved Flange Adapter — grooved-to-flange transition for valves and equipment

• Flange Adapter — threaded-to-flange conversion fitting

• Coupling II — heavy duty threaded coupling for the same mechanical rooms

• Pipe Hanger Flange — suspension interface for overhead grooved runs

• Check Valve — grooved-system pump protection valve

• Casting Properties of Ductile Iron — material background article

Get a Quote

Upload your housing drawing or send the pipe size and grooving standard via WhatsApp: +86 185 6156 7088. We reply with a casting quotation, weight estimate, and sampling plan within 24 hours, and annual-volume pricing is available for distributors stocking grooved systems.

Need a formal quotation? Send your Lightweight Rigid Coupling drawing, quantity and target price through our request for quotation form — it goes straight to the foundry inbox, and we reply with a priced offer, material certificate draft and production lead time within one business day.
