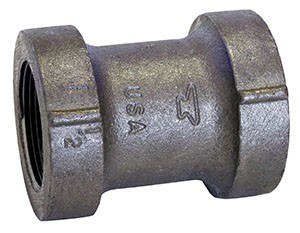

Coupling II — Heavy Duty Ductile Iron Straight Coupling for Fire Protection & HVAC Lines

By Nico Yin · Qingdao Zhaoyuqi Machinery Co., Ltd.

Overview

Coupling II is the reinforced member of our straight ductile iron coupling family. It shares the same basic function — joining two male-threaded pipe ends in a straight run — but it is designed around a heavier casting section and a longer thread engagement length, which is why contractors select it for fire protection risers and cross-mains, sprinkler branch drops, HVAC chilled and condenser water piping, and pump discharge spools. In these systems a coupling is not just a connector; it is a permanent joint that must survive pressure surges, vibration from pumps, and decades without maintenance access.

Material selection is where Coupling II earns its place on the drawing. While the series is available in ASTM A536 65-45-12 as standard, most fire protection and mechanical orders are cast in the higher-strength 80-55-06, and EN-GJS-500-7 can be quoted where European projects specify it. The extra wall thickness produced in our sand casting line, followed by full bore machining and gauge-verified threading, gives the fitting a stronger threaded root and better resistance to over-torque during installation with large pipe wrenches. The result is a coupling that behaves predictably in systems where joint failure is not an option.

Specifications

Customization & Sampling

Fire protection distributors usually need coated, marked, and list-friendly packaging, so Coupling II is customized accordingly: body color per your market (red is common for sprinkler mains), casting or stamped brand marks, and carton artwork with your logo. Engineering customizations include extended body length for thin-wall pipe, left-hand threads on one end for rotating equipment lines, and combined NPT/BSP production in the same shipment. We support sampling before bulk: one or two pieces are cast, machined, gauge-checked, and sent with a dimensional report ( typical sample lead time 2–4 weeks). Drawings in STEP or PDF format are enough to start.

Quality Inspection & Packaging

Inspection follows the same gated flow as the rest of the plant: melt chemistry by spectrometer, tensile/elongation coupons per ASTM A536, hardness check, ISO 8062 dimensional audit, NPT/BSP go-no-go gauge verification on sampled threads, and paint thickness measurement. For fire service orders we can arrange witnessed hydrostatic samples and third-party inspection (SGS/BV style) before container loading. Packaging is export-graded: individual poly bags, labeled inner cartons by size, double-wall master cartons, and plywood pallets banded and stretch-wrapped. Each pallet carries your part numbers so customs and warehouse handling stay simple.

FAQ

Q1: What is the difference between Coupling and Coupling II?

Both are straight threaded couplings, but Coupling II carries a heavier wall and deeper thread engagement for demanding systems such as fire risers and pump discharge. If your line is standard plumbing service, the standard coupling is more economical; if the joint sees surge, vibration, or fire-code duty, specify Coupling II. Send us both drawings and we will quote the two series side by side.

Q2: Can you supply red-painted couplings for sprinkler systems?

Yes. Red anti-rust paint is a standard finish option and is the most common choice for fire protection mains. Hot-dip galvanizing is available for exposed or corrosive environments. Coating thickness is checked per lot, and we can match your market's color convention on repeat orders.

Q3: Will it fit Schedule 40 steel pipe?

Coupling II is dimensioned around Schedule 40 pipe wall on typical sizes. For thin-wall or other schedules, thread depth engagement should be reviewed — send the pipe specification with your inquiry and our engineering team will confirm thread fit or propose a modified body length before sampling.
