Threaded Mechanical Branch Tee – Cast Iron Branch Outlet Fitting

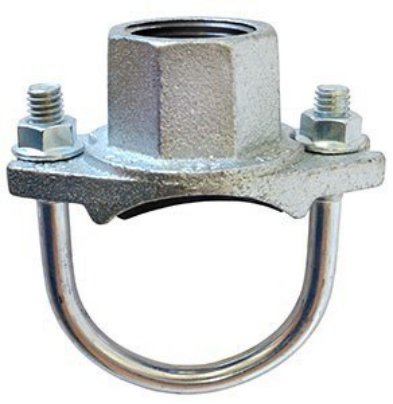

ductile iron threaded mechanical branch tee with NPT branch outlet

Overview

A threaded mechanical branch tee is a mechanical-joint style tee used to create a branched take-off from a main line: the run passes full size through the body, while the branch outlet is provided with a machined threaded connection — NPT or BSP — onto which the branch valve, service line or gauge assembly is screwed. Unlike a reducing tee, whose entire run tapers down, the mechanical branch tee keeps the main flow path at full diameter and adds a controlled branch opening. This makes it the standard pattern for distribution mains that feed multiple smaller services: water utility laterals, sprinkler zone take-offs, air header instrument branches and fire line hydrant leads.

The fitting is resin sand cast in ductile iron to ASTM A536 (65-45-12 / 80-55-06) and EN-GJS-400-15 / -450-10 / -500-7. The run ends can be plain, grooved, flanged or threaded to suit the joint system, while the branch outlet is machined and gauge-checked for the specified thread. Typical run sizes are 3"–24" with branch outlets ¾"–6"; because we cut our own patterns, branch position, branch size and auxiliary boss features are customizable. Hot-dip galvanized and fusion-bonded epoxy finishes support buried and corrosive installations.

Specifications

ItemDetails
Material & GradeDuctile iron ASTM A536 65-45-12 / 80-55-06; EN-GJS-400-15 / -450-10 / -500-7
StandardASME B16.3 for threaded outlets; threads per ASME B1.20.1 (NPT) or ISO 228 (BSP); flanged runs per ASME B16.1 Class 125/250
Run SizeTypical 3" – 24"
Branch OutletTypical ¾" – 6" threaded; size and position to customer drawing
Branch OpeningMachined and gauge-checked; wall reinforcement (boss) cast around branch where required
Pressure RatingTypical to match run joint class; 300 psi WOG for threaded configurations
ThreadNPT / BSPT / BSPP on branch; run ends per joint system
Weight RangeApprox. 3 – 120 kg depending on size
Casting ProcessResin sand casting with cored waterway
Dimensional ToleranceISO 8062, typically CT10–CT12
SurfaceMachined self-color, hot-dip galvanized, FBE epoxy

Customization & Sampling

Mechanical branch tees are built to order: we can cast a reinforced boss around the branch for higher branch pressures, add a second auxiliary outlet, or match a legacy tapping dimension so the fitting replaces an existing unit without pipe modification. First-article samples with dimensional reports and branch thread gauging are shipped for approval; sampling is typically 20–30 days when new cores are required.

Quality Inspection & Packaging

Batch inspection includes melt chemistry, tensile/hardness coupons per ASTM A536, wall thickness verification over the branch opening, thread gauge checks, and ISO 8062 dimensional audit. Quality management conforms to ISO 9001:2015 requirements. Run ends are capped and branch threads plugged before packing; fittings are palletized or crated seaworthy with branch protection.

FAQ

Q1: How is a mechanical branch tee different from a reducing tee?

A reducing tee reduces the whole main run. A mechanical branch tee keeps the run at full size and provides a machined threaded branch outlet for the take-off — better when the main must continue at full capacity and only the branch is smaller.

Q2: Can you customize the branch opening size?

Yes. Branch size, thread standard and branch position along the run are all pattern-controlled, so we produce to your drawing, including reinforced bosses for higher branch pressure.

Q3: What run end styles are available?

Threaded, grooved, flanged or plain run ends can be cast and machined to match your joint system; flanged runs follow ASME B16.1 Class 125/250 drilling unless another table is specified.
