Clevis Eye — Cast Link Fitting for Insulator Strings

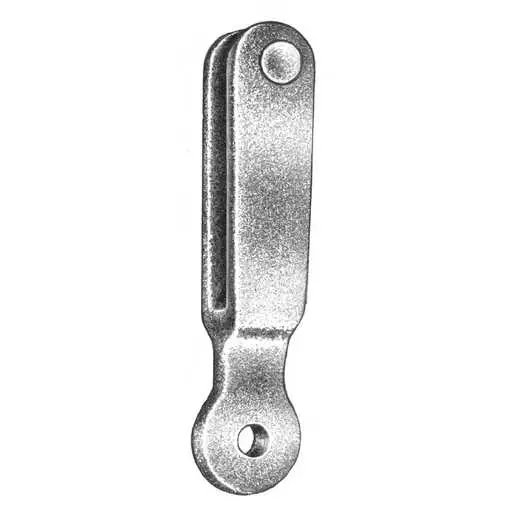

Ductile iron clevis eye line fitting with machined bores, hot-dip galvanized

Overview

A clevis eye is a primary load-bearing link used in overhead line insulator strings. One end is a clevis — a forked jaw with aligned bolt holes closed by a cotter pin or locking ball — and the other end is a round eye that accepts a mating ball eye, socket tongue, or other string hardware. Positioned between the insulator and the structure's attachment fitting, the clevis eye transmits the full mechanical tension of the conductor assembly, which is why its strength class and pin system must match the rest of the string rather than being an arbitrary choice.

Do not confuse the clevis eye with the auxiliary eye. The auxiliary eye is bolted to an assembly as a secondary hang point for grounds, jumpers, or tools, and carries only incidental loads. The clevis eye, by contrast, is a sequential link in the string itself: ball eye → insulator → clevis eye → anchor fitting. Every amp of conductor tension — plus wind, ice, and vibration loads — passes through its jaw and eye sections. That role dictates the design priorities: generous radii at section transitions to avoid stress concentration, a fully rounded eye profile for uniform pin bearing, and a cast structure free of porosity in the load path.

Specifications

ItemTypical Value
MaterialDuctile iron ASTM A536 (65-45-12 typical); malleable iron per ASTM A47 available
Strength RatingUltimate tensile strength typically 15,000–25,000 lbs class, matching ANSI-style string hardware
Hole Diameter13/16" clevis bore and eye bore typical; 11/16" for lighter classes
Hole SpacingClevis pin-to-eye center distance per customer drawing
FinishHot-dip galvanized per ASTM A153
Suitable Insulator StringSuspension insulator (ball-and-socket) and polymer long-rod strings
Weight RangeApprox. 0.8–2.0 kg per piece
Casting ProcessGreen sand casting, shot-blasted, bores and jaw faces machined
StandardManufactured to ANSI C29-series insulator hardware conventions

Installation & Application

String assembly crews appreciate the clevis eye for its simplicity: insert the ball into the socket or the eye over the pin, close with the cotter key, and verify engagement with a quick visual check. In practice we recommend:

  • Checking cotter pin spread after assembly — a pin that can migrate out is the most common field failure.

  • Matching strength classes along the whole string; a 25,000 lb clevis eye between 15,000 lb fittings adds cost without adding safety.

  • For hot-line disconnect points, pair the clevis eye with a hot line link so crews can open the string without unpinning hardware under tension.

Typical placements include suspension strings on tangent structures, dead-end assemblies ahead of the strain clamp, and transformer or recloser drop leads where the string must flex with thermal movement.

Customization & Sampling

We manufacture clevis eyes to customer drawings, with common modifications including extended jaw widths for double-tongue fittings, custom pin diameters, and ball-end variants that convert the fitting into a ball-clevis. Samples are cast in 2–3 weeks from drawing approval; matched first-article inspections against the drawing are provided for utility or OEM approval.

Quality Inspection & Packaging

Each lot passes: dimensional gauging of bores, jaw width, and eye ovality; magnetic coating-thickness checks of the hot-dip galvanizing per ASTM A153; and tensile sampling on a calibrated pull machine to confirm the rated ultimate strength class. Castings are visually inspected for surface defects before galvanizing, and any casting showing subsurface porosity in the load path is rejected. Packaging is 50–100 pieces per carton on export pallets with lot numbers.

FAQ

Q: What is the difference between a clevis eye and a ball eye?

A: The ball eye terminates with a ball that seats into an insulator socket; the clevis eye terminates with a forked clevis that pins to a tongue or another clevis. They are often used in the same string at different points.

Q: Which strength class should I order?

A: Match the lowest-rated component in your string design, or the full string rating specified by your utility standard — send us the string drawing and we will confirm compatibility.

Q: Is the eye profile machined or as-cast?

A: Bores are machined for accurate pin fit; the outer eye profile is cast to a smooth contour for uniform bearing.
