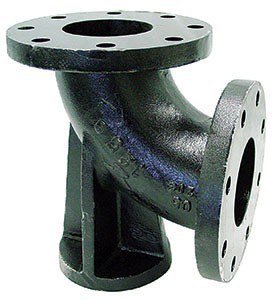

A 90° base elbow is a pipe fitting used at the foot of a vertical riser, where the pipeline turns from vertical to horizontal and must be securely anchored to a foundation or floor. Its defining feature is a flat flanged base on the bottom of the elbow body, drilled with bolt holes so the fitting can be bolted directly to a concrete pad, pedestal, or steel base plate. Cast in ductile iron to ASTM A536-84(2019), the fitting carries both the change of direction and the mechanical load of the standing column of water above it.
Base elbows are widely specified in irrigation systems, water treatment plants, pump stations, and fire water mains, wherever a riser needs a stable bearing point rather than relying on pipe supports further up the run. The flanged base spreads the load onto the foundation and resists uplift and lateral movement caused by water hammer or thermal expansion. Typical inlet configurations are flanged or threaded, with nominal sizes from 2" to 12" to match common water-work pipe standards.
| Parameter | Typical Value |
|---|---|
| Material & Grade | ASTM A536-84(2019) Gr. 65-45-12 / 80-55-06; EN-GJS-400-15 / EN-GJS-450-10 (EN 1563) |
| Standard | Flange drilling per ASME B16.1 Class 125 or EN 1092-2 PN10/16; threads per ASME B1.20.1 |
| Nominal Sizes | 2" – 12" |
| Pressure Rating | 250–300 PSI WOG (typical for Class 125 flanged ductile iron) |
| Connection | Flanged × flanged, or threaded × flanged with anchored base |
| Base Flange | Flat base with bolt holes for M16–M20 anchor bolts (size-dependent) |
| Wall Thickness | To matching flange class minimums |
| Weight Range | Approx. 5 – 60 kg per piece |
| Casting Process | Green sand / resin sand casting, flange faces fully machined |
| Dimensional Tolerance | ISO 8062 CT10–CT12 (as-cast); machined faces to flange standard |
| Surface Finish | Black bituminous paint; hot-dip galvanized; fusion-bonded epoxy optional |
Because base elbows are usually project-specific, we work directly from customer drawings: flange drilling template, base plate hole pattern, riser height, and coating system are all configurable. The sampling flow is drawing and DFM review → pattern build → first-article casting → full dimensional report → customer approval → production. First samples are typically ready in 3–5 weeks. We can match your existing pattern if you send a sample or a used fitting for reverse engineering, including wear-point restoration on the waterway.
Chemistry is verified per heat by optical emission spectrometry against the A536 specification, and mechanical properties are confirmed on separately cast test bars. Key inspected features include flange face flatness, bolt-hole circle accuracy, base flange parallelism, and wall thickness at the heel of the bend — the highest-stress zone. Hydrostatic testing is available on request for project acceptance. Castings are painted or galvanized after inspection and packed on wooden pallets or in plywood cases with flange protectors to prevent face damage in transit. Production is managed under a quality management system conforming to ISO 9001:2015 requirements.
Q1: Why bolt a base elbow down instead of using a plain 90° elbow with supports?
The flanged base transfers the weight of the riser and its water column directly into the foundation, preventing settling, sway, and joint leakage over time. On pump discharge and irrigation risers this anchored foot is often required by the system designer.
Q2: Can the base flange hole pattern match my existing anchors?
Yes. Send the hole pattern sketch or the anchor bolt size and circle diameter, and we will machine the base accordingly. Non-standard hole patterns and slotted holes for adjustment are both possible.
Q3: What coating suits a buried or wet irrigation chamber?
Hot-dip galvanizing per ASTM A153 or a two-part epoxy coating is recommended for continuously damp environments. Bituminous paint is economical for dry, above-ground installations. Confirm the environment with us and we will propose a system.
For a quotation on 90° base elbows, WhatsApp usWhatsApp us at +86 185 6156 7088 the flange size, class or drilling standard, base hole pattern, and annual quantity. We reply with pricing, casting lead time, and coating options — usually within one working day. If you are converting from gray iron or malleable equivalents, we can also quote a ductile iron upgrade with the same bolt pattern to drop into your existing installation without rework.
Need a formal quotation? Send your Ductile Iron 90° Base Elbow drawing, quantity and target price through our RFQ form — it goes straight to the foundry inbox, and we reply with a priced offer, material certificate draft and production lead time within one business day.
