Coupling with EG Gasket — Gasketed Ductile Iron Pipe Coupling

Apr 7th, 2025

Coupling with EG Gasket — Gasketed Ductile Iron Pipe Coupling

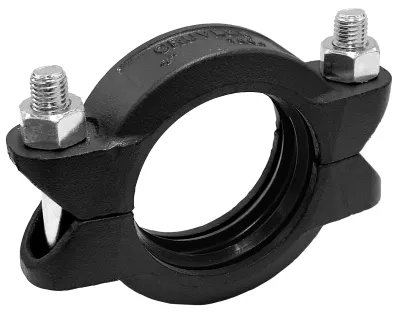

coupling with EG gasket cutaway showing elastomeric seal seat in ductile iron body

Overview

A coupling with EG gasket adds a molded elastomeric seal inside the standard straight coupling body, turning a thread-dependent joint into a dual-seal connection. The EG gasket is a resilient ring seated in an internal recess of the ductile iron coupling; as the pipe is screwed home, the gasket compresses radially against the pipe surface and closes the leak path that plain tapered threads can leave under vibration, thermal cycling, or imperfect thread cutting. This design is widely used on water service lines, HVAC equipment connections, compressor air headers, and machinery piping where joints are opened for service and must reseal reliably every time.

The casting itself remains true to our core process: green or resin sand casting in ASTM A536 ductile iron (typically 65-45-12, with 80-55-06 and EN-GJS-450-10 available), followed by full machining of the bore, thread, and the gasket recess that controls seal compression. Because the gasket channel is machined into the casting, its dimensions are held far tighter than an as-cast surface could achieve — that is what keeps compression in the working band the elastomer was formulated for. Buyers can order the coupling with or without gaskets installed, and gasket material is matched to the medium: EPDM for hot and cold water, NBR for oil-based lines ( details in the FAQ).

Specifications

ItemDetails
Material & GradeASTM A536 Grade 65-45-12 typical; 80-55-06 / EN-GJS-400-15 / -450-10 optional
Casting ProcessSand casting, cored bore, machined gasket recess
Standard ReferenceASME B16.14 body reference; threads per ASME B1.20.1 (NPT) / ISO 7 (BSP)
Size Range1/2" – 12" typical
Pressure Rating300 PSI WOG typical for threaded sizes
ThreadFemale NPT or BSP/BSPT, both ends
Gasket/SealMolded EG elastomeric gasket; EPDM (water, glycol, air ≤ typical service temps) or NBR (oil-based media)
Weight RangeApprox. 0.2 kg – 19 kg per piece
MachiningBore, thread, face, and gasket recess fully machined
ToleranceISO 8062 CT10–CT12 as-cast; recess machined to drawing
Surface FinishBlack bituminous paint standard; hot-dip galvanized / epoxy optional
Quality SystemQuality management system conforming to ISO 9001:2015 requirements

Customization & Sampling

Gasket specification is the main customization axis. We mold or source EG gaskets to your durometer, cross-section, and compound requirements, and can print compound identification on the gasket edge for warehouse sorting. Body customizations follow our standard service: special lengths, NPTF threads, logo casting, and dual-finish orders (galvanized body, separate gaskets bagged). For new customers we offer a sampling pack: one machined coupling with fitted gasket, compression measurements, and assembly photos, typically ready in 2–4 weeks. This lets your technical team verify sealing behavior before committing to a container.

Quality Inspection & Packaging

Each lot is inspected for casting chemistry and mechanicals per ASTM A536, ISO 8062 dimensional conformity, thread gauging, and — specific to this product — gasket recess depth and gasket compression set on sampled assemblies. Gaskets are checked for hardness (Shore A), visual defects, and aging characteristics on request. Couplings are assembled or bagged with gaskets per your packing instruction, sealed in poly bags to protect the elastomer from ozone and UV, and packed in export cartons on plywood pallets. Gasket compound labels on each bag prevent mixing during installation.

FAQ

Q1: EPDM or NBR gasket — which should I choose?

EPDM resists hot and cold water, glycol solutions, and steam condensate, making it the default for plumbing and HVAC lines. NBR handles petroleum oils and fuels, so it suits compressor downstream and hydraulic-adjacent lines. One caution: EPDM swells in petroleum oil, so never install EPDM gaskets on oil lines. Tell us the medium and temperature and we will confirm the compound in writing with your quote.

Q2: Do I still need thread sealant with an EG gasket?

The gasket carries the primary seal, but the tapered threads still transmit load and can weep under extreme cycling, so light sealant or PTFE tape on the thread remains good practice. The combination — sealed thread plus compressed EG gasket — is what gives this coupling its margin on vibrating equipment connections.

Q3: Can gaskets be replaced in the field?

Yes. The gasket is a separate molded ring and can be swapped without machining, which is a key maintenance advantage over thread-only joints. We supply gaskets as spares in matching compound and size; order them against the same part number and note the compound code so replacements match the original compression band.

Related Products

  • Coupling — plain straight coupling without gasket

  • Coupling II — heavy wall version for fire and pump lines

Get a Quote

Tell us size range, thread standard, medium, and gasket compound, and we will return a quotation with gasket cross-section drawings within 24 hours. WhatsApp: +86 185 6156 7088 — send a photo of your existing coupling and we can match it from a counter-sample.
