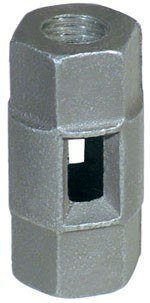

Rod Coupling Straight — Cast Ductile Iron Threaded Rod Connector

By Nico Yin · Qingdao Zhaoyuqi Machinery Co., Ltd.

Overview

A straight rod coupling is a threaded connector whose job is to join two rod or threaded-bar sections end to end, in perfect line, so the assembled rod behaves as one continuous member. Unlike the pipe couplings elsewhere in this catalog, which seal a fluid line, the rod coupling transmits tension and alignment: it extends suspension rods for pipe hangers, joins line shaft sections on deep-well pumps, links tie rods and bracing members, and serves anywhere a straight, demountable rod-to-rod connection is required. The fitting is essentially a precision threaded sleeve — both ends internally threaded at the same size, with full thread engagement over the coupling length so the load passes through the threads, not the body.

Casting this geometry in ductile iron gives the coupling the compression strength its threaded walls need, with ASTM A536 as the standard melt specification (typically 65-45-12, 80-55-06 on request; EN-GJS-400-15 / -450-10 / -500-7 for European projects). Sand casting with a cored bore produces the long internal cavity near net shape; the threads are then machined in one concentric setup, which is the critical quality point — if the two thread ends are not coaxial, the assembled rod runs out of true and hanger rods or shaft sections bind. Every lot is checked for bore-to-bore alignment as well as thread gauging, so field assembly stays smooth hand-tight all the way through.

Specifications

Customization & Sampling

Length is the most common customization — hanger and shaft applications each call for specific coupling lengths to balance thread engagement against wrench clearance, and we cut tooling to your dimension rather than forcing a stock length. Thread form is equally flexible: unified (UNC/UNF), metric, or pipe-form threads per the mating rod drawing, left-hand on request for rotating assemblies. Non-standard rod sizes, cast logos, and zinc or epoxy finishes complete the options list. Samples for new projects are typically ready in 2–4 weeks and arrive with concentricity measurements and thread gauge reports so your assembly trial can start immediately.

Quality Inspection & Packaging

Inspection priorities differ from pipe couplings, and the plan reflects that: chemistry and mechanicals per ASTM A536 as usual, ISO 8062 casting audit, thread gauging at both ends, and a coaxiality check between the two thread bores using a fitted test mandrel on sampled pieces. Tensile-oriented proof on assembly samples is available for safety-relevant hanger and shaft applications. Parts are bagged, boxed by size, and palletized on fumigation-free plywood; because rod couplings are compact and dense, we optimize carton fill weight to keep freight cost per piece low without exceeding pallet limits.

FAQ

Q1: Can this coupling join threaded pipe instead of rod?

It uses the same thread forms, so it often can — but a rod coupling is not designed for pressure sealing and has no fluid-rated rating behind it. If your joint carries water or gas, specify one of our pipe couplings instead; if it only carries tension, the rod coupling is the more economical choice. Send the application and we will point you to the right series.

Q2: How is thread engagement length determined?

Engagement should be long enough that the threads, not the coupling body, define the assembly strength — a practical rule is engagement on each side comparable to one to one-and-a-half nominal diameters depending on thread form. Give us the rod material and load, and our engineers will propose a length and verify it with sample testing if the application is critical.

Q3: Can the two ends be different sizes or thread directions?

Yes. Because threads are machined after casting, one end can be larger — a stepped rod transition — or one end left-hand for reversing shafts, all within the same body pattern. These hybrid versions are quoted from your sketch; most need no new casting tooling, only a machining instruction change.
