Ductile Iron 90° Elbow with Female Union — Serviceable Direction Change

Mar 4th, 2025

Ductile Iron 90° Elbow with Female Union — Serviceable Direction Change

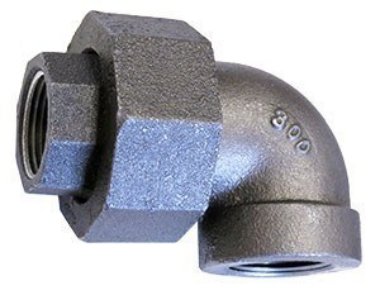

ductile iron 90 degree elbow with female union parts exploded view

Overview

A 90° elbow with female union combines two functions in one fitting: it turns the pipeline through a right angle, and its union connection lets the line be disconnected by hand tools without cutting pipe or unscrewing joints at both ends of the fitting. Structurally the fitting consists of a cast elbow body with a female union seat, a union nut, and a mating tailpiece, all in ductile iron cast to ASTM A536-84(2019). The union joint seals on a machined seat with a gasket or ground metal-to-metal contact, depending on the version ordered.

This makes the fitting the preferred choice at equipment connections that need periodic service — air compressor discharge and receiver connections, water heaters and boilers, marine engine cooling lines, and filtration skids where cartridges or elements are removed regularly. Instead of breaking two threaded joints each time, maintenance crews crack the union nut and swing the pipe aside. Typical sizes are 1/2" to 4" with NPT or BSP threads machined to ASME B1.20.1 or ISO 7.

Specifications

ParameterTypical Value
Material & GradeASTM A536-84(2019) Gr. 65-45-12 / 80-55-06; EN-GJS-400-15 / EN-GJS-450-10 (EN 1563)
StandardFitting geometry per MSS SP-114 practice; union seat machined in-house; threads per ASME B1.20.1 / ISO 7
Nominal Sizes1/2" – 4"
Pressure Rating300 PSI WOG (typical threaded ductile iron class)
ThreadNPT or BSP; female threads on pipe ends, female union seat on body
Union SeatFlat machined seat with EPDM/compressed fiber gasket, or metal-to-metal
Wall ThicknessTo MSS SP-114 minimums
Weight RangeApprox. 0.4 – 4 kg per piece
Casting ProcessGreen sand casting; union seat and threads fully machined
Dimensional ToleranceISO 8062 CT10–CT12 (as-cast); machined features to gauge
Surface FinishBlack bituminous paint; hot-dip galvanized; epoxy coated optional

Customization & Sampling

We can adapt the union interface to your hardware: seat diameter, gasket material, nut hex size, and tailpiece thread can all be matched to drawings or to a sample from your existing system. The standard sampling path is drawing review → mold/pattern preparation → first-article casting → union seat and thread gauging → pilot shipment → serial production. Sample lead time is typically 2–4 weeks. OEM markings such as a cast or engraved logo on the body are available for distributors.

Quality Inspection & Packaging

Each melt is analyzed by optical emission spectrometry against the A536 chemistry limits, with tensile strength and elongation verified on cast test coupons. Machined unions receive a seat-flatness check and a gasket-fit trial, while threads are inspected with GO/NO-GO gauges. Where specified, we perform pneumatic leak testing of the assembled union at the order's test pressure. Parts are bagged individually, then packed in export plywood cases or on pallets; gaskets are packed separately to avoid set deformation. Our plant runs a quality management system conforming to ISO 9001:2015 requirements.

FAQ

Q1: How does a union elbow differ from a regular threaded elbow?

A regular elbow is a single cast body — to remove it you must unscrew both pipe joints, which is difficult in installed lines. The union version has a three-part joint: body, nut, and tailpiece. Cracking one nut disconnects the line, which is why it is standard at equipment service points.

Q2: Do the unions come with gaskets, and what material?

Yes, fittings are supplied assembled with a gasket — typically EPDM for water lines or compressed fiber for air and oil service. Metal-to-metal conical seats are available for high-temperature applications. Specify the medium when you inquire.

Q3: Can the union size differ from the pipe thread size?

Yes, common combinations such as a 1" pipe thread body with a 1-1/4" union seat can be produced. Send the two dimensions in your drawing or inquiry and we will confirm manufacturability before sampling.

Related Products

Get a Quote

Tell us the size, thread standard, medium, and union seat type, and we will price your 90° union elbows quickly — WhatsApp us at +86 185 6156 7088 — messages are usually answered with a formal quote within one working day. Mixed-container orders combining union elbows with unions, couplings, and tees are our specialty for distributors; we can consolidate and label cartons per your SKU system.

Need a formal quotation? Send your Ductile Iron 90° Elbow with Female Union drawing, quantity and target price through our request for quotation form — it goes straight to the foundry inbox, and we reply with a priced offer, material certificate draft and production lead time within one business day.
