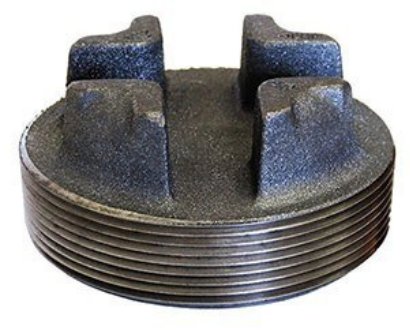

A cored bar plug is a large-diameter ductile iron closure in which a through-barrel or bar hole is formed by a casting core — hence "cored" — so that a steel bar or rod can be inserted through the plug to lever it tight, hang it in position, or extract it after use. Unlike small threaded square head plugs, bar plugs are sized for open pipe bores: they close the bell (socket) end of ductile iron pipe, blank off large outlets, and act as temporary heads during hydrostatic testing of pipelines and fittings. Typical diameters cover pipe bores from roughly 3" up to 24", defined by the customer's pipe and test standard.
The core-formed bar passage is the engineering point that separates this part from a solid blank. A removable or sliding bar turns the plug into a self-anchoring closure: the bar bears against the pipe face or a reaction structure, allowing the plug to be wedged, braced, or chained in place without threaded engagement in the pipe itself. Typical uses include capping ductile iron pipe sockets before pressure testing, sealing spare bell ends in storage or transit, and isolating sections of a new water main while adjacent sections remain in service. Cast in ASTM A536 ductile iron, the plug body tolerates handling knocks and weather exposure that would crack gray iron blanks.
| Item | Typical Value |
|---|---|
| Material | ASTM A536 65-45-12 / EN-GJS-400-15 or EN-GJS-500-7 |
| Size Range | For pipe bores approx. 3" – 24"; face diameter per drawing |
| Bar Hole | Cored through-bore for steel bar; diameter & position per drawing |
| Coating | Hot-dip galvanized per ASTM A123 / black paint / epoxy / as-cast |
| Casting Process | Resin sand casting with core package for bar passage |
| Tolerance | ISO 8062; sealing face machined where specified |
Sealing design is flexible: plain faced plugs sealed with gaskets or compound, grooved faces for O-rings, or stepped bodies that stack in the pipe bore. The bar hole diameter is cored oversized and can be finished by machining for a precise bar fit.
Application practice depends on the duty. For hydrostatic test capping, the plug is inserted into the bore, the bar is passed through and set against reaction points, and the annular gap is sealed with gasket, compound, or an inflatable seal depending on the test plan. For storage capping of bell ends, the plug is simply seated and the bar wired or chained in place. Typical scenarios:
Hydrostatic test heads on ductile iron water mains and fittings
Temporary closures during pipeline laying and disinfection stages
Bell-end protection caps for pipe in yard storage or ocean freight
Blank closures for large flanged or plain-end outlets on tanks and manifolds
Reaction blanks used with test pumps to hold line pressure
Because the plug is a casting, ribs, lifting eyes, and seating steps can be added at low cost — features that are expensive to weld onto fabricated steel blanks.
Send the pipe bore diameter, test pressure, and sealing method; we propose face design, bar-hole position, and rib layout, then cast first-article samples for your trial. Multiple plug sizes can share a pattern family with machined diameters to trim cost for distributors.
Castings are inspected per ISO 8062 dimensions, with machined sealing faces checked for flatness and surface finish. Material certificates trace each lot to its ASTM A536 heat. Plugs are coated as ordered and shipped on export pallets or in crates, bar holes plugged to keep out debris.
What does "cored" mean on these plugs?
The bar passage is formed by a core during casting rather than drilled afterward, which saves machining cost on large diameters and allows internal geometry (steps, tapers) that drilling cannot produce.
Can bar plugs hold full line test pressure?
They are commonly used as reaction closures in hydrostatic test setups; the holding force comes from the bar and bracing arrangement, so the test plan must verify anchorage for the specified pressure.
Do you supply the bar as well?
The plug is supplied as a ductile iron casting; the mating bar is usually furnished by the contractor. We can quote drilled bars as an accessory if required.
