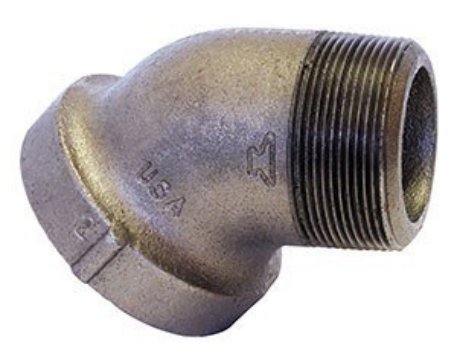

A 45° street elbow is a threaded pipe fitting that changes pipeline direction by 45 degrees, and what makes it a "street" elbow is its asymmetric end configuration: one end has male (external) NPT threads and the other has female (internal) threads. This male × female design allows the fitting to screw directly into the female port of a valve, pump casing, or another fitting, eliminating the need for a separate close nipple in tight installations. Our street elbows are sand-cast in ductile iron to ASTM A536-84(2019), giving them roughly twice the tensile strength of gray cast iron and a degree of ductility that resists cracking during installation torque.
The primary applications are confined pipe runs where a standard elbow plus nipple would be too long — fire protection sprinkler mains, compressor and pump discharge lines, instrument take-offs, and general industrial plumbing. Because the change of angle is only 45° rather than 90°, the fitting also produces a lower pressure drop per direction change, which matters in longer threaded systems. Typical sizes run from 1/2" through 4", with threads cut to ASME B1.20.1 NPT or BS 21 BSP on request.
| Parameter | Typical Value |
|---|---|
| Material & Grade | ASTM A536-84(2019) Gr. 65-45-12 / 80-55-06; EN-GJS-400-15 / EN-GJS-450-10 (EN 1563) |
| Standard | Fitting dimensions per MSS SP-114; threads per ASME B1.20.1 (NPT) or ISO 7 / BS 21 (BSP) |
| Nominal Sizes | 1/2" – 4" |
| Pressure Rating | 300 PSI WOG (typical for threaded ductile iron fittings) |
| Thread | NPT (male × female, asymmetric) or BSP |
| Wall Thickness | Sized to MSS SP-114 minimums for the pressure class |
| Weight Range | Approx. 0.2 – 3.5 kg per piece |
| Casting Process | Green sand casting, subsequently fully machined |
| Dimensional Tolerance | ISO 8062 CT10–CT12 (as-cast); threads machined to gauge |
| Surface Finish | Black bituminous paint; hot-dip galvanized (ASTM A153); epoxy coating optional |
We manufacture street elbows from customer drawings or samples. The standard workflow is: drawing review and DFM feedback → pattern or mold production → first-article casting → dimensional and thread-gauge inspection → pilot batch → mass production. Sample lead time is typically 2–4 weeks depending on whether an existing pattern can be adapted. Special options include BSP threads, longer male-thread engagement, custom wall thickness for higher pressure, and alternative coatings such as RAL-colored epoxy. All tooling remains dedicated to the customer's part number.
Every heat of molten iron is checked with an optical emission spectrometer against the A536 chemistry window before pouring, and tensile and elongation are verified on cast test bars from the same heat. Finished street elbows undergo thread gauge checks (GO/NO-GO), sampling of overall dimensions against the drawing, and visual inspection for casting defects. Where the application requires it, hydrostatic or pneumatic leak testing can be arranged on request. Parts are packed in poly bags inside export-grade plywood cases or on steel-framed pallets, with rust-inhibiting VCI paper for unpainted machined surfaces. Our factory operates under a quality management system conforming to ISO 9001:2015 requirements.
Q1: What does "street" mean on a street elbow?
It refers to the male × female thread combination: one end screws directly into a female port, so no nipple is needed between the fitting and, for example, a valve body. The 45° version changes direction more gently than a 90° street elbow, reducing turbulence in the line.
Q2: Can you supply BSP threads for European or Middle East projects?
Yes. Threads are machined to ISO 7/BS 21 parallel or taper BSP as well as ASME B1.20.1 NPT. Tell us the project standard when requesting a quote and we will confirm thread gauging in the inspection report.
Q3: Why ductile iron instead of malleable iron for this fitting?
Ductile iron to ASTM A536 offers higher tensile strength (typically 65,000 psi minimum,) and better elongation than ASTM A47 malleable iron, which improves resistance to over-torque cracking during installation and to impact in service.
Need a fast price on 45° street elbows? Send us the size, thread type (NPT/BSP), coating, and quantity via WhatsApp at +86 185 6156 7088. Our export team typically replies with a formal quotation within one working day, including unit prices, packing plan, and lead time. Drawings or photos of your existing part speed things up — small sample orders are welcome so you can verify fit and finish before committing to a container.
Need a formal quotation? Send your Ductile Iron 45° Street Elbow drawing, quantity and target price through our quotation request form — it goes straight to the foundry inbox, and we reply with a priced offer, material certificate draft and production lead time within one business day.
