Span Type Guy Fitting – Ductile Iron Casting for Span Guy Applications

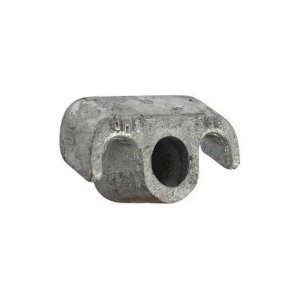

Ductile iron span type guy fitting casting with hot-dip galvanized finish

Span guy assembly with span type fittings connecting two distribution poles

Overview

The span type guy fitting is a cast attachment used in span guy assemblies—guy wires run horizontally between two poles rather than from a pole down to a ground anchor. Span guys are the standard solution when terrain, buildings, roadways, or underground utilities make ground anchoring impossible: the poles brace each other through the horizontal span, sometimes with a third pole forming a cross span or A-frame arrangement at the end of the line. The span type fitting provides the engineered connection point at each pole face where the span wire terminates, transmitting the horizontal guying load into the pole structure with a defined, inspectable interface.

Compared with a simple looped strand over a pole top, a cast span type fitting gives the line designer controlled geometry: the wire seat is positioned at the correct height and offset, the load path is direct, and the connection can be tensioned and later adjusted with compatible hardware such as a yoke tension adjusting fitting. Cast in ductile iron per ASTM A536 (typically Grade 65-45-12 or EN-GJS-450-10), the fitting carries sustained horizontal tension plus the dynamic loads of wind and ice, and its hot-dip galvanized finish per ASTM A153 protects it for long outdoor service. Because the part is sand cast from drawings or samples, the wire seat radius, bolt pattern, and body length can be matched to your span design and strand size.

Specifications

ParameterTypical Value
MaterialDuctile iron ASTM A536 (65-45-12 / 80-55-06) or EN-GJS-450-10
Rated Load8,000–18,000 lbs (36–80 kN), matched to span guy design
Hole Diameter & Spacing11/16"–13/16" (17.5–20.6 mm) bolt holes; 1-1/2"–4" spacing per drawing
Bolt Size5/8" (16 mm) or 3/4" (19 mm) machine bolts
Wire Seat / EyeSized for 3/8"–1/2" EHS strand or thimble
FinishHot-dip galvanized per ASTM A153
Suitable Guy Wire Size3/8", 7/16" or 1/2" EHS guy strand
Weight Range1.0–3.8 kg per piece
Casting ProcessGreen sand casting, machined seat and bolt holes

Installation & Application

Span guy construction begins at the anchor pole: the span type fitting is bolted to the pole face at the designed height with through-bolts and washers, oriented so the span wire leaves the fitting in line with the span direction. The far end terminates at the matching fitting on the receiving pole, and tension is taken up with the strand system—often incorporating a tension adjusting fitting so the span can be re-tensioned after bedding in. Crews should verify the span height clears the required ground or traffic clearance at maximum sag, since horizontal spans sag with temperature and ice load.

Typical applications from our customers include: line extensions across private property where ground anchors cannot be installed; crossings over drainage canals and rock ledges; terminal pole arrangements where a cross span between two poles replaces a down guy; and temporary construction spans. On the same structure, span fittings combine normally with down guy hardware—guy hooks, eye plates, and combination attachments—when a pole is both braced by a span and anchored by a ground guy.

Customization & Sampling

We produce span type fittings by sand casting from your drawing or sample. Configurable features include: wire seat radius for specific strand or thimble sizes; single or double seat positions for two-direction spans; bolt pattern matching concrete pole inserts; and heavier sections for long-span, high-tension designs. Reverse-engineering of legacy span hardware, first-article inspection, and material certificates are standard in our sampling process, typically 2–4 weeks from drawing approval.

Quality Inspection & Packaging

Each lot is inspected for dimensional conformance to the approved drawing, mechanical properties via companion cast bars (tensile, yield, elongation per ASTM A536), galvanizing thickness by magnetic gauge, and 100% visual inspection for casting defects with attention to the wire seat radius. Export packaging uses cartons on pallets, 25–50 kg per carton, moisture-proofed, with customer labels and packing lists.

FAQ

1. When is a span guy preferable to a standard down guy?

When ground conditions, property boundaries, or roadway clearances prevent placing a anchor rod; span guys let adjacent poles brace each other horizontally.

2. Can the fitting be tensioned after installation?

Yes—pair it with a yoke tension adjusting fitting or turnbuckle in the span assembly to re-tension the strand as it beds in.

3. Can one fitting serve two span directions?

Yes, a double-seat version can be cast; confirm the combined load case against the rated load.
