Cast Iron Wheels, Casters and Guide Wheels to Drawing

Product Details

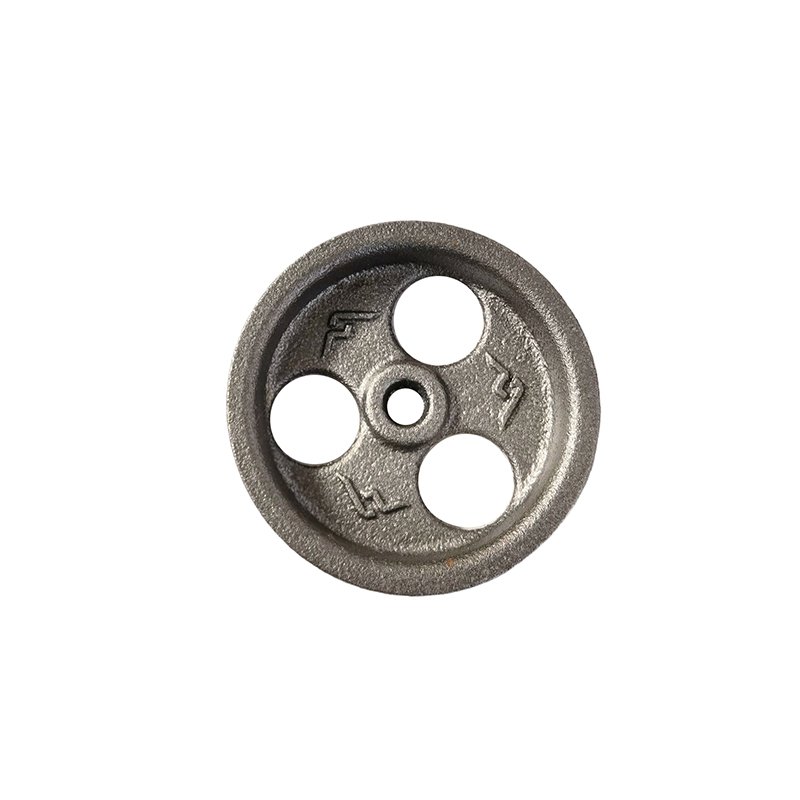

A wheel looks like a simple round part and behaves like a structure. It carries a load through its rim, transfers it through the web into a bearing, and does all of that while rotating, which means every imperfection in roundness or balance turns into a vibration at speed.

A Wheel Is a Load Path and a Balance Problem

The load arrives at the rim, at the contact patch, and leaves through the bore. Everything between those two points is a structure that has to carry the load without deflecting enough to bind the bearing.

The web thickness decides most of that. A thin web flexes under load, the bore tilts, and a plain bearing or a bush wears on one side. A thick web is stiff but heavy, and on a caster that weight is carried by the operator every time the trolley moves.

Balance is the second problem. A cast wheel is not perfectly uniform, and a heavy spot at the rim produces a centrifugal force that grows with the square of the speed. On a hand trolley at walking pace it does not matter. On a guide wheel running at 3,000 rpm it is the difference between a smooth machine and a noisy one.

Three Wheel Types and the Loads They See

Castors and trolley wheels run slowly under high load, and they see impact every time the trolley crosses a threshold. Ductile iron is the right choice: it takes the impact without chipping and it does not crack at the bore.

Guide wheels and track rollers run at moderate speed under a radial load, and they are usually machined all over because the tread profile matters. Here the requirement is roundness and a consistent groove, more than strength.

Pulleys and sheaves run at speed under a belt or rope load, and they see a combination of radial load and bending from the belt tension. The groove profile is a wear surface, and a pulley that wears out of profile damages the belt, which is more expensive than the pulley.

Rim Design: Section, Crown and Flange

The rim section carries the load and the wear. On a plain iron wheel running on a steel track, the rim is usually flat with a slight crown, 1 to 2 mm across the width, so the wheel contacts on the centre and does not skid on the edges.

A flanged wheel, for a rail or a track, needs the flange cast in, because a machined flange would cut through the casting skin and leave a sharp transition. The flange root radius is where these wheels crack, and it needs a generous fillet, 4 to 6 mm, and no machining mark at the root.

Rim thickness is a wear allowance as well as a structural dimension. On a wheel that runs on an abrasive track, 8 mm of rim may be 5 mm of structure and 3 mm of wear allowance, and the drawing should say which is which.

The Bore and Bearing Seat

The bore is the part of a wheel that decides how long it lasts. A bore machined to plus or minus 0.02 mm holds a bearing correctly; a bore that is 0.1 mm oversize lets the bearing spin and wear the housing.

On wheels with a plain bearing or a bush, the bore is the bearing surface and needs a finish of Ra 1.6 or better, plus a hardness that resists wear. Grey iron at 200 to 250 MPa with a fine graphite structure works well for a bush running on a steel shaft, because the graphite retains lubricant.

On wheels with a ball bearing, the bore is a housing and needs a shoulder to locate the outer race, plus a tolerance that gives the right interference. We machine these in one setup with the tread, so the bore and the tread are concentric within 0.05 mm.

Balance, Roundness and Why They Matter at Speed

Roundness is a machining result, and it is easy to check with a dial indicator on the tread. A wheel that is out of round by 0.2 mm will thump once per revolution, which at 500 rpm is eight thumps a second.

Balance is a casting result as much as a machining one. A wheel with an off-centre bore, a heavy section in the web or a rim that is thicker on one side will be out of balance no matter how well it is machined.

We control this by keeping the pattern symmetrical, gating from the centre and checking the first article on a balancing stand. For wheels that will run above about 1,000 rpm, we can balance by drilling, and we will quote that as a separate operation.

Tread Options: Bare Iron, Rubber, Polyurethane

Bare iron is the cheapest and the most durable on a hard floor, and it is also the noisiest and the most likely to damage the floor. It is the right choice for a factory floor and the wrong one for a hospital.

Rubber tyres are bonded or press-fit onto the iron centre. The iron provides the structure, the rubber provides grip and silence, and the bond is the failure point. A rubber tyre that debonds is usually a bonding problem, not a casting problem, but a rough or contaminated rim surface will cause it.

Polyurethane is cast or bonded onto the wheel and gives higher load capacity than rubber with better cut and tear resistance. It needs a clean, keyed surface, and we machine a groove or a knurl into the rim for that purpose.

Load Rating: What We Can and Cannot Certify

We can state the load at which a wheel design has been tested, and the safety factor applied. What we cannot do is certify a wheel to a standard we have not tested against, or guarantee a life in a duty cycle we do not know.

What we need to give a useful rating: the static load, the dynamic factor from the application, the speed, the track condition and the expected life. With those, we can either confirm an existing design or recommend a rim and web section.

A cast wheel derated for a rough track is a normal engineering decision, not a compromise. A wheel sold at its static capacity for a shock-loaded application is a failure waiting for a warranty claim.

How Wheels Fail, and What It Tells You

Four failure modes, and each points at a different cause.

A crack radiating from the bore means the hub was too thin for the bearing fit, or the bearing was pressed in with too much interference. The fix is a thicker hub or a different fit, not a stronger material.

A crack across the web, usually between the hub and the rim, means the web was flexing. That is a stiffness problem, and it shows up on wheels that carry a load at the rim and a support at the hub with nothing in between.

A spalled or flattened tread means the wheel was sliding rather than rolling, which is usually a brake or a bearing problem, not a casting problem.

A wheel that is out of round after a season means the rim wore unevenly, which happens on an abrasive track or when the wheel is running at an angle. The casting was probably correct when it left, and the application changed the shape.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

What is the largest wheel you can cast?

Up to about 600 mm diameter in ductile iron by lost foam. Above that the flask size becomes the limit.

Can you cast the tread profile instead of machining it?

For a V-groove or a flat tread, yes, with 2 mm of machining allowance. For a precise profile that runs on a rail, we machine it.

Do you press in the bearings?

We machine the bore to your bearing specification and can press in bearings if you supply them, but most customers prefer to fit their own.

How do you balance a wheel?

For most wheels, by symmetrical casting and concentric machining. Above 1,000 rpm we balance by drilling and record the result.

Can the wheel be supplied with a rubber tyre fitted?

We machine the rim to the tyre supplier's specification and can arrange bonding through a partner, but the tyre itself is not our product.

How soon can you ship a repeat batch?

Four to five weeks for a repeat pattern, six to eight for a new one including a machined sample.
