Cast Iron Structural Brace Attachments for Steel Frames

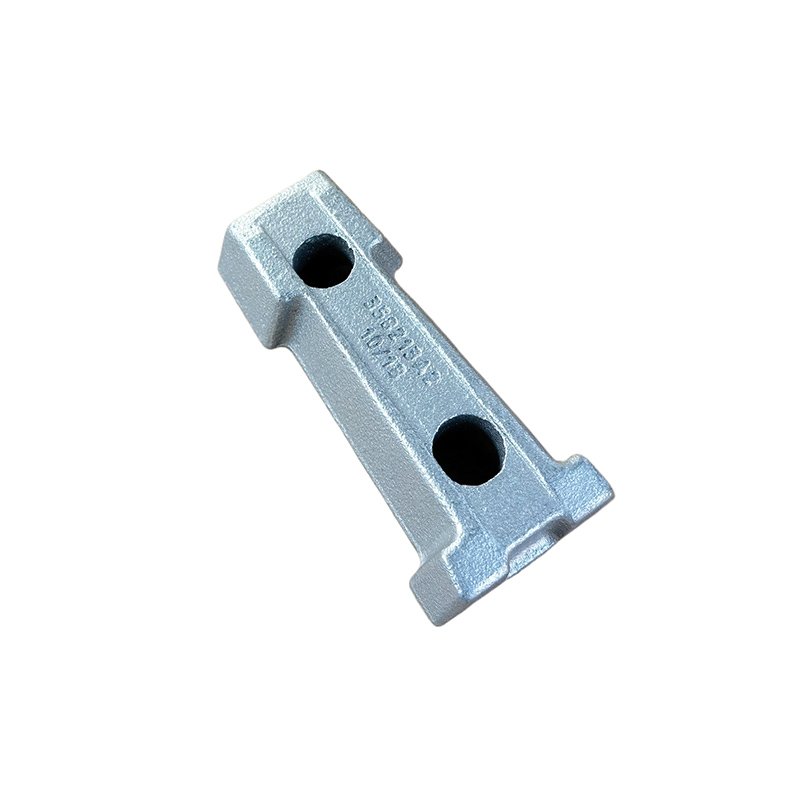

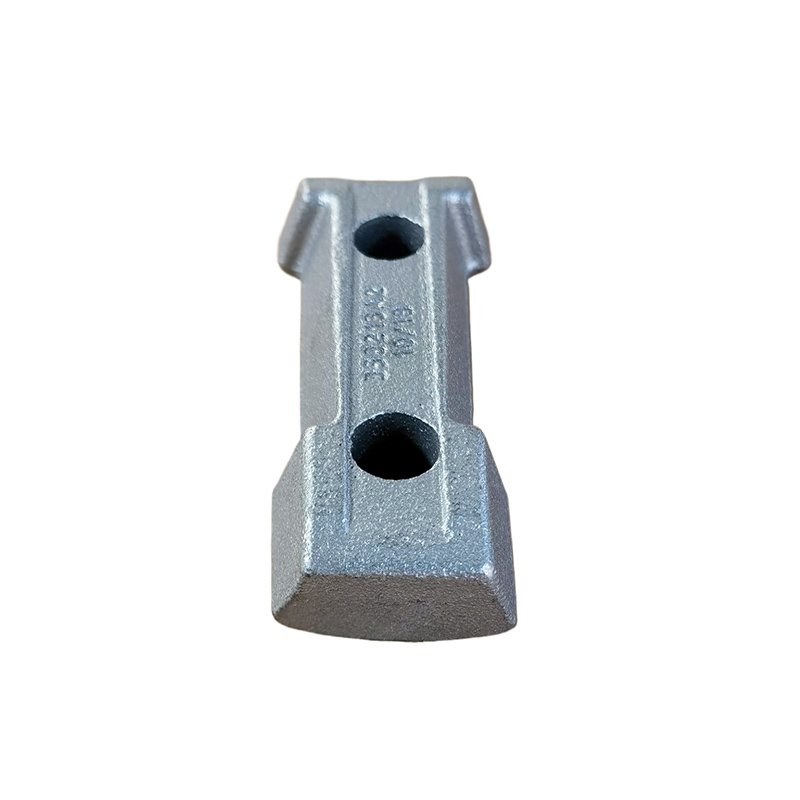

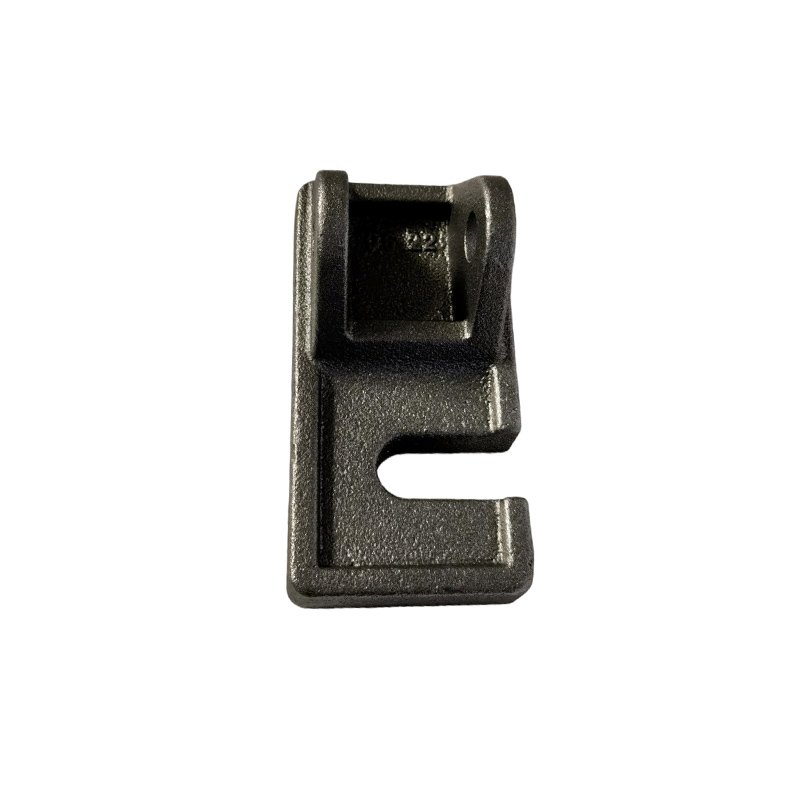

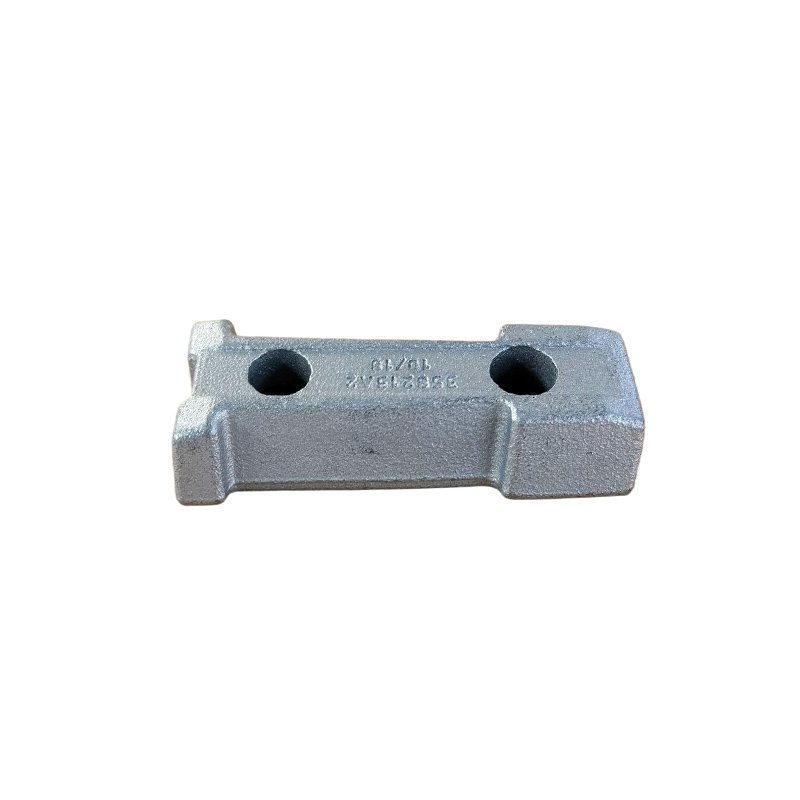

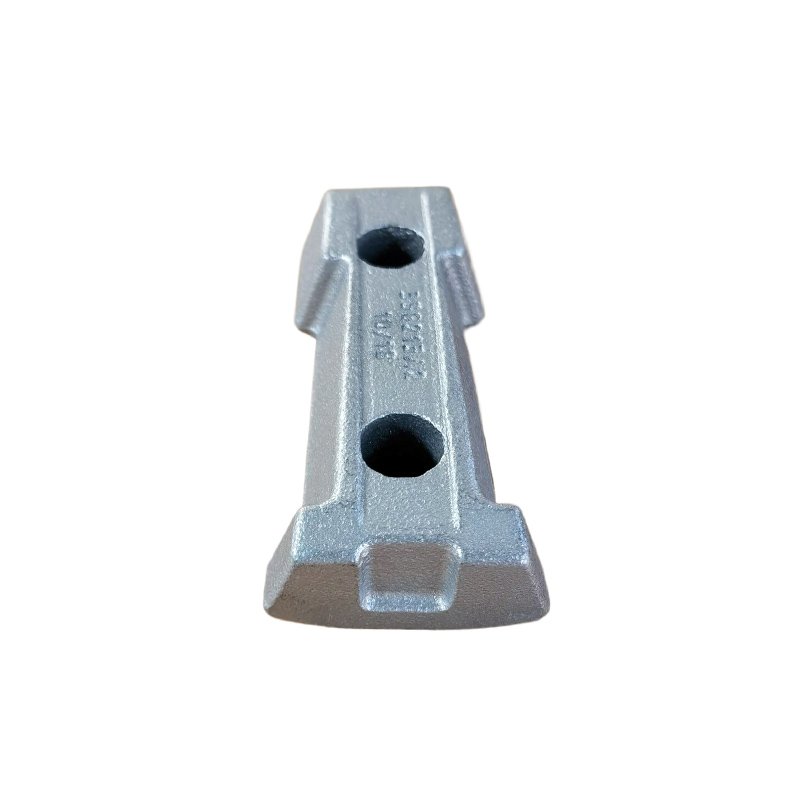

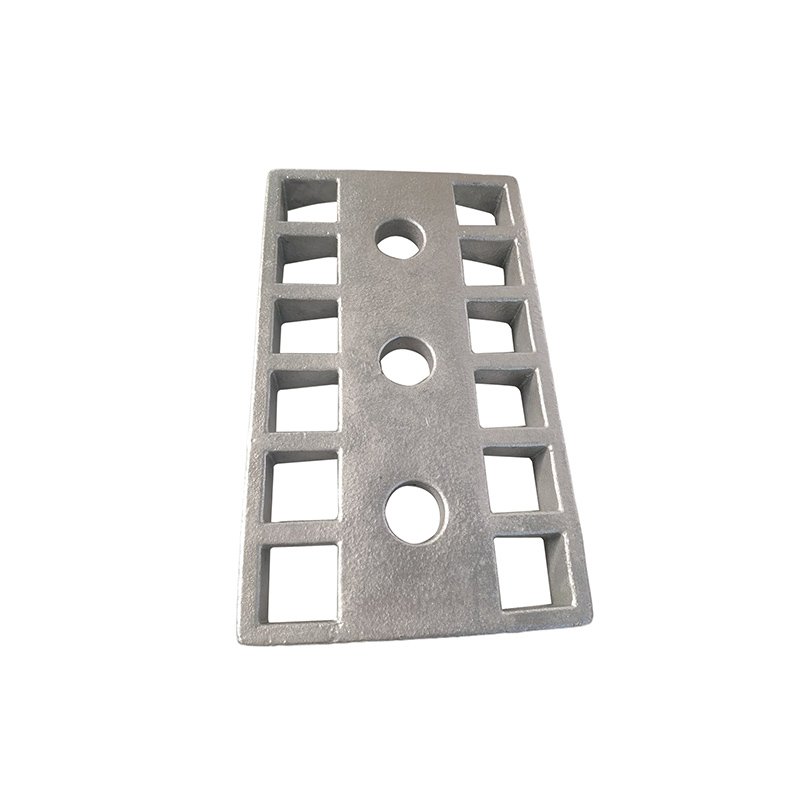

Product Details

In a braced frame, the connections do the work. The members are simple; the node where a diagonal meets a beam and a column is where the load path turns, where the detailing gets complicated, and where inspections find the cracks.

The Node Is Where Frames Fail

Earthquake damage surveys repeatedly find the same thing: members that are still straight, and connections that have torn. The reason is that a node concentrates force into a small volume, and a welded node made from plate has residual stress, a heat-affected zone and a geometry that is usually a compromise between what the engineer wanted and what a welder could reach.

A cast node does not remove the engineering. It removes the weld from the most stressed location, and it lets the geometry follow the load path instead of the plate.

Why a Cast Node Replaces a Welded Assembly

A typical gusset for a brace connection is six or eight plates cut, fitted, tacked and welded, then inspected, then often straightened because the welding pulled it out of shape. The cost is not the steel, it is the hours.

A casting replaces that with one part, produced to a drawing, with the ribs and the transition radii built in and repeatable. The first one costs a pattern; the two-hundredth costs the same as the first.

The mechanical advantage is that a casting has no weld toe at the critical section, so the fatigue category improves. A welded joint is classified around 36 to 50 MPa of detail category; a cast node with a smooth transition can be treated as a better detail, provided the casting quality is verified.

Load Path Through a Cast Gusset

A brace delivers its force as an axial load at an angle. The node has to turn that into shear in the bolts and bearing on the connected members.

The casting's job is to make that turn gradual. A rib that runs from the brace face to the beam face, tapering from 20 mm at the brace to 8 mm at the beam, spreads the force over a longer length and reduces the peak stress at the corner.

The other job is to keep the bolts in bearing rather than in tension. A gusset that is too thin dishes under bolt load and the bolts see prying forces they were not designed for. A 12 mm plate equivalent cast at 14 mm with a rib is often lighter and stiffer than the plate it replaces.

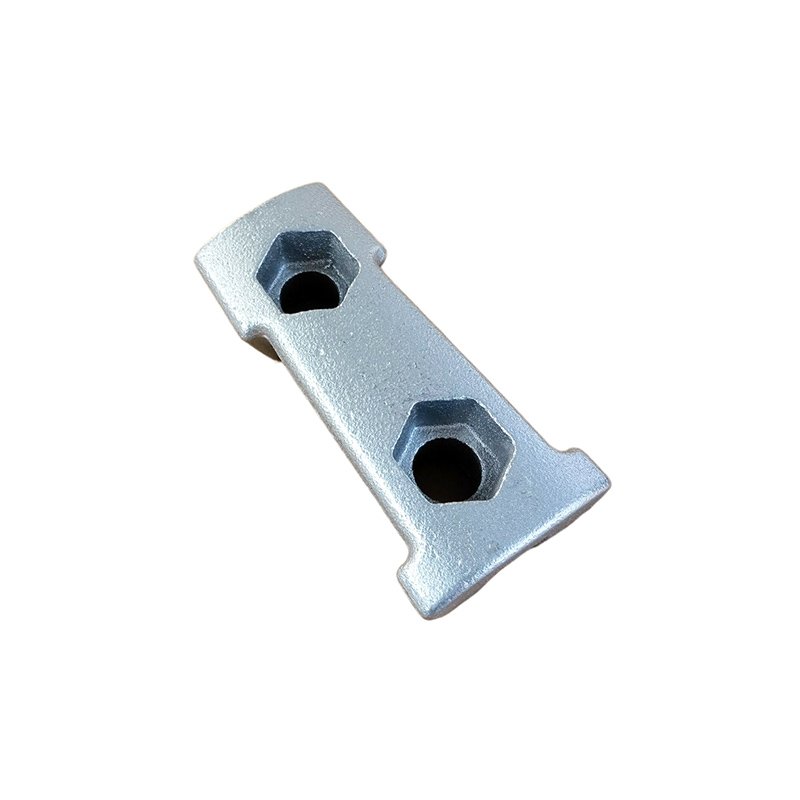

Bolt Patterns and the Interface With Steel

The casting has to fit steel that was fabricated to its own tolerances. A steel beam's bolt holes can be 2 mm out of position, and a rigid casting with a fixed hole pattern will not go on.

The standard solution is slotted holes in the casting, or a hole pattern with a larger clearance than the steel, plus hardened washers. We cast the holes undersize and drill them to the pattern, which gives us the option to adjust at machining rather than at the pattern.

Where the connection is slip-critical, the faying surface has to meet a slip factor, and a cast surface does not. We machine or blast the contact face to the specified finish and record it, because a painted faying surface loses most of its slip resistance.

Seismic Detailing: Ductility Where It Counts

A braced frame is designed so that the brace yields before the connection fails. That means the connection must be stronger than the brace, and it must also be able to deform without fracturing.

Ductile iron at 450 MPa with 15 percent elongation is the minimum for a seismic node. A higher-strength grade is not better here: the design wants deformation capacity, not peak strength.

The geometry matters as much as the material. A cast node with a generous fillet, no abrupt section change and a smooth transition into the brace has a much better chance of surviving the rotation that a yielding brace imposes.

Where the specification calls for a qualified connection, we will say what testing we can support and what has to be done by a structural laboratory.

Tolerances That Decide Whether It Fits on Site

A cast node that is 3 mm out will stop a steel erection. The tolerances that matter are the bolt hole positions, the angle between the connecting faces and the overall length.

As-cast, we hold ISO 8062 CT10 to CT11 on a part of this size, which is around plus or minus 1 mm on a 200 mm dimension. Hole positions are drilled after casting, to plus or minus 0.5 mm.

The angle between faces is the one that is easy to overlook. A 0.5 degree error over a 300 mm face is 2.6 mm at the end, and it shows up as a gap that the erector tries to close with bolt tension.

We check the angle on a coordinate measuring machine for the first article and sample it afterwards, and we report it on the dimensional sheet.

Fire, Corrosion and Coating in a Structural Node

A structural node is usually fire protected and always corrosion protected, and both interact with the casting.

Intumescent paint needs a defined dry film thickness over a profile it can key to. A cast surface is smoother than blast-cleaned steel, so the primer system has to be chosen for it rather than copied from the steel specification.

Hot-dip galvanizing is common on exposed nodes. As with any casting, drain and vent holes are needed, and a closed box section will trap zinc. We cast the holes and mark them.

Where a node is embedded in concrete, the coating is usually a simple primer, and the critical detail is that no part of the casting is left bare where it meets the concrete, because that is where corrosion starts.

Qualification: What a Cast Node Needs to Be Accepted

A structural engineer will accept a cast node when three things are demonstrated: the material properties, the casting quality and the design resistance.

Material: a certificate with tensile, yield and elongation, and for ductile iron, the nodularity. Charpy impact values at the service temperature if the structure is in a cold climate.

Quality: a written inspection regime, with radiography or ultrasonic testing at the critical sections, and a first-article dimensional report.

Design resistance: a calculation to the relevant code, or a test. We can supply the first two and work with the engineer's calculation for the third, but we cannot certify a structural design.

Being clear about that boundary is what makes a cast node acceptable to an engineer rather than a novelty.

Bolted or Welded: Choosing at the Node

Both work, and the choice is usually made on site conditions rather than on structural grounds.

Bolted connections can be made in the field, inspected visually, and adjusted if the steel does not line up. They need access for a wrench on both sides, and they need a slip-critical design if the load reverses.

Welded connections are stiffer and, in a fatigue-sensitive node, better, because a properly detailed weld has no slip. They need a welder, a procedure and inspection, and they cannot be adjusted.

A cast node changes the balance because it can be bolted without the eccentricity that a fabricated bracket introduces. The casting's bolt pattern can be designed so the load passes through the bolts in shear rather than in tension, which removes the prying problem that makes bolted brackets flexible.

Where the node is a cast part, bolted is usually the right answer, and the reason is that the casting made bolting viable.

Frequently Asked Questions

Can a cast node be welded to the steel frame?

It can be welded to a steel member with the right procedure, but the advantage of a casting is usually to avoid welding at the critical section. Most designs use bolts.

What grade of ductile iron is used for seismic nodes?

EN-GJS-400-15 or 450-10, chosen for elongation rather than strength. Higher grades reduce the deformation capacity.

How do you verify the internal quality?

Radiography or ultrasonic testing at the specified sections, on the first article and on a sampling basis agreed with the engineer.

What is the largest node you can cast?

Around 200 kg in lost foam, which covers most brace connections on buildings and small bridges.

Do you provide design calculations?

No. We provide material and quality certification and work to the engineer's design. We can suggest geometry that casts better, which often improves the structural detail too.

What is the lead time for a project with samples and testing?

Eight to ten weeks for the first article including radiography, then four to six weeks per batch.
