Stockbridge Damper Counterweights Cast to Mass and Balance

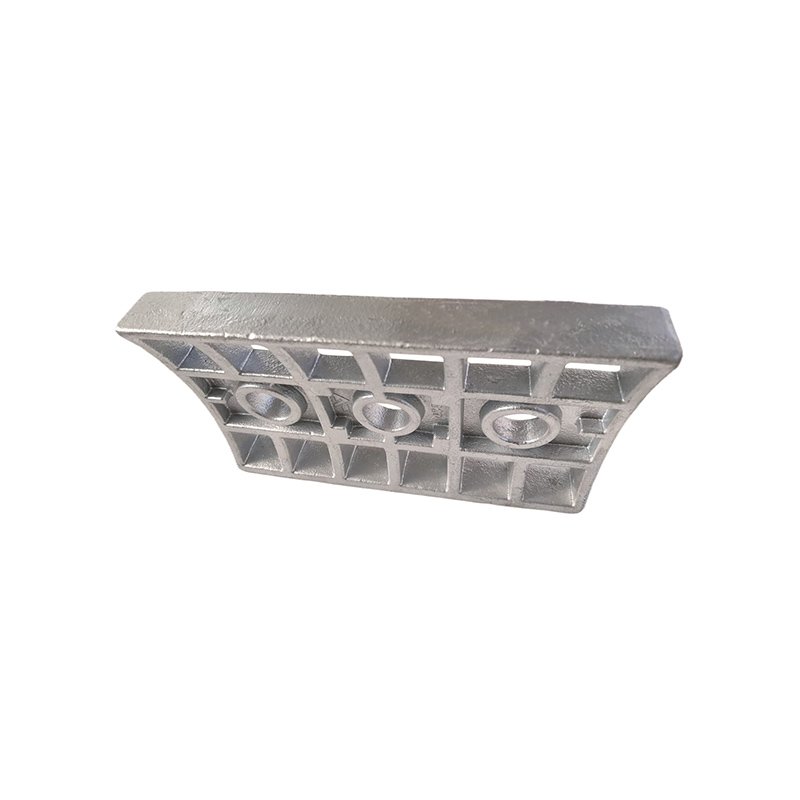

Product Details

A Stockbridge damper is a tuned mass. Two weights hang on a short length of messenger wire, and the whole assembly is tuned to absorb a narrow band of conductor vibration. Change the weight by five percent and the tuning moves; change the balance and the damper starts exciting the conductor instead of damping it. That is why a counterweight is bought on mass, not on strength.

A Damper Is a Tuned Mass, and the Weight Is the Tune

Conductor vibration happens in the range of roughly 3 to 60 Hz, driven by steady wind across the span. Each damper is designed to cover a band, and the band is set by the mass of the two weights, the length and stiffness of the messenger wire, and the clamping point on the conductor.

The mass is not a suggestion. If a damper is designed with 2.4 kg weights and the casting comes in at 2.55 kg, the resonant frequency drops by about three percent, and the damper's effective band shifts away from the frequencies the span actually produces. On a long river crossing where the vibration is severe and the dampers are spaced deliberately, that shift is the difference between a damper that works and one that hangs there looking correct.

So the drawing should specify mass with a tolerance, and the tolerance should be tight. We work to plus or minus 2 percent as standard and plus or minus 1 percent when asked, weighing every piece rather than sampling.

Why Mass Tolerance Matters More Than Strength

The mechanical load on a counterweight is modest. It hangs on a wire and oscillates. What it must not do is fatigue-crack at the attachment, or corrode to the point where the mass changes.

Ductile iron at 450 MPa with 15 percent elongation is more than strong enough; it is specified for the fatigue resistance at the wire hole and for the fact that it does not chip when a lineman drops it on a tower. Grey iron would be cheaper and is used on some low-cost dampers, but a chipped weight changes the mass and a cracked one falls off.

The strength requirement is easy. The mass requirement is the one that needs process control, and that means controlling pour weight rather than only final weight.

The Messenger Wire Interface: Where Dampers Fail

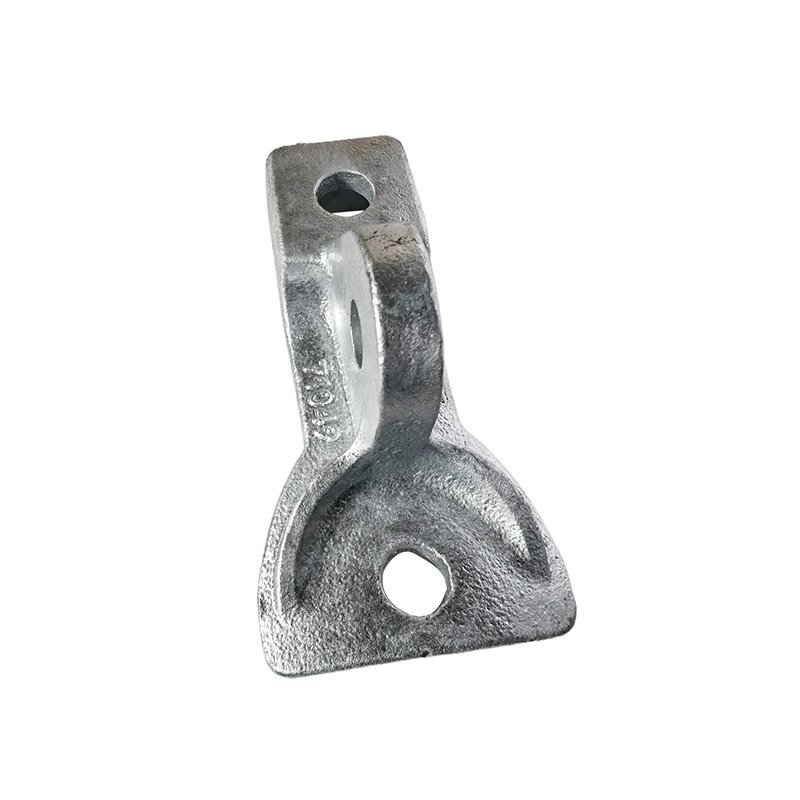

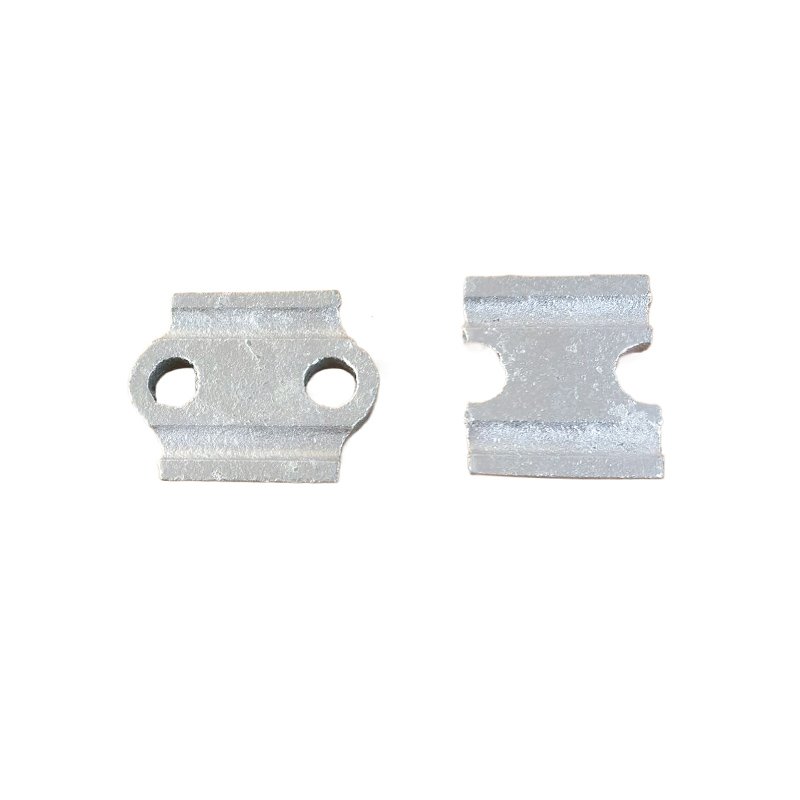

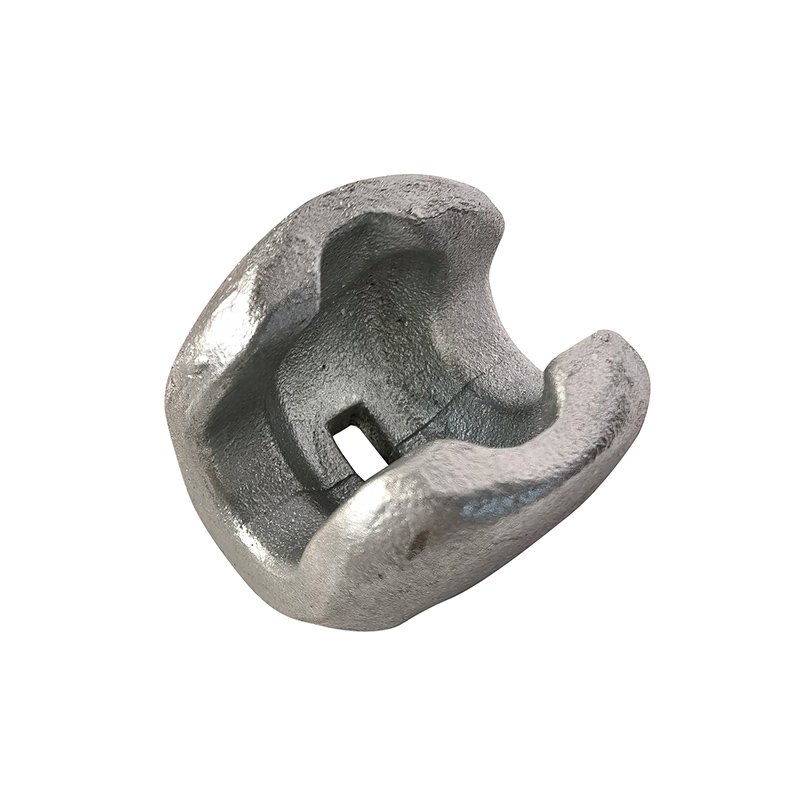

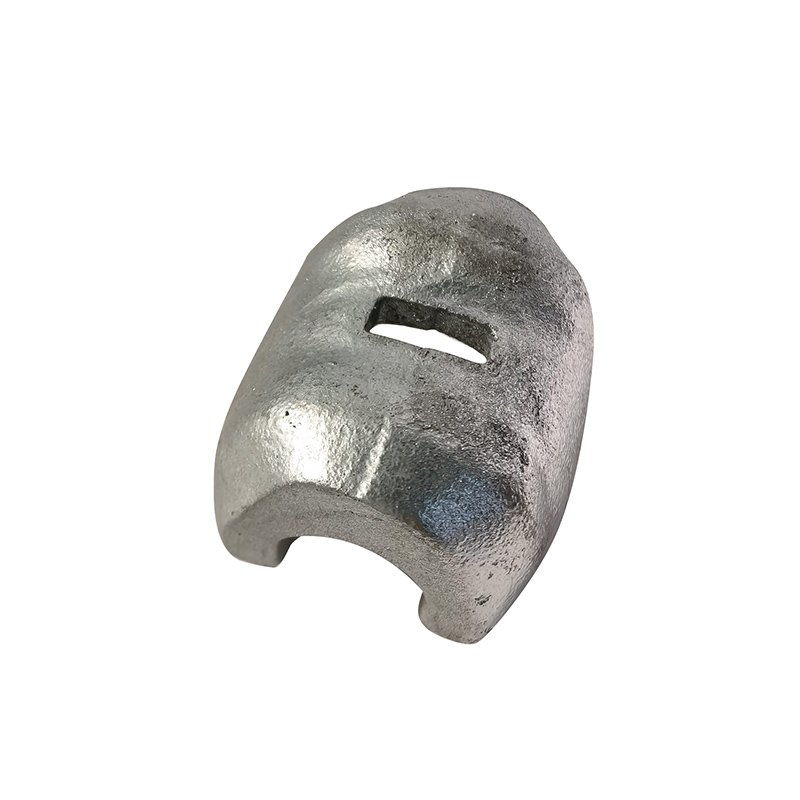

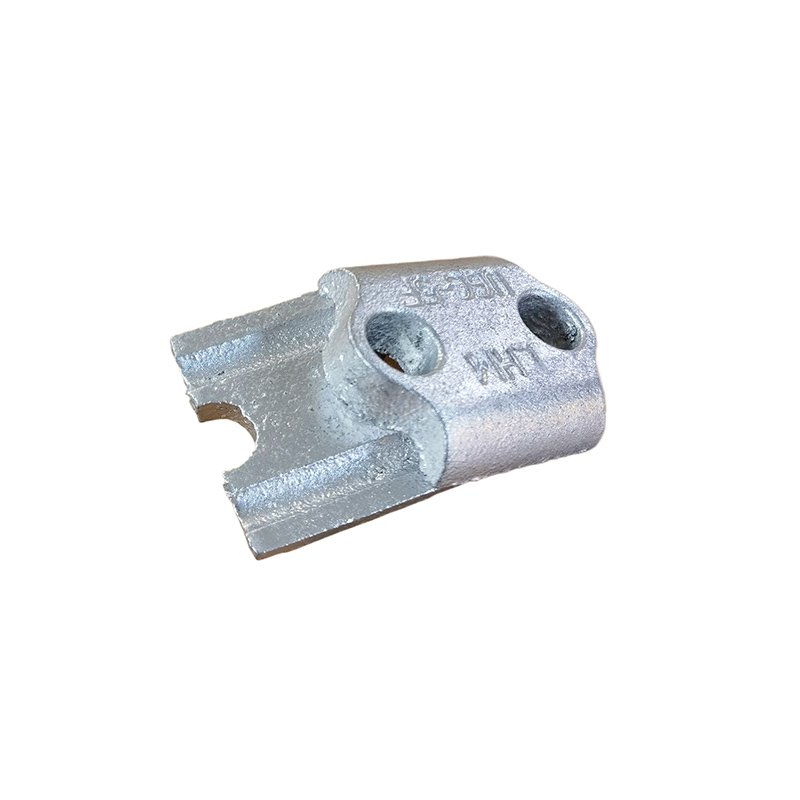

Every failed damper we have seen failed at one of two places: the clamp on the conductor, or the hole where the messenger wire enters the weight.

At the weight end, the wire is crimped or swaged into a hole, and the hole edge becomes a stress concentration under every oscillation. A sharp-edged hole, a rough bore or a burr left from drilling will start a crack in the wire within a few million cycles.

We cast the hole slightly undersize and then drill and chamfer it, rather than casting it to final size. The chamfer radius, typically 1 to 1.5 mm, and the bore finish are as much a part of the specification as the mass. A drawing that shows the hole without a chamfer is a drawing that will produce fatigue failures.

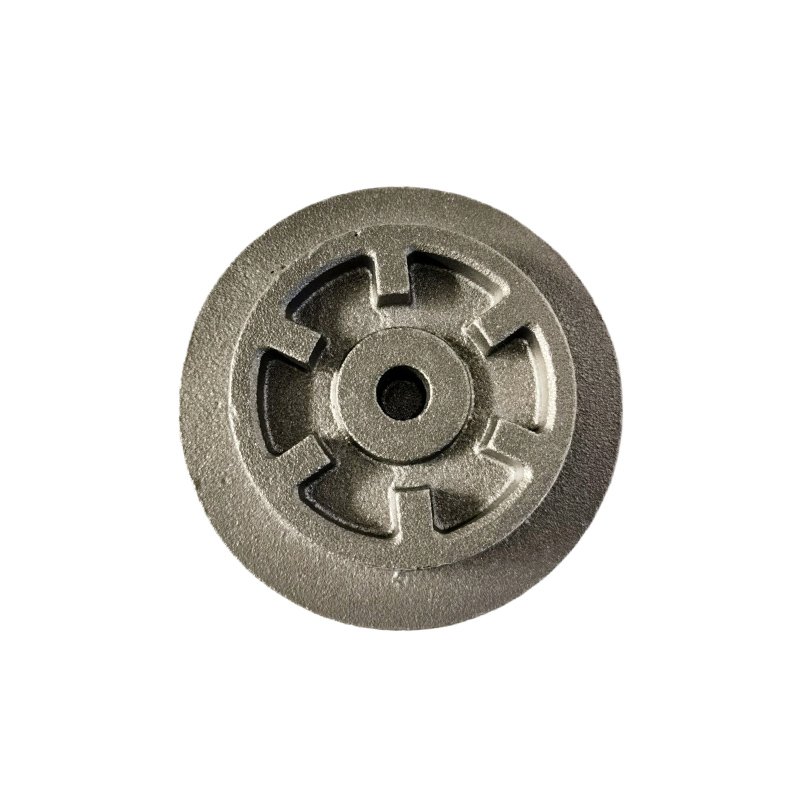

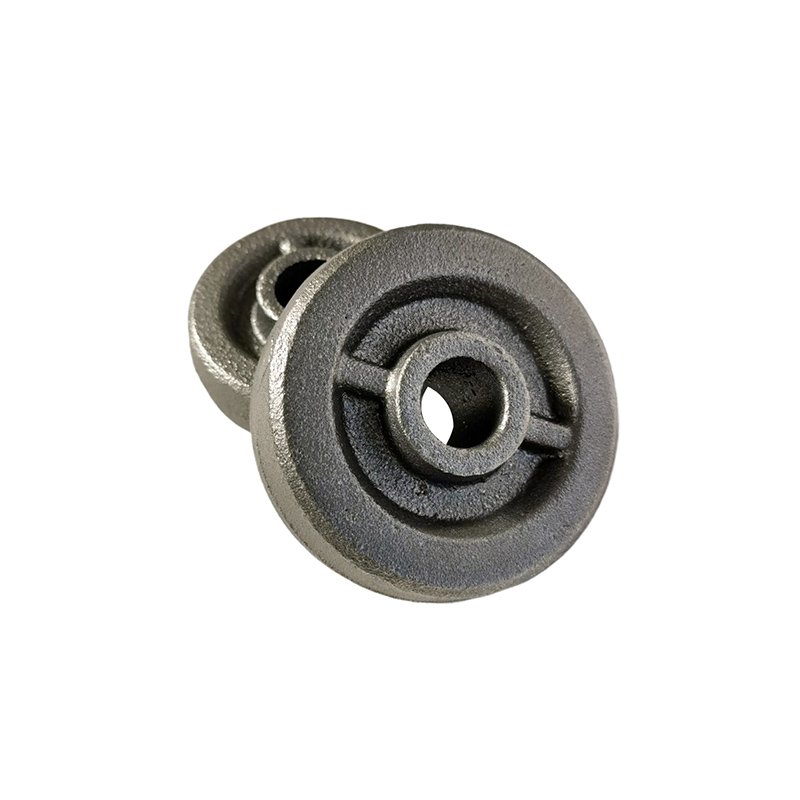

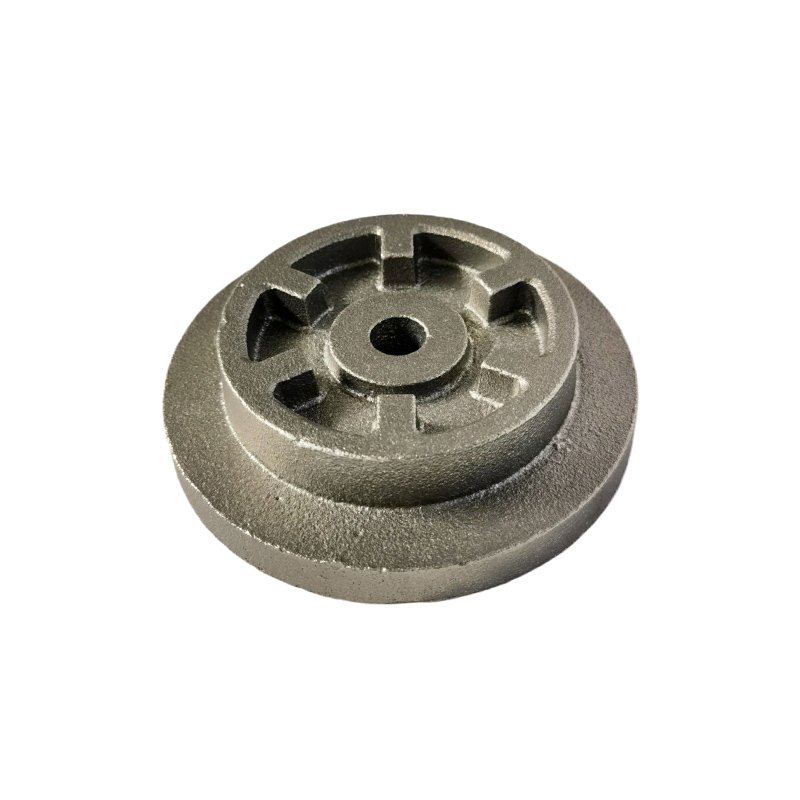

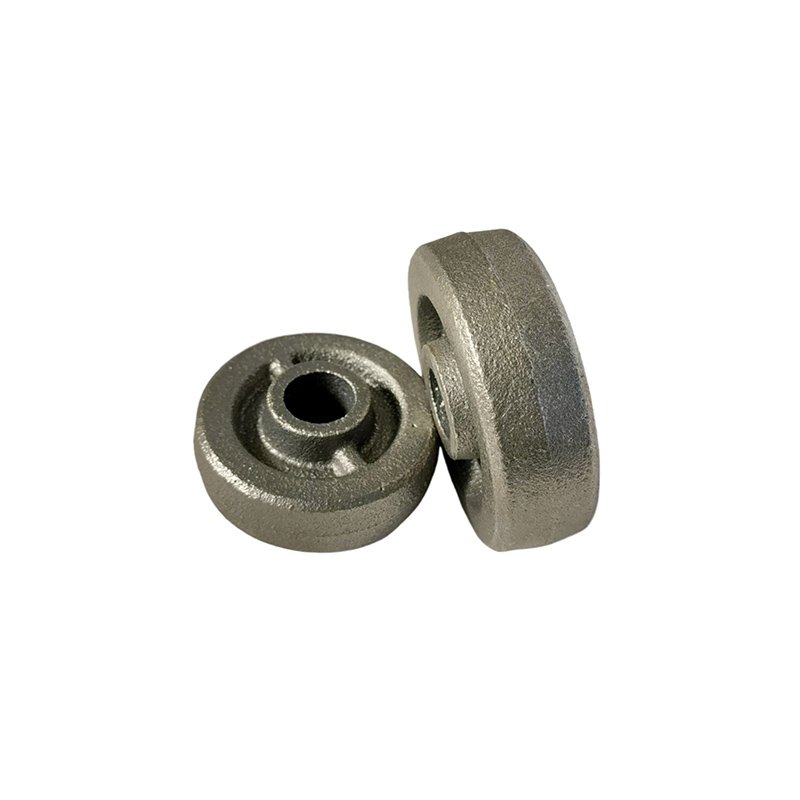

Casting a Weight That Is Symmetrical

Two weights on one damper must match each other. If one is 20 grams heavier, the damper's motion becomes asymmetric and the tuning shifts, even though each individual weight is within its own tolerance.

So we cast them in pairs from the same mould, from the same heat, and weigh them as a pair. The pair tolerance is tighter than the individual tolerance, typically plus or minus 1 percent between the two.

Symmetry also means the centre of mass has to sit where the drawing says. A weight with an offset boss or an uneven wall will not hang vertically, and a damper that hangs at an angle damps unevenly in the two directions. We check this on the first article by balancing on a knife edge, and we keep the pattern's gating symmetrical so the shrinkage is symmetrical too.

Galvanizing Without Changing the Mass

Dampers live outdoors for forty years, so the weights are galvanized. Coating adds mass: 80 micrometres of zinc on a part with 0.05 square metres of surface is about 60 grams, which is 2.5 percent of a 2.4 kg weight.

That is not negligible when the tolerance is 2 percent. There are two ways to handle it. Specify the mass after coating, and we adjust the casting weight to compensate. Or specify the mass before coating and accept that the finished part is heavier.

We prefer the first and we will ask which one your drawing means. On dampers where the tuning is critical, the drawing usually states the finished mass, and the casting is designed 2 to 3 percent light so the zinc brings it back to nominal.

Frequency, Wind Span and Choosing the Damper

Counterweights are usually bought to an existing damper design, so the frequency calculation is already done. But buyers sometimes ask which weight to use on a new span, and the honest answer is that it depends on span length, conductor diameter, tension and the wind climate.

The rough rule for a Stockbridge damper is that the weight and the messenger length are chosen so the damper's first resonant frequency sits near the middle of the vibration band the span produces. Longer spans and smaller conductors vibrate at higher frequencies and need lighter, shorter dampers. Large conductors on short spans need heavier ones.

We do not sell damper design. We cast to a design that has been validated, and we will say so rather than guess at a tuning that a test span should decide.

Batch Consistency: Weighing Every Piece

The control that makes all of this work is simple and unglamorous: every counterweight is weighed, and the weight is recorded against the batch.

That gives three things. It catches a pattern that has worn and is now pouring heavy. It catches a heat where the chemistry drifted and the density changed. And it gives the customer a record that can be matched to a damper serial number, which matters when a utility is investigating a vibration complaint five years later.

Pieces outside the tolerance are not scrapped, they are reworked: a light weight gets a cast-in pocket drilled deeper, a heavy one is ground. Rework is cheaper than a new casting and keeps the pair matched.

Spacing Dampers on a Span

The counterweight is one part of a damper, and the damper is one part of a system that has to be spaced correctly along a span.

Vibration on an overhead conductor forms standing waves, and a damper is placed where the antinode is, not at the middle of the span by default. On a long span, several dampers are used, spaced at intervals that depend on the conductor's wave propagation speed and the frequency band being controlled.

Spacing a damper at the wrong point leaves the antinode undamped, and the conductor fatigues at the clamp even though every damper on the line is correctly made. That is a design error, not a casting error, and it is why a utility's spacing table matters as much as the damper specification.

What we control is the mass and the pair match. What the utility controls is where they go. A counterweight that is 2 percent heavy shifts the tuning; a damper that is 200 mm from the antinode loses most of its effect. Both matter, and only one of them is ours.

Frequently Asked Questions

What mass tolerance can you hold?

Plus or minus 2 percent as standard, 1 percent on request with 100 percent weighing. Pair matching between the two weights is held to 1 percent.

Is the mass specified before or after galvanizing?

Tell us which your drawing means. Most damper designs specify finished mass, and we cast light to allow for the zinc.

Can you cast the messenger wire hole to size?

We cast it undersize and then drill and chamfer. A cast hole has the wrong surface and no chamfer, which is where fatigue cracks start.

Do you supply the messenger wire and the clamp?

We can source them to your specification, but most customers supply their own so the damper's tuning is controlled in one place.

What coating do you recommend?

Hot-dip galvanizing at 70 to 90 micrometres, which matches the rest of the line hardware. Paint is not adequate on a part that will be handled during installation.

Can you match an existing damper weight?

Yes. Send the weight and the hole dimensions; we will confirm mass, balance and the pair match before quoting.
