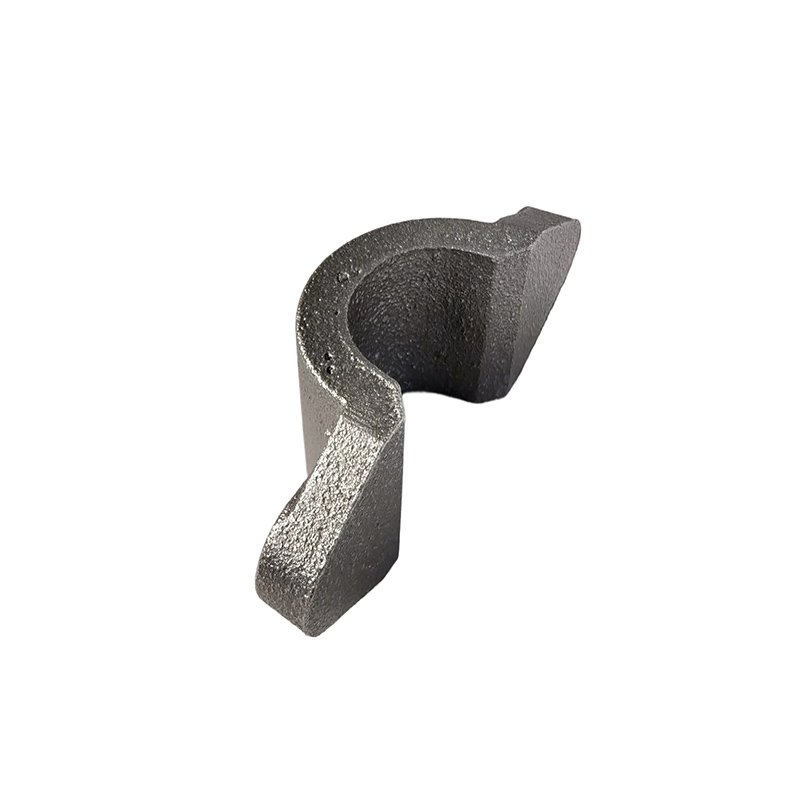

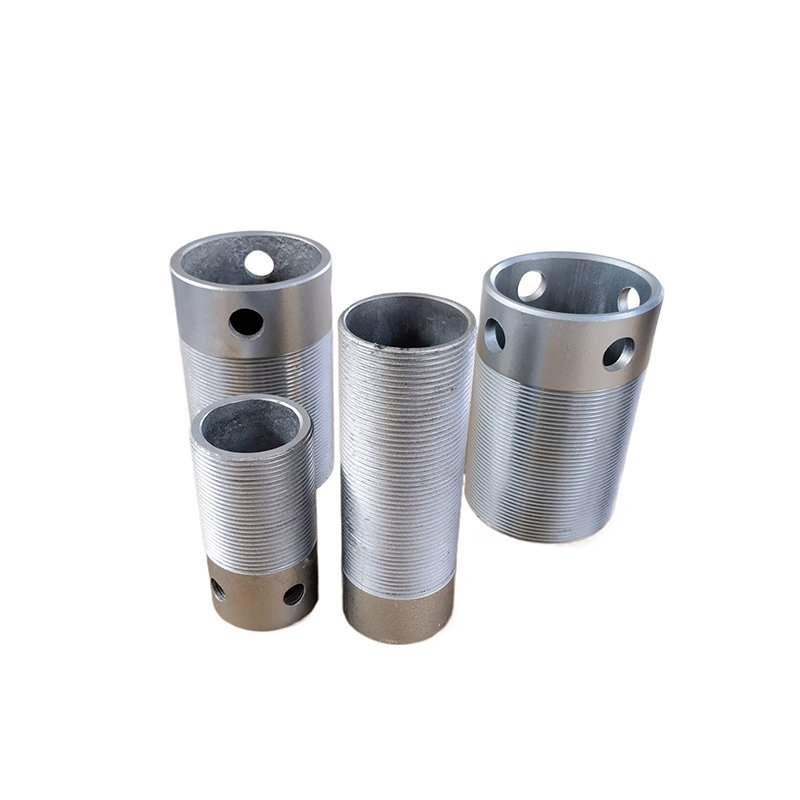

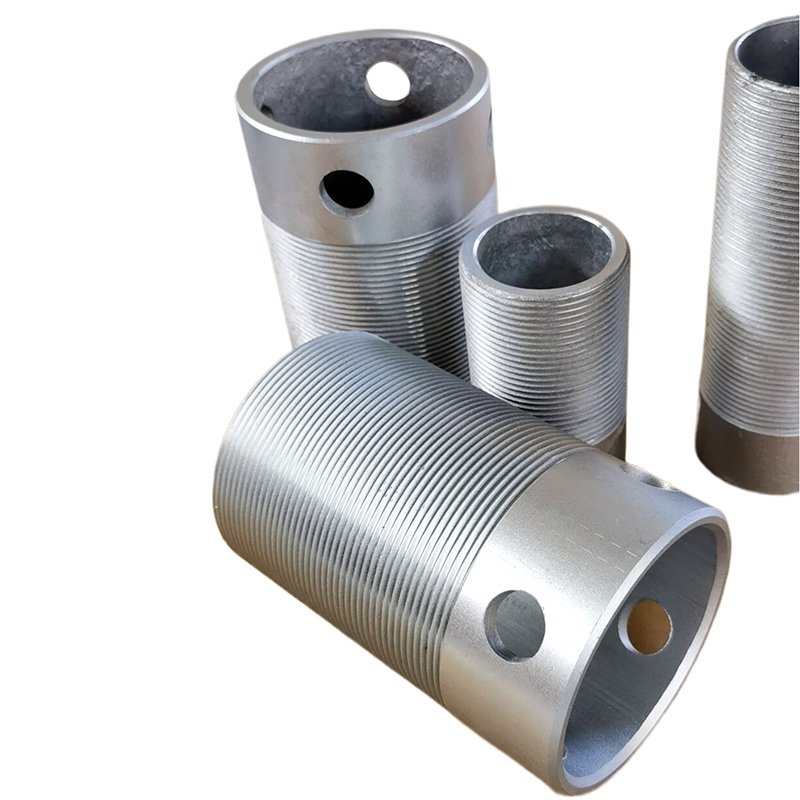

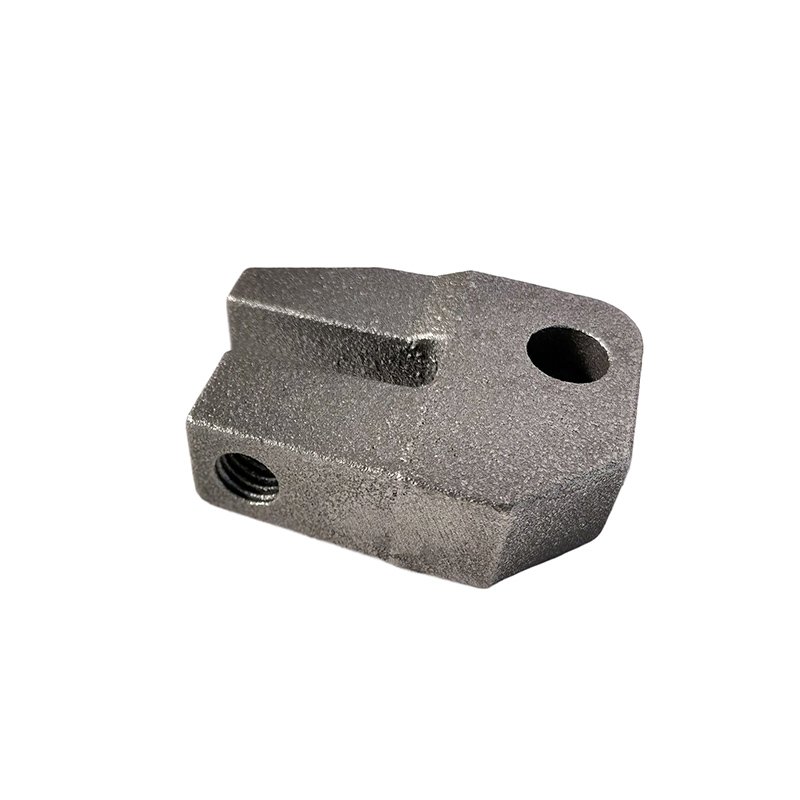

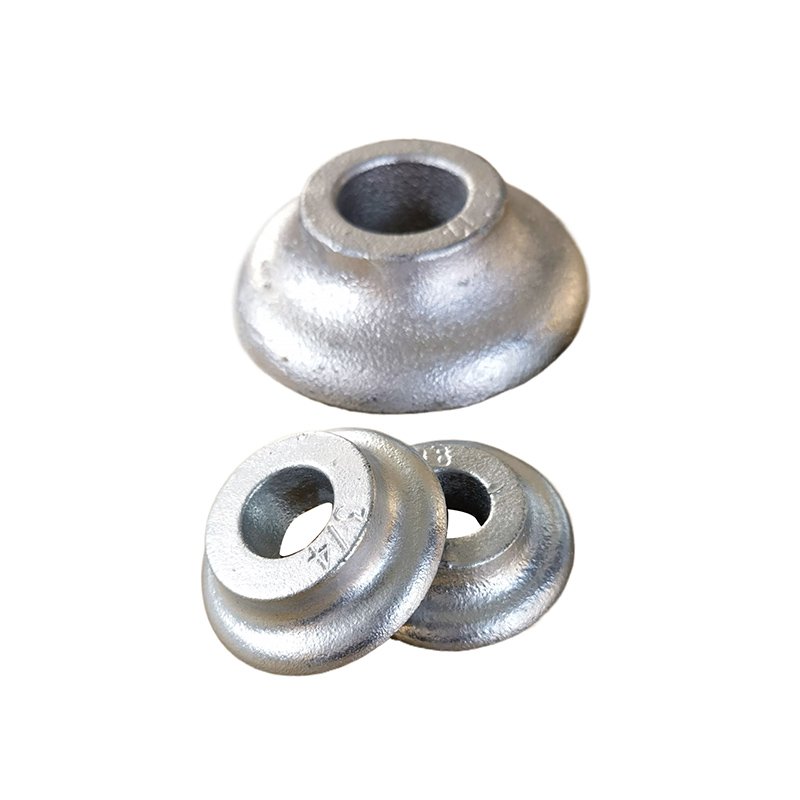

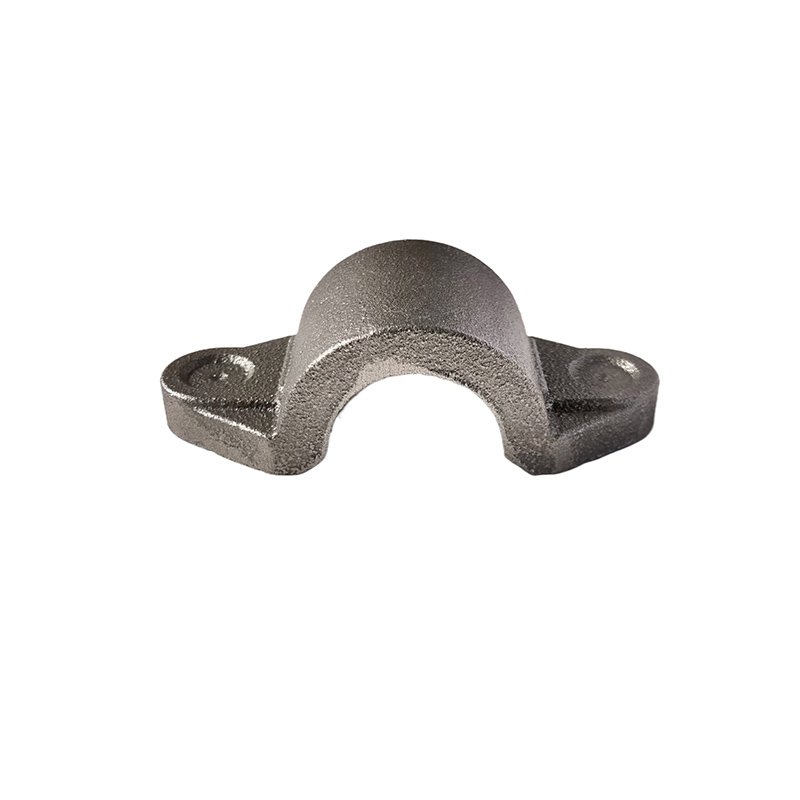

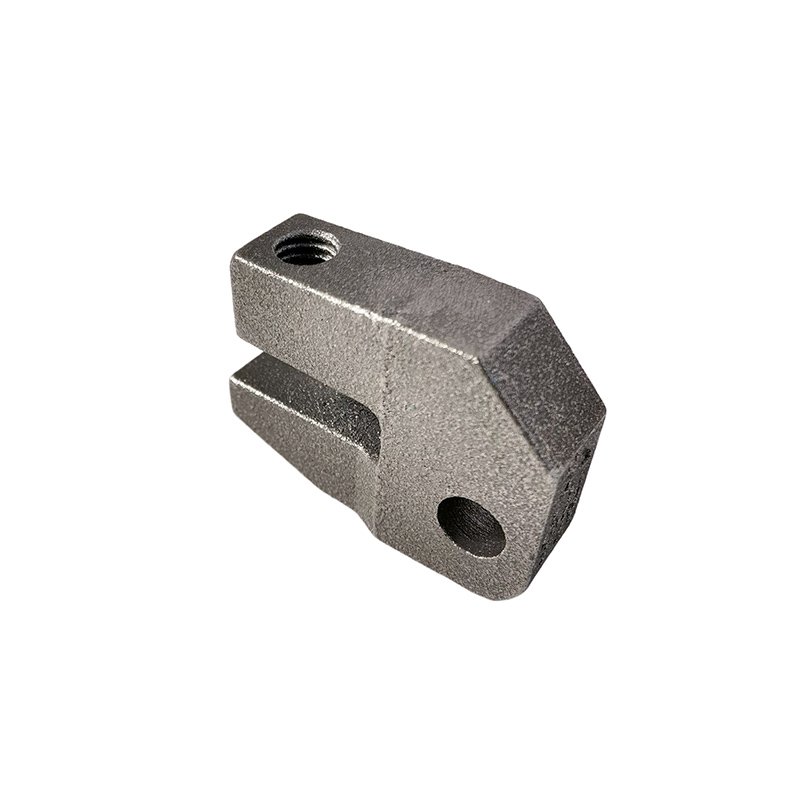

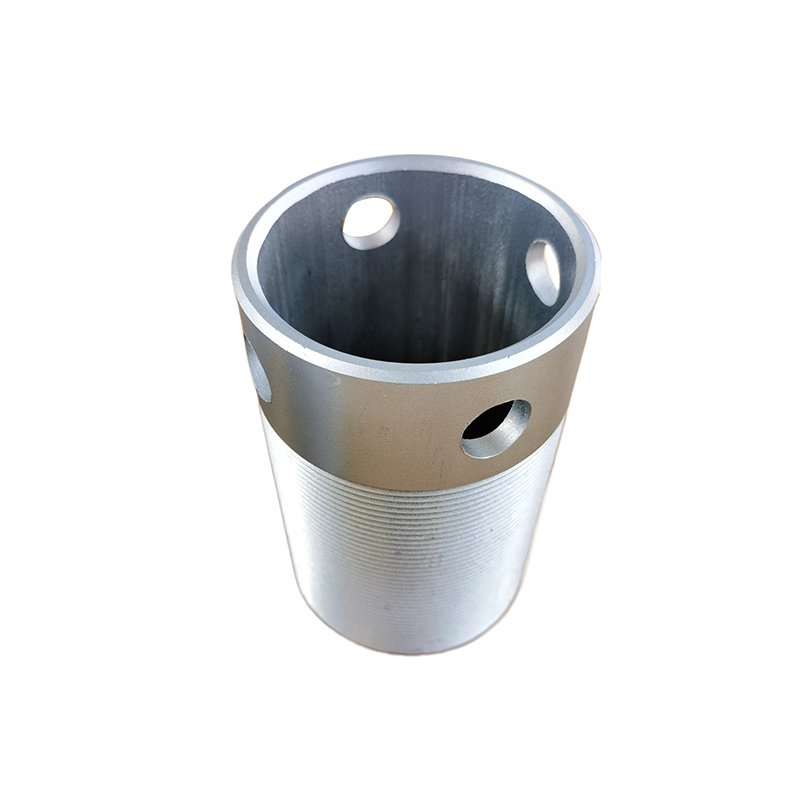

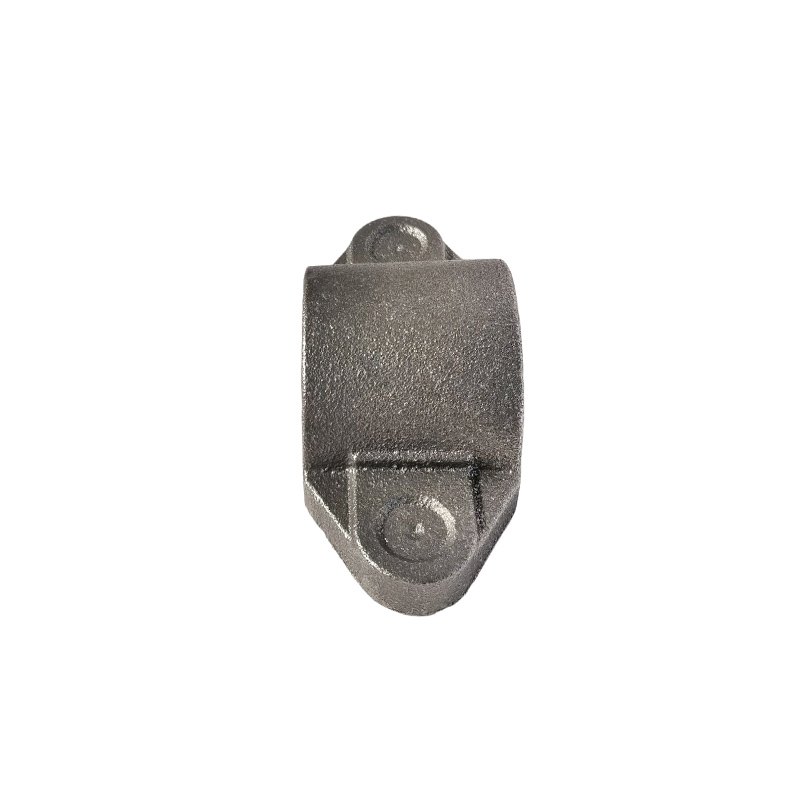

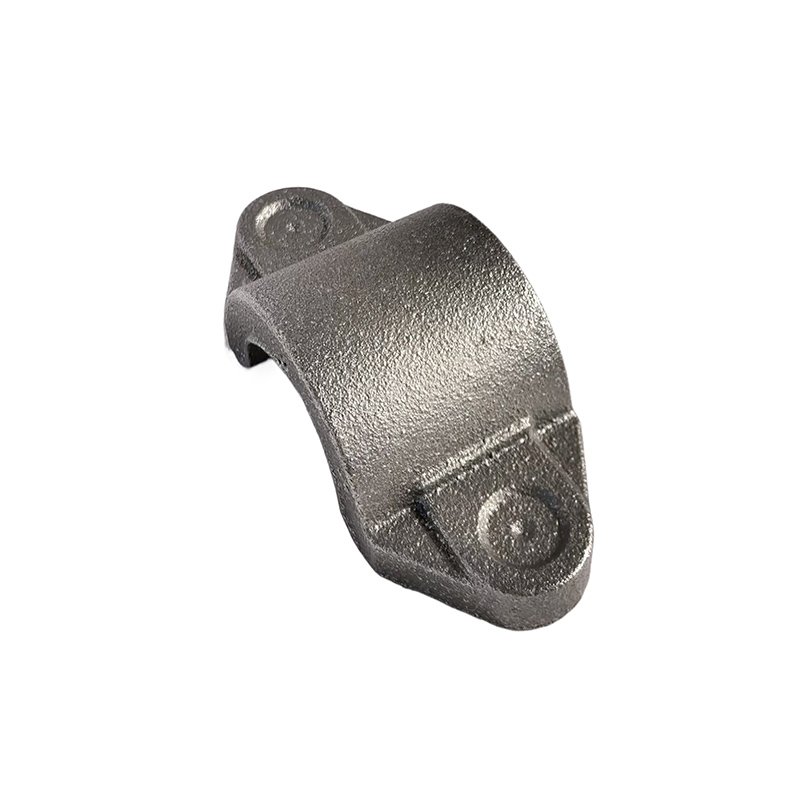

Shell Mold Casting Parts for Thin Walls and Smooth Surfaces

Shell moulding is the process you choose when the as-cast surface has to be good enough to use, or when the wall is too thin for green sand. It costs more per mould and it delivers something green sand cannot, so the decision is about which of those two problems you actually have.

What a Shell Mould Is and Why It Costs More

A shell mould is made by dropping a heated metal pattern onto a box of resin-coated sand. The resin cures against the hot pattern, forming a shell 6 to 12 mm thick, which is then stripped and used as half a mould. Two halves are clamped or glued together and backed with shot or sand for support.

The cost comes from the resin, the heated pattern and the cycle time. Resin is far more expensive than clay, and the pattern has to be heated to 250 degrees for every cycle, which limits the pattern material and the production rate.

What you get for that cost is a mould with a smooth cavity, a precise dimension and no moisture. All three matter for specific kinds of parts.

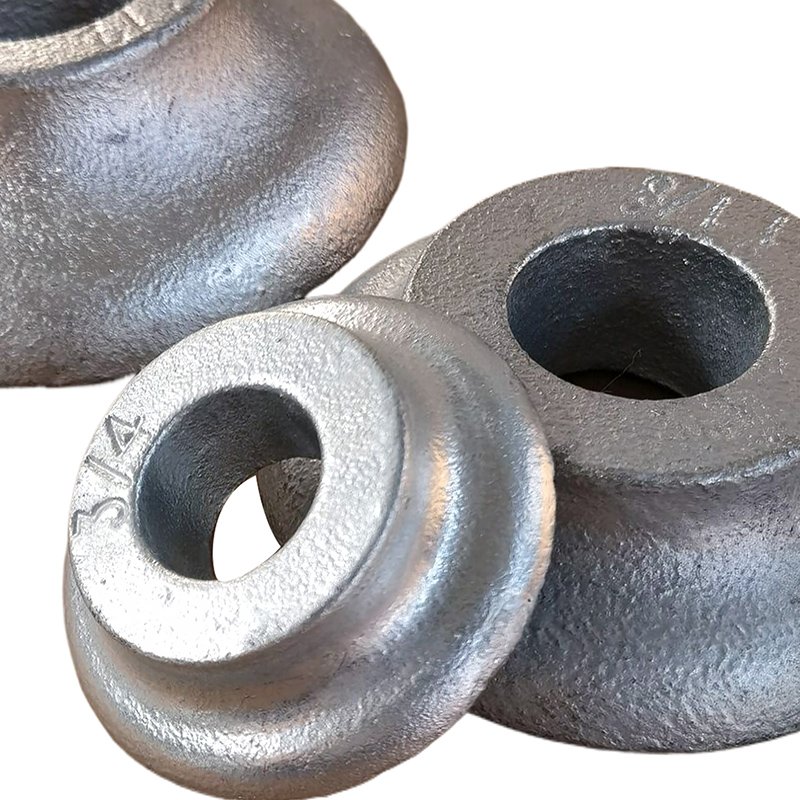

Surface Finish: Ra 6 Against Ra 25

A green sand mould has a surface defined by the sand grain, typically Ra 12.5 to 25 micrometres. A shell mould has a surface defined by the resin coating, typically Ra 6 to 12.

That difference is visible. A shell cast part looks smoother, holds paint better and needs less shot blasting. On a part where the as-cast surface is the finished surface, such as a cover plate or a decorative bracket, shell moulding removes a finishing operation.

It does not remove the need for machining on functional faces. A 6 micrometre surface is still not a bearing seat, and it is not flat to 0.05 mm.

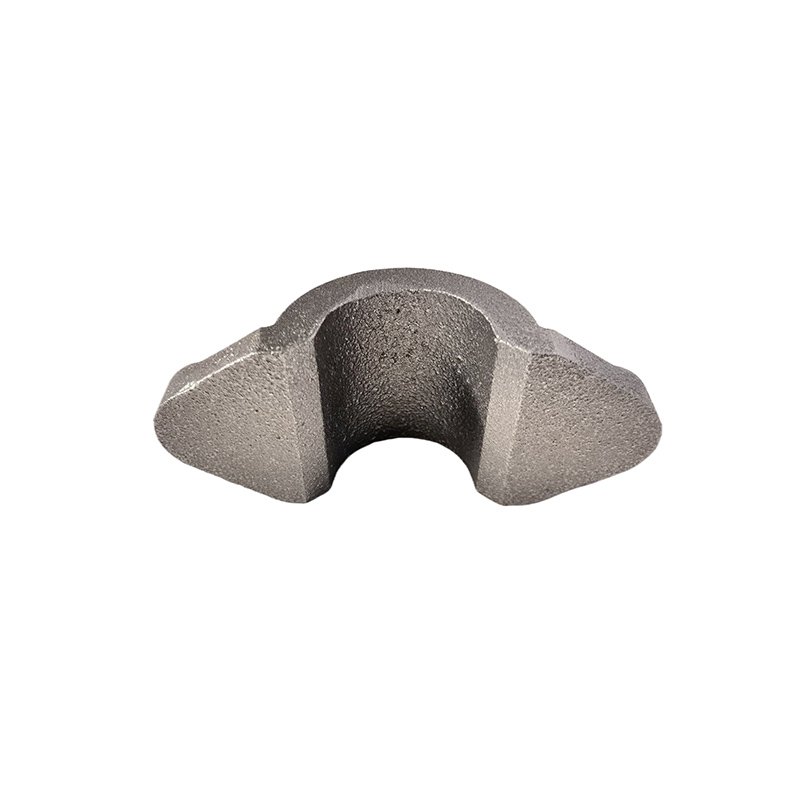

Thin Walls and the Parts That Need Them

Green sand struggles below 4 mm because the sand mould is weak at the edge and the metal may not fill before it freezes. A shell mould is stronger and smoother, so it fills a 2.5 to 3 mm wall reliably.

That matters for parts where weight is the constraint: a bracket that has to be light, a cover that has to be thin, a housing where the wall is set by packaging rather than by load.

The limit is still the metal, not the mould. Ductile iron at 2.5 mm will chill and may form carbides, so a thin ductile part often needs a heat treatment that a thin grey iron part does not.

Dimensional Repeatability

A shell mould does not distort during pouring the way a green sand mould can, because it has no moisture to drive off and it is backed rigidly. The result is a more repeatable casting, particularly on dimensions that cross the parting line.

In practice, a shell mould holds CT9 to CT10 where green sand holds CT10 to CT13. On a 100 mm dimension, that is about plus or minus 0.6 mm against plus or minus 1.2 mm.

The gain is worth having when the part has a fit that cannot be machined, such as a thin cover that sits in a groove, or when the machining allowance can be reduced because the casting is more consistent.

When Shell Moulding Is the Wrong Choice

Large parts. A shell mould for a 40 kg casting needs a pattern and a box that are impractical, and the shell itself becomes heavy and fragile.

High volume simple parts. Green sand is cheaper per mould and faster, and if the surface does not matter, there is nothing to gain.

Parts with deep pockets. A shell is thin and brittle, and a deep core in a shell mould is difficult to support.

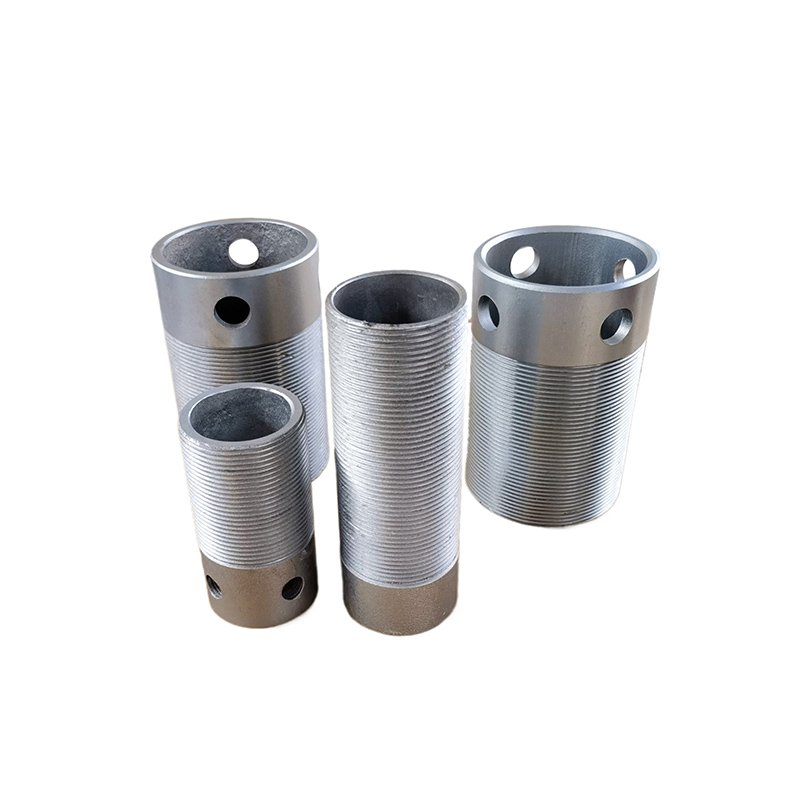

Parts where the as-cast surface will be machined away entirely. If every face is machined, the surface advantage disappears and the price premium buys nothing.

Tooling: Metal Pattern, Heated Box

The pattern has to withstand 250 degrees and the abrasion of resin sand, so it is usually cast iron or steel, sometimes with a nickel coating on the working face.

Tooling cost is higher than a green sand pattern, typically 1.5 to 2 times, because the pattern is a precision metal part and the box has to be built around it.

The pattern also wears differently: the resin sand is abrasive and the pattern is hot, so a shell pattern may need refurbishment after 20,000 to 50,000 cycles rather than the 100,000 a green sand pattern gives.

Sand and Resin Handling

Resin-coated sand has a shelf life and a temperature sensitivity. Stored too warm, the resin cures prematurely and the sand becomes unusable; stored too cold, it does not cure against the pattern.

The process also produces emissions during pouring, because the resin burns. That requires extraction and, in most jurisdictions, an permit. It is one of the reasons shell moulding is often outsourced by foundries that do not want the environmental overhead.

We run shell moulding in a dedicated area with extraction, which is why we can offer it alongside green sand without the two processes interfering.

Volume, Cost and the Crossover With Green Sand

Shell moulding costs more per piece at any volume, typically 20 to 40 percent above green sand for the same part. The crossover is not about volume, it is about whether the process removes a downstream operation.

A part that needs no machining and no surface finishing because the shell surface is good enough: shell moulding can be cheaper overall despite the higher casting price.

A part with a 3 mm wall that green sand cannot fill: shell moulding is the only option, so the comparison is against a different design rather than a different process.

A part that is machined all over: green sand wins, and the surface premium is wasted.

Shell Against Cold Box and Green Sand

Three processes compete for the same part, and the choice is usually decided by the core, not the mould.

Green sand is the cheapest and the most forgiving, and it handles a part with a simple core and a moderate wall.

Shell moulding gives a better surface and a thinner wall, and it handles a more complex core because the shell core is stronger and smoother than a green sand one.

Cold box, where the core is cured by a gas at room temperature, gives the best core dimensional accuracy and the fastest core production. It is often used with a green sand mould: the mould is cheap and the core is precise, which is a good combination for a part with an accurate internal passage.

A part with a complex internal cavity and a smooth external surface may need shell mould plus cold box cores, which is the most expensive combination and sometimes the only one that works.

Resin Sand Storage and the Season

Resin-coated sand is a perishable material, and its behaviour changes with the weather in a way that shows up in the casting.

Warm storage accelerates the resin's cure, so sand that sat in a hot warehouse through August may cure before it reaches the pattern, producing a shell that is thick in one area and thin in another. Cold storage slows the cure, and the shell comes out undercured and weak.

The practical control is to keep the sand in a temperature-controlled store, use it within its shelf life, and test a sample shell at the start of each shift. In a humid climate, moisture absorption is the other variable, and it affects the shell's strength more than its thickness.

This is why a shell moulding quote sometimes carries a note about the season. It is not an excuse; it is a real process variable that a green sand line does not have.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

What is the minimum wall for shell moulding?

2.5 mm in grey iron, 3 mm in ductile iron. Below that, the metal may not fill even in a shell.

Can shell moulding produce a part with an internal cavity?

Yes, with a shell core. It is more expensive than a green sand core and the core is fragile, so it suits simple cavities only.

How does the price compare with green sand?

Typically 20 to 40 percent higher for the casting. It can be cheaper overall if it removes a finishing operation.

What tolerance can you hold?

ISO 8062 CT9 to CT10 as-cast, which is tighter than green sand.

Is the surface good enough to paint directly?

Yes, after shot blasting. It is not good enough for a decorative finish without preparation.

What is the largest part you cast in shell moulds?

Around 15 kg. Above that the shell becomes impractical and green sand or lost foam is the better route.
