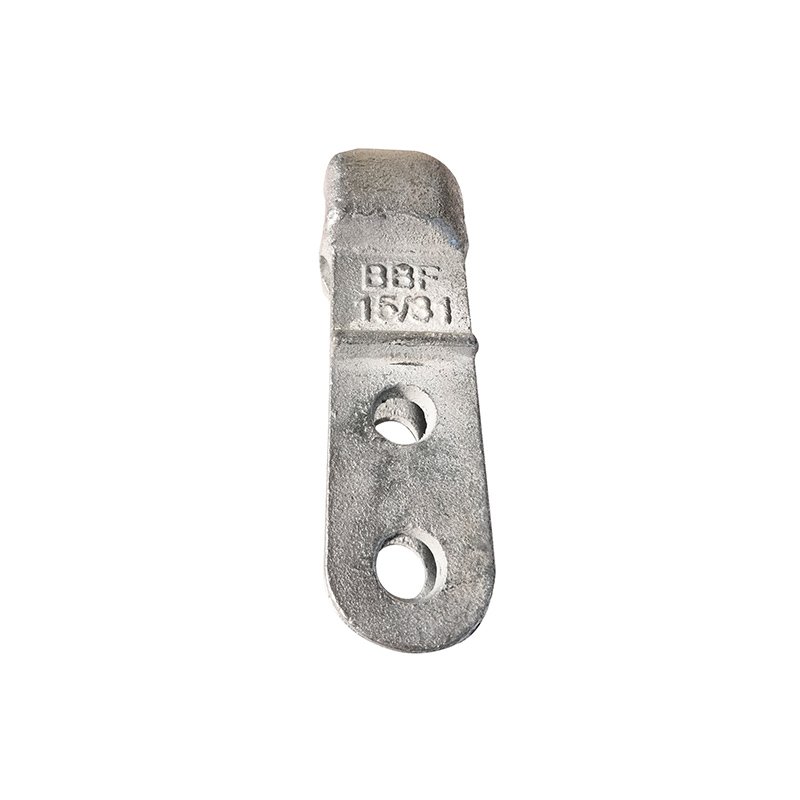

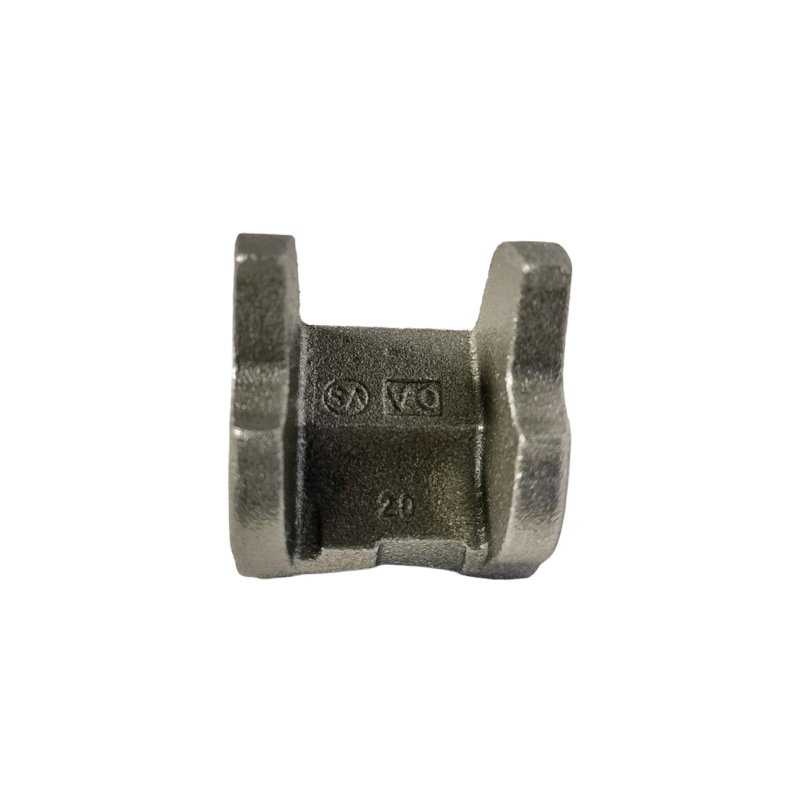

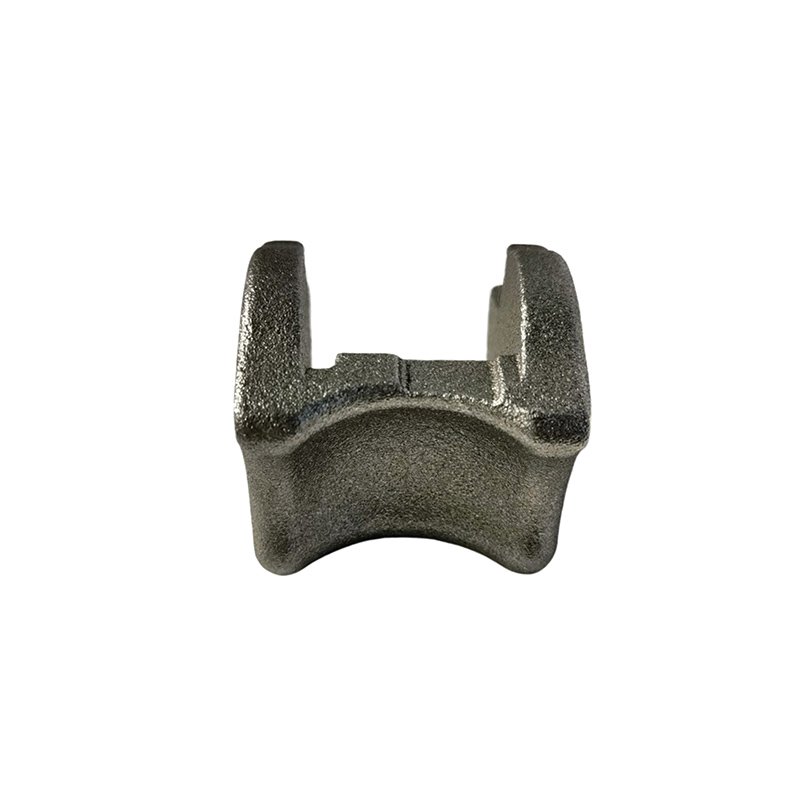

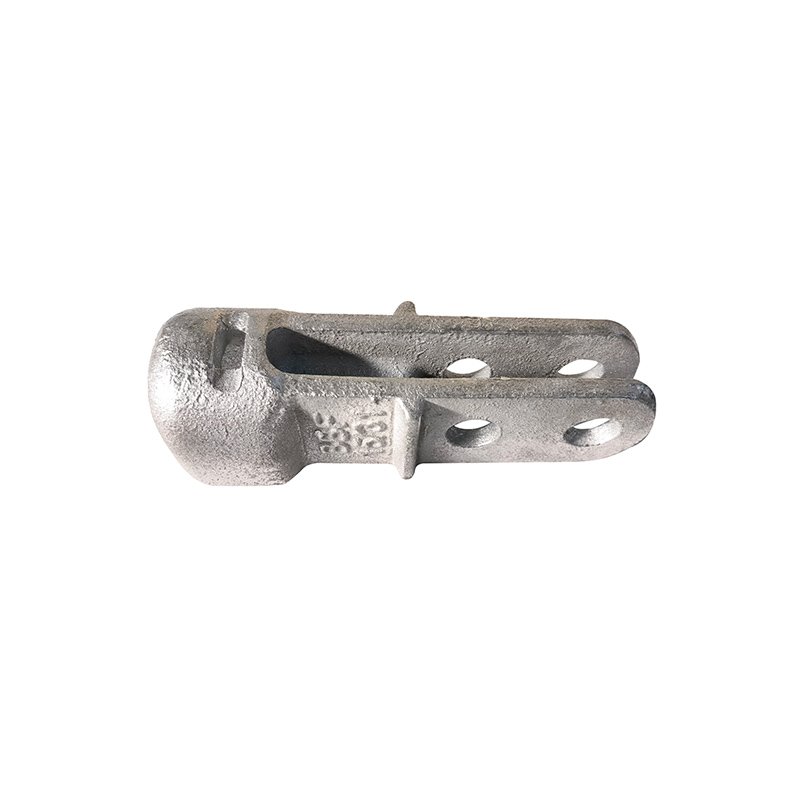

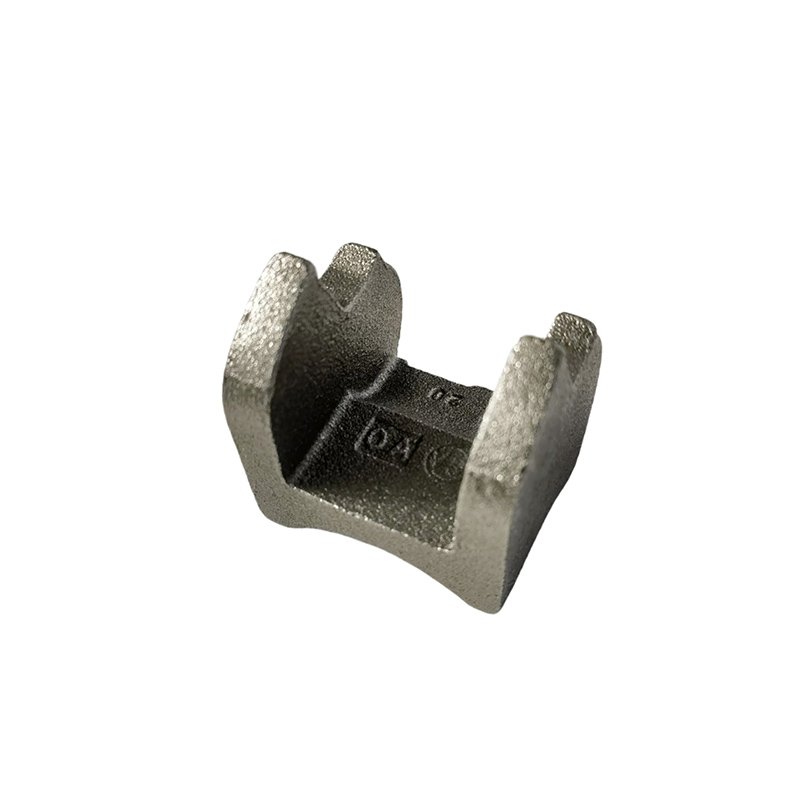

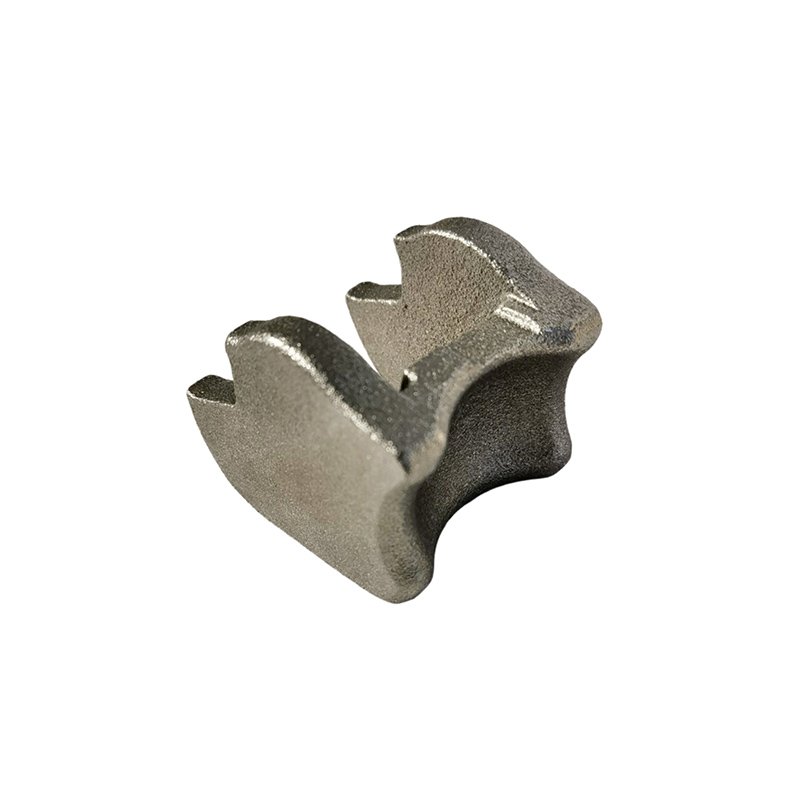

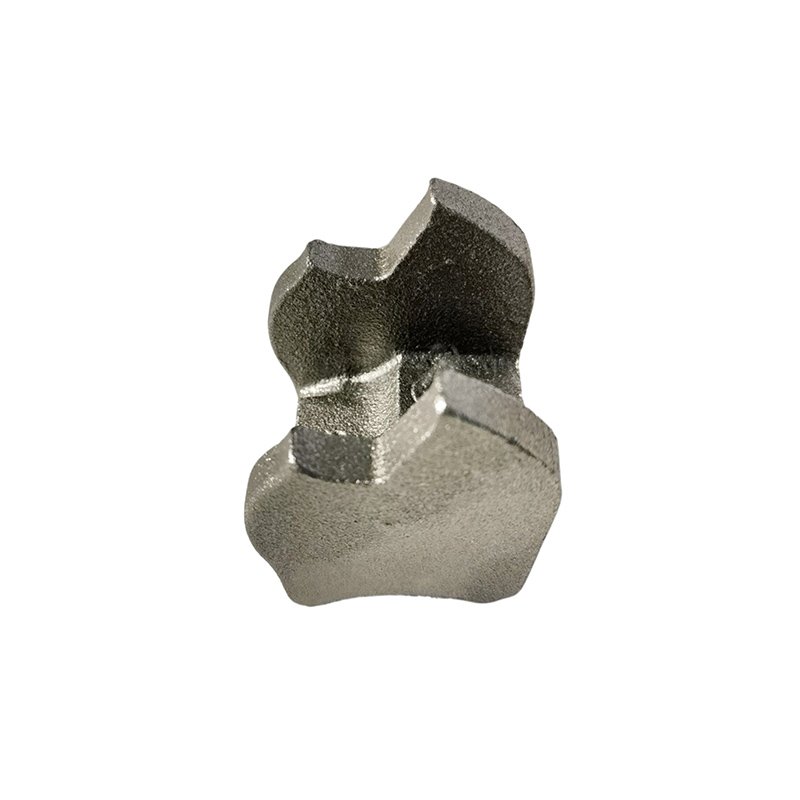

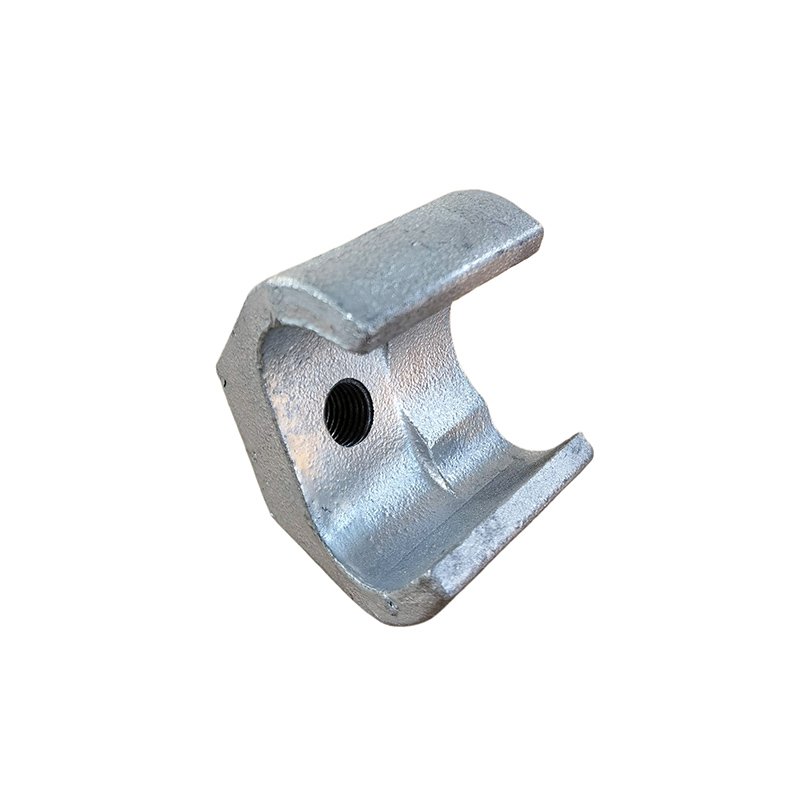

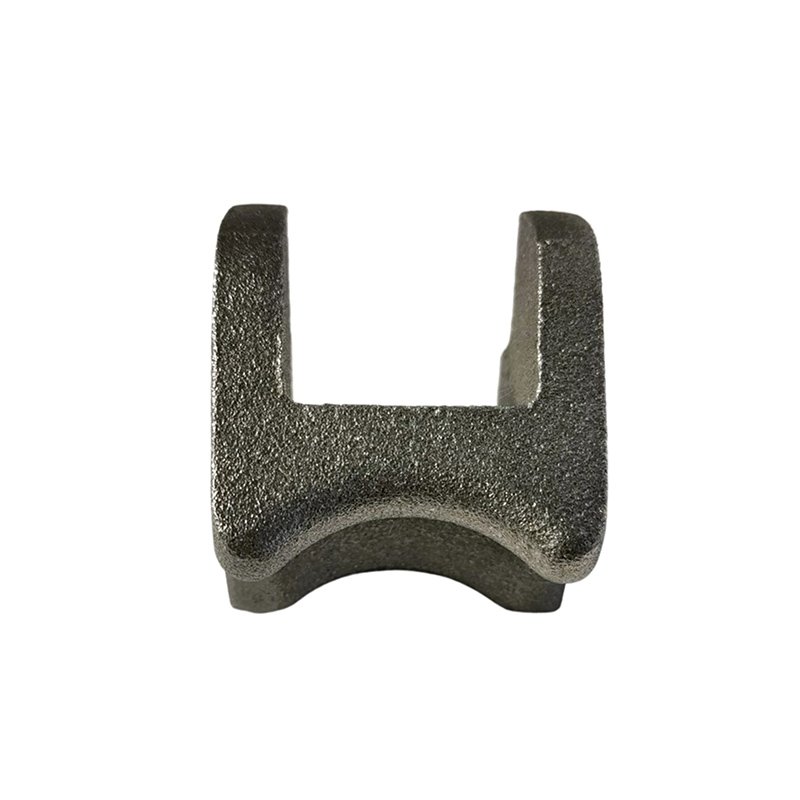

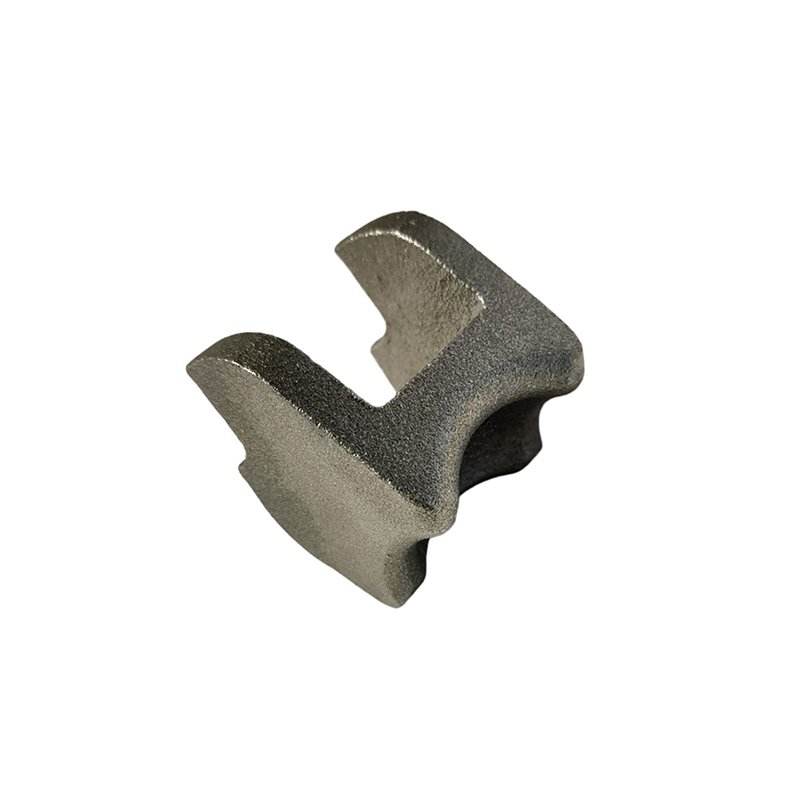

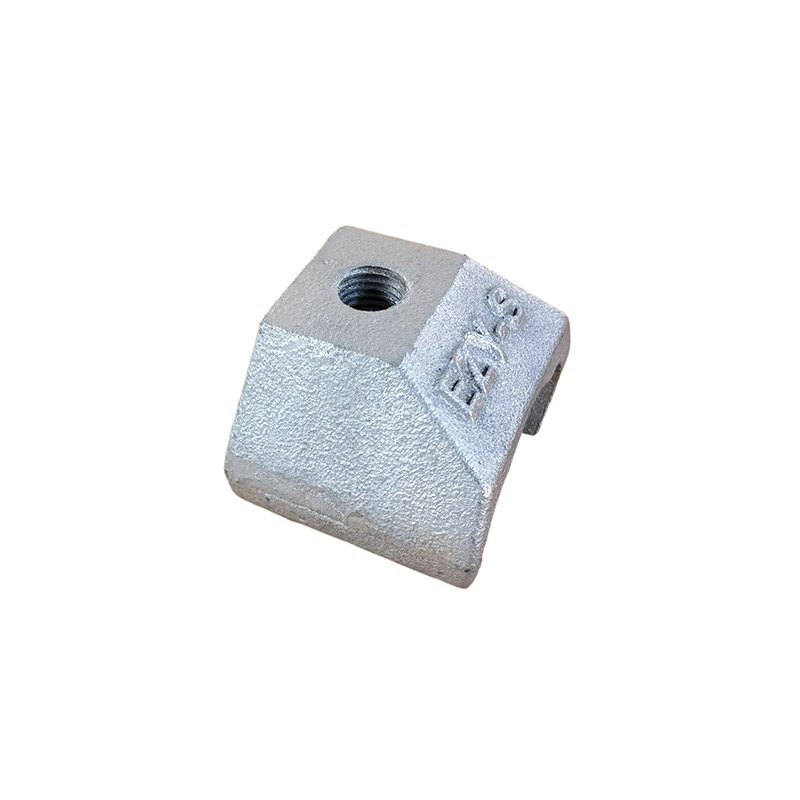

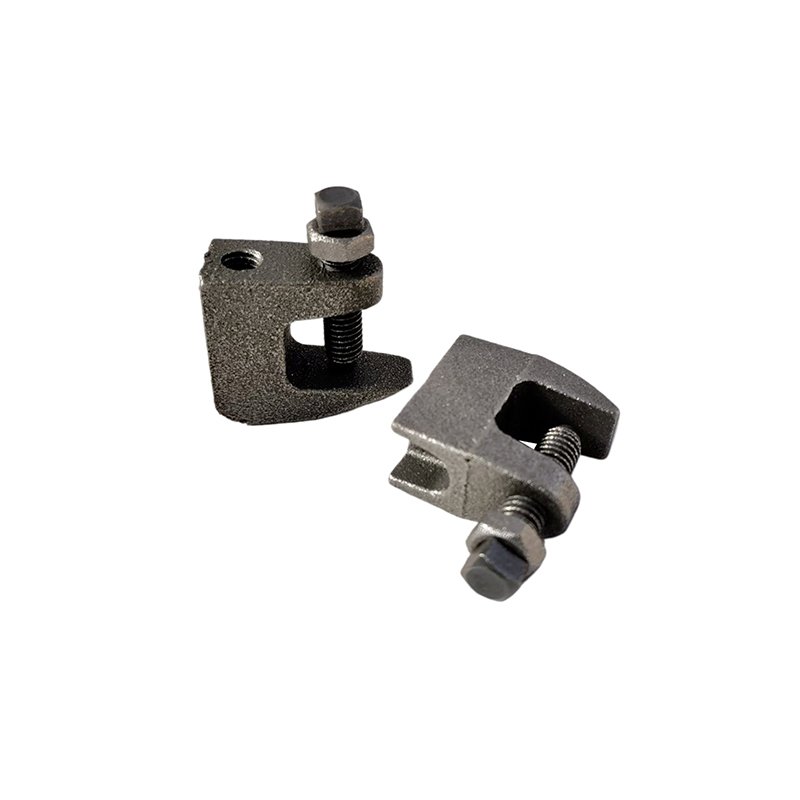

Moulding: Clay sand casting, then hot-dip galvanizing through our coating partner.
Material: Ductile iron EN-GJS-500-7, grey iron where strength is not the issue.
Weight range: 0.5-300 kg per piece, the upper limit set by the galvanizing bath.
Bath size: About 1.5 by 0.8 by 0.5 metres, so plan the envelope before the pattern.
Coating: ISO 1461, 70-85 micrometres, measured on the finished part.
Venting: Every enclosed volume needs a drain and a vent hole, or the zinc will trap air.
Machining: Done before galvanizing where tolerance matters, since zinc adds 70 micrometres per face.
Inspection: Coating thickness per batch, adhesion check, 100% visual on runs and drips.
Capacity: 10,000 t per year of castings, galvanizing scheduled weekly.
Category: Precoated Sand Casting
Galvanizing is usually specified as a finish and treated as something that happens after the casting is made. In practice it is a design decision, and the castings that galvanize badly are the ones where nobody thought about it until the parts arrived at the kettle.
The process is simple to describe: the part is degreased, pickled in acid, fluxed, dipped in molten zinc at about 450 degrees, and cooled. The zinc reacts with the iron surface to form a series of iron-zinc alloy layers, and those layers are what protect the part.
What makes it a design decision is that the zinc has to reach every surface and then drain away. A casting with a closed section, a blind pocket or a deep thread either traps zinc or traps air, and either way the coating is wrong where it matters.
The other design decision is the alloy. Silicon above about 0.3 percent in grey iron produces a thick, brittle, dull coating known as a Sandelin effect, which can flake off under impact. Ductile iron is less sensitive but not immune. If a part is specified for galvanizing, the chemistry has to be controlled for that, not just for strength.
Every enclosed volume needs two holes: one for the zinc to enter, one for the air to leave. In practice one hole can serve both if it is at the highest point of one section and the lowest of another, but the safe rule is two.
The drain hole goes at the lowest point in the dipping orientation, and should be at least 8 mm diameter for a small part, larger for a big one. The vent goes at the highest point, and can be smaller.
On our castings we put these holes in the pattern, which costs nothing, and we mark their position on the drawing. The problem is that a customer who does not know why the hole is there may weld it shut on a sample, and then the production parts arrive with a trapped pocket and a rough lump of zinc where the hole used to be.
Where a hole cannot be cast, for example on a machined face, we drill it before galvanizing and note it on the drawing as a process hole, not a functional one.
ISO 1461 specifies a minimum average coating of 70 micrometres for steel thicker than 6 mm, and 85 micrometres above 6 mm in some editions. ASTM A153, which covers hardware, specifies a minimum coating that varies with the part's nominal thickness, starting at 43 micrometres on thin sections and rising to 85 micrometres on heavy ones.
The two are not interchangeable, and a utility specification that names one will reject a part coated to the other.
On a casting, the coating is also not uniform. It is thicker at edges and thinner in recesses, and thicker where the surface is rough. A specification that says "85 micrometres minimum" without saying where it is measured is asking for an argument. We measure at defined points and report the average and the minimum, and we will agree the measurement locations at quotation.

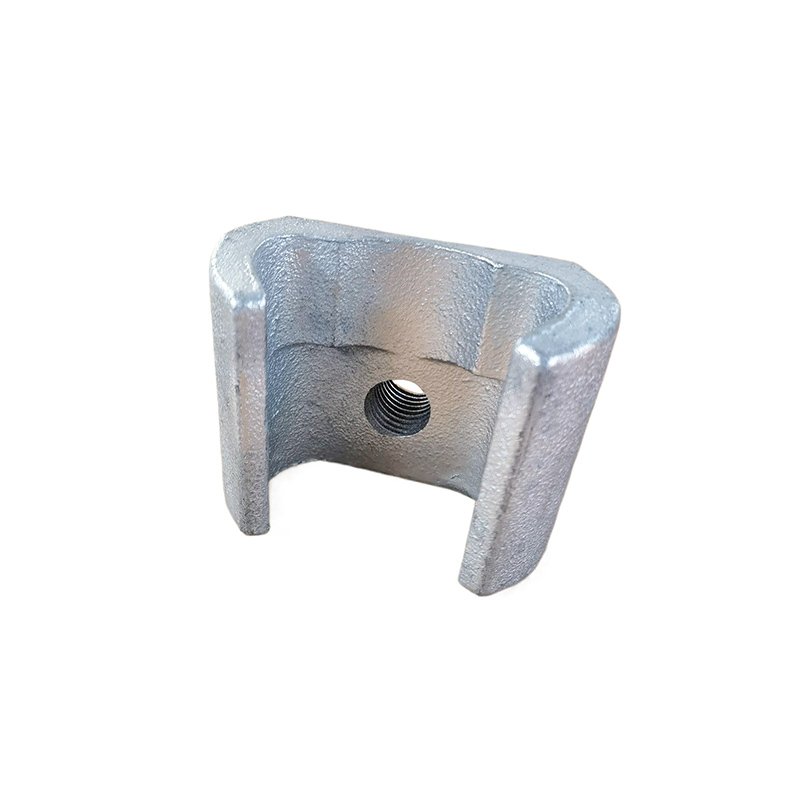

A 90 micrometre coating on each flank of a thread reduces the effective diameter by about 180 micrometres, which on an M12 coarse thread is more than the entire tolerance band. A galvanized nut will not run onto a galvanized bolt unless one of them is tapped or cut oversize.
Three ways to handle it. Tap the thread after galvanizing, which gives a clean thread and leaves bare iron inside the nut; acceptable if the joint is sealed or the thread is not exposed. Tap oversize before galvanizing, which keeps the coating intact and needs a controlled oversize allowance. Or mask the thread, which is only practical on a few threads at the end of a stud.
For line hardware we tap after galvanizing and then apply a zinc-rich touch-up to the thread. It is the standard practice in the industry and it is what most utility specifications expect.
The zinc bath is at 450 degrees. A casting that is 1.5 metres long will grow and then contract, and if the sections are uneven it will not contract evenly. A machined face that was flat to 0.05 mm can come back at 0.3 mm after dipping.
Two ways to deal with it. Machine after galvanizing, which means the coating is cut away on the machined face and has to be restored with a zinc-rich paint. Or design for it, by keeping sections uniform, by avoiding long thin flanges, and by specifying the flatness tolerance after coating rather than before.
On parts where the machined face is a sealing surface, we normally machine after galvanizing and paint the cut area. On parts where the face is a mounting surface, machining before and accepting a slight loss of flatness is usually adequate.
Galvanizing quality is mostly cleaning quality. A casting with sand embedded in the surface, or with a skin of mould wash, will not pick up zinc properly, and the result is a bare patch that rusts first.
Shot blasting before pickling removes the sand and opens the surface. The acid pickle then removes scale and rust. If the casting has porosity at the surface, the acid gets into the pores and the zinc cannot displace it, which produces a black spot or a blister.
That is why surface porosity matters more on a galvanized part than on a painted one. A pore that would be hidden under paint becomes a visible defect under zinc, and a part that passes a visual check before coating can fail after it.
Three checks, in order of importance.
Thickness, by magnetic gauge at defined points, reported as average and minimum. This is the check that the specification usually names.
Adhesion, by a knife test or a bend test on a sample. A coating that flakes indicates a Sandelin structure or poor cleaning.
Appearance, which is the least important and gets the most complaints. A galvanized casting is grey, sometimes mottled, sometimes with a slight spangle. It is not paint and it will not be uniform. If a customer expects a uniform silver finish, they want a painted part, not a galvanized one.
Galvanized coating life is roughly proportional to thickness, and the rate of loss depends on the environment.
In a rural or indoor setting, zinc is lost at about 1 micrometre a year, so 85 micrometres gives a very long life. In an urban or industrial atmosphere, the rate is 2 to 4 micrometres a year. In a coastal environment with salt spray, it can be 5 to 8.
That is why the same coating that lasts forty years on a barn bracket lasts eight on a sea wall. It is also why a specification that names a thickness without naming the environment is only half a specification.
For a part that will be repainted, the galvanizing is a primer as much as a coating, and the paint life on top of it is longer than on bare steel. Where a part will never be repainted, the zinc has to be thick enough to do the whole job.
We will ask where the part is going before recommending a coating system, because the answer changes the specification as well as the price.
Only if the hole can be vented. A blind hole traps air and the zinc will not enter, leaving a bare cavity that rusts from the inside. We will drill a vent or tap after coating.
Through our coating partner, about 1.5 metres by 0.8 metres by 0.5 metres, with a maximum weight of 300 kg per piece.
It becomes grey, with a matte finish and occasional darker patches. It is not uniform like paint and should not be specified as a cosmetic finish.
Yes, with a suitable primer, but the surface needs to be properly prepared. We can apply the paint in-house as a second operation if the part is for an exposed application.
In a rural or indoor environment, 25 to 40 years. In coastal or industrial conditions, 10 to 20. The life is proportional to the coating thickness.
Yes, with thickness readings and the standard the coating was applied to.
