Resin Sand Castings for Heavy and Precision Iron Parts

Product Details

What Resin Sand Moulding Does Better Than Green Sand

Resin sand moulding is the route for parts that are too large or too heavy for green sand. Furan resin and phenolic urethane both give a rigid mould, so heavy sections hold their wall thickness instead of sagging, and the surface finish comes out clean enough to skip rough machining. We cast medium to large structural components from 10 kg to 5,000 kg, then machine, heat treat and inspect each batch against your drawing before it ships.

Below are the numbers we actually quote against — weight, tolerance band, machining envelope and annual capacity — followed by the grade list and the mould limits that decide how far a shape can go. If your part falls outside any of them, the fix is usually a change in mould construction rather than a higher price.

Resin Sand Capability: Weight, Tolerance and Annual Capacity

These are the limits we price against, not a marketing range. A part inside them can be quoted from a drawing in one working day. A part outside them needs a conversation about split patterns, bolted cores or a different process before anyone talks about price.

ParameterRange we quote against
Moulding processesFuran resin (acid-catalysed, self-setting), phenolic urethane (gas-cured), no-bake
Single piece weight10 kg – 5,000 kg
Dimensional toleranceISO 8062-3, DCTG 9 – CT 11, assigned dimension by dimension
As-cast surface roughnessRa 12.5 – 25 µm before shot blasting
Machining envelopeCNC vertical and horizontal machining centres, boring mills, ± 0.02 mm
Annual capacity10,000 t of finished castings
Surface preparationShot blasting to Sa 2.5, anti-rust primer, finish paint, powder coating

Tolerance is the row buyers misread most often. The grade applies per dimension, not per drawing: a 200 mm bore and a 3 m overall length will not hold the same band even when they sit on the same casting. We tell you which dimensions we can hold tighter and which ones will move, instead of quoting one figure for the whole part. Anything tighter than CT 9 goes to machining, not to the mould.

Grades We Pour in Resin Sand

We pour ductile iron to ASTM A536 grades 60-40-18, 65-45-12, 70-50-05, 80-55-06 and 100-70-03, and to the EN-GJS series from 400-15 through 700-2. Grey iron runs to ASTM A48 classes 30, 35 and 40, and to EN-GJL-200 through EN-GJL-300. Cast steel is normally ZG25 or a grade you specify, and we confirm weldability and the heat treatment route before quoting. Where a drawing calls for a grade we do not pour regularly, we say so rather than substitute quietly — a failed heat found at machining costs more than a declined order.

What Limits a Resin Sand Mould

Three things decide whether a shape can be moulded in resin sand: how deep the pocket is relative to its width, whether the core can be located without shifting, and whether the section can be fed while it solidifies. A pocket deeper than about twice its width needs a core that is either collapsible or pulled, and a thin core tends to shift under pouring pressure. Sections above roughly 150 mm need feeders sized to the modulus, which changes the pattern layout and the casting yield you are paying for. None of this is a reason to redesign the part — it is the reason we ask for a drawing rather than a photo.

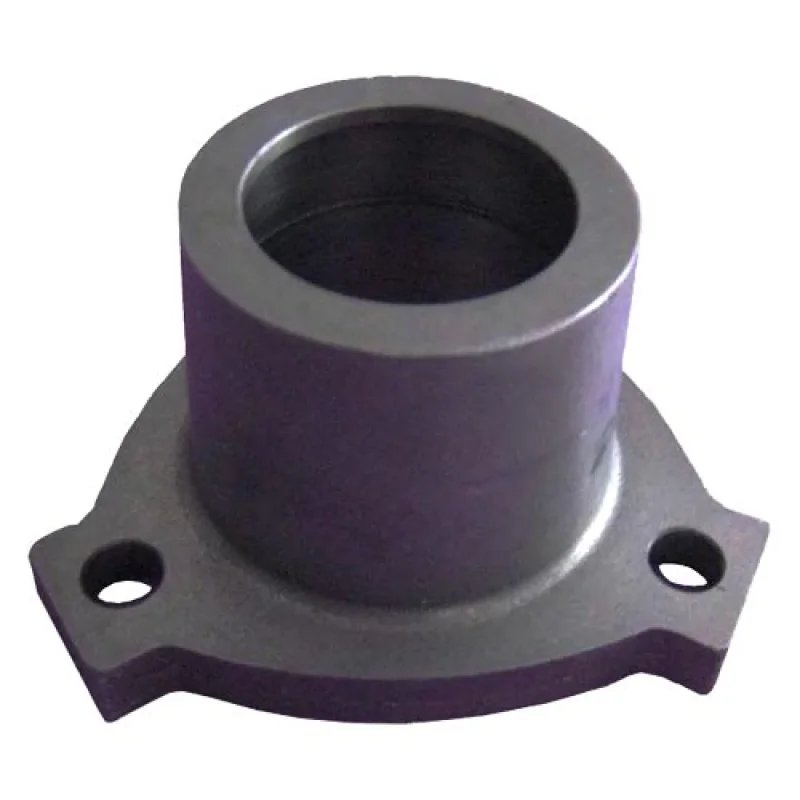

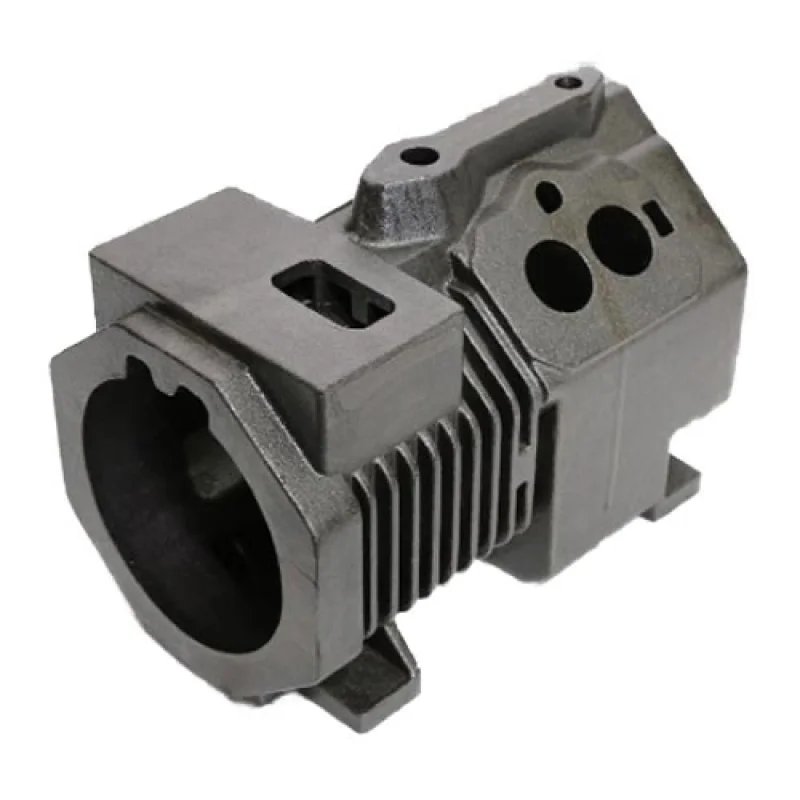

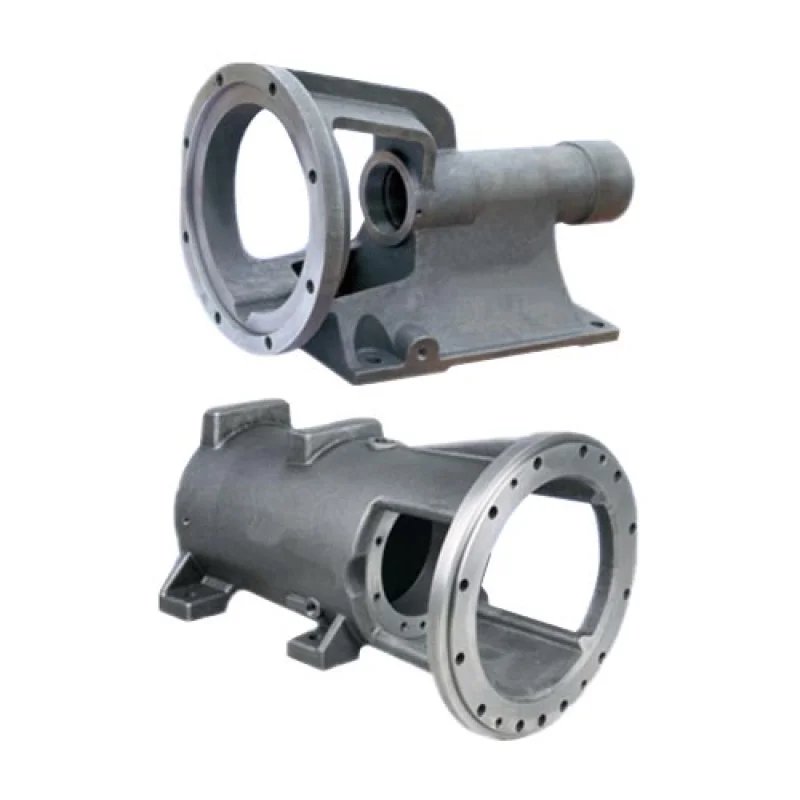

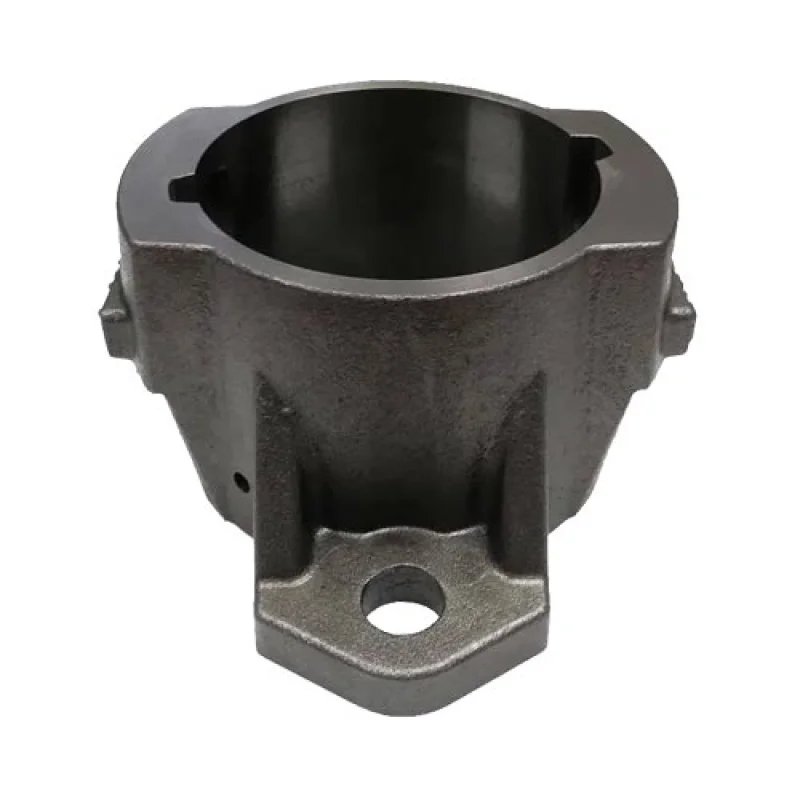

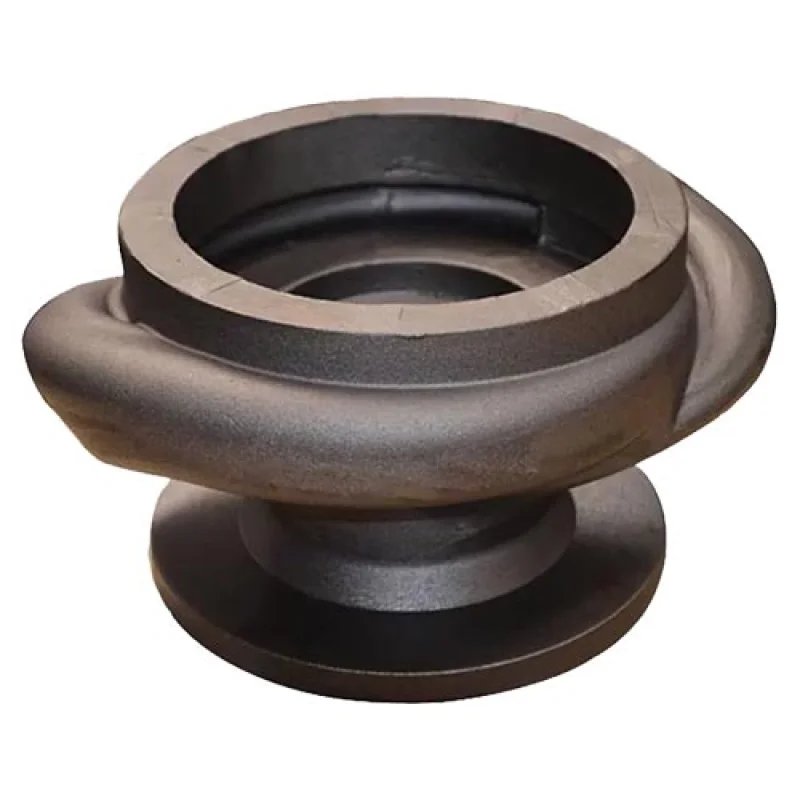

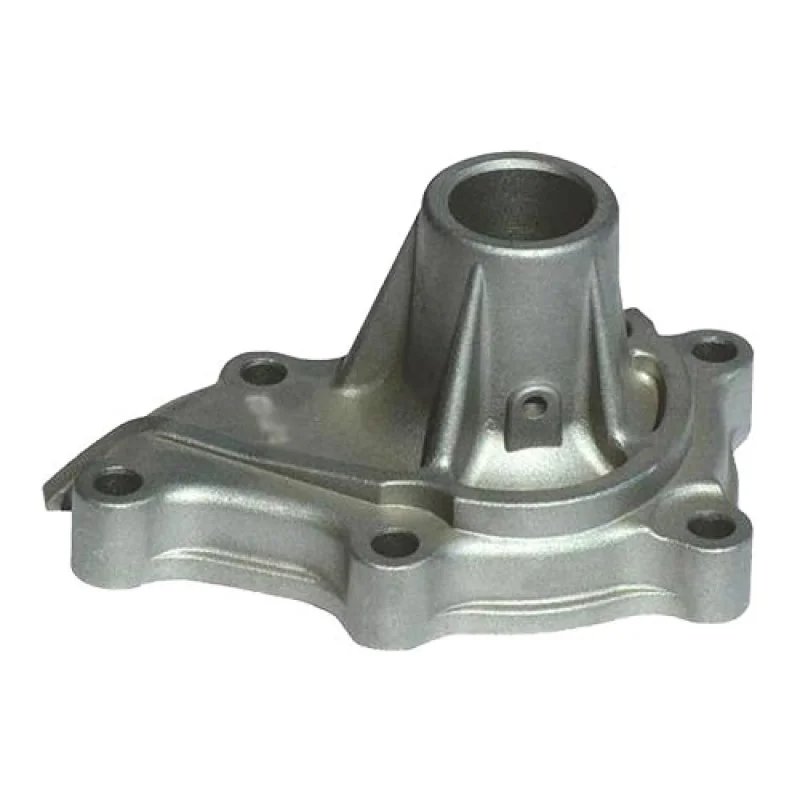

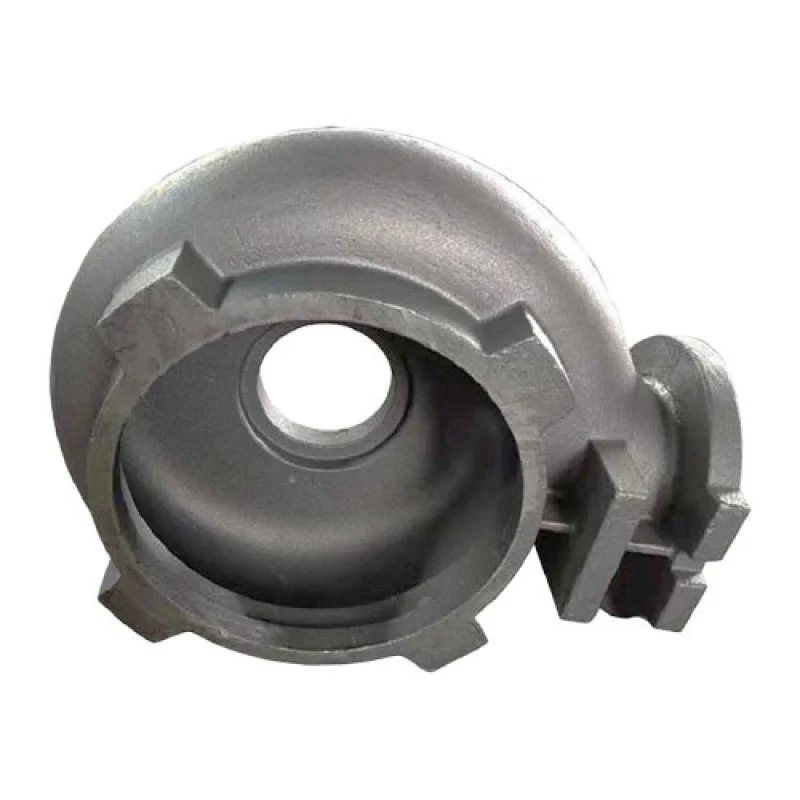

Resin sand casting machined and inspected at Qingdao Zhaoyuqi Machinery

When Furan Resin Sand Is Worth the Premium Over Green Sand

Resin sand costs more per mold than our automatic green sand line, so the question every buyer should ask is: at what point does it pay back? From the parts we have moved between the two processes, the crossover usually looks like this:

  • Weight above roughly 50 kg: the automatic clay sand line tops out around there; resin sand molds carry 10 kg to 5,000 kg comfortably.

  • Wall thickness under about 8 mm on a large casting: resin sand's rigidity resists mold wall movement, which is what drags green sand tolerances out on big sections.

  • Tolerance needs around ISO 8062 CT9–CT10 as-cast: achievable in resin sand without rescuing every face by machining.

  • Low-to-medium quantity of a complex part: no-bake molding avoids the pattern wear and handling cost that hurts complex parts on high-rate lines.

If none of those describe your part, stay on green sand and spend the difference on machining. We quote both routes when a part sits near the boundary, so you can see the trade-off in numbers instead of adjectives.

Furan and Phenolic Urethane: Two Resin Systems, Two Jobs

Resin sand is not one process. Furan resin is acid-catalyzed and self-setting, which makes it the workhorse for large molds and one-off work — you can build a mold for a five-tonne housing without a molding machine. Phenolic urethane is gas-cured, sets in seconds, and suits medium-sized molds at higher production rates where dimensional consistency matters more than maximum size.

Practically, this means your part's size and quantity choose the system for you. Large structural castings with long solidification times go furan; repeatable mid-size parts at volume go phenolic urethane. Both give a better surface than green sand, and both let us cast deep pockets and complex cores that would need expensive tooling on a high-pressure line.

Tooling for Large Castings: Where the Money Actually Goes

On a five-tonne casting, the pattern is only part of the tooling story. Cores, core boxes, lifting points, and the mold handling equipment all add cost, and the pattern has to be built to survive repeated sand compaction without losing dimension. A large pattern that is under-built shows up as wall thickness drift across a production run — a problem you discover in machining, when the allowance has already been consumed.

Buyers should also expect a conversation about pattern layout. On big castings, gating and feeding design affects yield — how much metal you pay for versus how much ships as your part. A well-designed rigging system can lift yield meaningfully, and on a 3,000 kg casting that difference is real money per piece. We quote yield assumptions openly so you can compare suppliers on the same basis.

Heat Treatment, Machining and the Route That Holds Tolerance

Large castings move after machining if residual stress is left in them. The standard route for precision work is rough machine, stress relieve, finish machine — a sequence that costs an extra handling step and saves the tolerance you paid for. For castings that will be inspected against a flatness or bore-position requirement, we plan heat treatment into the route at quotation rather than adding it after a dimensional failure.

Machining capacity matters as much as casting capacity on this size class. Our CNC centers handle the large housings and frames that come off the resin line, so the part does not travel between suppliers and lose its datum reference on the way.

Surface, Testing and the Papers You Receive

Resin sand castings come off the mold with a noticeably better surface than green sand, and shot blasting to Sa 2.5 prepares them for painting or machining. Every heat is checked for chemistry and mechanical properties — ductile iron is released at spheroidization above 90% — and grades from ASTM A536 60-40-18 through 100-70-03 are routine. Machined deliveries run on our own CNC centers, so one supplier carries the casting and the final dimension.

Frequently Asked Questions

What is the largest part you can pour in one piece?

Up to 5,000 kg single piece weight in resin sand. Large housings and frames for reducers and machine tools are the common residents of that range.

Can you cast a prototype before cutting tooling?

Yes. Furan sand molds are built from loose patterns, so a one-off or five-piece prototype run does not need production tooling. Many customers validate the casting this way before committing to a batch tool.

Do resin sand castings need to age before machining?

Large sections benefit from stress relief before final machining so tolerances hold after metal removal. We plan it into the route and quote it explicitly.

Which surface finish can I expect straight from the mold?

Better than green sand by roughly one Ra band, typically in the Ra 12.5–25 μm region on as-cast faces depending on section and pattern surface. Faces that need better are machined.

How do you control sand quality on a large mold?

Sand is mixed to a controlled resin and catalyst ratio, tested for strength before use, and molds are timed so the sand sets before stripping. Sand variables are the first thing we check when a dimensional issue appears.

What documents ship with the castings?

Heat-wise chemical analysis and mechanical test results as standard; EN 10204 3.1 certificates, dimensional reports and third-party inspection on request. Tell us at order time, not at loading time.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.
