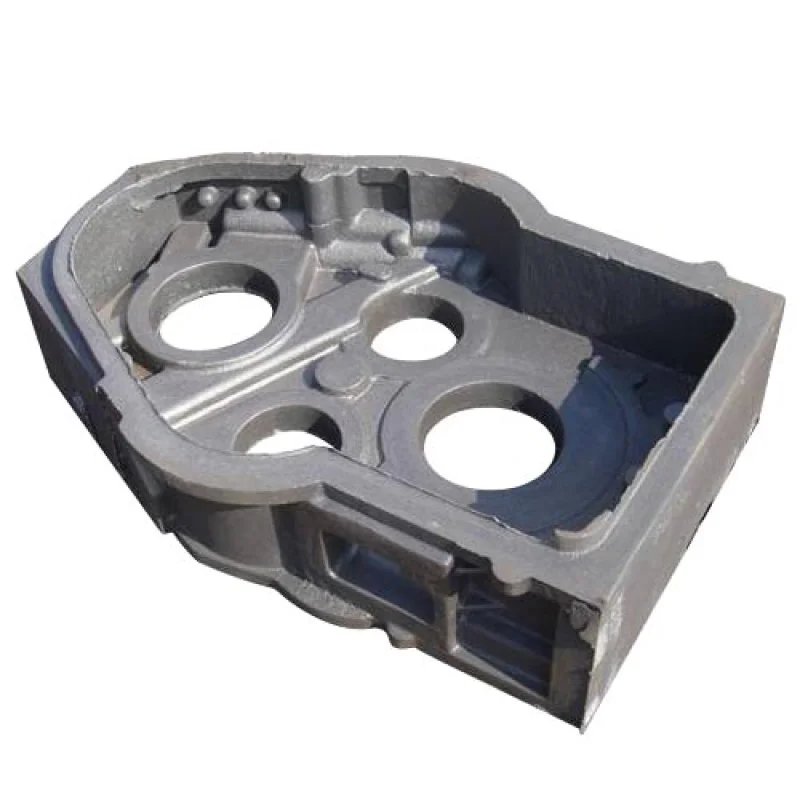

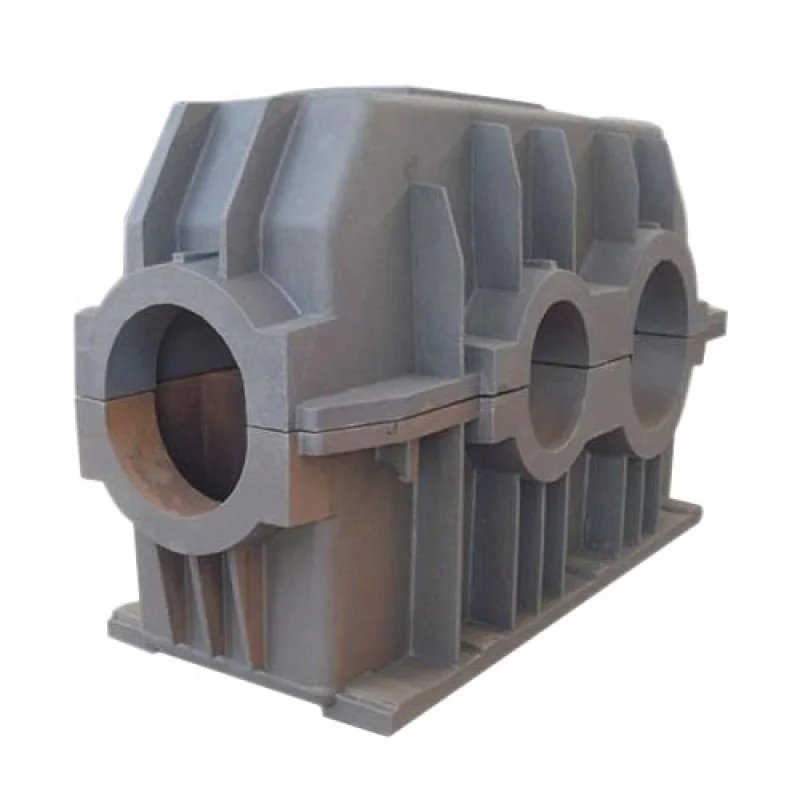

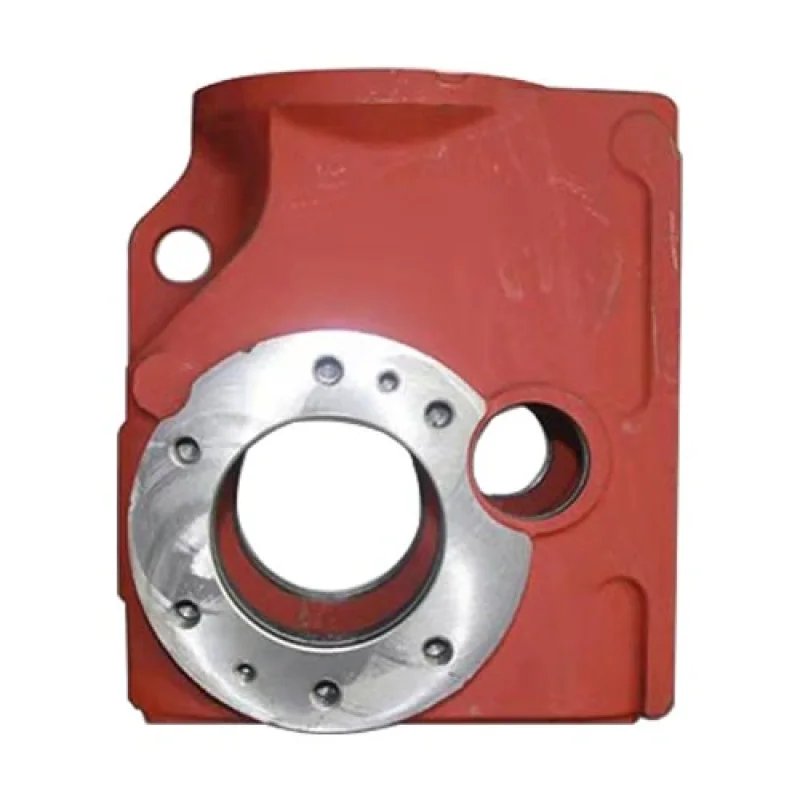

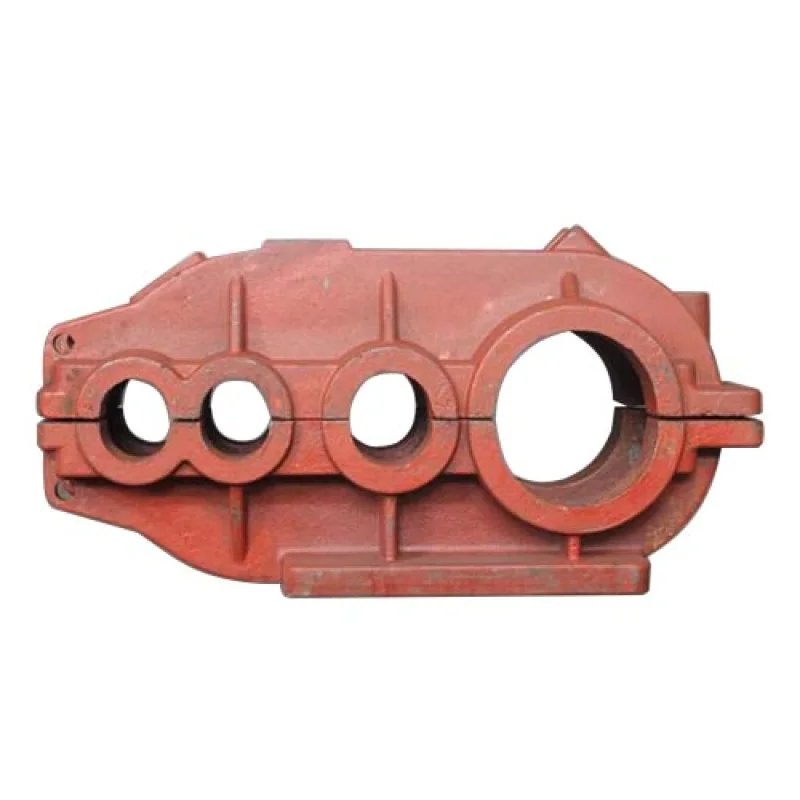

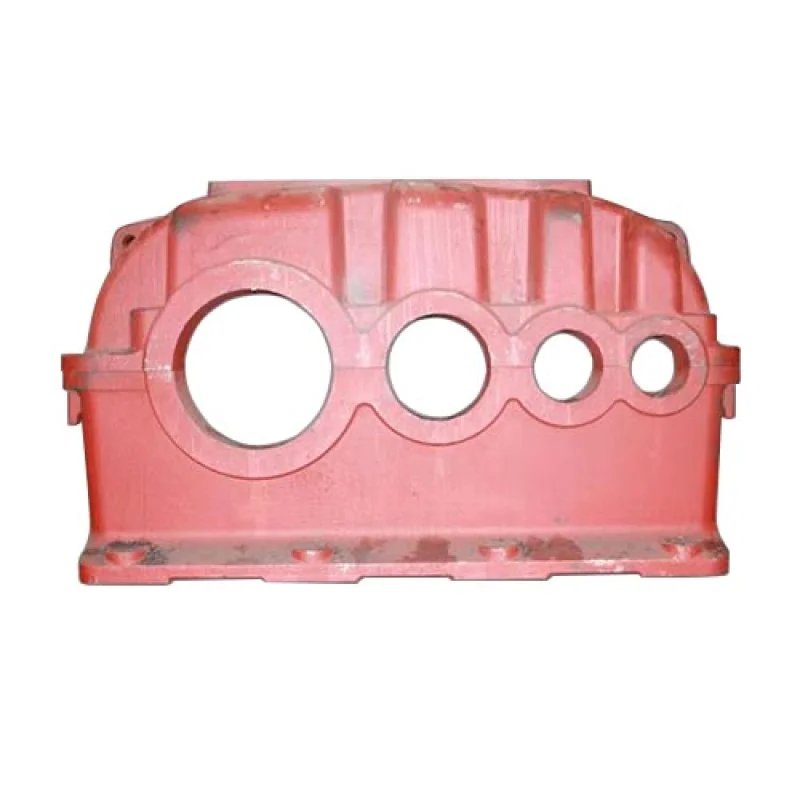

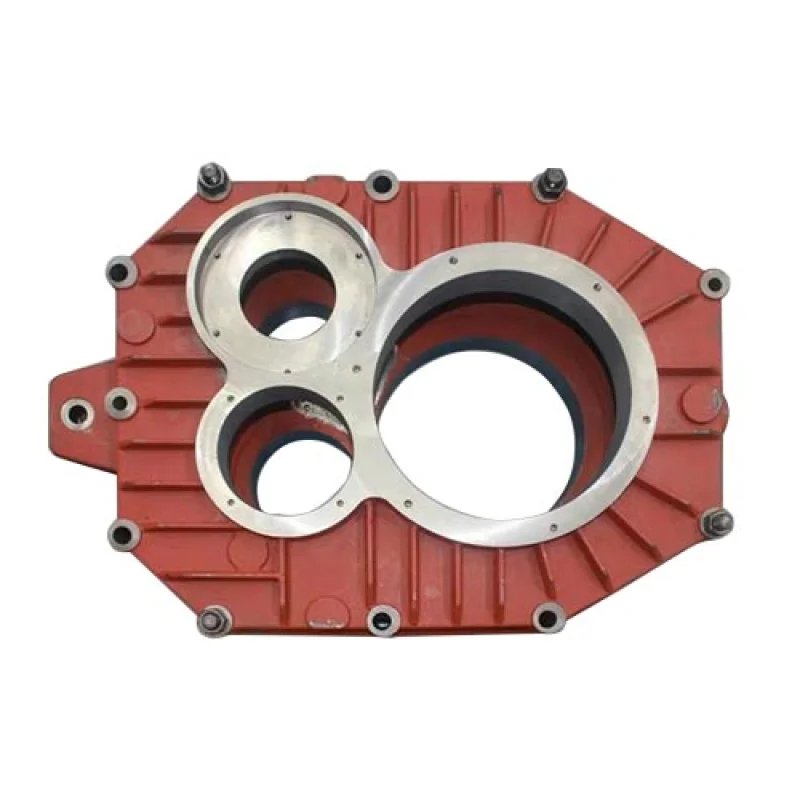

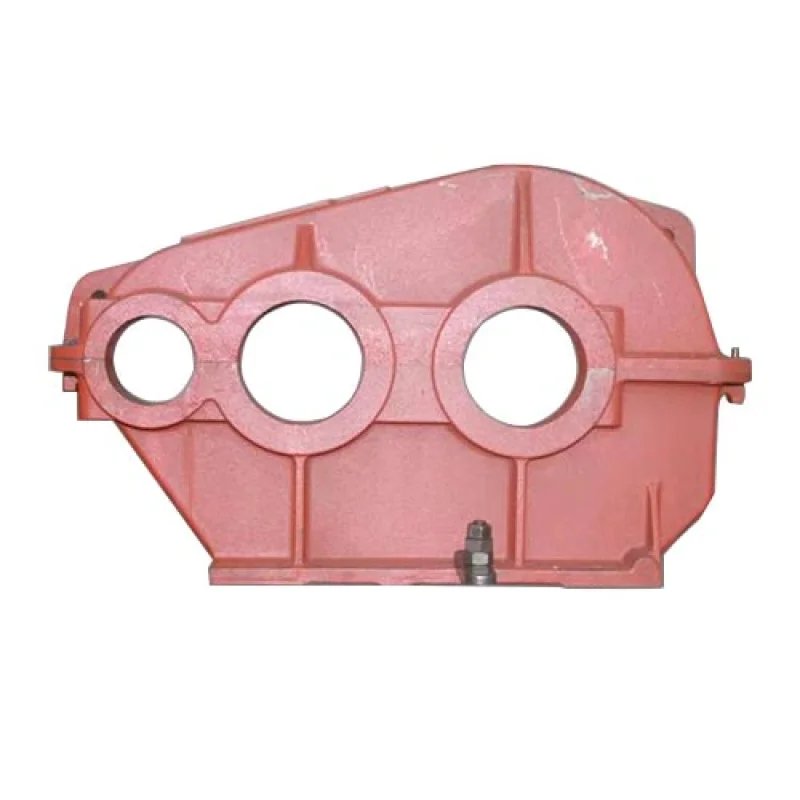

Reducer Housing Castings – Heavy-Duty & High-Precision Gearbox Enclosures

Welcome to Qingdao Zhaoyuqi Machinery Co., Ltd., a premier Chinese foundry specializing in the engineering, casting, and precision CNC machining of heavy-duty Reducer Housing Castings (Gearbox Housings).

The reducer housing serves as the structural backbone of any power transmission system, protecting critical gears, shafts, and bearings while maintaining precise alignment under extreme torsional loads. Recognizing that a microscopic internal defect can lead to catastrophic oil leakage or gear misalignment, Zhaoyuqi implements a zero-defect manufacturing philosophy. Leveraging advanced Resin Sand Casting technologies and world-class horizontal machining centers, we provide international OEM clients with robust, ready-to-assemble enclosures tailored exactly to your custom drawings.

Technical Specifications & Manufacturing Tolerances

Our facility is optimized for the strict geometric and mechanical requirements of multi-stage speed reducers, planetary gearboxes, and industrial drives.

Tailored Material Engineering for High Load and Damping

We cast high-grade ferrous alloys specifically engineered to absorb heavy vibrational energy and resist structural deformation under cyclic fatigue.

• Ductile Cast Iron (Nodular Iron) – For High Torsional & Mechanical Impact:

• Standards: ASTM A536 Grade 65-45-12, 70-50-05, 80-55-06 | EN-GJS-400-15, EN-GJS-500-7, EN-GJS-600-3

• Why it matters to buyers: Offers excellent tensile strength, toughness, and fracture resistance, making it perfect for heavy-duty planetary gearboxes, wind turbine drives, and mining machinery reducers.

• Gray Cast Iron – For Premium Vibration Damping & Thermal Conductivity:

• Standards: ASTM A48 Class 30, Class 35, Class 40 | EN-GJL-250, EN-GJL-300

• Why it matters to buyers: Gray iron exhibits an elite capacity to absorb micro-vibrations, preventing harmonics from destabilizing the gear mesh. It also provides superior thermal dissipation, keeping lubricating oil temperatures stable.

Addressing Overseas Buyers' Top 4 Technical Concerns

When source-managing large reducer housings from an overseas partner, engineering managers typically evaluate four critical risk factors. Here is how Zhaoyuqi eliminates those risks:

1. Absolute Zero-Leakage Guarantee (Sealing Integrity)

Gearbox housings operate continuously filled with lubricating oil. Porosity, shrinkage, or micro-cracks can cause slow, costly leaks in the field.

• Our Solution: We run advanced mold-filling and solidification simulations (MAGMA/CastCAE) to design optimized pouring systems, completely eliminating internal shrinkage nests. Post-machining, every single housing undergoes a high-pressure pneumatic leakage test and a specialized hot oil penetration test to check the absolute sealing integrity of the oil sump and mating faces.

2. High-Precision Coaxiality and Center-Distance Alignment

If the boring holes for the bearing seats are misaligned by even 0.03mm, the gears will mesh unevenly, causing accelerated wear, excessive noise, and localized overheating.

• Our Solution: We perform critical rough and finish machining on massive Horizontal CNC Machining Centers in a single setup. By avoiding re-clamping, we maintain impeccable parallelism between the input and output shafts, securing bearing seat coaxiality to within ±0.01mm.

3. Stress-Relief Annealing for Lifetime Dimensional Stability

As-cast iron retains significant internal thermal stress. Without proper heat treatment, the housing will microscopically warp over months of field operation, pulling the bearings out of alignment.

• Our Solution: Every reducer casting undergoes a computer-controlled Stress-Relief Annealing process before final precision machining. This ensures that the housing remains dimensionally stable for decades, even under fluctuating operating temperatures.

4. Advanced Mating Surface Planarity

The split-face seams of horizontal or multi-part reducers must fit perfectly flat to prevent joint leakage without resorting to thick, failure-prone gaskets.

• Our Solution: Our CNC milling process achieves a split-face flatness tolerance of less than 0.03mm, allowing for metal-to-metal liquid-gasket application that meets strict Western industrial standards.

Critical Application Sectors

Our engineered reducer housings are widely utilized across demanding heavy industrial global supply chains:

• Mining & Material Handling: Crushers, conveyor drives, ball mill drives, and stacker-reclaimer gearboxes.

• Construction Machinery: Crane hoists, excavator swing drives, and concrete mixer drives.

• Port & Marine Logistics: Ship loaders, gantry crane container drives, and marine propulsion thruster gearboxes.

• Energy & Metallurgy: Wind turbine main gearboxes, rolling mill drives, and cooling tower fan reducers.

• Industrial Automation: Large-scale cement kiln drives and chemical agitator mixers.

Comprehensive Quality Control & Full Document Traceability

To ensure seamless customs clearance and 100% compliance with international audit requirements, Zhaoyuqi provides a complete documentation package with every export batch:

• Chemical Spectrum Analysis: Pre-pouring OBLF spectrometer checking to secure exact carbon equivalent (CE), silicon, and magnesium ratios.

• Microstructure Evaluation: 100% nodularity check for ductile iron (guaranteed  85% nodularity) to eliminate brittleness.

• Mechanical Property Profiling: Tensile testing, yield verification, and Brinell hardness (HBW) mapping across critical bearing zones.

• Non-Destructive Testing (NDT): Ultrasonic Testing (UT) to map internal soundness, and Liquid Penetrant Testing (PT) for machined joint faces.

• Full Dimensional Inspection Report: Completed via high-accuracy CMM (Coordinate Measuring Machine) or precision bore gauges, verifying all critical tolerances.

• Certificates: EN 10204 3.1 Material Test Certificates, ISO 9001:2015 compliance, and raw material traceability reports.

Commercial Value: Why Choose Zhaoyuqi China as Your OEM Partner?

• 30% to 40% Cost Savings: Maximize your profit margins or market price competitiveness by tapping into our integrated pattern-making, casting, and machining ecosystem in Qingdao, significantly outperforming European or North American domestic casting costs.

• Qingdao Port Logistics Advantage: Our close proximity to the Port of Qingdao translates to lower domestic freight charges, safer container lashing, and shorter transit timelines.

• Transparent Project Governance: Eliminate the frustration of overseas time zones. We assign a dedicated English-fluent project manager to provide weekly progress tracking sheets complete with crisp engineering photos and videos, keeping your supply chain predictable and fully informed.

Frequently Asked Questions (FAQ) – Reducer Housing Castings

Q1: How do you prevent gear misalignment caused by deformation over time?

A: Dimensional stability is critical for the long-term lifespan of heavy-duty gearboxes. Internal thermal stresses naturally accumulate during the casting cooling phase. If unaddressed, these stresses release gradually during operation, causing microscopic warping that ruins gear alignment. To eliminate this risk, all our reducer housing castings undergo a strict, computer-controlled Stress-Relief Annealing heat treatment right after rough machining. This stabilizes the iron's microstructure, ensuring zero structural distortion over decades of high-torque field deployment.

Q2: What methods do you use to guarantee the housing is 100% leak-proof?

A: Gearbox housings operate constantly filled with lubricating oil, and a slow oil leak can destroy a transmission system. We ensure absolute sealing integrity through two measures:

• Design Phase: We run MAGMA simulation software before pouring to optimize the riser layout, eliminating internal microporosity, gas pockets, and shrinkage nests in heavy-walled areas.

• Post-Machining Testing: Every single housing undergoes a high-pressure pneumatic leakage test (bubble immersion method) and a hot-oil penetration test on critical split-faces and oil sumps to guarantee 100% zero-leakage performance before packaging.

Q3: What machining tolerances can you achieve for critical bearing bores and split-face flatnesses?

A: Precision gear meshing relies on the geometric accuracy of the housing. We perform rough and finish machining on massive Multi-Axis Horizontal CNC Machining Centers where the critical bearing seats, boring lines, and split-faces are processed in a single clamping setup. This eliminates re-clamping cumulative errors, allowing us to achieve:

• Bore Diameter & Coaxiality: Within ±0.01mm.

• Center Distance (Shaft to Shaft): Within ±0.015mm.

• Split-Face Flatness: Less than 0.03mm, ensuring a perfect oil-tight seal when applying liquid-gasket compound.

Q4: Can you cast reducer housings with complex internal oil channels or multi-stage core structures?

A: Yes. By utilizing the advanced No-Bake Furan Resin Sand Casting process, we can handle intricate internal oil channels, oil return grooves, and complex double-walled structures. Resin sand molds possess excellent high-temperature strength and stability, allowing the precise positioning of internal sand cores that do not shift or distort during heavy metal pouring. This process also ensures exceptional internal surface smoothness, preventing sand-burning or loose particles from contaminating your lubricating oil.

Q5: What is your typical timeline for delivering the first prototype/sample of a custom gearbox housing?

A: For a newly engineered custom project, the standard timeline is structured as follows:

• 3D Model Verification & Solidification Simulation: 3 to 5 days.

• Pattern / Mold Tooling Fabrication (Wood/Aluminum): 12 to 15 days, depending on housing complexity.

• First Article Casting & Precision CNC Machining: 7 to 10 days.

• Comprehensive Inspection: 2 days (including Coordinate Measuring Machine (CMM) mapping and NDT reports).

  In general, you can expect a fully certified, ready-to-test prototype sample within 25 to 32 days from drawing approval.
