As an iron foundry with more than 20 years of OEM experience, we manufacture custom pole line hardware for overhead transmission and distribution (T&D) lines. Every casting is made from your drawings in ductile iron with a spheroidization rate of at least 90%, giving the strength, toughness and weather resistance that pole and tower hardware must deliver in service.
Whether you need crossarm brackets, pole clamps, guy attachments or transformer-mounting iron for a high-voltage transmission project, urban distribution build-out or rural grid upgrade, we cast to your dimensional and mechanical requirements — not off-the-shelf catalog items.

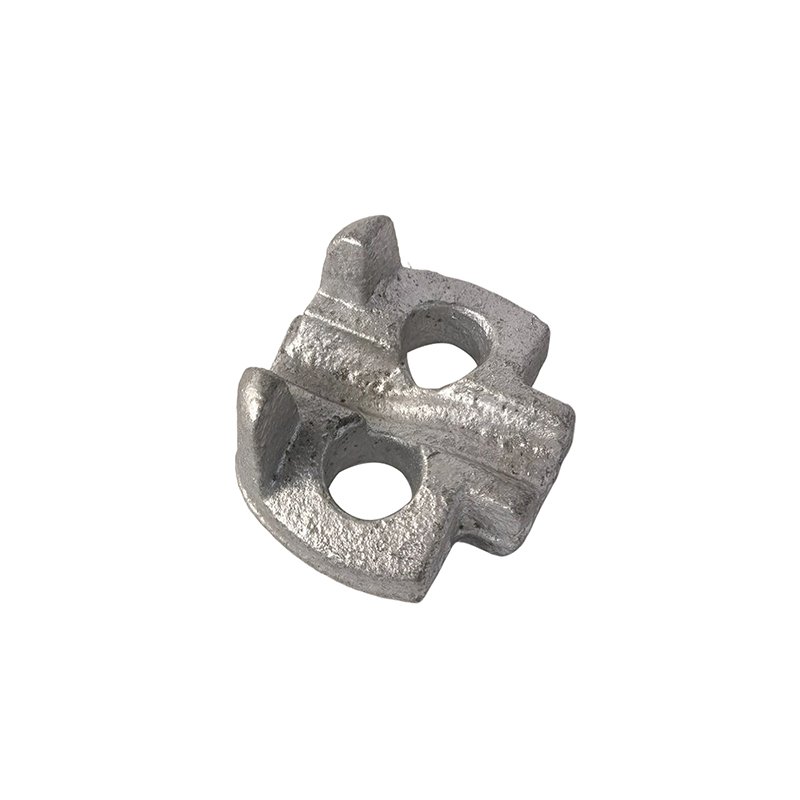

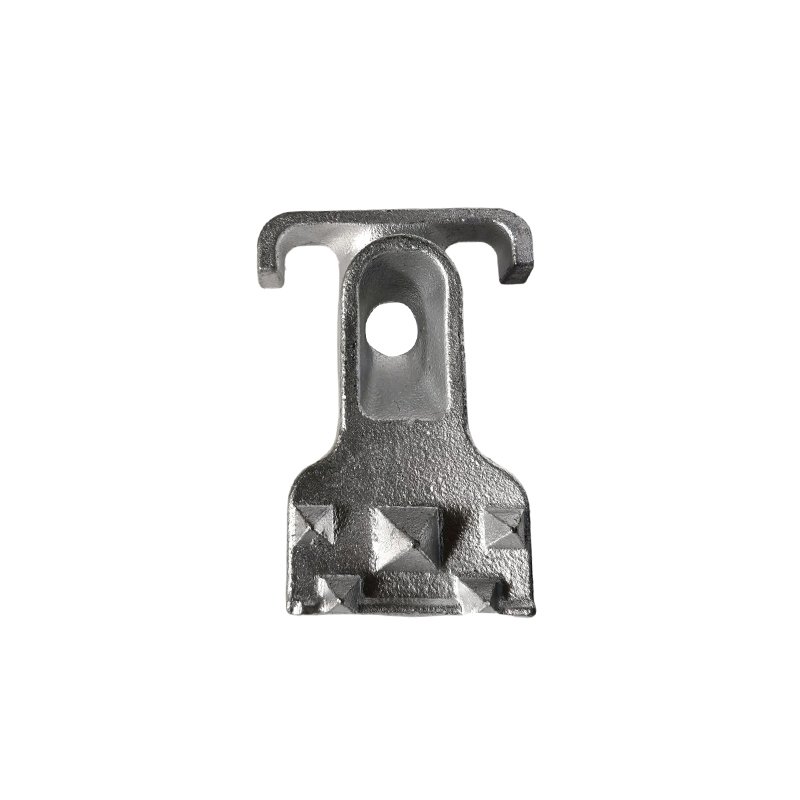

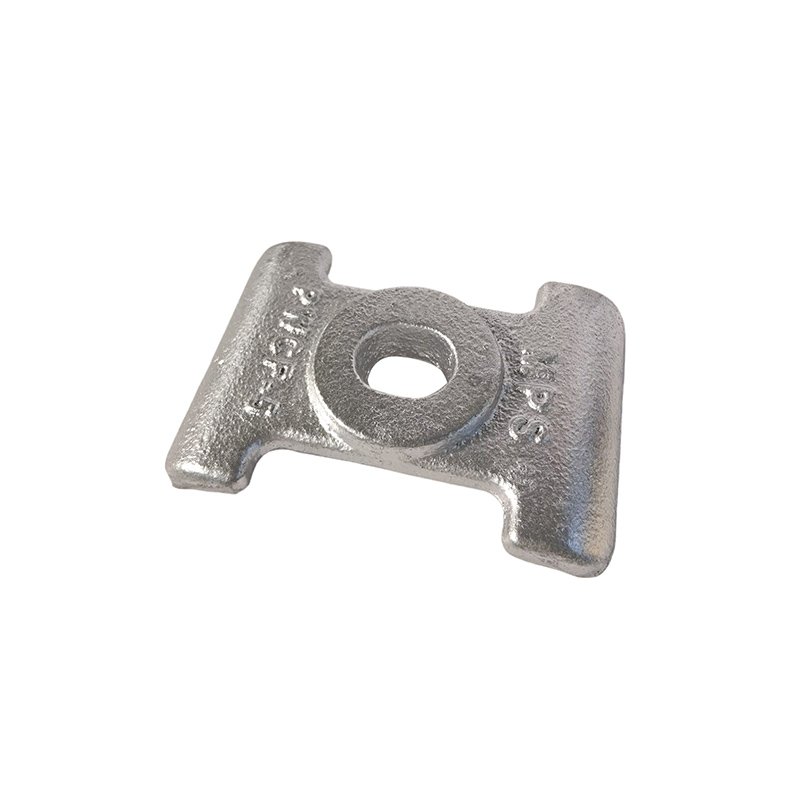

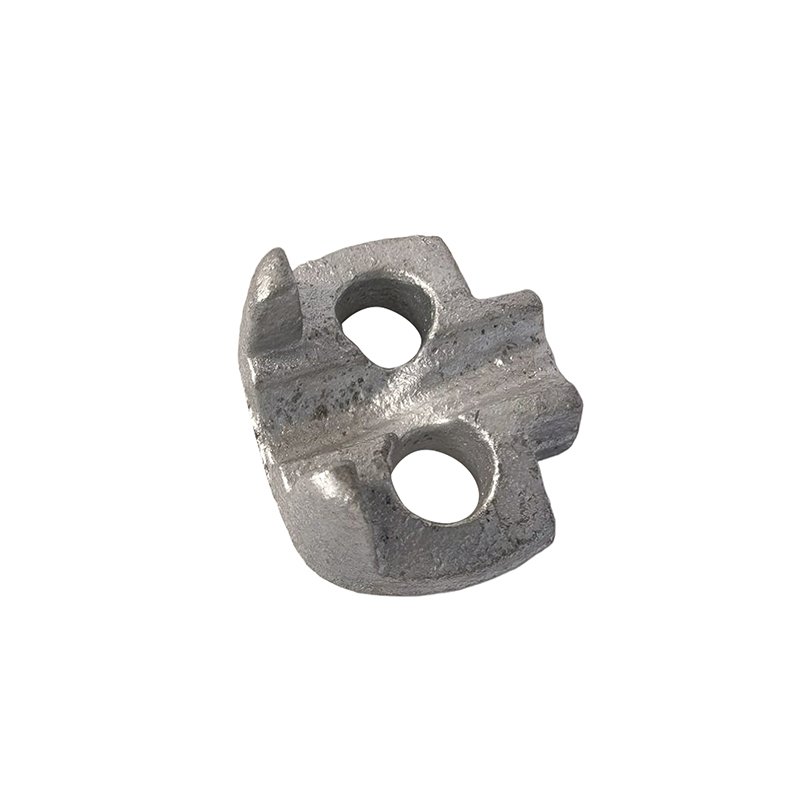

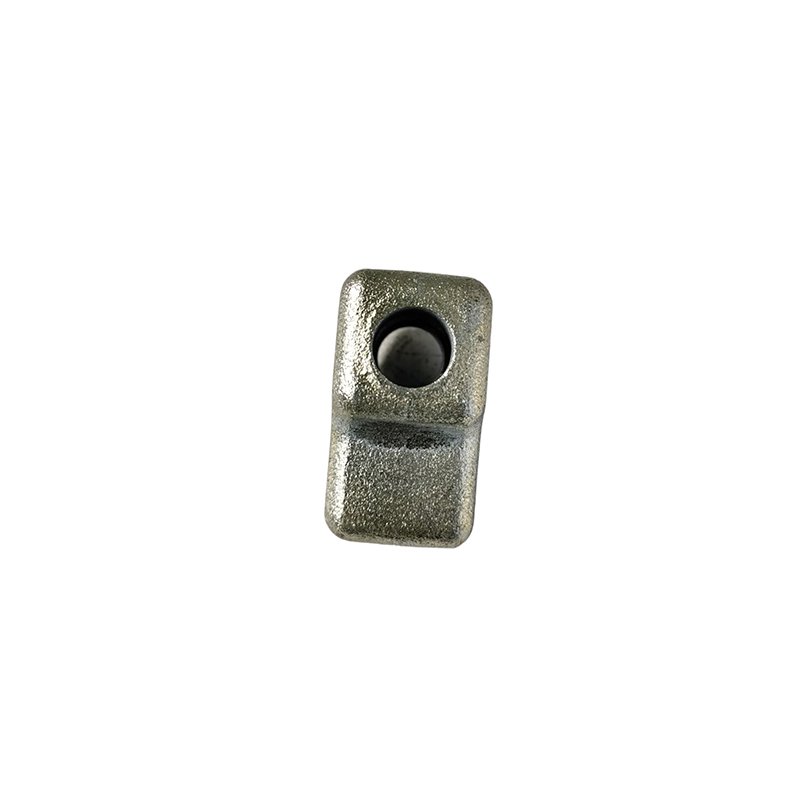

We supply the load-bearing and connecting ironwork that fixes conductors and insulators to poles and towers, including:
Crossarms and crossarm brackets (single and double)

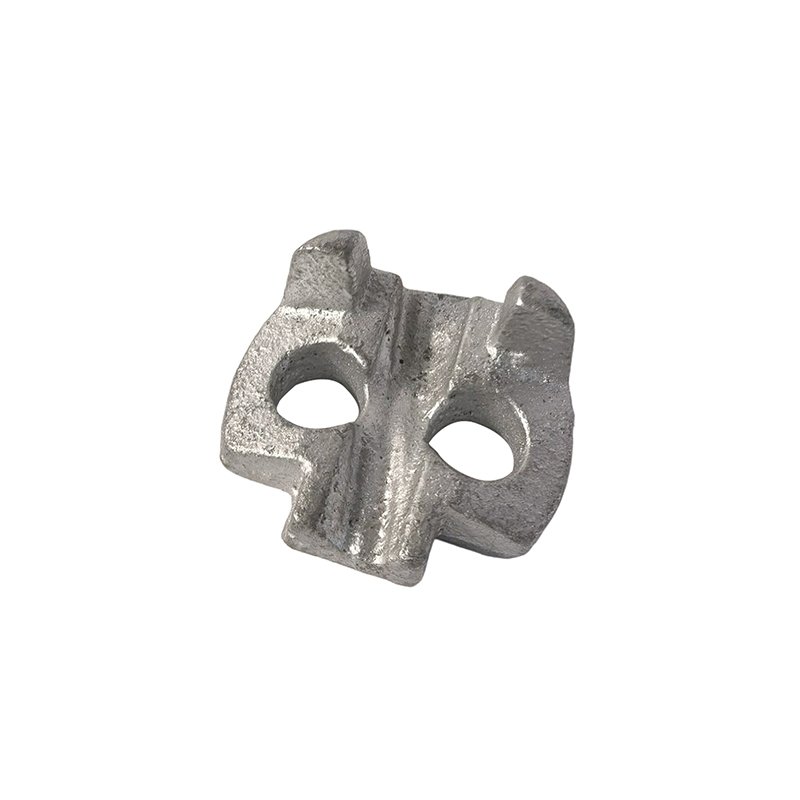

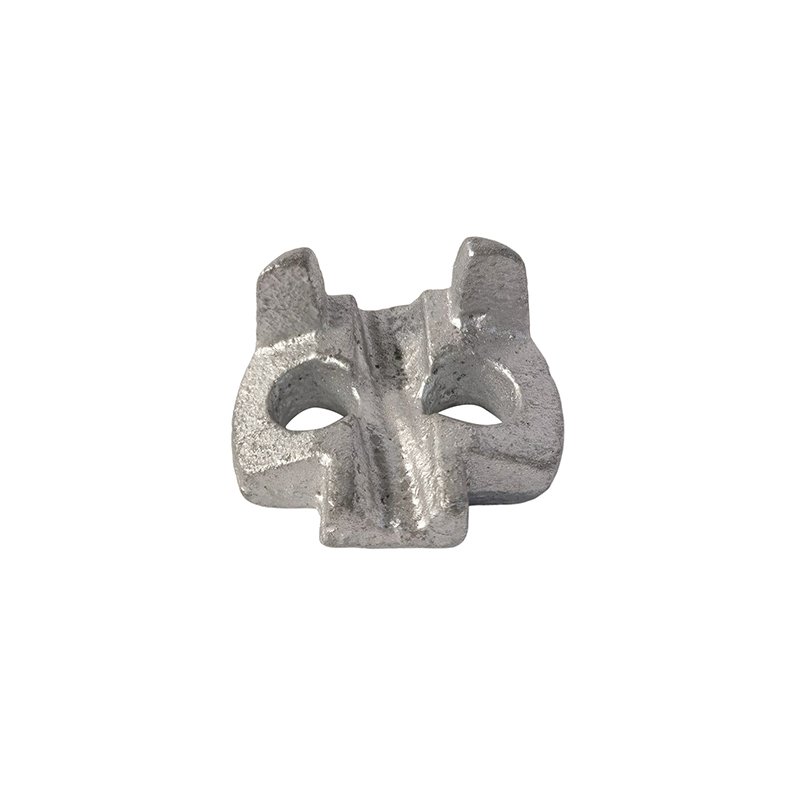

Pole bands, embracing clamps and tightening hoops

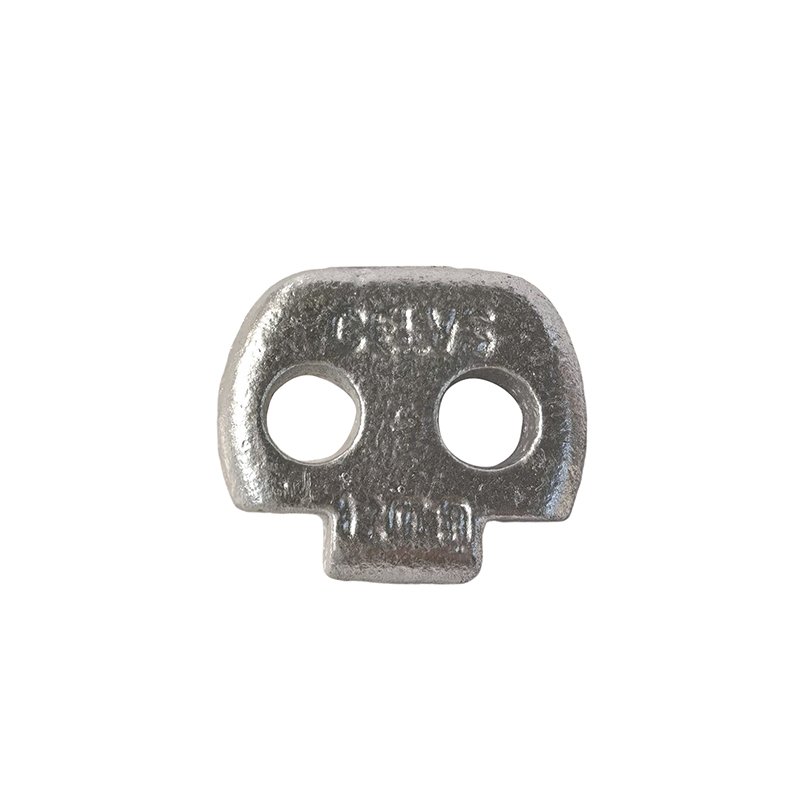

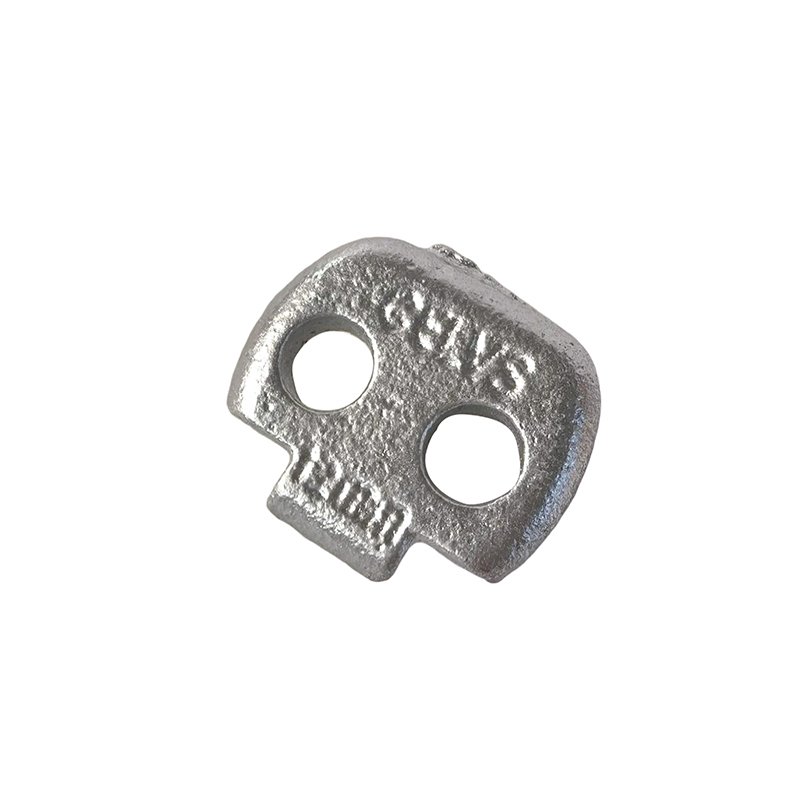

Guy wire attachment fittings and anchor lugs

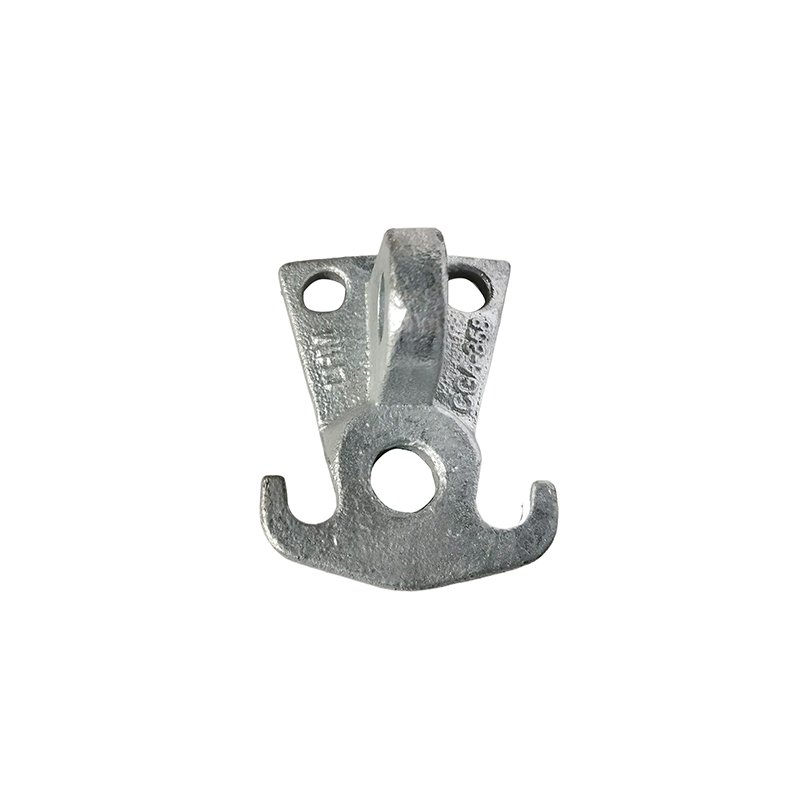

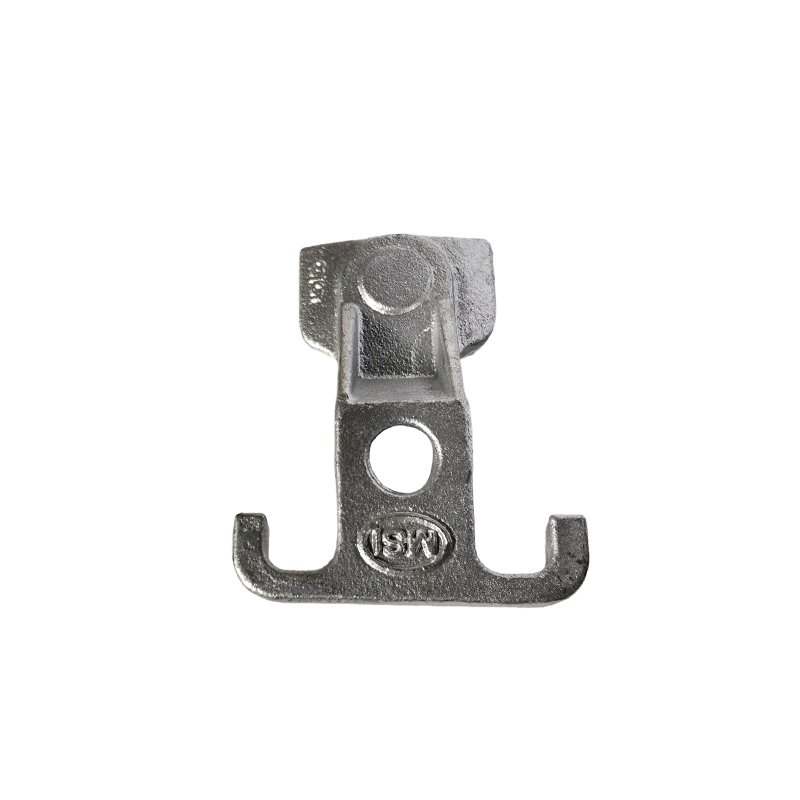

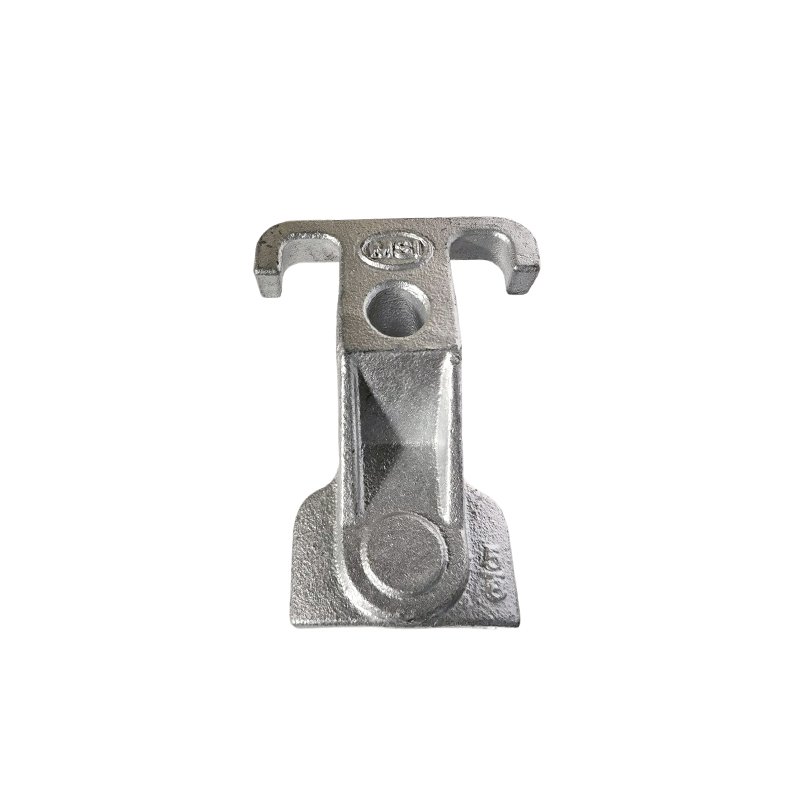

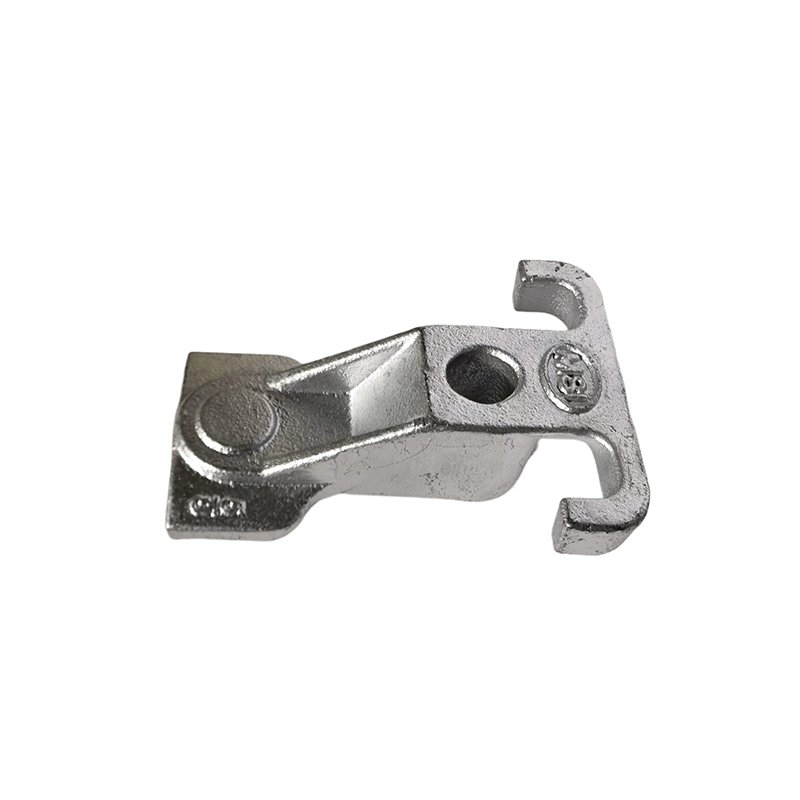

Insulator support brackets and pin brackets

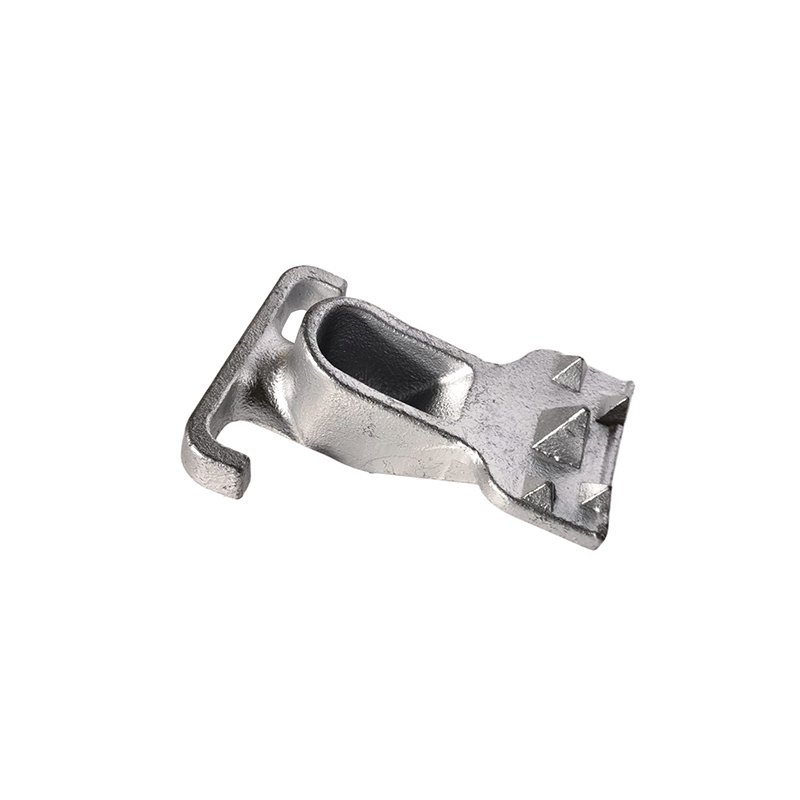

Rack arms, transformer mounting brackets and downlead clamps

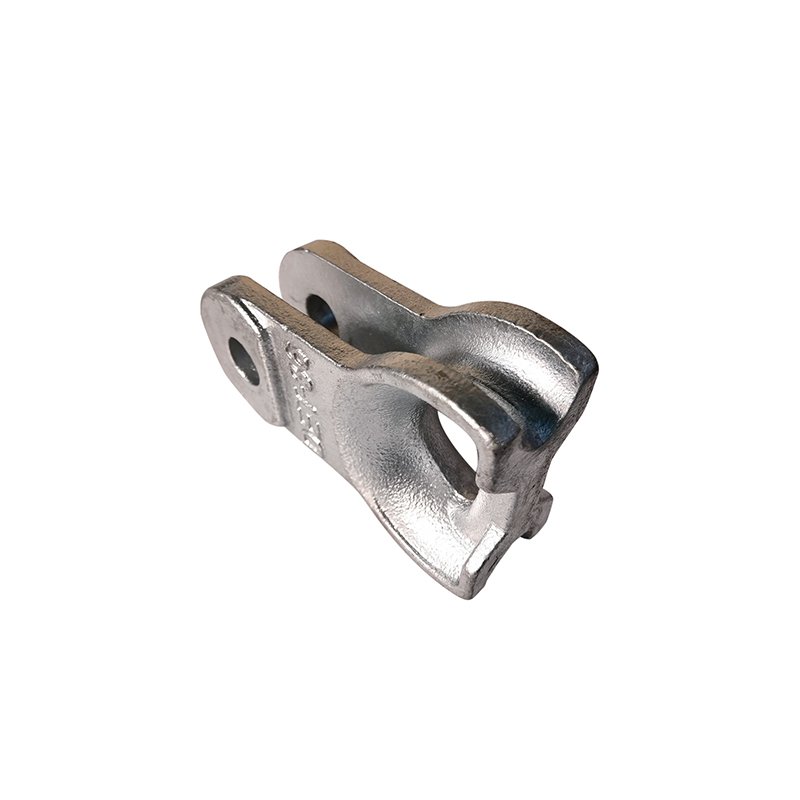

Suspension and tension hardware castings per customer drawings
Because production is drawing-based, we adapt to the hole patterns, bolt sizes and load ratings your line design calls for.
Pole line hardware carries static conductor weight, wind and ice loads and short-circuit forces, then stays outdoors for decades. Ductile (nodular) iron is chosen over gray iron for these parts because its spherical graphite structure combines good castability with much higher strength, ductility and impact resistance. With a spheroidization rate of at least 90%, cast brackets and clamps resist cracking under load and vibration instead of behaving as brittle gray iron would.
Four settings account for almost everything we pour, and each loads the casting differently. On high-voltage transmission lines and lattice towers the hardware carries conductor tension and wind span, so those yoke plates, suspension clamps and tower brackets are cast in ductile iron and proof-loaded before galvanizing. Urban and rural distribution work, including retrofits on routes built forty years ago, is usually constrained by the existing hole pattern rather than by load, which is why we can work from a measured sketch and photographs when no drawing survives. Agricultural grid electrification and upgrade projects order in mixed batches at short notice, so common crossarm and clamp patterns stay on shelf tooling between seasons. Substation support ironwork and pole-mount transformer brackets are static but heavy, and grey iron covers most of them at a lower piece price.

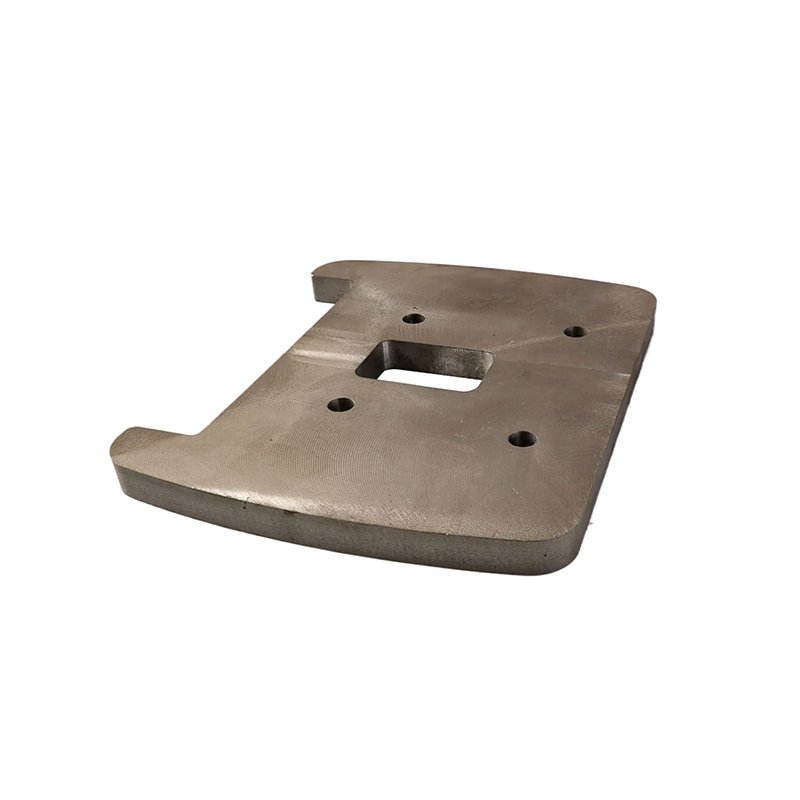

On our automatic clay sand line, the bulk of pole line hardware runs from 0.5 to 50 kg per piece, which covers most crossarms, clamps and support brackets. Heavier lattice-tower fittings and large base plates from 50 to 200 kg are produced by lost foam casting, keeping tooling cost low for medium quantities. Ductile iron sections can be cast down to roughly 5 mm wall, and all critical mounting faces, bolt circles and pin holes are later brought to your drawing by tapping, drilling or CNC.
For load-bearing hardware we default to ductile iron with a spheroidization rate of at least 90%, because brackets and clamps must survive wind, ice and short-circuit forces without cracking. Gray iron remains useful for static, non-impact parts such as pole-mounted plates where damping and affordability matter. Where the drawing demands higher strength or special alloy, we also supply carbon and stainless steel castings through our workshop partners.
Line hardware lives outdoors for decades, so surface finish is part of the spec rather than an option. After shot blasting, we can apply wet paint to your color code, or hot-dip galvanize fittings for coastal and industrial atmospheres where paint alone would fail. Tell us the service environment — rural inland, urban industrial or coastal — and we will match the coating to it.
Drawing review: engineers confirm dimensions, load rating and castability before any tooling starts.
Pattern and sample: a sample casting is made and sent for your approval together with material reports.
Approval: you sign off the sample, and the same setup locks the bulk production spec.
Bulk casting: pieces are poured on the automatic line, fettled and shot blasted.
Machining and inspection: holes are tapped or drilled, then every piece is 100% checked before crating.
Most delays in pole line hardware projects come from thin RFQs. A drawing with a part name and no load data forces us to guess, and guessed quotes come back wrong in both directions. Send these five things and you will get a firm, comparable price on the first reply, usually within one business day:
Field dimensions that matter: hole patterns with spacings and diameters, bolt sizes, and the mounting face that contacts the pole or crossarm.
Working load and its direction: state whether the load is vertical, transverse or longitudinal, because ductile iron carries load differently depending on how the section is oriented.
Finish spec by name: hot-dip galvanizing to ASTM A153 or ISO 1461, or paint. "Galvanized" alone invites quoting against a thinner coating than your line needs.
Annual quantity and release pattern: one annual volume split into quarterly releases prices better than a single small lot.
Any utility-approved reference drawing: if your part mirrors an existing RUS or ANSI class hardware item, say so. It shortens the feasibility check.
With a complete package, feasibility feedback comes back within two working days, including flagging anything that will not cast cleanly — a hole too close to a wall, or a cantilevered lug that needs a rib.
Line hardware rarely fails from insufficient strength. It fails from load direction nobody specified at design time. A bracket designed for a vertical down-load behaves very differently when wind or conductor tension pushes sideways, because the section that resists bending in one plane is thin in the other. When a utility reports a batch of bent hardware, the drawing usually shows a load arrow in a single direction.
That is why we ask for direction rather than a bare number. On castings with asymmetric lugs, adding a rib or thickening one flange costs almost nothing at the pattern stage and changes the failure mode entirely. On parts converting from welded fabrication, the cast version often ends up lighter because the rib can follow the actual load path instead of the steel plate's available thickness.
Hot-dip galvanizing protects overhead hardware for decades, but only if the details are right. Coating thickness is specified by standard — ASTM A153 for hardware, ISO 1461 for general fabrication — and the two are not identical, which matters when your utility's acceptance criteria name one of them. We galvanize after machining so the coating covers machined faces, then chase or mask threads so bolts still run on by hand at height.
Two site issues come up repeatedly. First, hardware galvanized with a heavy coating can build up inside close-tolerance holes; we check hole gauges after dipping, not before. Second, cut or damaged coating at installation becomes the corrosion start point — touch-up paint compatibility is worth specifying once in the contract rather than arguing about later. Neither issue is exotic; both are cheaper to settle at the drawing stage.
Pole line hardware ships in mixed loads, and mixed loads are where packing quality shows. Our default is wooden cases for brackets and heavier castings, cartons for light items, all labelled by item number with quantity counts checked at crating. If your crew installs by pole type rather than by part number, tell us the grouping and we will pack per installation set — it costs nothing extra and removes a sorting step on site.
For sea freight, the practical risks are condensation and movement. Castings are dry and shot blasted before packing, cases are lined where humidity is a concern, and heavy pieces are blocked so they cannot shift against the case walls. Customers receiving into an open yard rather than a warehouse should say so; a heavier case specification costs less than replacing crushed hardware.
Yes. Send the PDF or the physical sample. We measure the piece, confirm the grade, and quote tooling if a new pattern is needed. Samples usually follow within four weeks of drawing approval when quantity justifies them.
Yes. Threads are cut after galvanizing or protected during the dip, and each piece is inspected for coating continuity before crating.
Mechanical properties are verified per heat with tensile coupons — spheroidization above 90% is our release criterion for ductile iron. Full destructive load testing of sample hardware can be arranged at an independent lab if your specification requires certificates.
For line hardware we default to 65-45-12 class ductile iron, which covers most tension and suspension duties with useful elongation. If the part is a static support, grey iron may cost less and damp vibration better — we will say which and why in the quote.
Yes. Brackets, bands and clamps are commonly consolidated into one load with itemized packing lists, or packed per installation set if you send the grouping.
With the pattern on the shelf, repeat releases skip pattern making entirely and schedule into normal production. Most repeat hardware orders move in weeks rather than months.
Each pole line hardware casting leaves our foundry only after 100% visual and dimensional inspection against your order standard. We take drawings as the starting point for every batch of drawing-based OEM production, run on automatic clay sand lines with a 10,000 t/y capacity and a regular 30-day lead time. For pricing and sample scheduling, send the complete drawing set from the quote page.
Send us your drawings and requirements for pole line hardware. We will confirm feasibility, tooling and price, and produce a sample for your approval before bulk production.
Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.
