Pole Line Components Supplied as a Kit, Not a Catalogue

Product Details

A pole line is not a list of parts, it is an assembly. One tangent pole on a 33 kV line may carry a crossarm, two insulator strings, six clamp bodies, four bands, a guy attachment and a set of bolts, and all of them have to fit each other on the day the crew arrives. Buying them from four suppliers is how a line gets built twice.

One Pole Needs Twenty Parts, and They Have to Fit

The interfaces are where the problems are. A crossarm bracket has a hole pattern that has to match the crossarm. A band has to fit the pole circumference at the attachment height, which varies with the pole's taper. A clamp body has to accept the conductor size the line was designed for, and the next size down does not fit the same groove.

None of these are difficult individually. Together they mean that a component supplier who only makes one item is only solving a fifth of the problem.

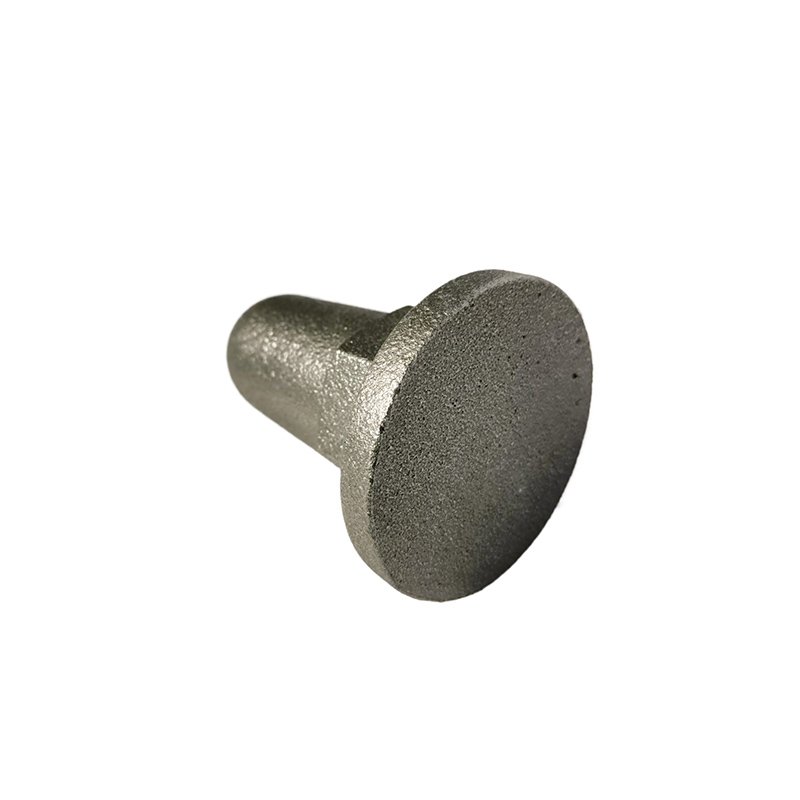

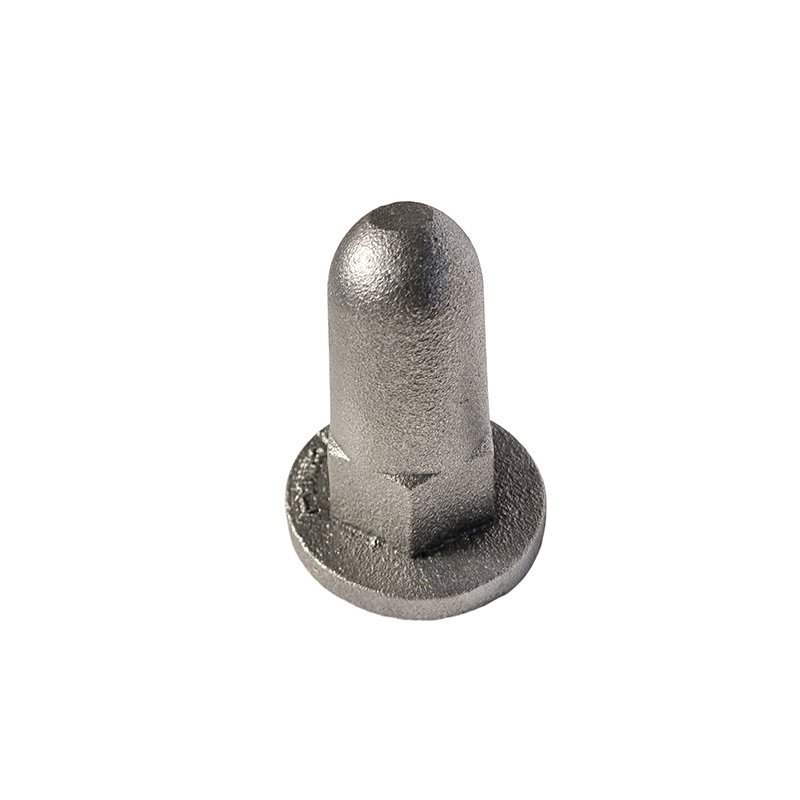

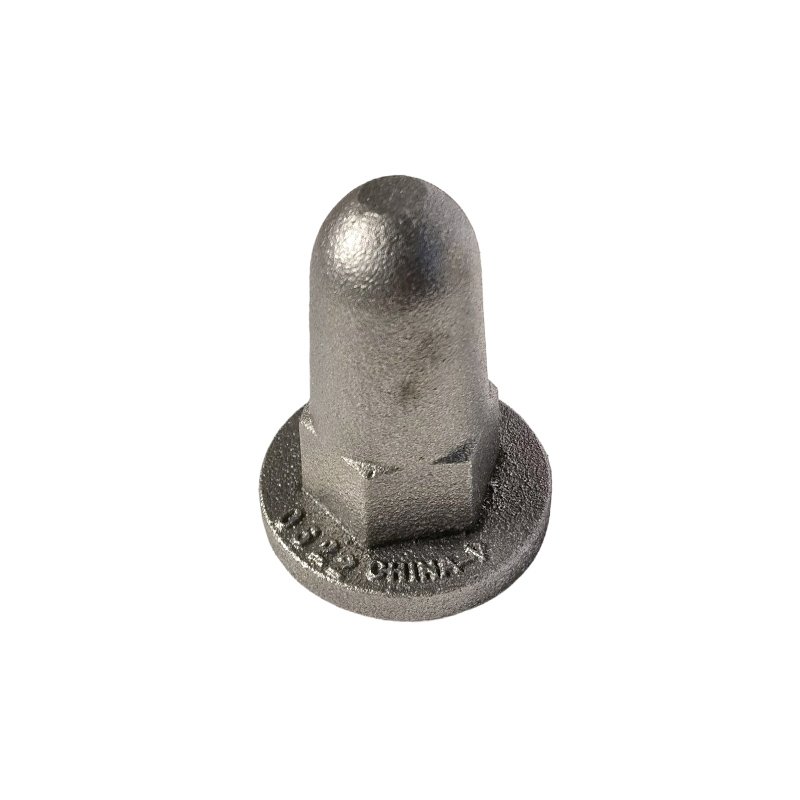

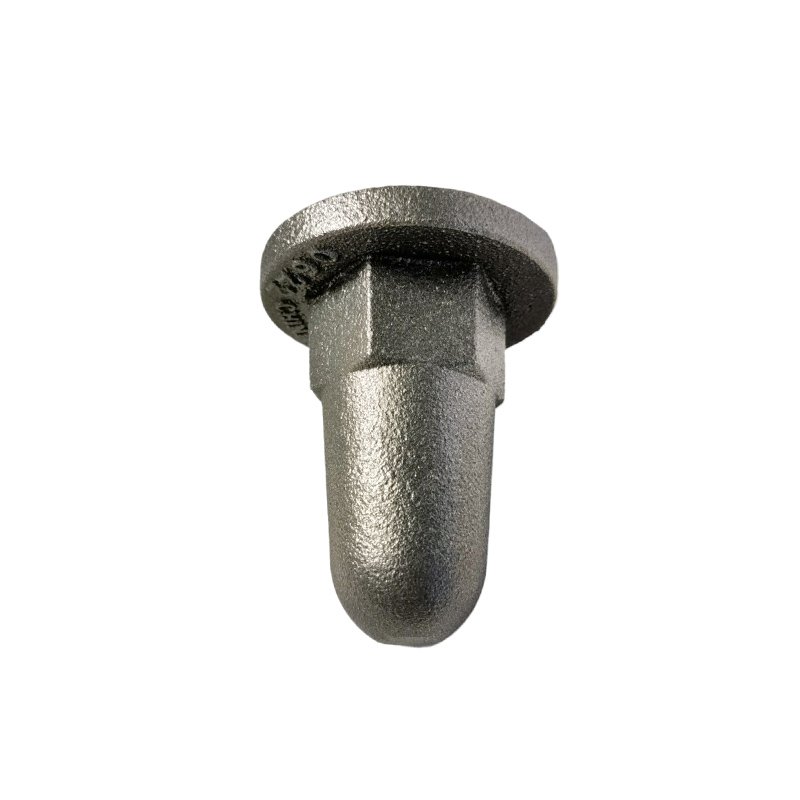

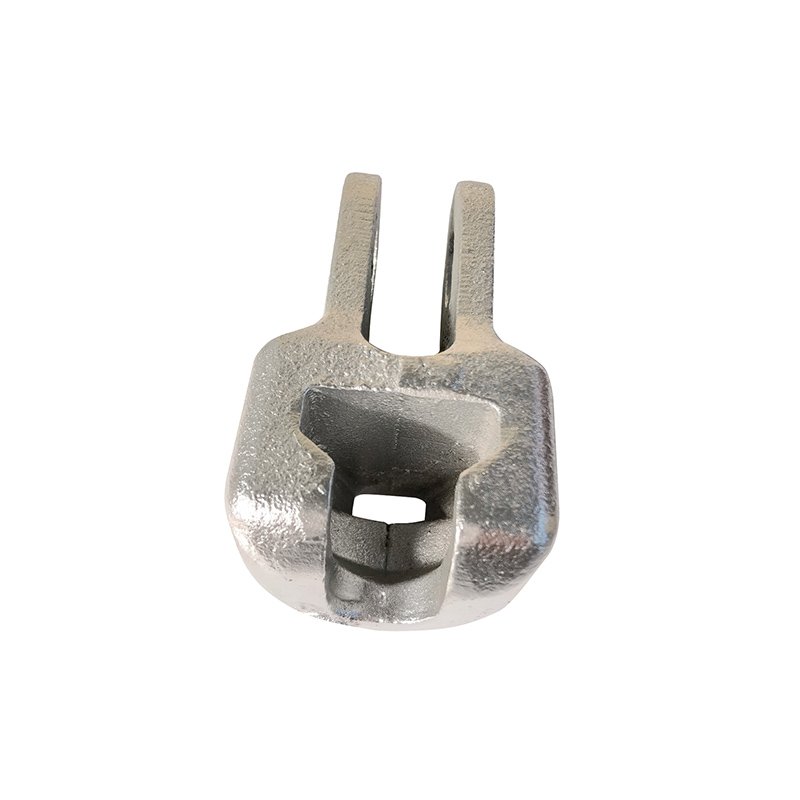

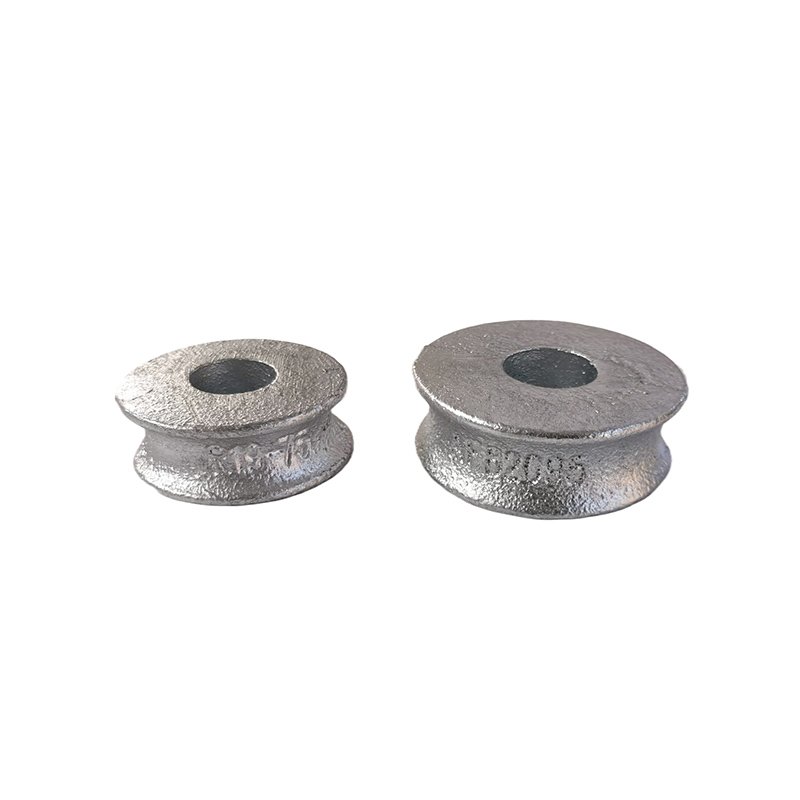

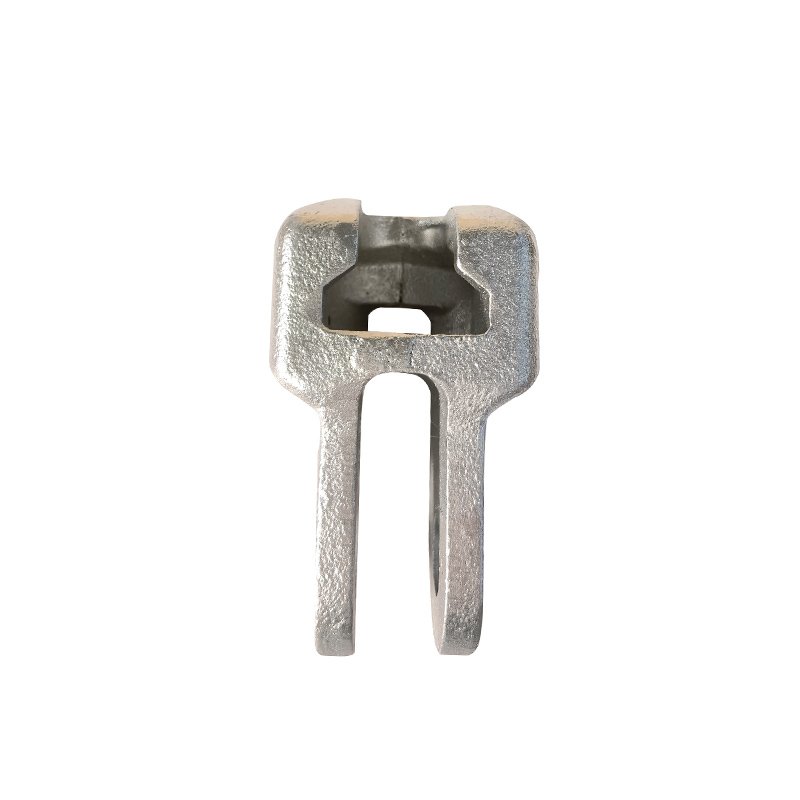

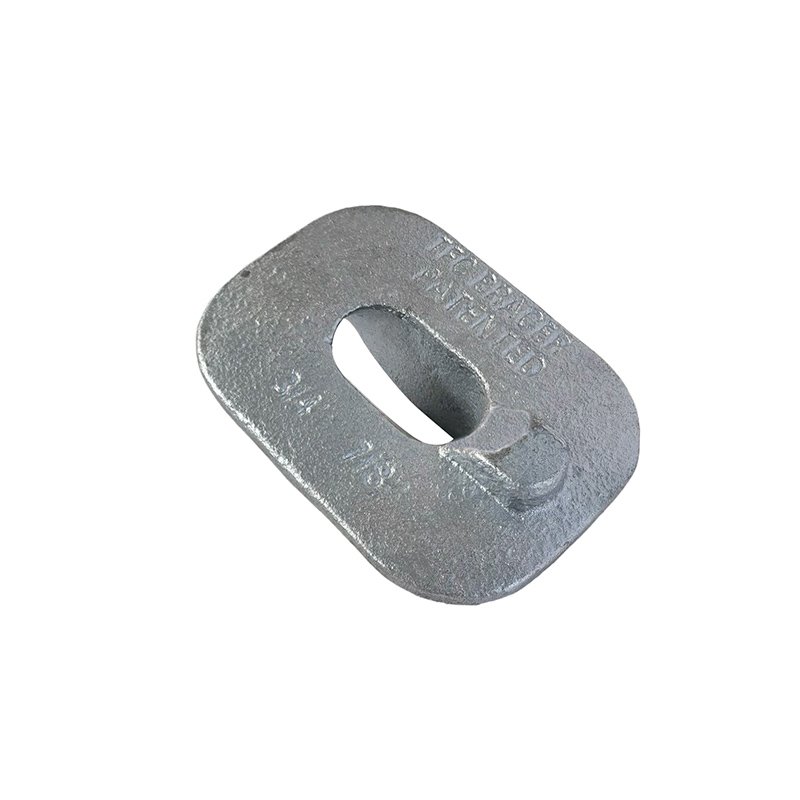

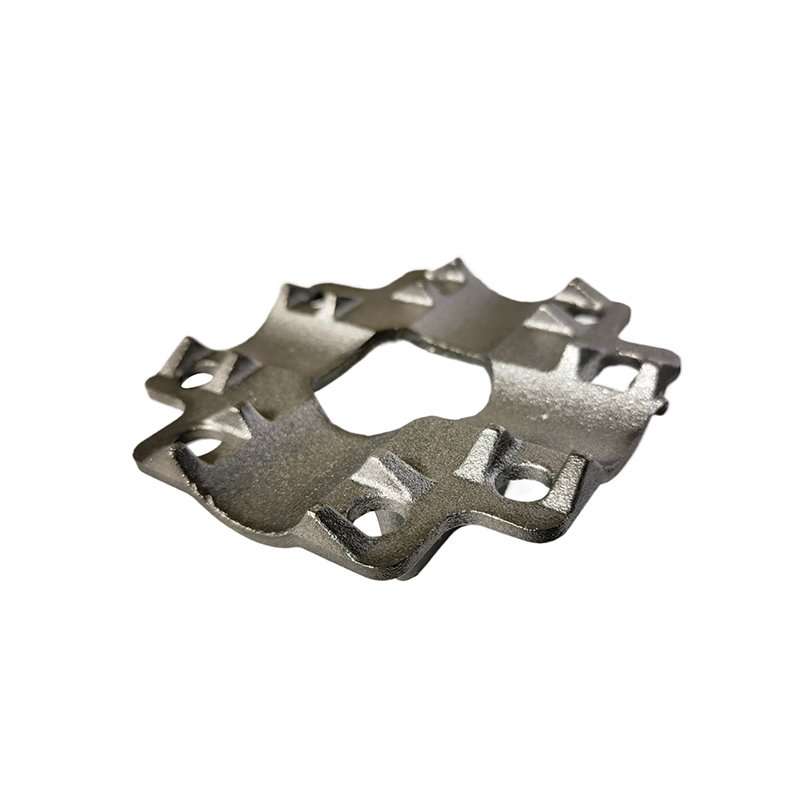

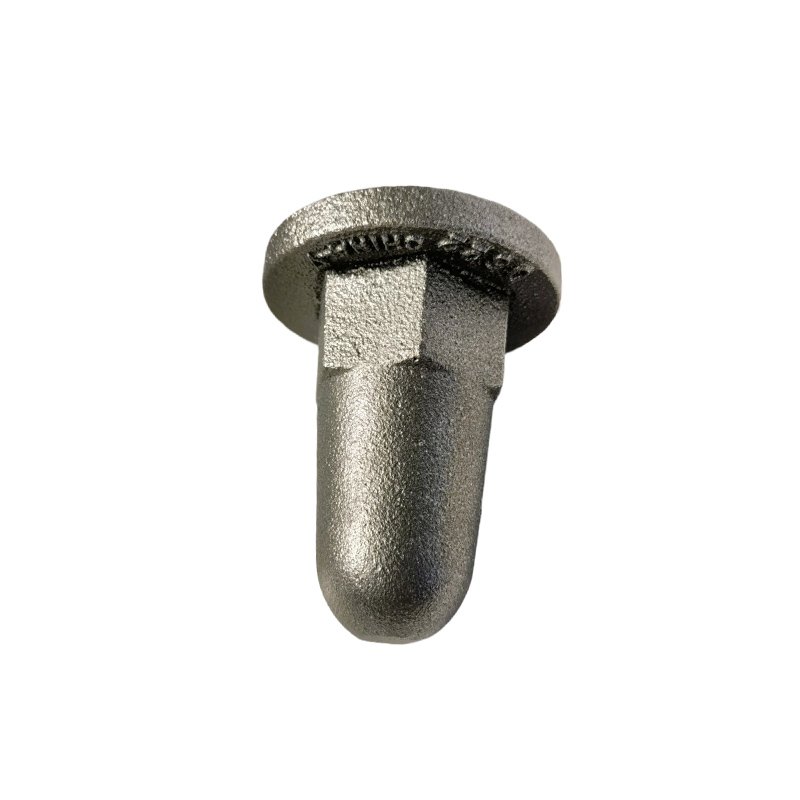

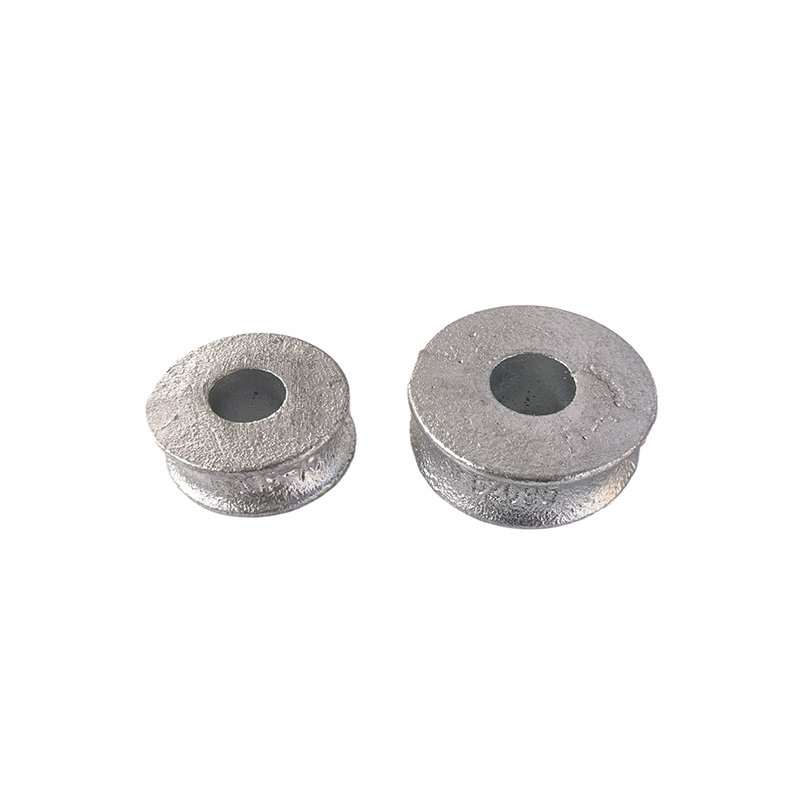

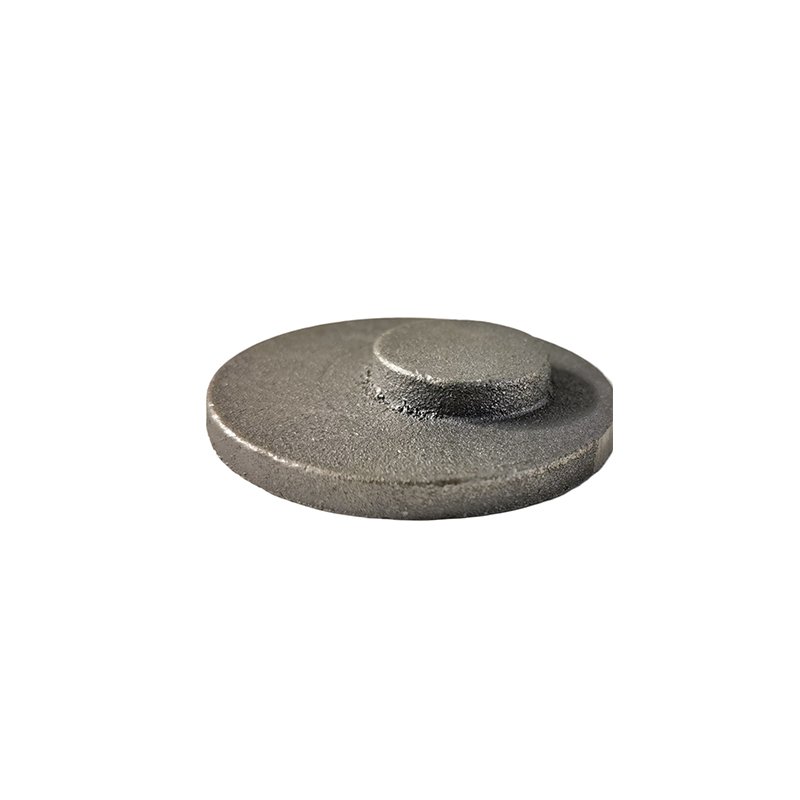

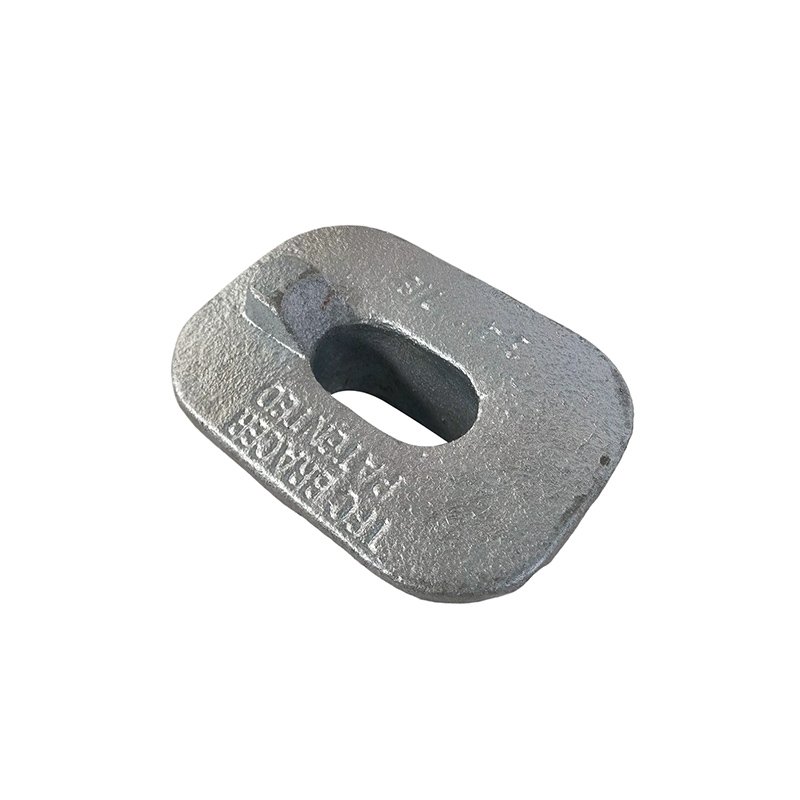

We cast the iron parts of the assembly: clamp bodies, bands, bracket bodies, guy attachments, insulator pins and the smaller fittings around them. The bolts and the insulators come from elsewhere, but the castings are designed as a set.

Reading a Pole Schedule as a Bill of Materials

A utility's pole schedule lists, for each pole position, the structures and hardware required. Read as a bill of materials, it tells you the quantities per pole type and the total for the line.

What it does not always tell you is the interface dimensions: the pole diameter at each attachment, the crossarm section, the conductor size and the line angle. Those are the numbers a foundry needs, and they are usually in a separate standard drawing set.

When a customer sends only the schedule, we ask for the pole class and the conductor. With those two we can usually identify the standard hardware family and confirm which of our patterns applies, rather than designing something that turns out not to fit.

Clamp Bodies and the Conductor They Hold

The clamp body is the part that touches the conductor, and it is the one with the least margin. It has to hold the conductor without slipping, without crushing it and without abrading it under vibration.

The groove is sized to the conductor diameter with a small clearance, and the material is usually aluminium or ductile iron with a liner. A groove that is too tight crushes the strands and creates a stress concentration; too loose and the conductor moves, frets and eventually breaks at the clamp edge.

Ductile iron clamp bodies are used on distribution lines where the load is moderate and the cost matters. Above about 66 kV the fittings are usually aluminium, for corona and weight reasons. We cast the iron version and will say when the aluminium one is the right call.

Bands, Brackets and the Crossarm Interface

A pole band wraps around the pole and provides a mounting point without drilling. It has to match the pole circumference, and because poles taper, the same band cannot be used at the top and the bottom of the same pole.

Bands are usually supplied in a range, with a take-up allowance of 30 to 50 mm. A band that is at the end of its range sits unevenly and the attachment bolt pulls it out of plane.

The crossarm bracket is where the band meets the arm. It carries the vertical load of the arm plus the horizontal load from the conductors, and it is the part that fails first in a storm. A bracket with a sharp inside corner will crack there; a 5 mm fillet and a tapered section cost nothing and change the failure mode.

Guy Attachments and the Load They Transfer

A guy attachment connects the guy wire to the pole and transfers a tension that can reach 40 kN into a wooden or concrete pole. The attachment has to spread that load over enough pole surface that the pole is not crushed, and it has to do it without a stress concentration that splits the pole.

The usual form is a curved plate that matches the pole, with a thimble or a hole for the guy wire and a bolt through the pole. The curve has to match the pole diameter, and the plate has to be thick enough not to dish under load.

On concrete poles, the attachment is often bolted through a cast-in insert, which changes the design entirely. Tell us the pole type at order; a wooden pole attachment and a concrete pole attachment are different castings.

Matching Sets: Why Pour Weight Consistency Matters

A pole assembly is lifted and installed as a unit, and it is designed with an assumed weight. If the castings in a set vary by 10 percent, the assembled weight varies, and on a long line that variation adds up in the stringing calculations.

More practically, matched sets matter for the crew. Two clamp bodies that look identical but weigh 400 grams apart usually differ in wall thickness, and the thinner one may not hold the specified torque.

We cast a kit from the same heat where the quantities allow, and we mark the parts so a set can be kept together through galvanizing, packing and shipping.

Kitting, Labelling and Site Logistics

A line crew works from a truck, at a pole, in weather. If the hardware arrives in bulk bins, someone has to count it out before the crew can start. If it arrives kitted per pole, the crew takes one box and climbs.

We pack by pole type, with the quantity per pole and the pole type marked on the outside, and a packing list inside that matches the schedule. For a line with 200 poles in four types, that is four kits, not one mixed shipment.

It costs a little more in packing and it saves a day of site labour across a project, which is why utilities that build regularly ask for it.

When a Utility Wants One Supplier

The reason to buy a kit from one foundry is not price, it is fit. When one supplier makes the bracket, the band and the clamp, the interfaces are designed together, the galvanizing is consistent, and there is one certificate and one drawing set.

The limit is scope. We do not make insulators, conductors, bolts or poles, and we will not pretend to. What we can do is take responsibility for the iron, hold the drawings, and coordinate the standard fasteners so the kit arrives complete.

For a utility with an established standard hardware family, that is enough. For a project with a bespoke design, it usually means working from the utility's own drawings, which we are set up to do.

Transport Damage and How It Happens

Pole line hardware is heavy, galvanized and awkward, and it arrives damaged more often than any other product we ship.

Threads are the first casualty. A bolt thread that has been knocked in a bulk bin will not run into a nut on a pole, and the crew will force it or discard the bolt. We ship threaded parts with caps or in individual bags, and we chase the threads after galvanizing so a light knock does not ruin them.

Coating damage is the second. Galvanizing is tough but a 10 kg bracket dropped onto another will chip it, and a chipped area is where corrosion starts. Crated shipments with separators prevent most of it.

Deformation is the third, and it is the one that reaches the site unnoticed: a band that has been bent will not sit flat on a pole, and the crew will bolt it anyway. We check bands for roundness before packing, and we crate them on edge rather than flat.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

Can you supply a complete pole kit?

The iron components, yes, including fasteners if specified. Insulators, conductors and poles come from their own suppliers.

How do you handle different pole classes?

Each pole class has a different diameter range, so bands and attachments are supplied per class. Send the schedule and we will map the kits.

Do you cast to utility standard drawings?

Yes. Send the standard number or the drawing set and we will confirm which patterns apply and where a new one is needed.

What galvanizing thickness do you apply?

ASTM A153 or ISO 1461, whichever the specification names, at 70 to 90 micrometres with threads chased after coating.

Can kits be packed per pole?

Yes, with the pole type and quantity marked on the outside and a packing list matched to the schedule.

What is the lead time for a line project?

Six to eight weeks for a new kit including samples, four to five for repeat patterns. Larger projects are scheduled in delivery phases.
