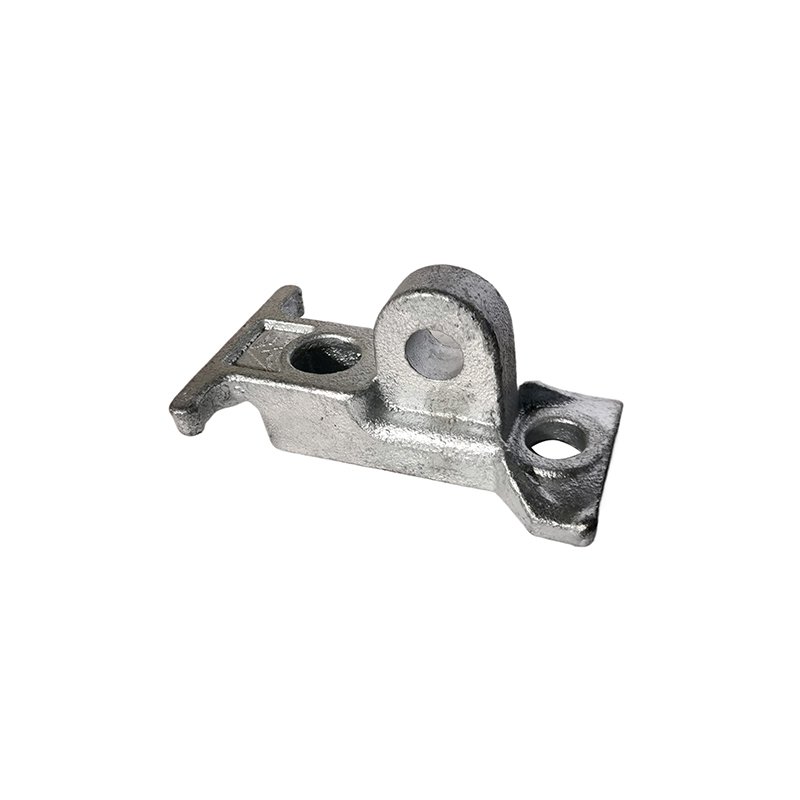

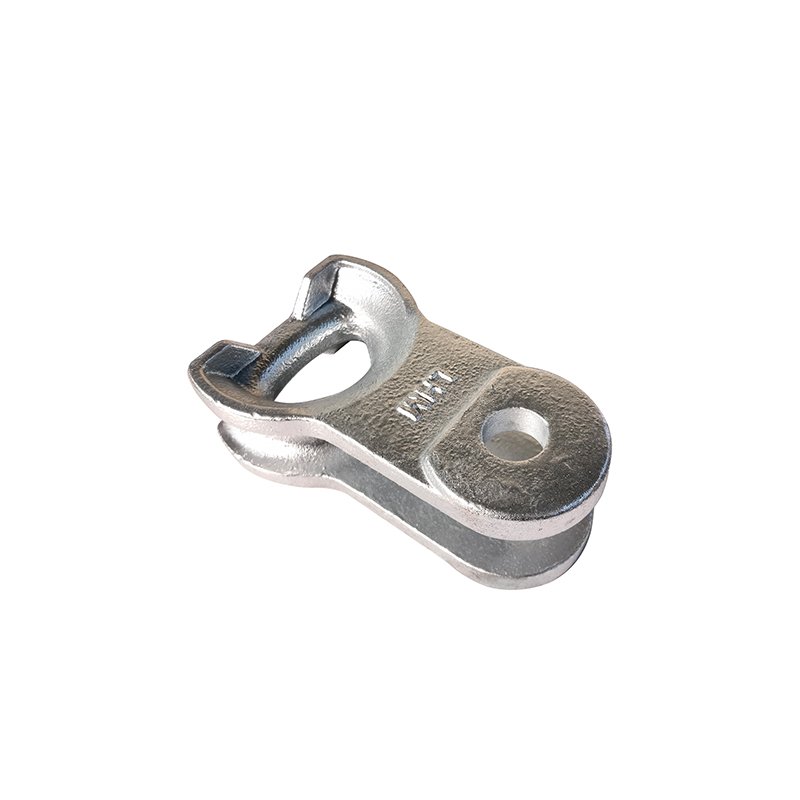

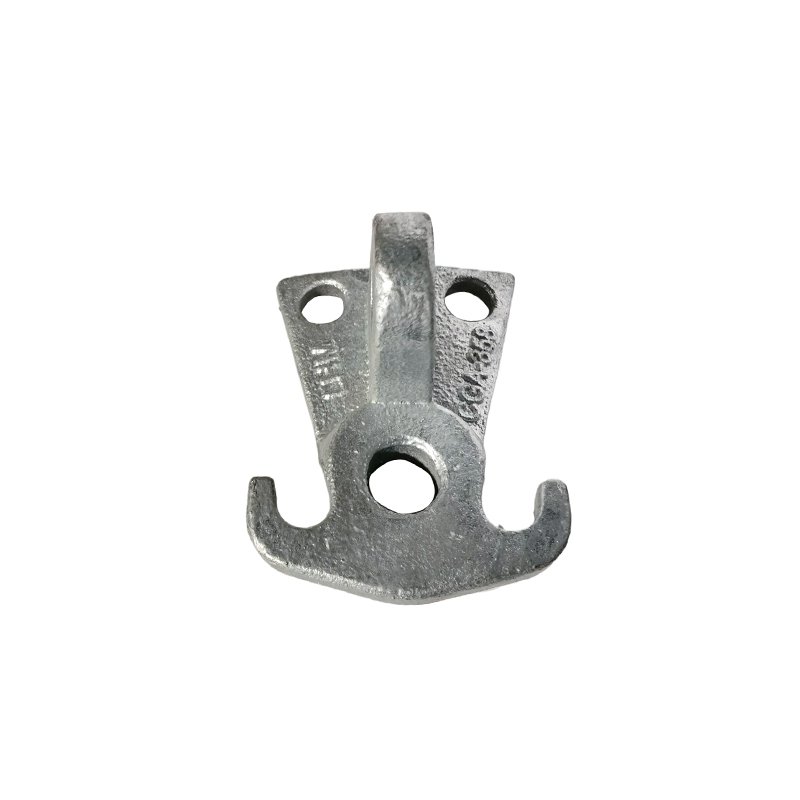

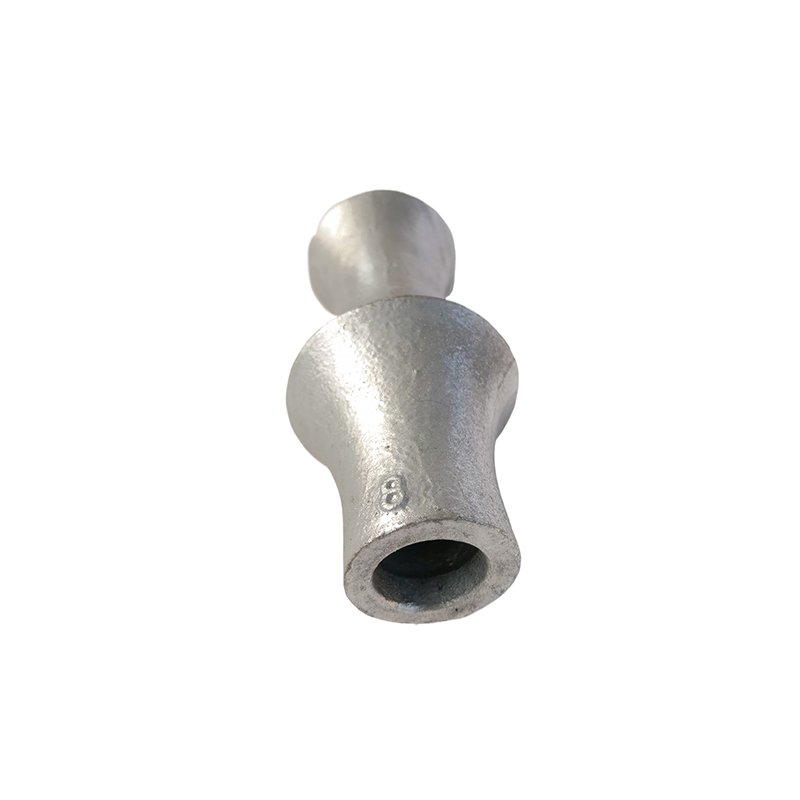

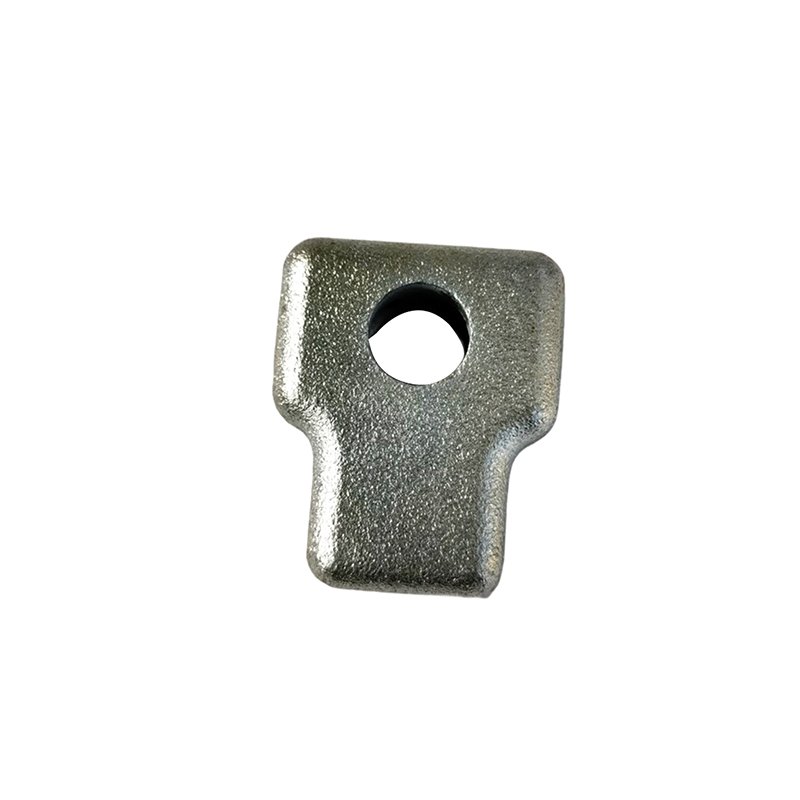

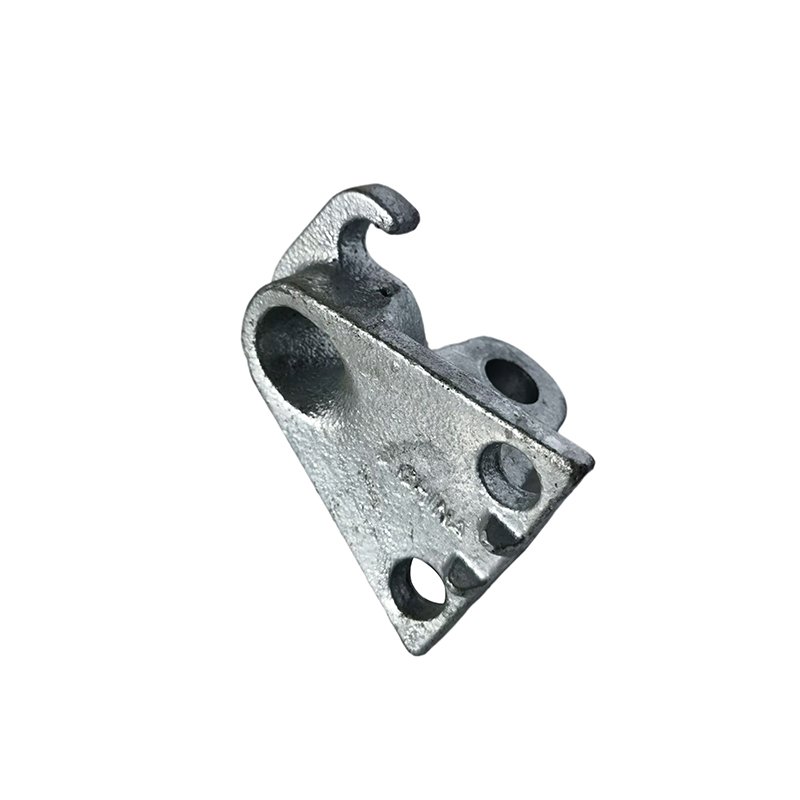

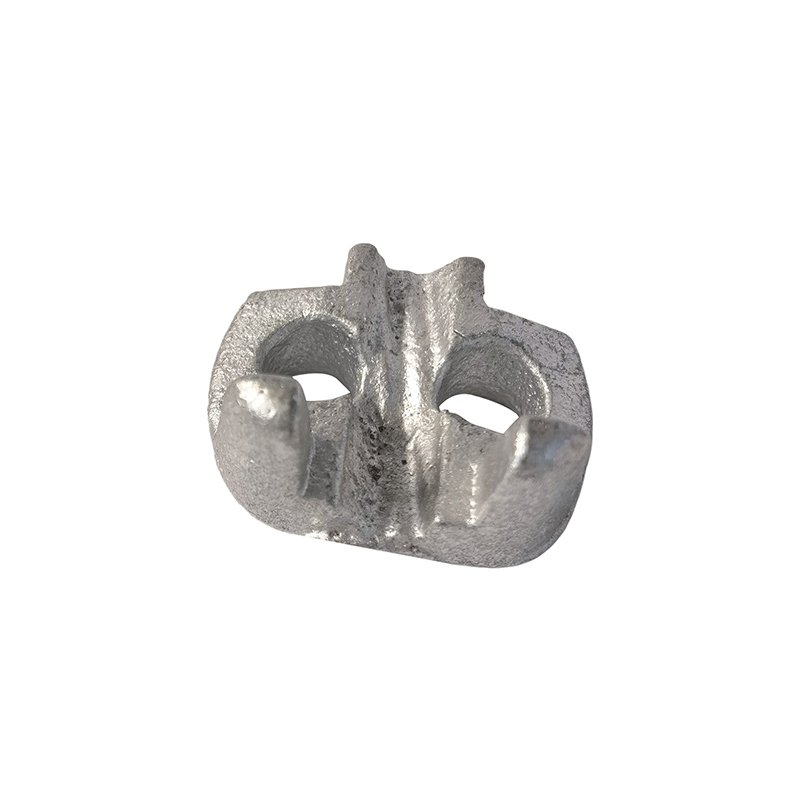

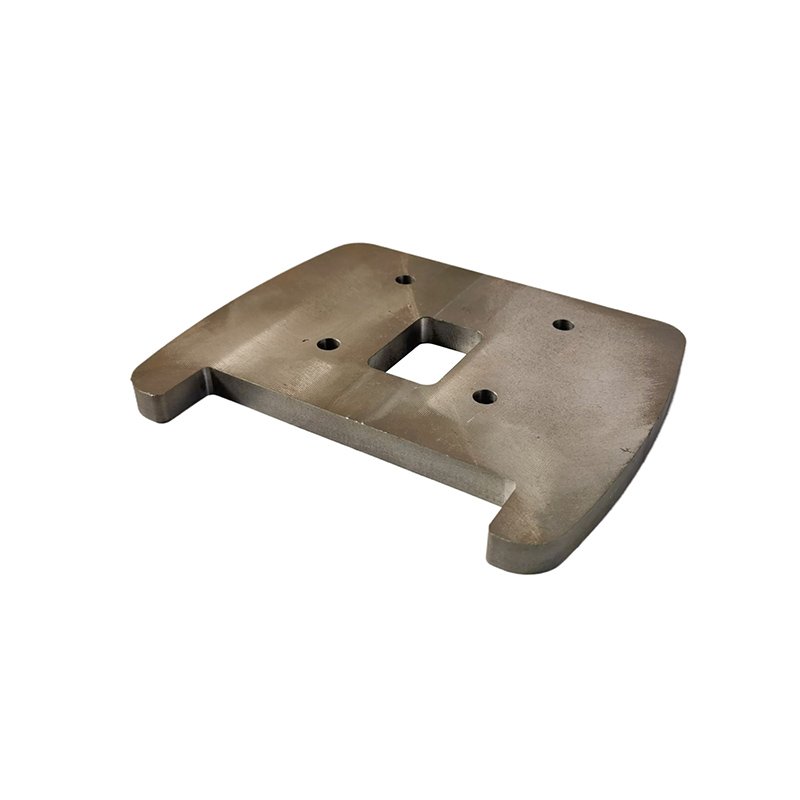

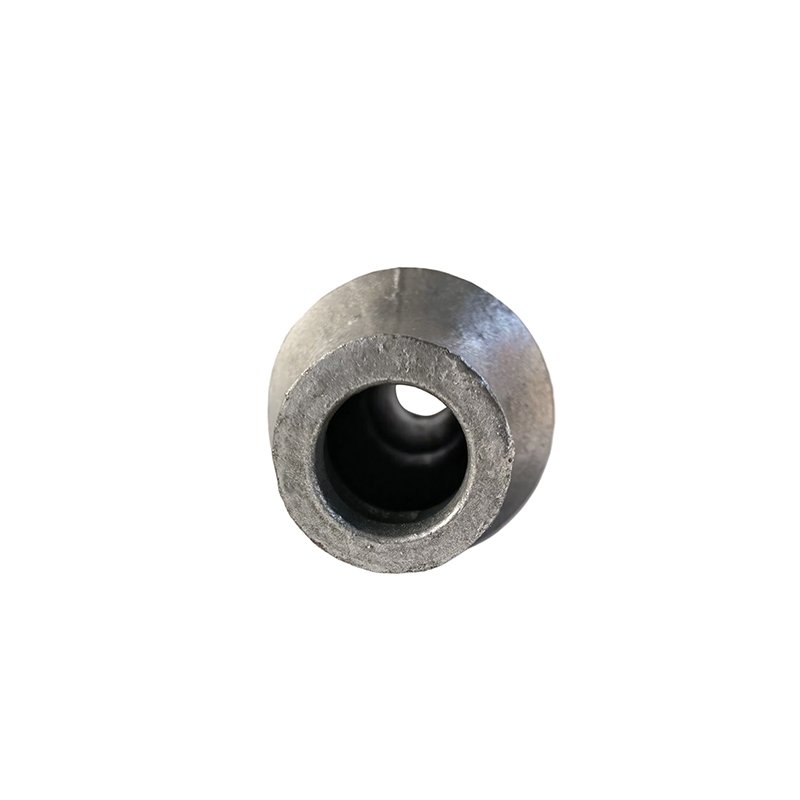

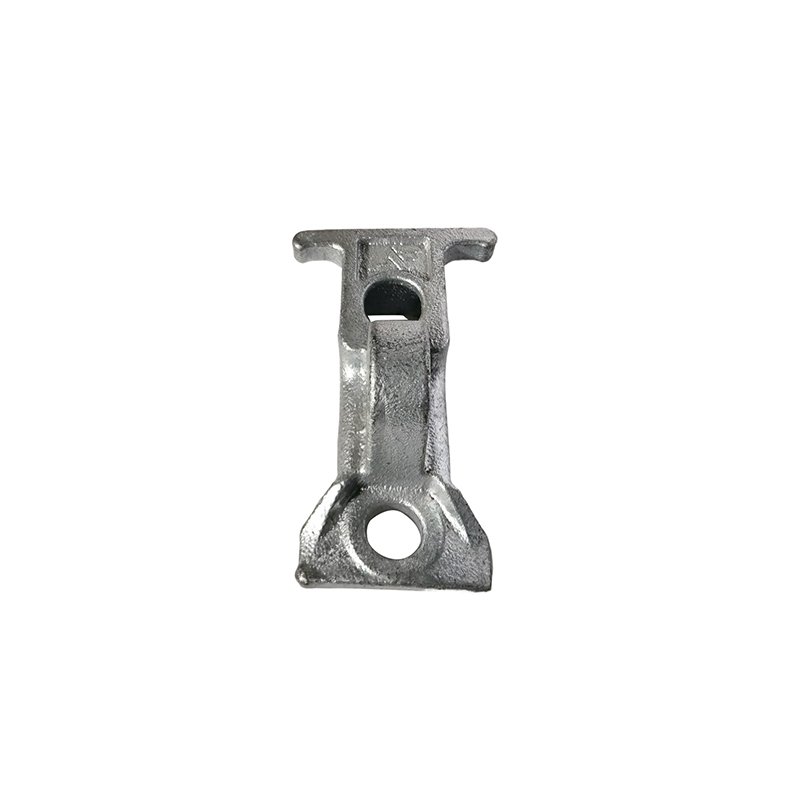

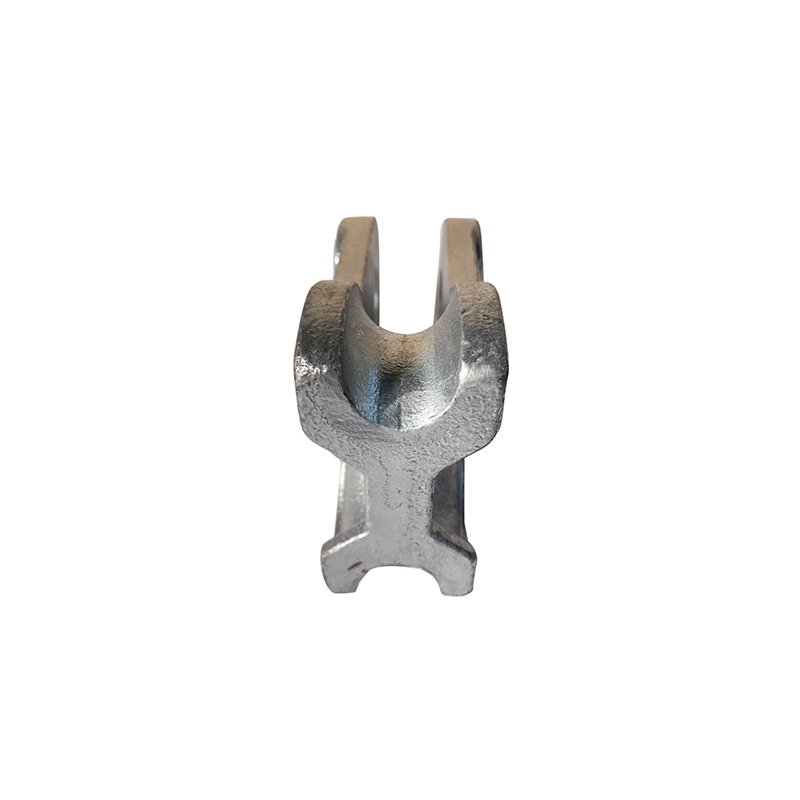

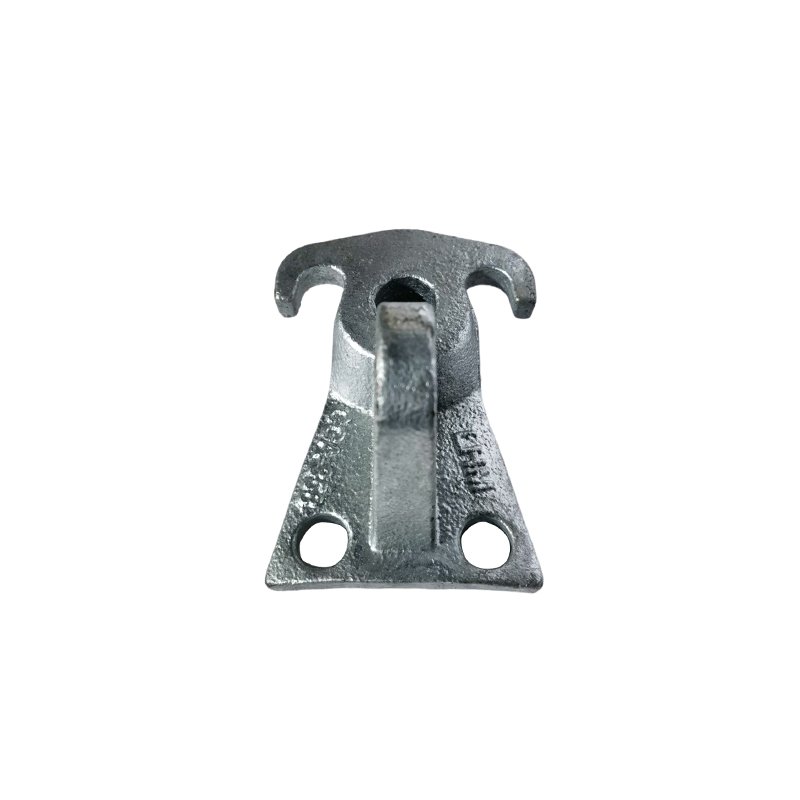

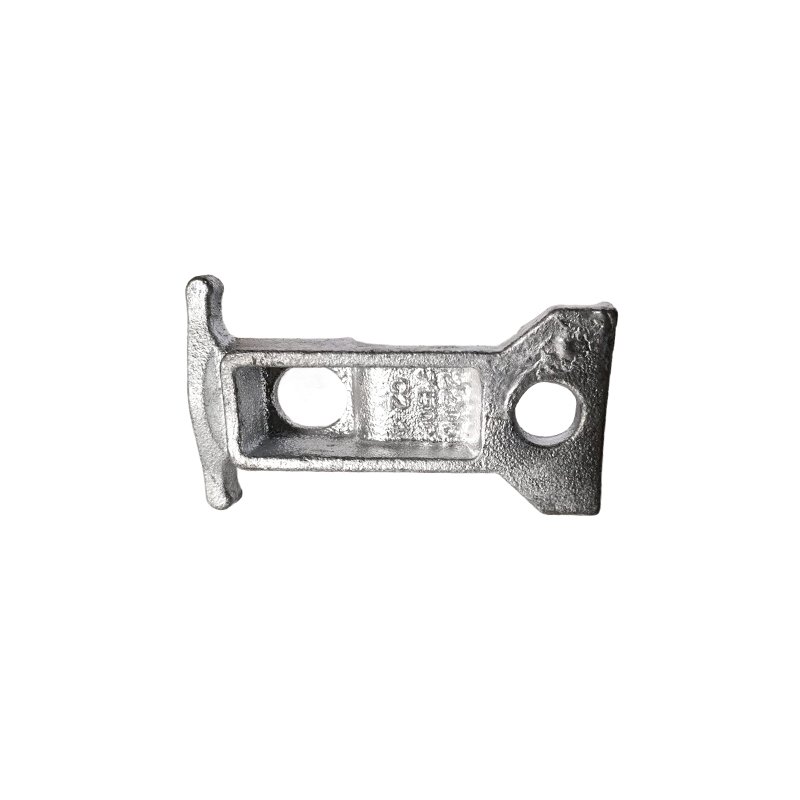

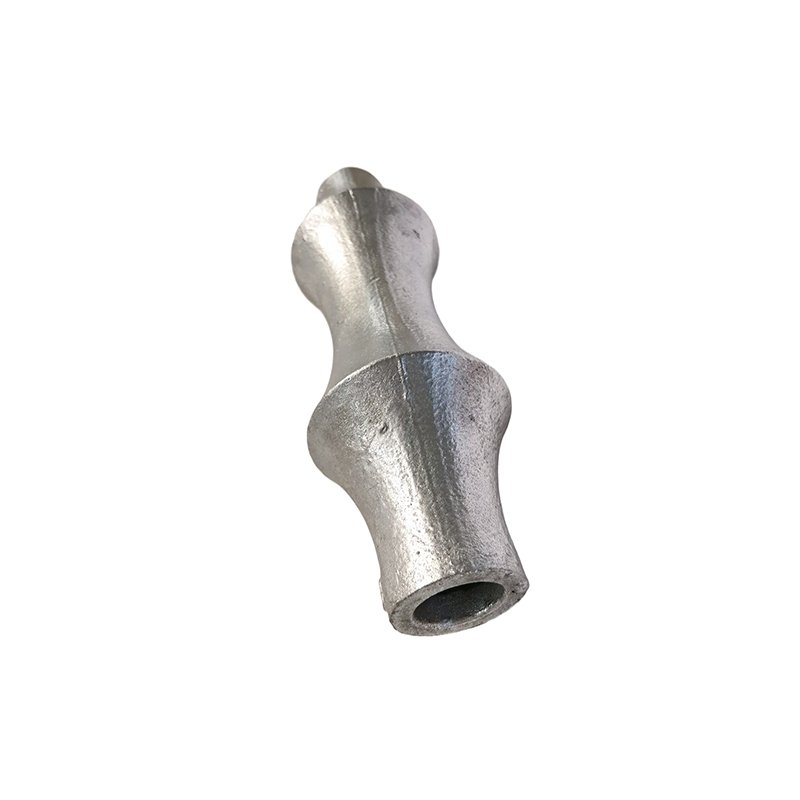

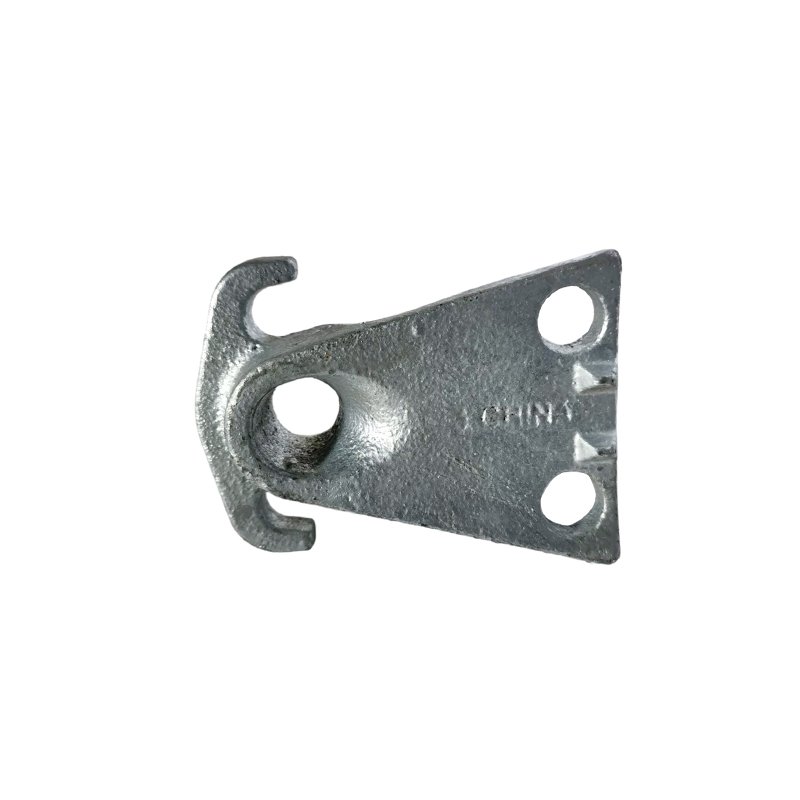

Zhaoyuqi Machinery is a Qingdao foundry that custom-manufactures sand-cast iron pipe support parts — pipe clamps, pipe saddles, pipe hangers, riser clamps, guide brackets and anchor supports — to hold and protect piping in chemical plants, municipal water networks and building services. With more than 20 years of OEM experience and a fully automatic clay sand casting line, we turn customer drawings into ready-to-install support components that carry pipe weight, absorb thermal movement and keep lines aligned.
Pipe support parts fix a pipeline to a structure or to the ground and transfer its load, and the family follows the loads involved. Rigid clamps and half shells grip the pipe and stop it moving. Saddles and rest brackets carry vertical weight while letting the pipe slide as it expands. Riser clamps hold a vertical run against its own weight, guide brackets control lateral movement without locking the line, and anchor brackets lock it completely at the point where thrust has to be taken.
Where they go decides the geometry more than any catalogue does. In chemical and process plants, supports carry corrosive fluid lines on pipe racks and headers, and the saddle radius has to match the pipe OD closely or the coating gets crushed at one edge. Municipal water and sewer work uses riser clamps, saddle supports and buried-line brackets. Building services such as fire protection, heating and plumbing need hangers and brackets that fit inside a ceiling void. Utility tunnels and industrial installations use anchor and guide supports where thermal movement must be directed rather than resisted.
Pick ductile iron whenever the support carries live load, pipe weight or thermal expansion movement. Its nodular structure at 90% and above resists fatigue under repeated cycling, which is the failure mode that matters on a line that heats and cools every day. Grey iron fits static, non-moving brackets where damping chatter from flowing media helps and impact is unlikely. Send the pipe size, working pressure and support spacing and we will recommend the grade and a section thickness rather than leaving you to guess.
A support is only as good as its fit, so machining is where most of the value sits. After shot blasting we machine mounting holes, saddle faces and clamp slots to your drawing: tapping for bolted joints, drilling for through-holes, CNC finishing where several holes must align to tight tolerance. Minimum cast wall for ductile iron is about 5 mm, with large-radius saddles and wide clamp bodies running 8 to 12 mm for rigidity. Painting goes on after machining for weather-exposed or buried service.
Most support components sit in the 0.5 to 50 kg window of the automatic clay sand line, which covers clamps, saddles, hangers and guide brackets up to roughly half a metre long. Exceptionally heavy racks and large anchor blocks switch to lost foam casting at 50 to 200 kg.
What speeds a quote is drawing data, not prose. Attach the pipe OD, the design load and its direction, the corrosion environment, the iron grade if you have one, and the coating specification by name. With those five the feasibility check and price come back in a day or two; without them we are guessing at the section, and a guessed section is either overweight or wrong. After quotation a sample support is cast, measured against the print and shipped for approval. Approval locks the pattern, bulk batches are shot blasted, machined and 100% dimension-checked, and good parts ship in wooden crates on the agreed date.
Two pipe clamps with identical dimensions can behave completely differently after two years, because the environment around the pipe decides how the hardware ages. When buyers ask us to quote, we sort supports into four service environments, and the answers change both the casting and the finish:
Indoor, dry, accessible: grey iron or ductile iron as-cast or shot blasted. Cost is the main lever and any maintenance crew can reach the hardware later.
Outdoor, weather exposed: ductile iron with a paint system, or hot-dip galvanizing where hardware will be handled during install. Rust staining on the rack is the complaint we hear most when finish was value-engineered away.
Coastal and marine: galvanizing plus a compatible topcoat. Fastener choice matters as much as the casting — quote the hardware set along with the casting.
Chemical plant racks: ductile iron, machined contact faces, and a coating chosen against the specific chemical, not a generic "industrial paint". Splashes concentrate at saddle edges; tell us the fluid and we plan for it.
Load rating is still the first filter — but once the support survives the load, environment decides whether it survives the year.
Thermal movement is the quiet cause of most pipe support problems. A line running hot grows along its length, and if every support grips rigidly, that growth either buckles the pipe or tears the anchors out of the structure. The fix is in the support schedule, not the casting: sliding supports at intermediate points, an anchor at one fixed location, and guides that allow movement in one axis only.
Casting matters here because the sliding surface has to be flat and consistent. A saddle with as-cast roughness will not slide predictably against a wear pad, no matter how correct the schedule is. We machine the bearing face where a support is intended to slide, and leave it as-cast where it grips — the drawing tells us which, so mark the sliding surfaces.
On chilled water and cold-storage piping, the support becomes a thermal bridge. A cast iron clamp in direct contact with a cold pipe conducts heat straight out of the line and condenses moisture at the contact point — which is why cold lines use insulated saddles, wood blocks or cast isolators between pipe and clamp. The casting's job is to provide a stable, flat seat for that isolation layer, with enough clearance for the vapor barrier to run continuously past it.
Two casting details make that work: a saddle radius that matches the insulated outside diameter rather than the bare pipe, and enough height under the clamp for the barrier and cladding to pass through without being crushed. Both are drawing inputs. If your support schedule shows the insulation thickness, we can design to it; if it does not, we will ask, because a clamp that fits the bare pipe is useless on an insulated line.
The saddle is cast to a matching radius and machined where the pipe bears. Give us the actual OD including corrosion allowance or insulation at the contact point, not the nominal size.
Either. Tapped holes are drilled and tapped after casting on our CNC centers; plain holes for through-bolts can come as-cast within a wider tolerance. Say which on the drawing and the price reflects it.
Load per support point and the direction it acts. A clevis hanger rated vertically tells us little about a support that also sees lateral thrust from thermal movement — those need different lug design.
We can. Hardware kits packed per support position are common for export projects, so site crews hang supports without a separate fastener order. State the bolt grade and coating you need.
Ductile, as a rule. Chemical plant racks see vibration from pumps and occasional impact during maintenance, and ductile iron's elongation is what keeps a clamp from cracking when someone drops a spool on it.
Castings are packed with contact faces protected and heavy items blocked against movement. If your site touches up coating, tell us the paint system so the touch-up is compatible rather than a second, incompatible layer.
For every pipe support part we ship, inspection is 100% complete before packing — spheroidization checked, dimensions verified and mounting holes gauged. Our drawing-based OEM flow runs from your CAD file through sample approval to bulk casting, backed by a 10,000 t/y foundry capacity and a regular 30-day lead time. Upload your CAD file from the quote page and we will come back with pricing.
