Zhaoyuqi Machinery custom-sand-casts iron pipe connectors — flanges, couplings, sleeves and bends — that join, branch or change the direction of piping in water supply, chemical processing and infrastructure. For over 20 years we have manufactured these connection castings to buyer drawings in grey and ductile iron, finished and inspected ready for installation.

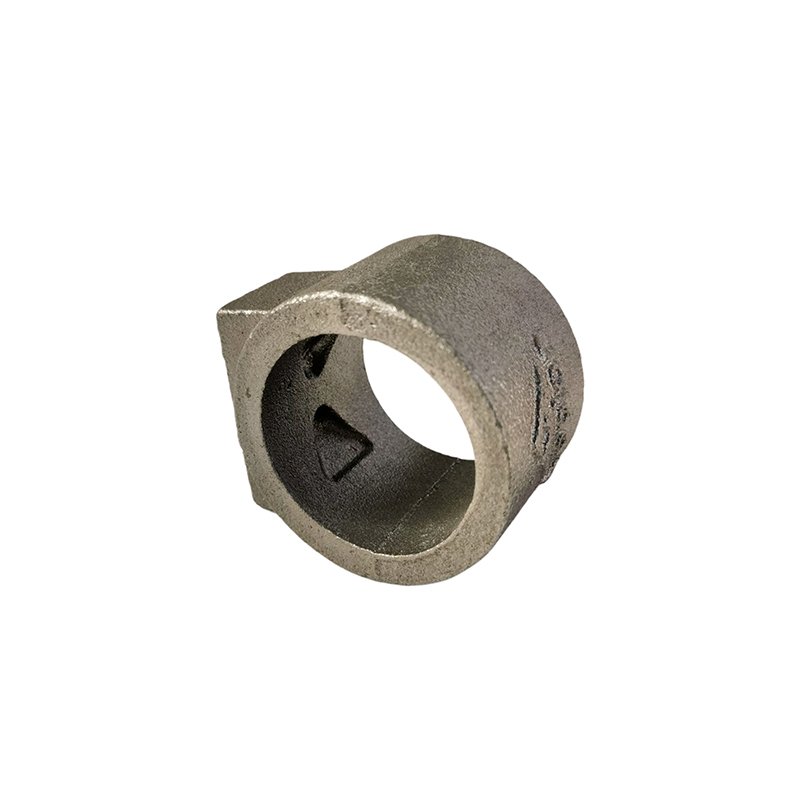

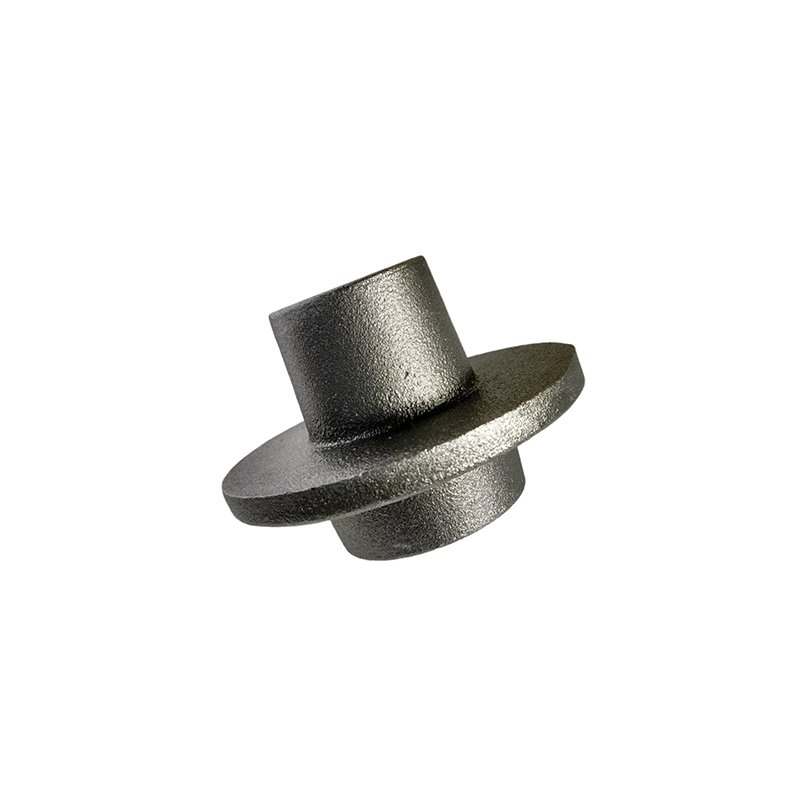

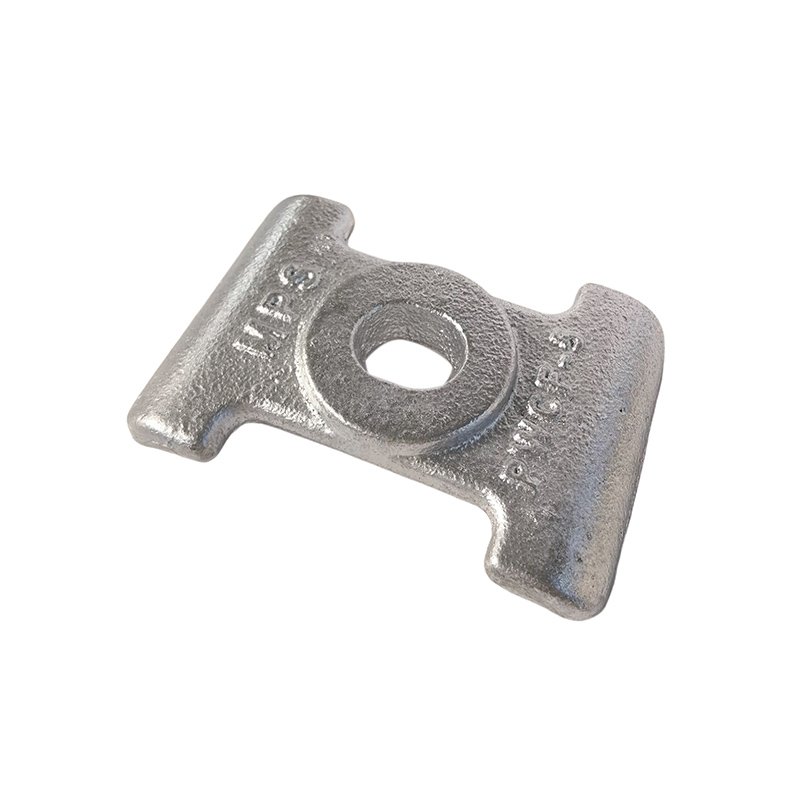

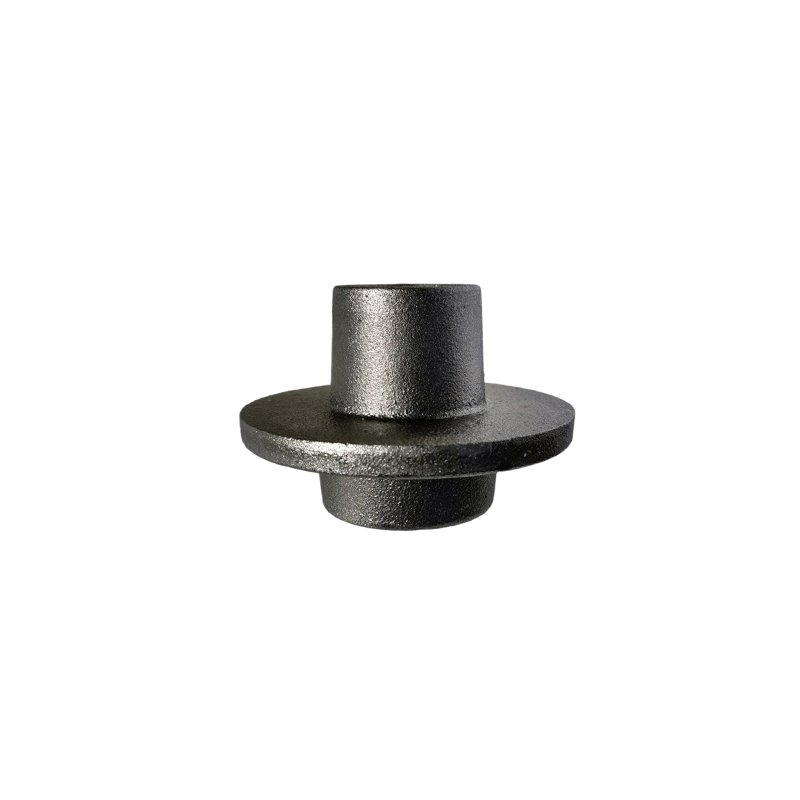

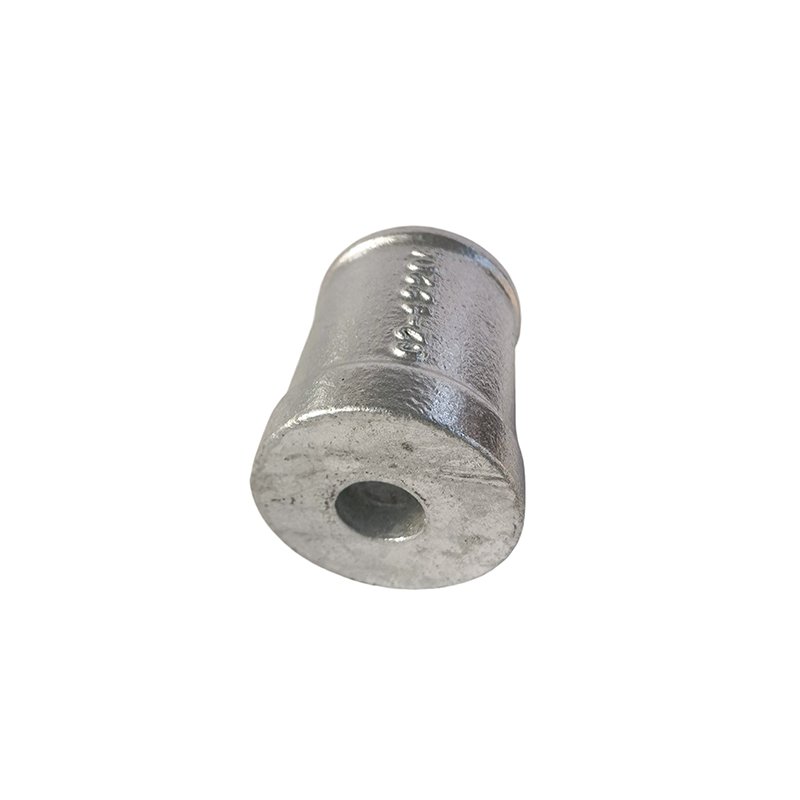

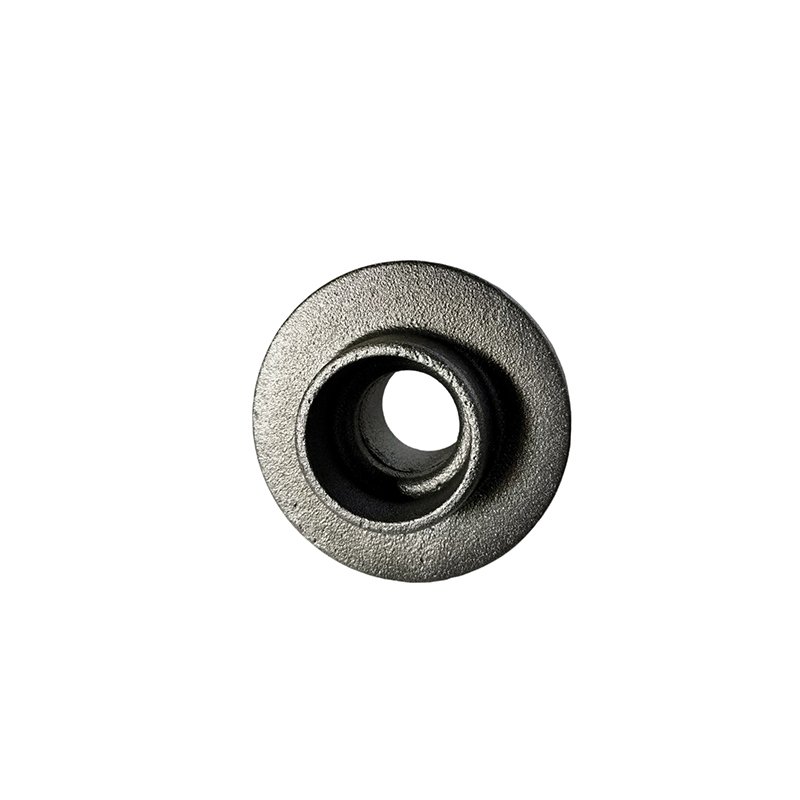

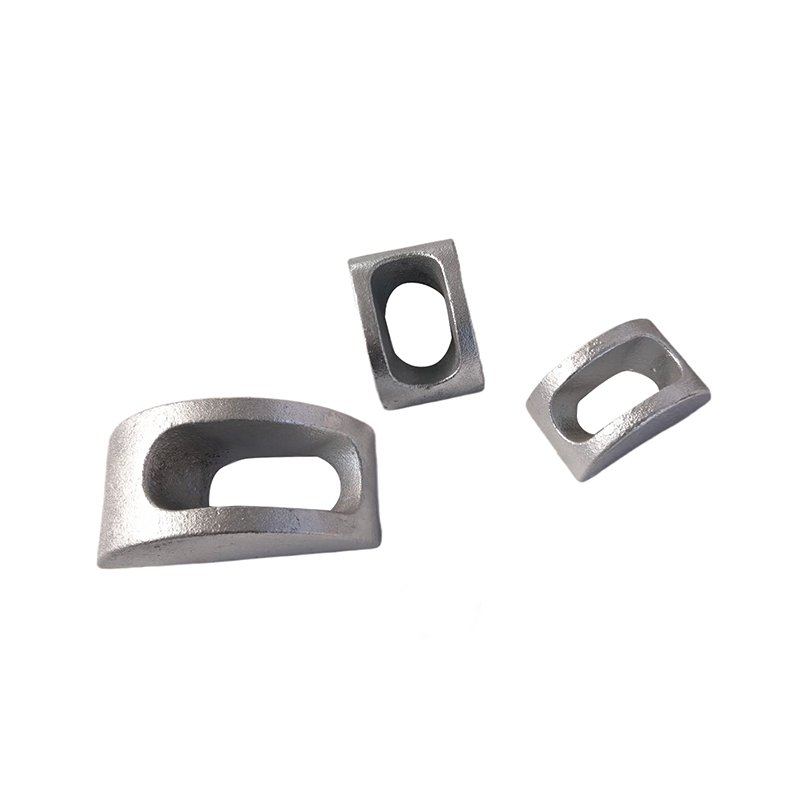

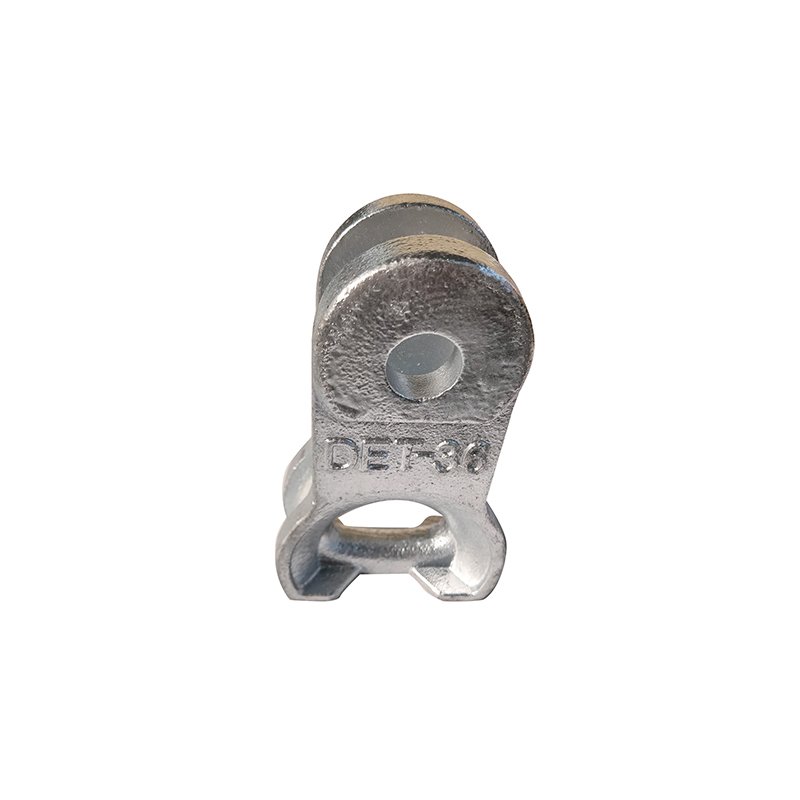

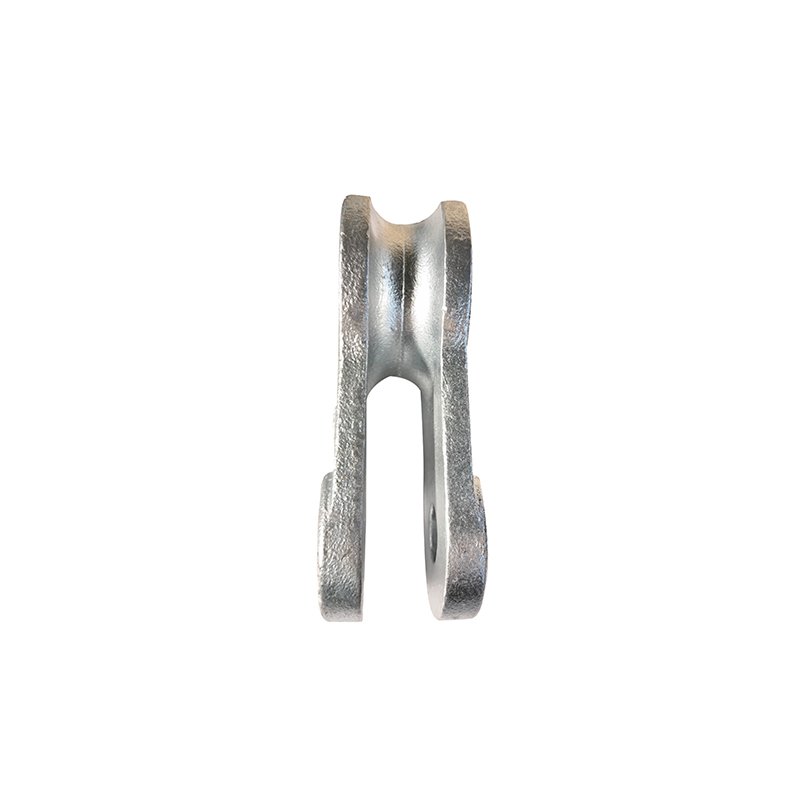

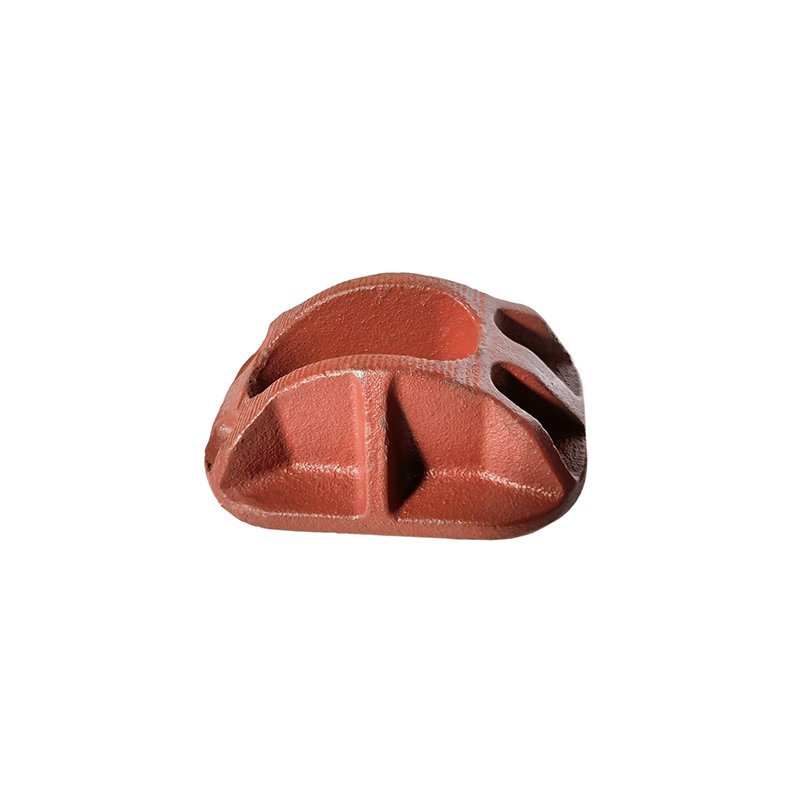

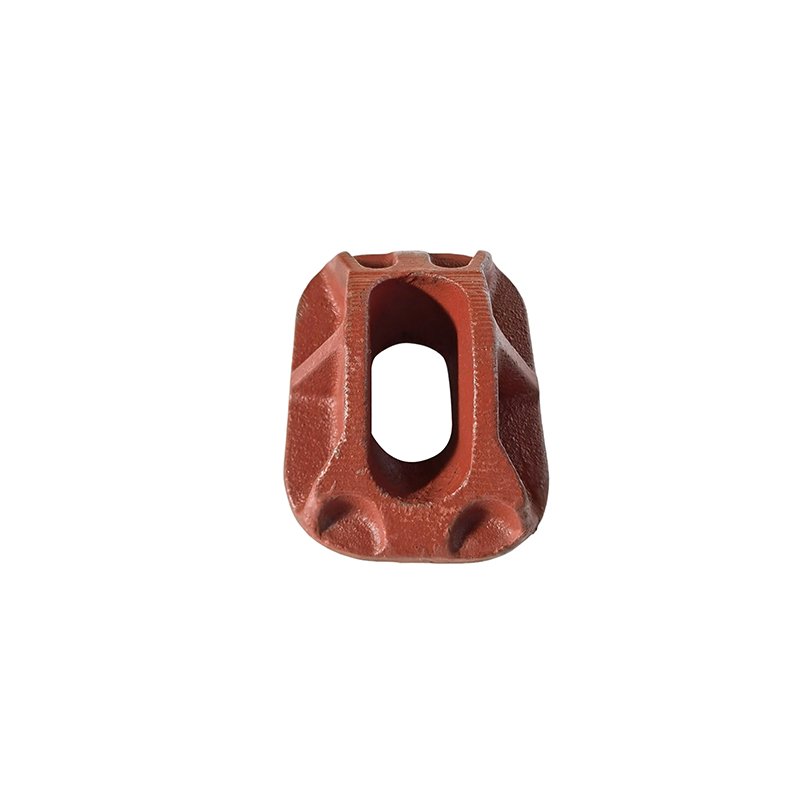

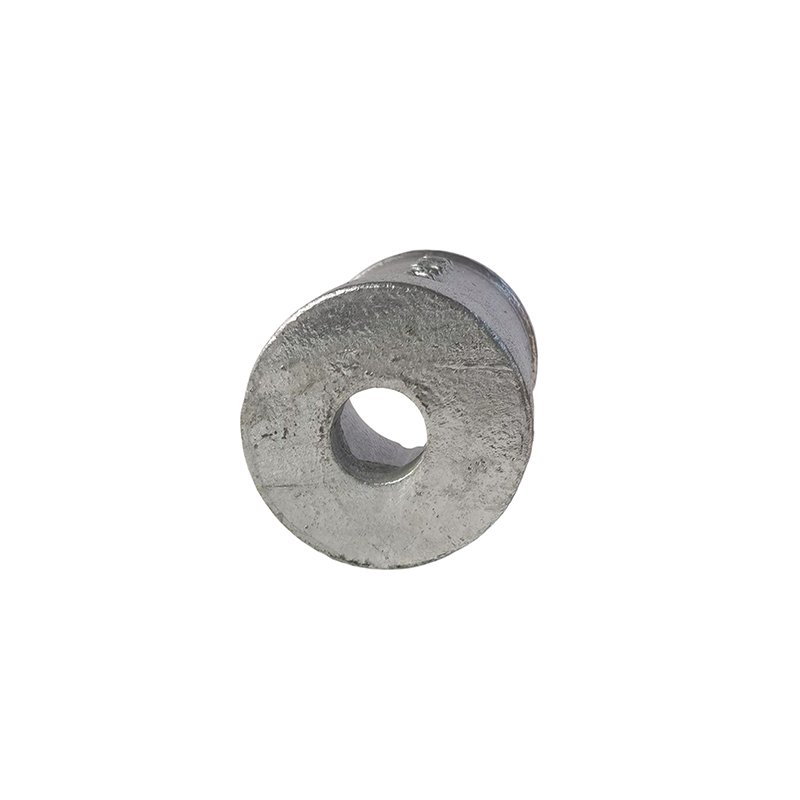

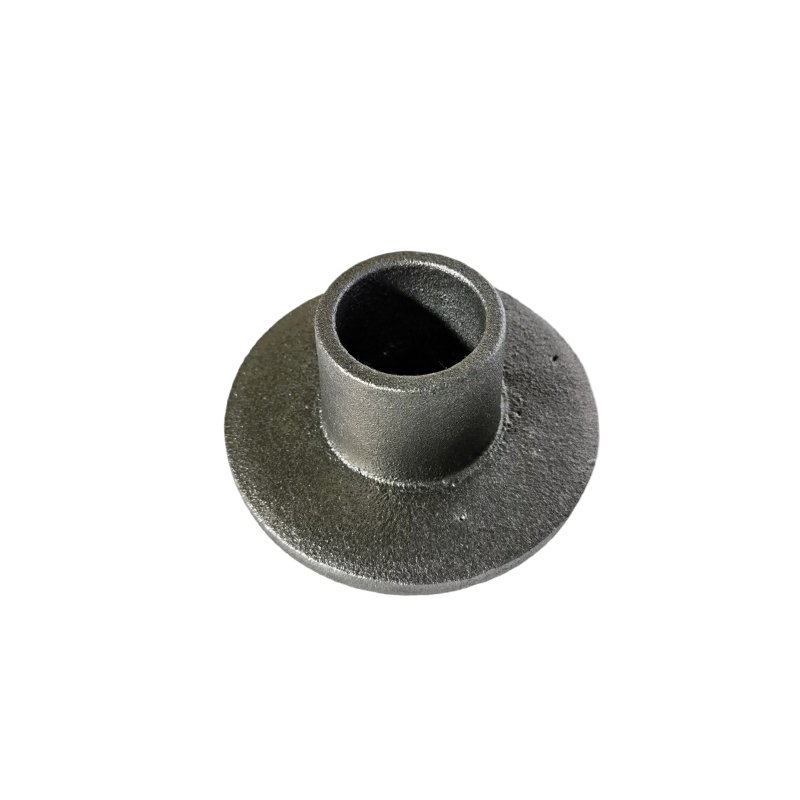

Connector castings split by what they do to the line, and the joint type follows from that. Flanges and flange adapters terminate a run or bolt it to equipment, with a machined face and a drilled bolt circle that has to match the mating flange. Couplings and sleeves, in socket, slip and repair versions, join two plain-end pipes without threading either one, and the repair coupling is what gets used when a buried main fails and nobody wants to excavate more than necessary. Bends and elbows change direction, and their centreline radius decides how much thrust the adjacent anchors have to carry. Special connectors, meaning transition pieces between two piping standards, are drawn by the customer and tooled here.
Pressure and size set the frame around those types. Water, wastewater and general industrial connectors are usually specified for 6 to 16 bar working pressure, and we cast flanges, couplings and bends from DN50 up to DN500. Anything larger, or a transition between standards, is quoted case by case from your drawing.
Ductile iron is the default for pressurized lines because its nodular structure absorbs water hammer and ground movement without cracking the way a grey iron section would; spheroidization is verified above 90% on every melt. Grey iron stays economical for low-pressure drainage, ventilation and non-critical buried couplings, where dimensional stability matters more than shock resistance. For aggressive chemicals or seawater, the answer is normally coating rather than a different alloy, because a properly coated ductile body outlasts an uncoated corrosion-resistant alloy in the same duty.

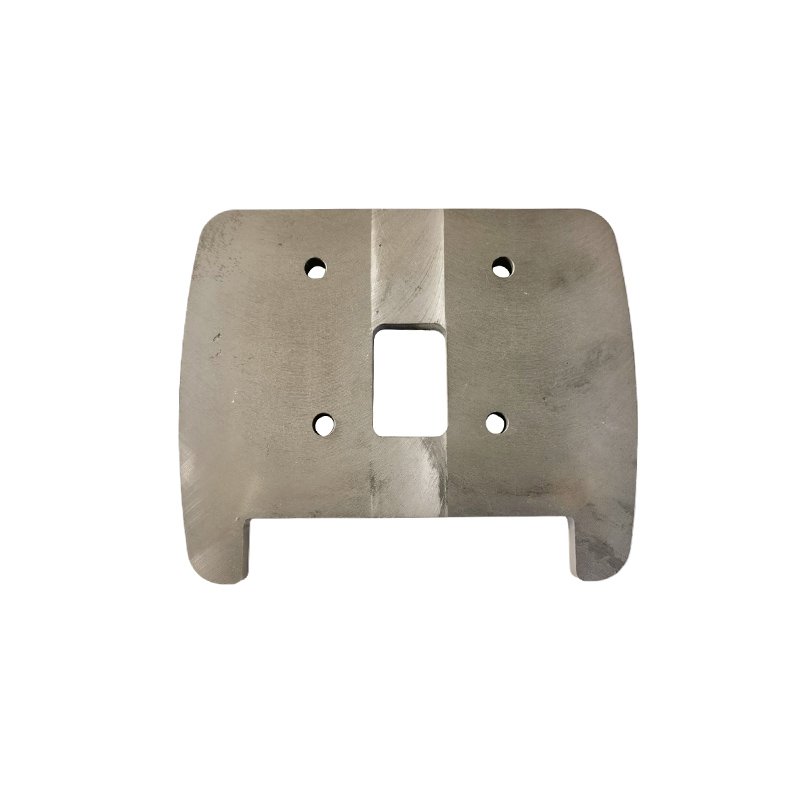

The sealing face is where a connector earns or loses its reputation. Gasket faces are faced flat and square to the bore, bolt circles are drilled on the machine so the holes align with the mating flange, and threads are tapped to your class. Body walls start near 6 mm on ductile iron to carry pressure cycles. After machining, parts are shot blasted and coated: paint for buried and outdoor service, epoxy where the fluid demands it, galvanizing where handling damage is likely.
Socket, flange and elbow bodies in the sand program run 0.5 to 50 kg per piece, which covers most of the DN50 to DN500 range. Oversized valve housings and large reducers from 50 to 200 kg move to the lost foam line, which keeps pattern cost low for one-off and medium runs.
Ordering is short. Send the drawing with pressure class, line size and gasket type; we quote price, tooling and sample time and pour the first sample. That sample is measured and hydro-tested before you see it, not after. Bulk castings are then machined, shot blasted and coated to your specification, and each batch is inspected 100% and packed in wooden crates for export. If your line size falls between our standard patterns, say so at inquiry: a split pattern or a modified core box is usually cheaper than a new pattern, and it is the difference between a four-week and a ten-week first article.
A connector's pressure rating is only as credible as the test that backs it. When your drawing names a pressure class, we cast the body to the section that class needs, machine the sealing faces, and then prove the casting hydraulically — holding test pressure on the finished piece and checking for weep at joints and body wall. For buyers sourcing buried or pressurized line hardware, that test record is the difference between "rated" on paper and rated in the trench.
The numbers we work with day to day: water and infrastructure service at distribution pressures, bodies sized for the DN range your drawing shows, gasket seats machined to the finish your gasket type expects. The gasket detail matters more than most RFQs acknowledge — a rubber-ring joint and a mechanical compression fitting want different seat finishes, and quoting without the gasket type is how re-machining happens.
A connector body is mostly a vessel for two sealing surfaces, and those surfaces decide whether the joint holds. On a flanged connector, the raised face is machined flat to the height your standard specifies and finished to a roughness the gasket can seat against — too rough and the gasket cannot conform, too smooth and some gasket types lose friction and extrude. On a push-on joint, the gasket seat is machined to a diameter and roundness that lets the gasket compress evenly around the full circumference.
Both features are cheap to produce correctly and expensive to fix downstream. If a flange face is out of flatness, the joint weeps at test and the whole batch becomes suspect. That is why sealing surfaces go into the machining route as critical characteristics with a gauge check, not as "general machining".
Water service and wastewater service call for different protection. Potable water lines need a lining that is approved for contact with drinking water, and the coating must not affect taste or introduce contaminants. Wastewater and sewer connectors face sulphide attack, where the right lining matters more than coating thickness. Aggressive ground conditions add a third variable — soil resistivity and the presence of stray currents decide whether additional protection is needed at all.
Tell us the service and the installation environment at inquiry and we will name the system rather than defaulting to galvanizing. Galvanizing is a good general answer for buried ferrous hardware, but it is not the answer for a potable water connector's interior, and specifying it there is a mistake that shows up in water quality tests, not in the warehouse.
A connector body is a short cylinder with two ends, and both ends have to be round. Ovality is the quiet reason a joint weeps at test even though the gasket was correct and the pipe end was clean: the gasket compresses unevenly, one side seals and the other does not. Ovality comes from mold movement during pouring, from uneven cooling in a body with a heavy boss on one side, and from handling a green casting before it has cooled.
Control is process-side — rigid molds, balanced sections, and letting castings cool before they are moved — but verification is dimensional. We check roundness at the joint ends on the same gauge used for the mating pipe diameter, so the number means something at installation rather than on a drawing. If a batch sits at the edge of the tolerance, machining the joint end is the recovery, and it is cheaper to plan that into the route than to sort castings afterward.
Either, priced accordingly. Sample testing per batch is usual for distribution hardware; 100% testing is common for higher-class pieces. Name the requirement on the drawing and the quote reflects it.
Hot-dip galvanizing is the default for buried hardware in most soils; aggressive soils or cathodically protected systems may need additional wraps. Tell us the installation region and we match the finish.
Yes. Cast-in or painted markings with your item numbers are routine for OEM and distributor customers.
Transitional castings are a large share of connector work. A new pattern sized to your exact OD usually costs less than adapting a standard body twice.
We quote them as an option. Taking gaskets with the castings means the joint components arrive matched and from one responsible party.
By mold rigidity and, where it matters, by machining the joint end. Ovality beyond the gasket's conforming range is a casting-and-machining problem, solved at the route level rather than by sorting.
Send your connector drawing and quantity — we confirm feasibility, quote and build an approval sample before bulk production.
