Zhaoyuqi Machinery custom-sand-casts iron pipe connection components built around the two most common ways pipes are joined — socket-and-spigot (bell-and-spigot) joints and bolted flange joints. For over 20 years we have manufactured these cast connection pieces in grey and ductile iron, to buyer drawings, for water, wastewater and infrastructure piping.
Every connection we cast serves one of two joint families. Socket-and-spigot, or bell-and-spigot, joints accept a plain pipe end into a cast bell and seal it with a gasket; they go together fast, tolerate a little angular deflection and thermal movement, and dominate buried water and sewer work. Flanged joints bolt two machined faces together with a gasket between them; they are rigid, pressure-rated, and can be opened for maintenance without cutting pipe, which is why they appear at pumps, valves and plant entries.

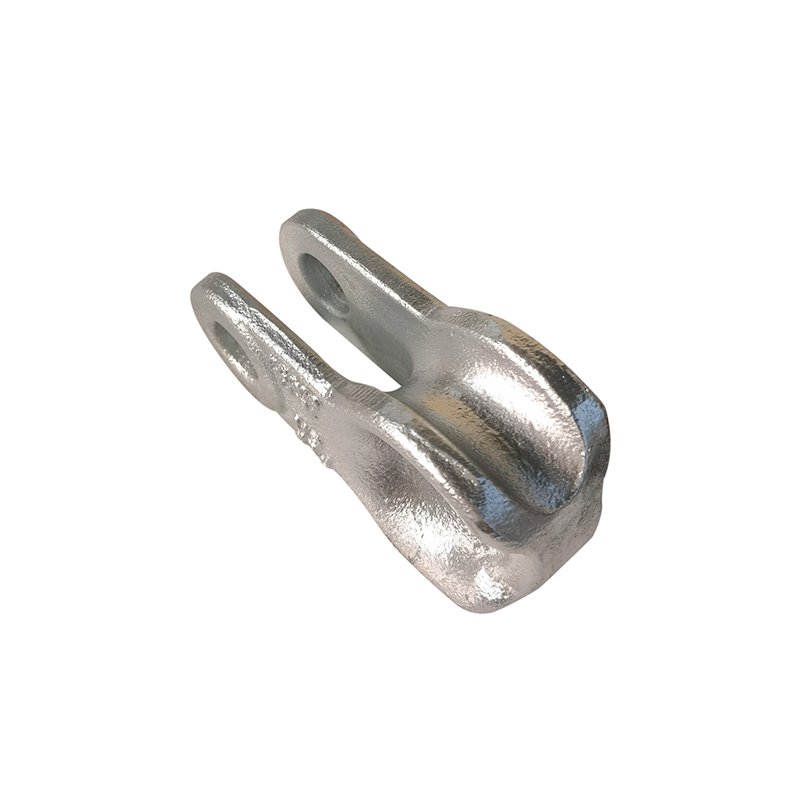

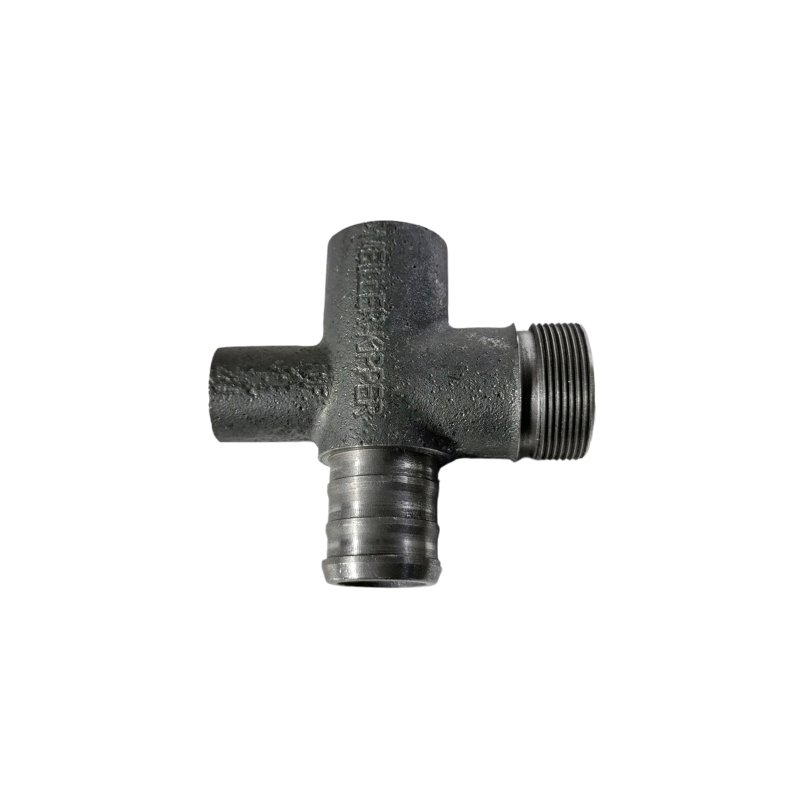

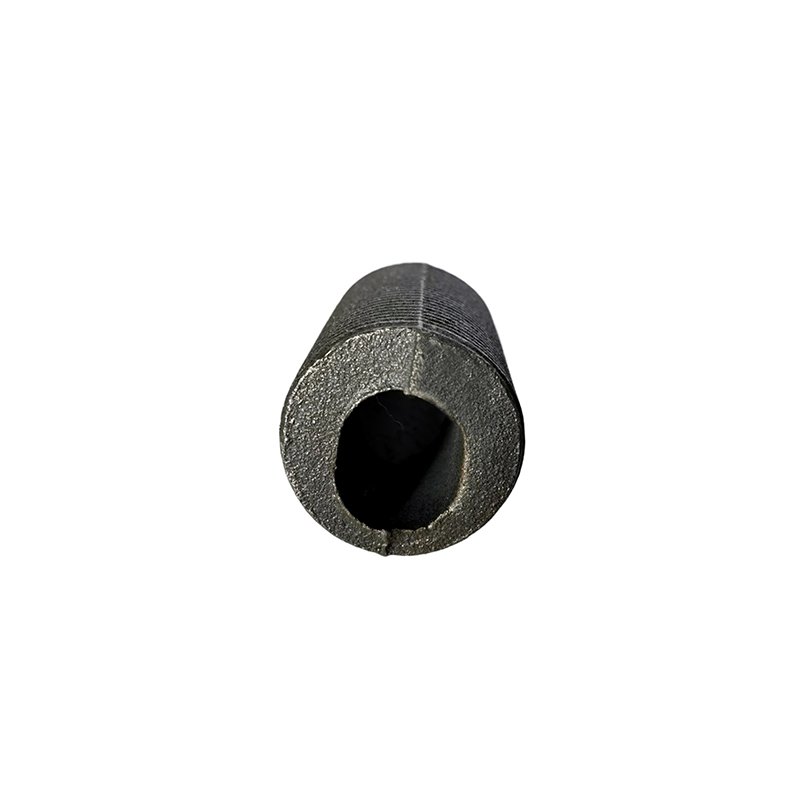

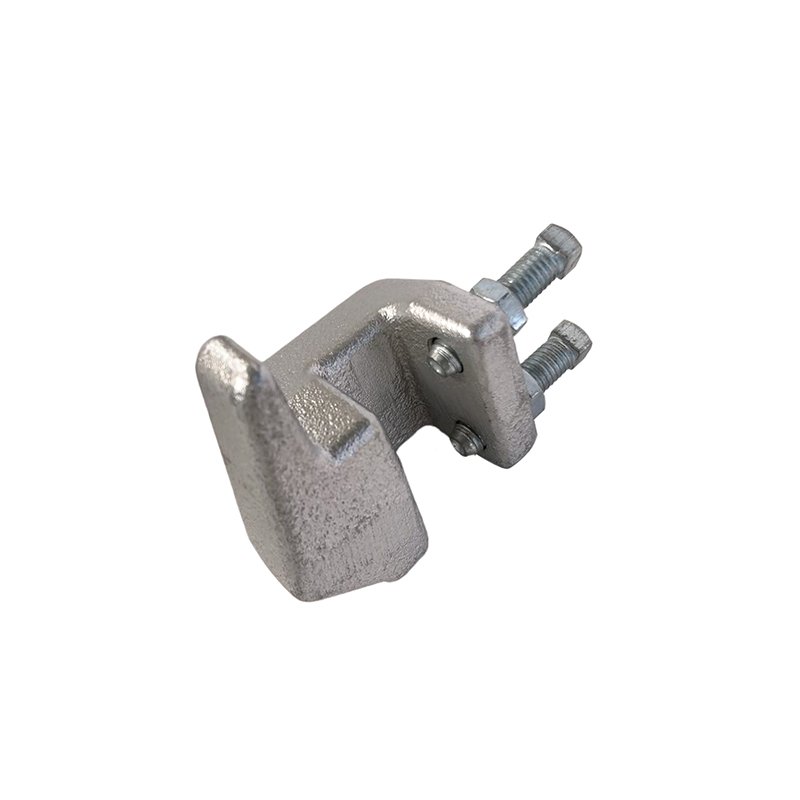

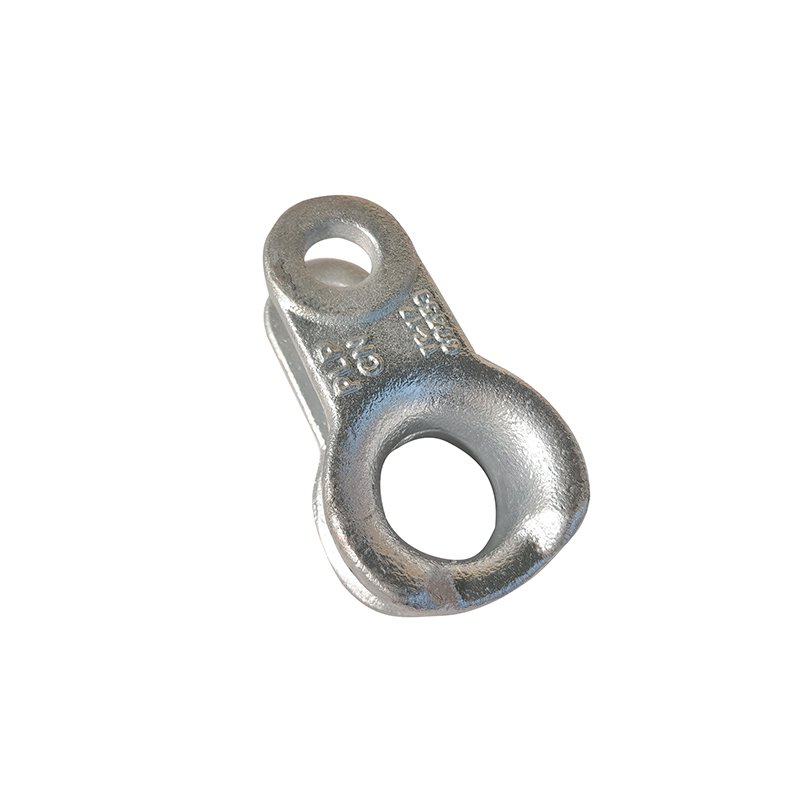

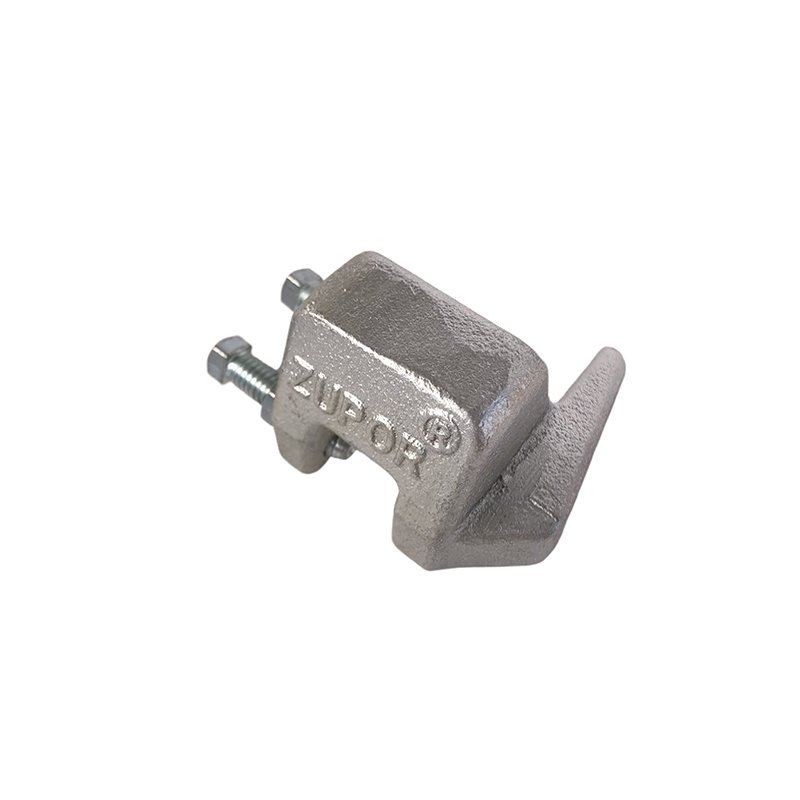

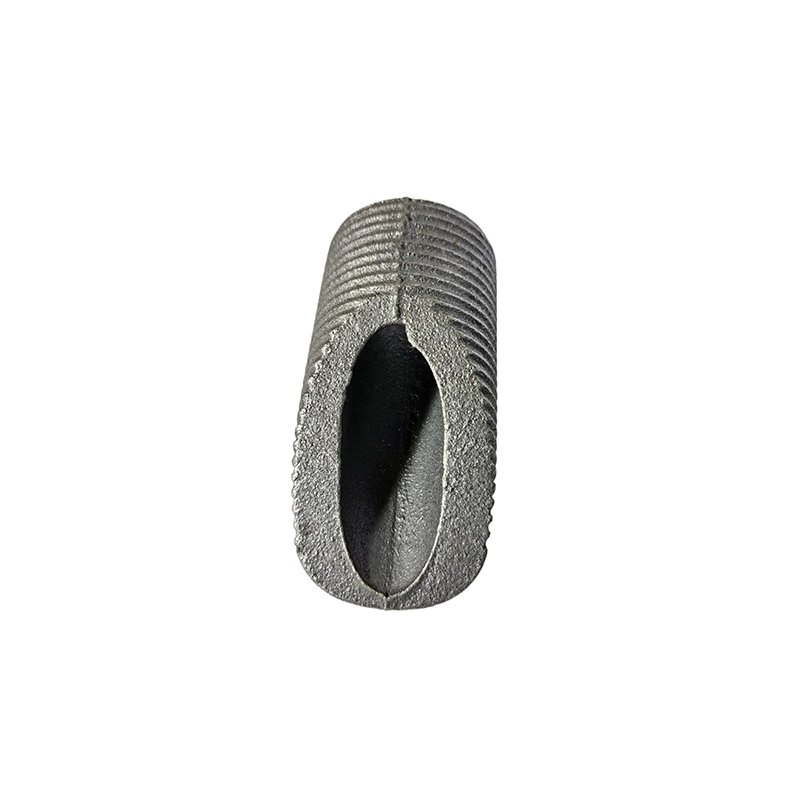

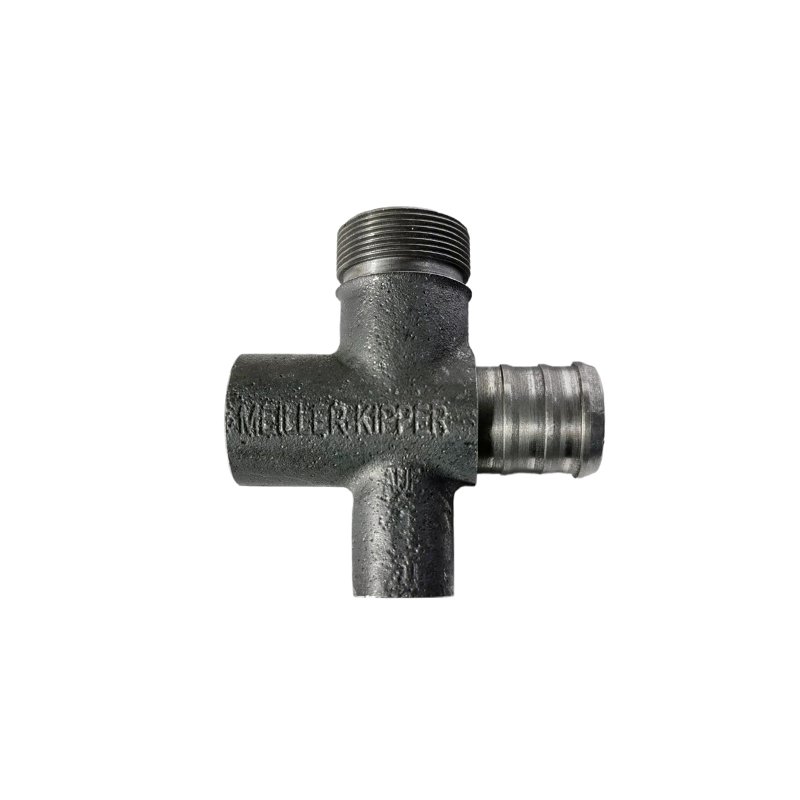

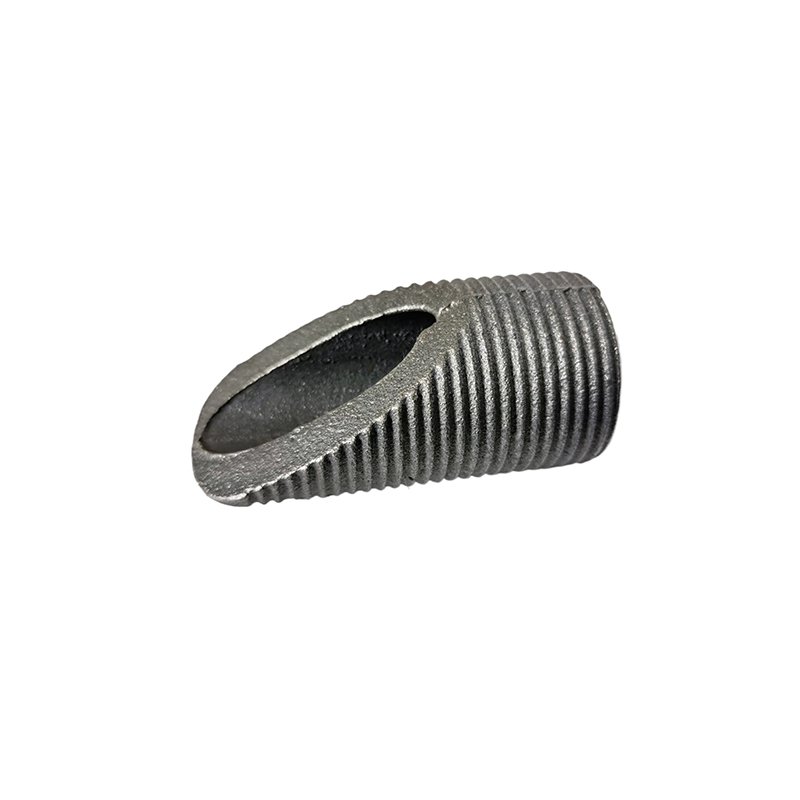

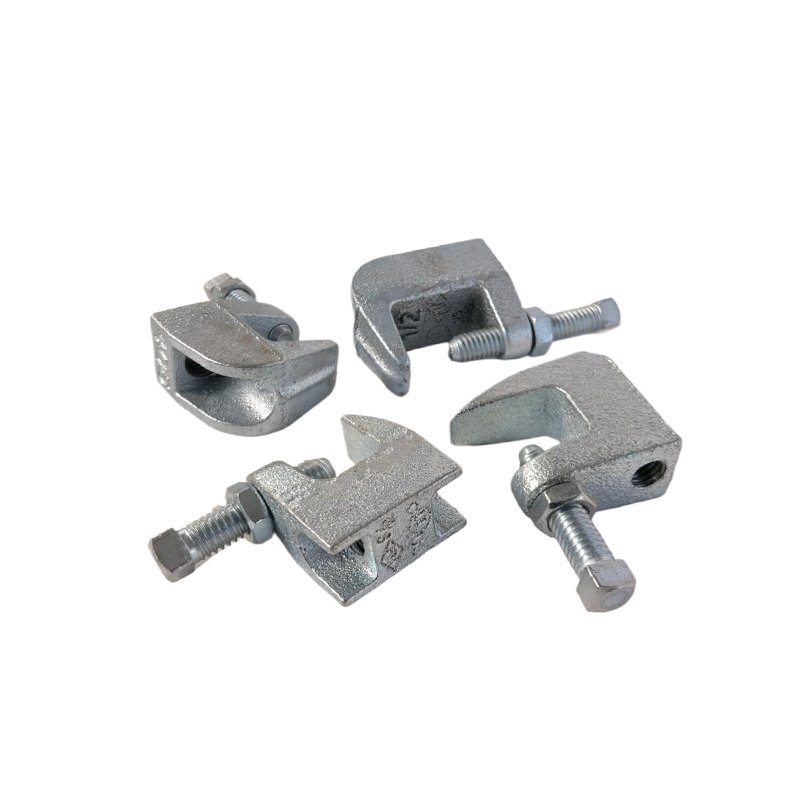

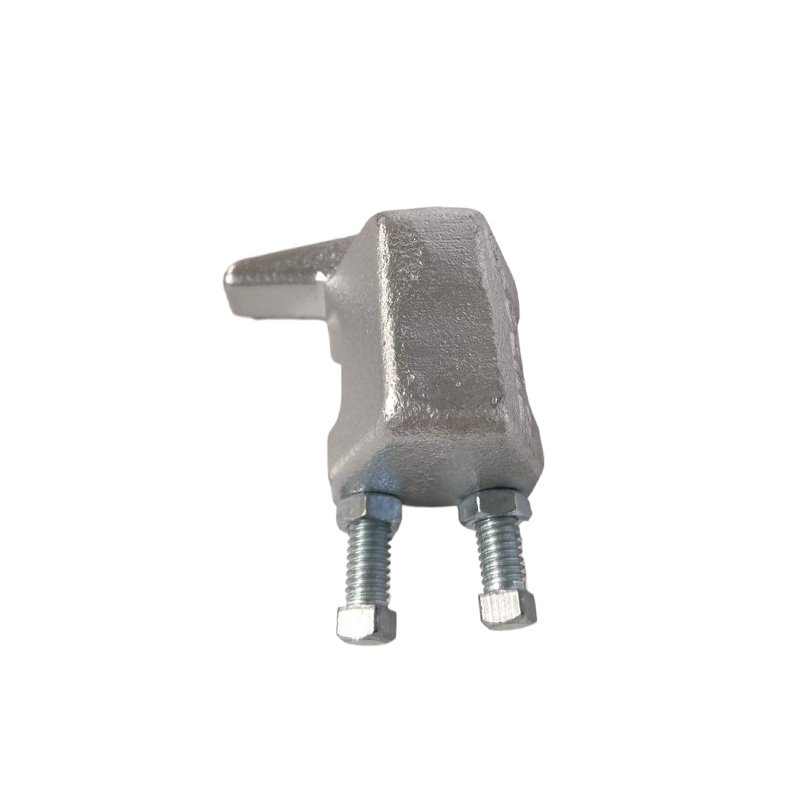

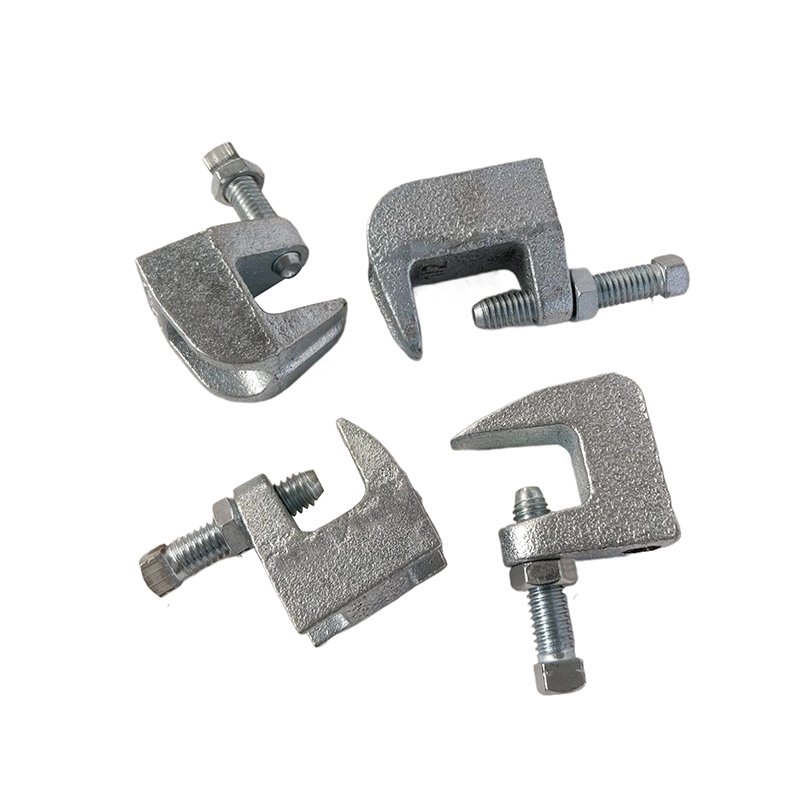

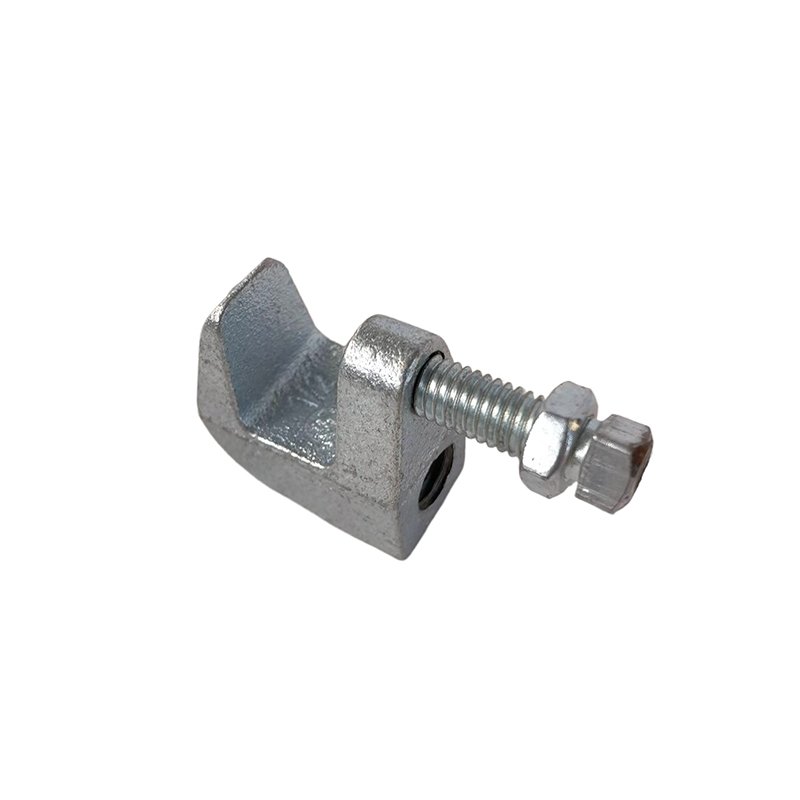

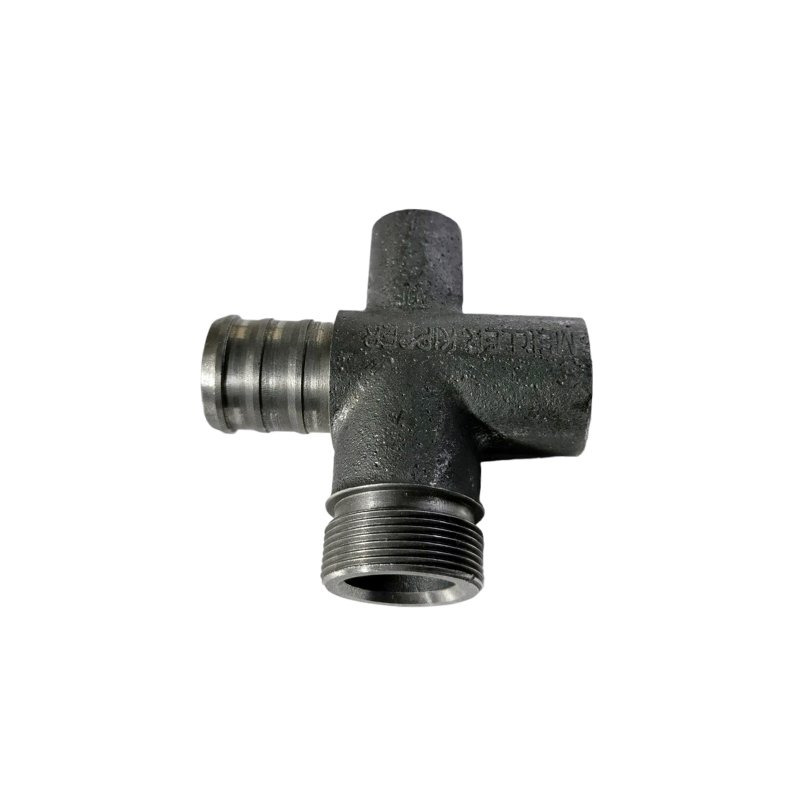

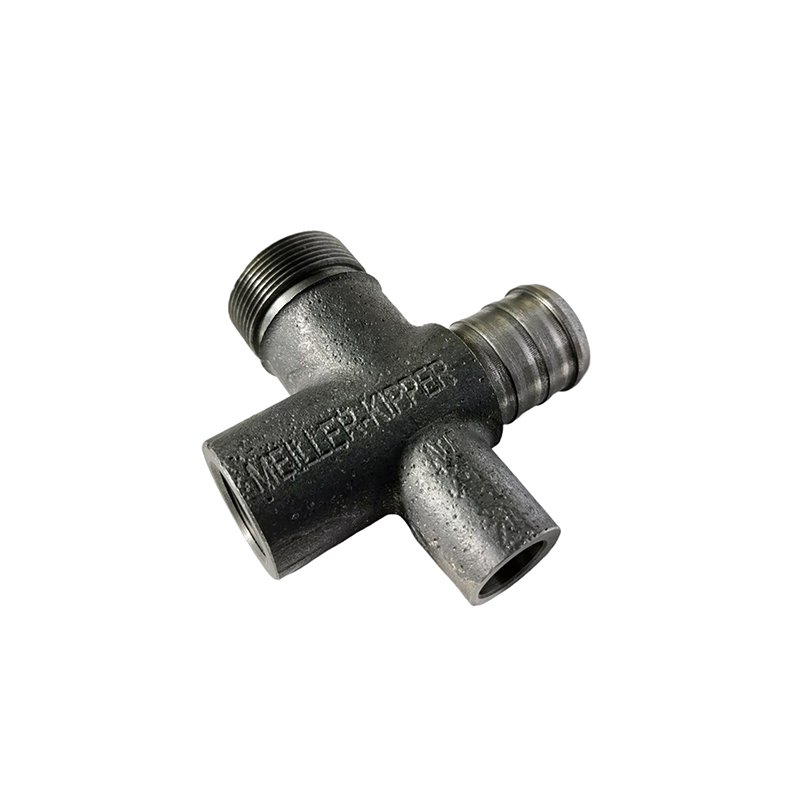

Around those two families we cast the variants that drawings actually call for: threaded adapters, elbow and tee bodies, reducing couplings, clamp connectors for PE and steel pipe, insulating joints, and transition pieces between two piping standards. If your line already exists and you are extending it, send the old flange drilling or a rubbing of the bolt circle. Matching an existing joint is routine work here, and copying the pattern is almost always cheaper than adapting the pipe on site.
A pipe connection leaks at its sealing face, not at its body, so material choice and machining are one decision rather than two. Ductile iron is the default for anything under pressure: it tolerates water hammer, ground movement and assembly torque without cracking, and we hold nodularity above 90% with hardness checked batch by batch. Grey iron stays acceptable for low-pressure drainage, vent and gravity lines, where cost matters more than shock resistance.
Machining is where the seal is made. Bell mouths are bored to the gasket seat, flange faces are faced flat and square to the bore, and bolt holes are drilled and tapped to your class so the joint pulls up evenly instead of cocking. After machining the body is shot blasted and coated: epoxy for buried and potable service, hot-dip galvanizing where abrasion or handling damage is likely. For potable water, name the grade and coating standard on the drawing — matching an NSF-style requirement after the fact means recoating a finished batch.
Joint bodies, adapters and flange pieces in the sand program run 0.5 to 50 kg per unit, which covers most DN80 to DN600 connections in iron. Above that, valve bodies, large reducers and special housings from 50 to 200 kg are poured by lost foam casting, which suits one-off and medium quantities without hard tooling. Minimum ductile wall for a pressure joint body is about 6 mm, and a drawing below that is flagged at quotation rather than after the first pour.
The order route is short. You send the drawing with pipe OD, pressure class and gasket requirement; we confirm castability and return price, tooling cost and sample time. The first sample is poured, measured and hydro-tested before it ships, typically within three to four weeks of a new pattern. After approval the batch runs on the same tooling with locked parameters, and finished pieces are machined, coated and 100% checked. As-cast, semi-machined and fully finished supply are all available, so you can take the part at whichever stage your own shop prefers to start.
The two joint families we cast behave differently in the ground and in the budget, and choosing early avoids paying for the wrong one. Socket-and-spigot joints go together fast, forgive a little angular misalignment, and suit buried water and sewer runs where crews want speed and some flexibility for ground movement. Flanged joints are rigid, fully rated and can be taken apart — which is exactly why they belong at valves, meters, pump connections and anywhere maintenance will open the line.
A practical pattern from years of casting both: buried mains run socketed, with flanged transitions at fittings and valve chambers. If your project drawings show a mixed system, that is normal, and we cast both joint bodies from the same iron grades — ductile iron with spheroidization above 90% where the joint is pressurized or buried deep, grey iron where service is lighter and cost leads.
Installation labor is the largest cost in most pipe projects, and the casting either helps or fights it. A socket casting helps when the lead is chamfered so the gasket does not roll during push-on, when the seat is clean enough that the pipe enters without force, and when the body has enough room for the jointing tool. It fights when the lead is rough, when the socket is oval, or when the casting's outer shape leaves nowhere to brace against.
Flanged castings help when bolt holes line up without reaming, when the face is flat enough that the gasket seats at first torque, and when the flange thickness matches the bolt length the crew carries. These sound like small things until a crew is 200 meters into a trench with the wrong clearance. Practical input from your installation team at drawing stage is worth more than any specification refinement later.
A large share of joint casting work is retrofit — extending a line installed decades ago, where the original standard is out of print. We handle this by measuring what exists: pipe outside diameter, flange bolt circle, hole count, hole size, and the face-to-face length the new piece must fit into. From those measurements we build a pattern that matches, rather than offering the nearest current standard and asking the crew to make it work.
The case for matching rather than adapting is simple economics: an adapter set costs more than a matched casting once you count labor, and it adds two joints where the design had one. If you can send a sample fitting or a measured sketch, we can usually quote a matched casting within days.
Joint castings succeed or fail on machined geometry. Socket leads and seats are cast to size and finished so the gasket seats evenly; flange faces are machined flat with the raised face height your standard calls out, and bolt holes are drilled on a pattern that matches the mating flange — including odd-hole and custom patterns, common in repair work. A connector that bolts up square the first time is not luck; it is machining order and drilling fixtures doing their job.
Yes. Send the bolt pattern — circle diameter, hole count and size — and we drill to it. Matching legacy patterns is everyday work for retrofit projects.
Flexible joints with restraint, so ground load and traffic vibration do not work a rigid joint open. Your pipe engineer sets the design; we cast bodies to it.
We quote gaskets as an option. Many customers take them with the castings so joint components arrive matched.
Enough angular deflection for normal trench curves — the pipe system standard governs the number for your size. What we control is lead geometry and seat finish.
Yes, and it is a common transition piece. Send the two end details and the overall length; the pattern carries both.
Sewer service usually runs at lower class than pressurized water, but the governing standard still sets wall thickness. Name the standard rather than a pressure number and we cast to it.
Every pipe connection casting is 100% inspected before packing — bell/spigot dimensions, flange face flatness and bore diameters all checked against the drawing. Our drawing-based OEM flow runs from sample approval to bulk sand casting, supported by 10,000 t/y capacity and a regular 30-day lead time. For a quotation, send the connection drawing with your target quantity.
Send your connection drawing and quantity — we confirm the joint design, quote and build an approval sample before bulk production.
