Motorcycle Cast Iron Parts: Brackets, Covers and Mounts

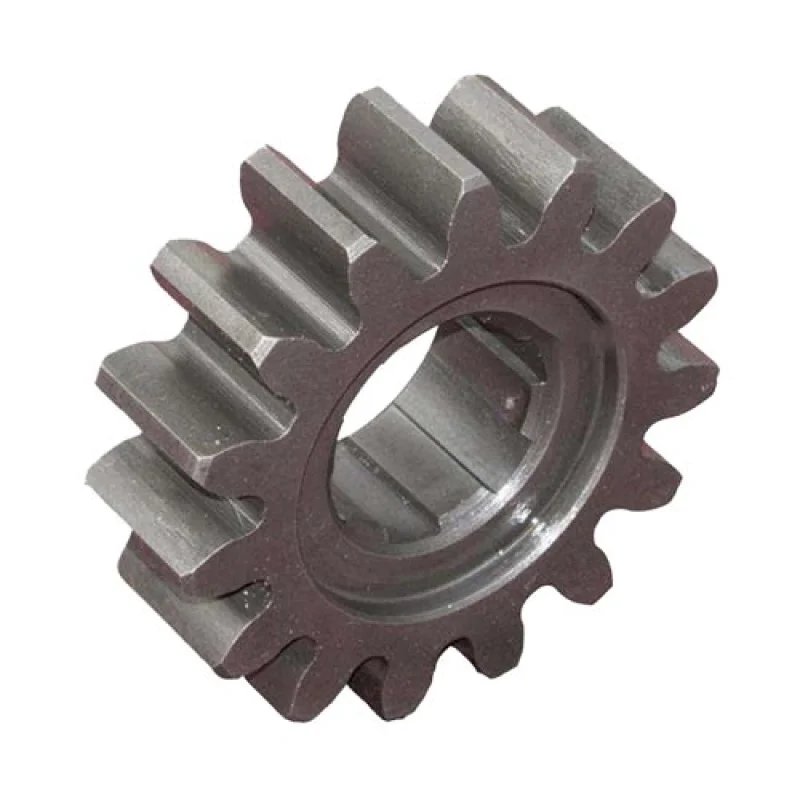

Product Details

Motorcycle castings are small, visible and made in quantities that make most foundries lose interest. A bracket weighs 300 grams and the order is 500 pieces; a side cover is polished and plated, so a single surface pit becomes a rejected part. Those two facts shape everything about how the work has to be run.

Small Parts, Tight Margins

On a part this size, the casting is a small share of the finished cost. Polishing, plating, machining and packing take more of the price than the iron does. That changes the economics in a way that surprises buyers: a 30 percent saving on pour cost means almost nothing if it adds a 5 percent rejection rate at the polishing bench.

So we optimize for consistency rather than unit price. Pour weight held to plus or minus 2 percent, wall thickness controlled so the polished surface does not break through into a shrinkage cavity, and a surface finish on the as-cast face that needs less belt work before buffing. On cosmetic parts, that is worth more than a cheaper quote.

Three Families We Pour

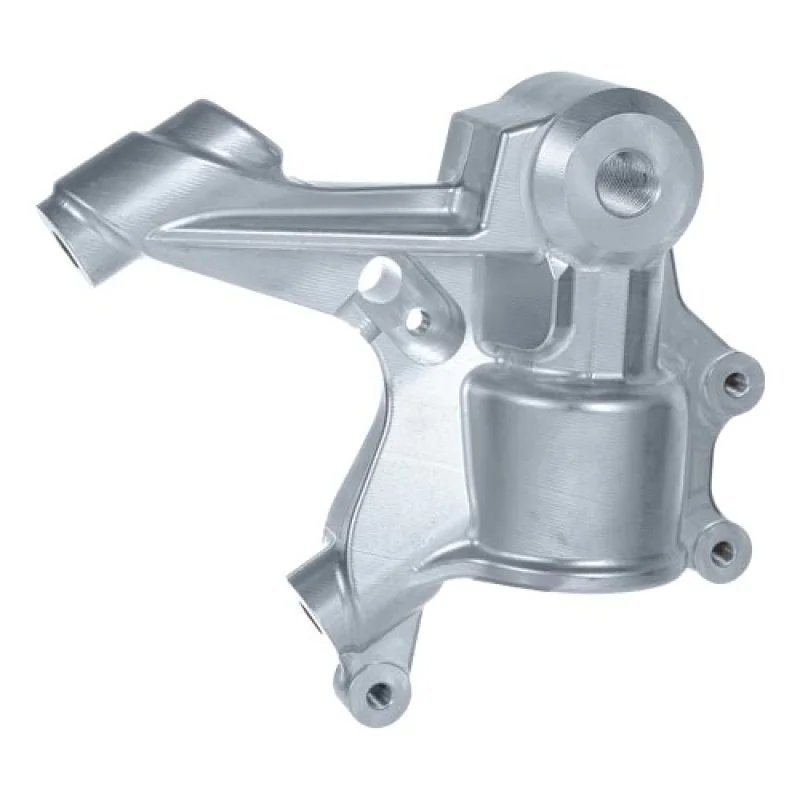

Structural parts carry load and are rarely seen: engine mounting brackets, frame gussets, swingarm inserts, caliper adapters, footpeg mounts. These go in ductile iron and are judged on fatigue life and hole position.

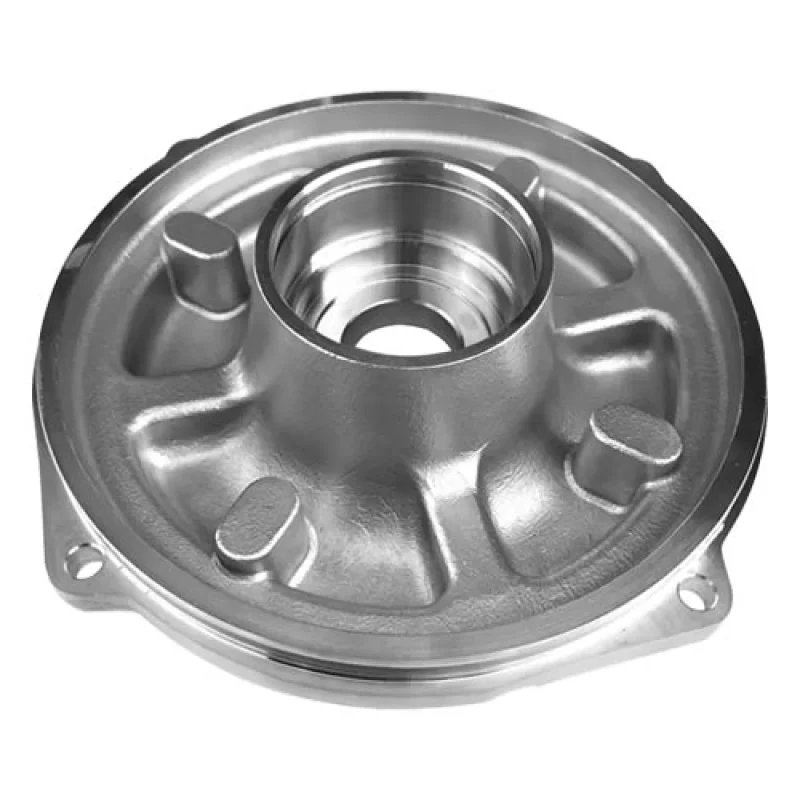

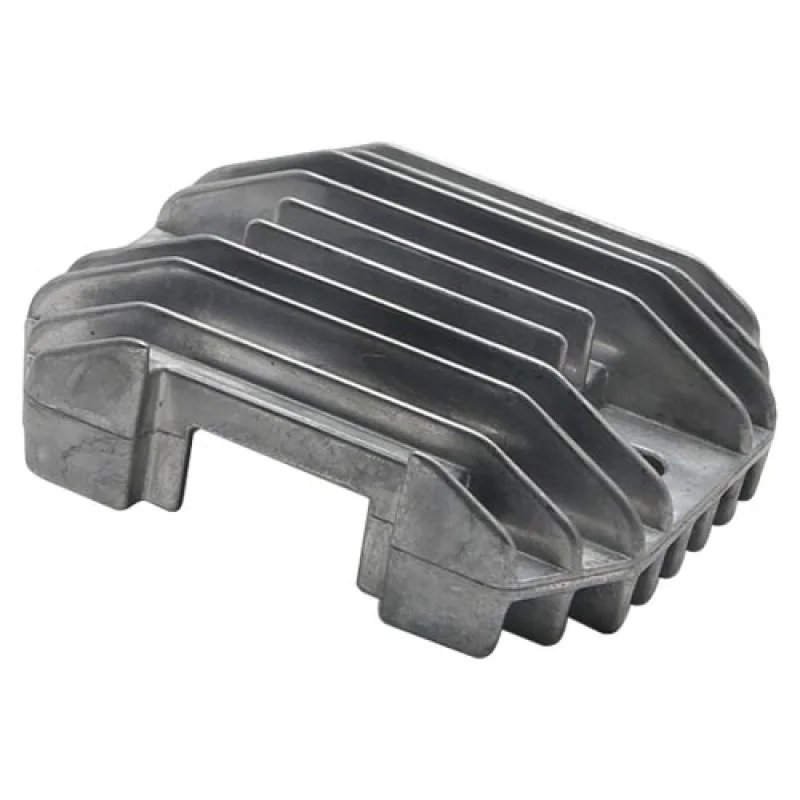

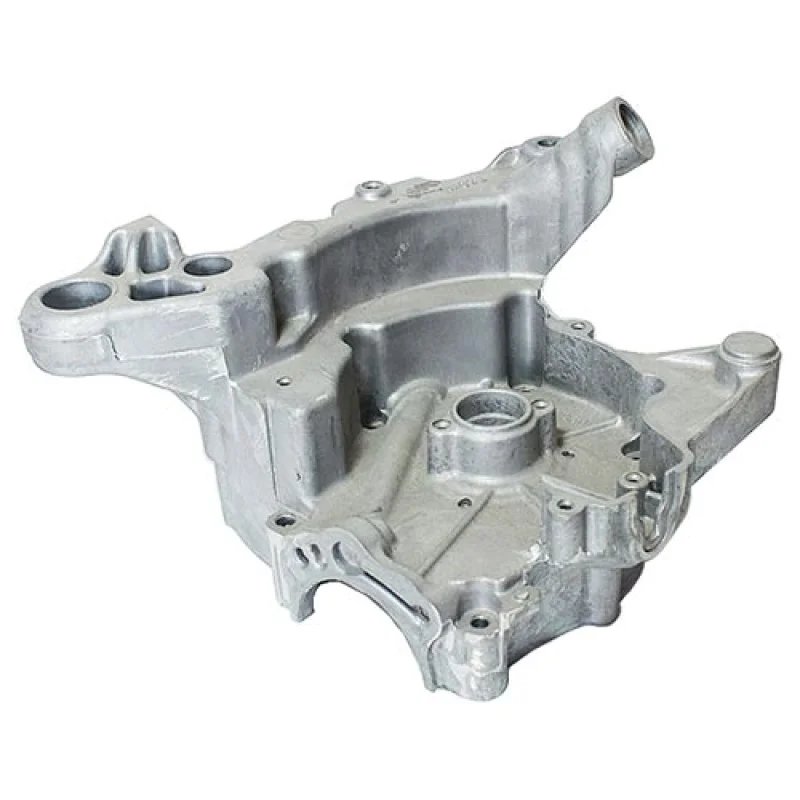

Cosmetic parts are seen and rarely carry load: side covers, sprocket covers, belt guards, headlight ears, small dash housings. These go in grey iron for castability and machinability, and are judged on surface and on how they take a finish.

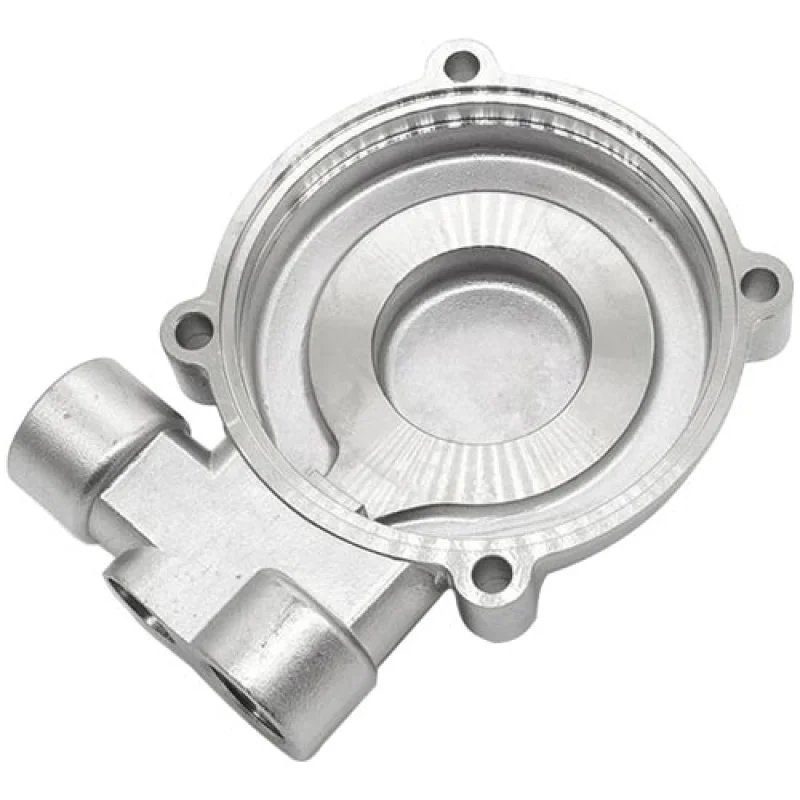

Mounting parts sit between: mirror stems, lever perches, luggage rails, exhaust hangers. They carry a modest load, get seen, and usually need both a machined face and a good cosmetic surface, which is the hardest combination of the three.

Wall Thickness and the Chrome Problem

Plating does not hide a casting defect, it advertises it. A polished and chromed surface shows every pit, every cold shut and every sand inclusion, and the plating process itself adds another failure mode: hydrogen embrittlement on high-strength parts, and poor adhesion where the surface was not properly prepared.

The casting answer is a wall thick enough to polish. Practically, that means 4 mm minimum on cosmetic faces and 5 mm where the part will be buffed hard, because polishing removes 0.2 to 0.4 mm and you cannot polish into a section that is already at its limit. It also means no sharp internal corners on the visible face, since those are where mould filling stops and cold shuts begin.

We would rather tell a customer at quotation that their 3 mm cover will show pits after chrome than cast it and argue about rejection later.

Ductile for Loads, Grey for Covers

The choice is not about quality. A grey iron cover is the correct material: it casts thin, machines clean, takes a polish and costs less. A ductile iron footpeg mount is also the correct material, because a grey one would crack at the thread boss after a few thousand cycles.

Where customers get this wrong is specifying ductile everywhere for safety. Ductile iron is harder to machine, harder to polish, and on a thin cosmetic part it actually casts worse because the magnesium treatment raises the freezing range and thin sections are more prone to missruns. On a 3.5 mm side cover, grey iron fills; ductile iron may not.

Our rule: if the part sees repeated load or a single overload that must not crack it, ductile. If it is a cover, a housing or a cosmetic shell, grey. If it is both, split the part or accept the cost of a heavier ductile section.

Machining Datum for Parts That Bolt to a Frame

Most motorcycle castings locate something else: a bearing, a pivot, a caliper, a lever. The casting's job is to put that something in the right place relative to the frame, and the datum decides whether it does.

We machine from the mounting face wherever possible, because that is the surface that touches the frame and therefore the one that defines position. If the drawing dimensions from a cast boss instead, the tolerance stack includes casting variation and a 0.1 mm hole position becomes a 0.3 mm one at the far end. On a caliper adapter that is the difference between a disc that runs true and one that drags.

Thread bosses deserve their own note. A tapped hole in a 6 mm wall has two or three threads of engagement, which is not enough for a brake or a suspension fastener. We core a boss to give at least 1.5 times the bolt diameter in engagement, and we will flag a drawing that does not.

Surface Prep Before Plating or Powder

Between the casting and the finish there are three operations that decide the result: shot blasting, linishing and, on plated parts, a copper or nickel strike before the decorative layer.

Shot blasting removes sand and scale but leaves a profile that must be cut back before polishing. Linishing with progressively finer belts removes the parting line, the gate stub and any surface ripple. If the parting line is on a visible face, it will show as a line under chrome no matter how well it is polished, so the pattern should place it on an edge or a hidden face. We will say where the parting line falls when we quote, and if it lands badly we will suggest a pattern change rather than let it become a finishing problem.

Powder coat is more forgiving: it fills small pits and hides parting lines under 0.1 mm. For a textured or matt finish, a cast surface straight from the mould is often good enough, which removes the polishing cost entirely.

Low Volume Economics

Most of these parts run 200 to 3,000 pieces a year, sometimes in two or three colours or finishes. That is below the range where a die casting or a permanent mould makes sense, and above the range where a fabricator will quote seriously.

Sand casting with an aluminium or wooden pattern fits the middle. Tooling for a small cover is typically a few hundred dollars, and it pays back somewhere around 300 to 500 pieces depending on the part. Below that, we will still quote, but the tooling line will look large next to the piece price and the customer should know why.

Where a customer has a family of five similar parts, we build one pattern with interchangeable inserts, so the tooling cost is shared and a new variant costs a fraction of a new pattern. That is the single biggest cost lever on small motorcycle parts, and it is worth designing for from the start.

Packing Mixed Small Parts for Export

A motorcycle parts order is rarely one part number. It is a bracket, a cover, a set of mounts and a bag of fasteners, and the packing has to keep them together without the heavy parts crushing the light ones.

Our default is a carton per part number, labelled with the part number, quantity and finish, inside a master carton that carries the packing list. Castings with a cosmetic finish go in individual foam or paper wraps, because two chromed covers rattling together for three weeks at sea arrive as one scratched cover and one chipped one.

What goes wrong most often is the count. A carton marked 200 that contains 198 stops a production line, and recounting in a warehouse costs more than the two parts. We weigh-count small parts rather than hand-count, and the weight is recorded on the label.

For customers who kit, we will pack by assembly rather than by part number, with a bag per set. It costs a little more in labour and removes a sorting step at the other end.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

Can you cast a part that will be chromed?

Yes, but the wall needs to be at least 4 mm on visible faces and the surface must be free of cold shuts. We will quote the casting and flag the polishing allowance rather than promise a finish we cannot control.

What is the smallest part you will cast?

Around 150 grams on the automatic line. Below that, handling and gating cost dominate and the economics stop working.

Can you match the finish of an original part?

For paint and powder, yes. For chrome, the original was probably die cast or polished die cast, and a sand casting will look slightly different under close inspection even when both are polished.

Do you make the rubber parts and fasteners too?

No. We cast and machine the iron, and can source standard fasteners, but rubber mouldings and proprietary hardware stay with your existing supplier.

How do you handle a part with a cast-in logo?

The logo goes into the pattern as a raised or recessed detail. Raised reads better after paint and is easier to polish around; recessed survives wear better on a footpeg or a lever.

What lead time should I plan for a first order?

Three to four weeks for pattern and sample, then four to five weeks for the first batch, assuming the drawing does not change after the sample.
