What Lost Wax Casting Actually Involves, Step by Step

If you have only bought sand castings before, investment casting feels different from the first inquiry. You send a 3D model or a 2D drawing with the surfaces you want left machined marked. We 3D-print or injection-mold a wax pattern of your part, assemble patterns onto a central wax runner, then dip the whole assembly into ceramic slurry and stucco it with fine sand. That shell is dried, the wax is melted out, and molten metal fills the cavity the wax left behind. You get a part with no parting line, no draft angle, and sharp internal detail that a sand mold simply cannot hold.

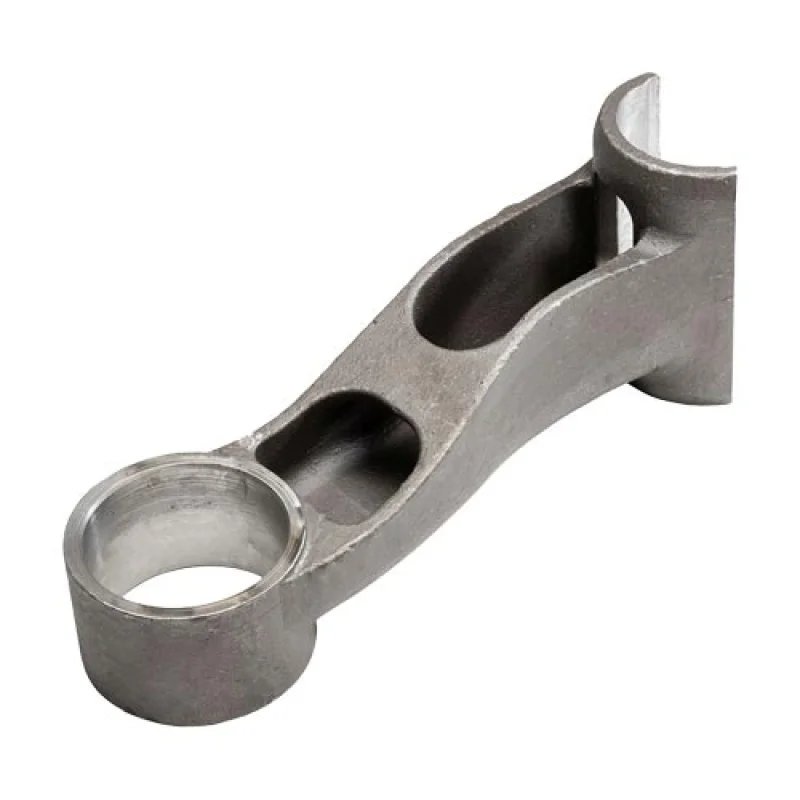

For you as a buyer, the practical difference shows up in three places: fewer machining operations, less material scrapped, and parts that assemble without rework. A bracket that would need four setups on a sand casting often comes off the investment line needing only face milling and hole drilling.

Where Investment Casting Beats Sand Casting — and Where It Does Not

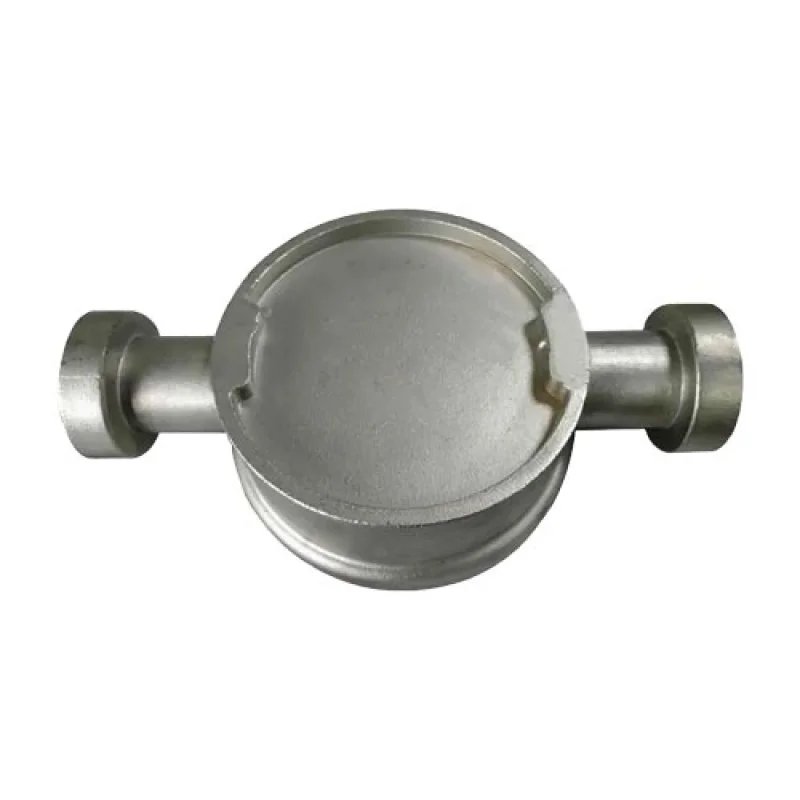

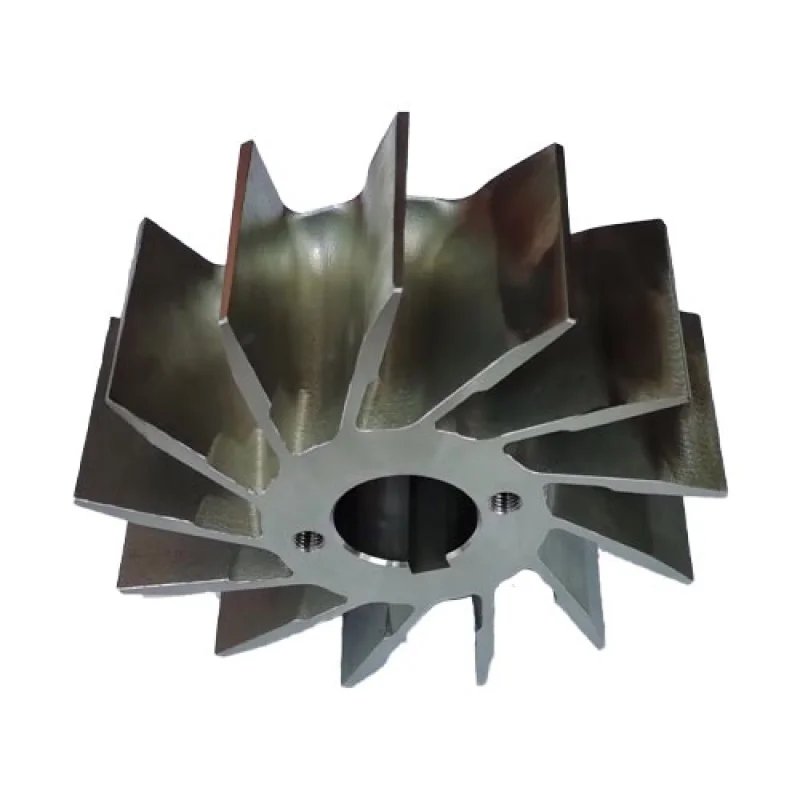

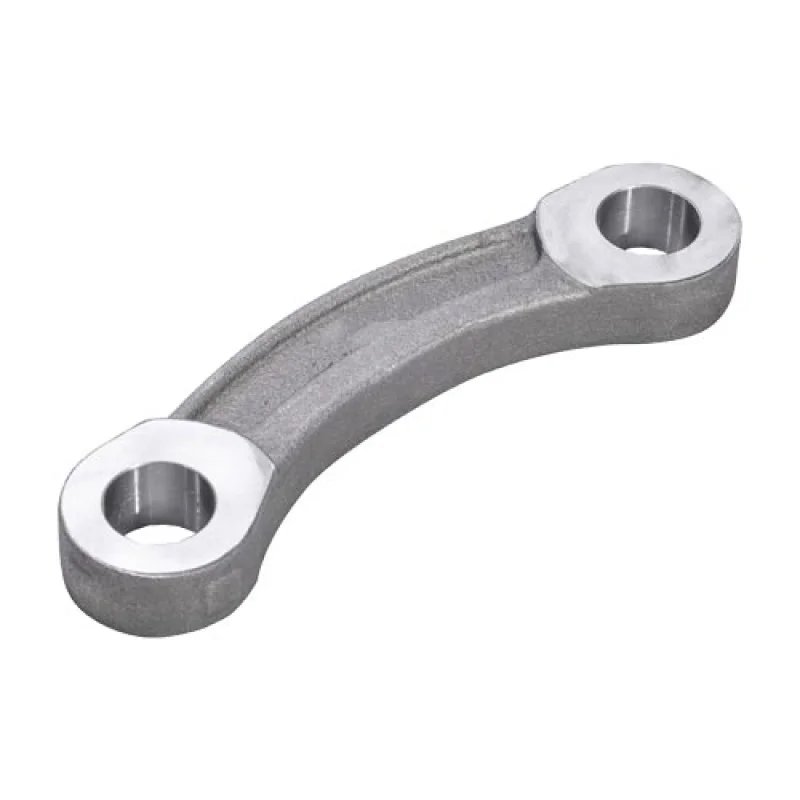

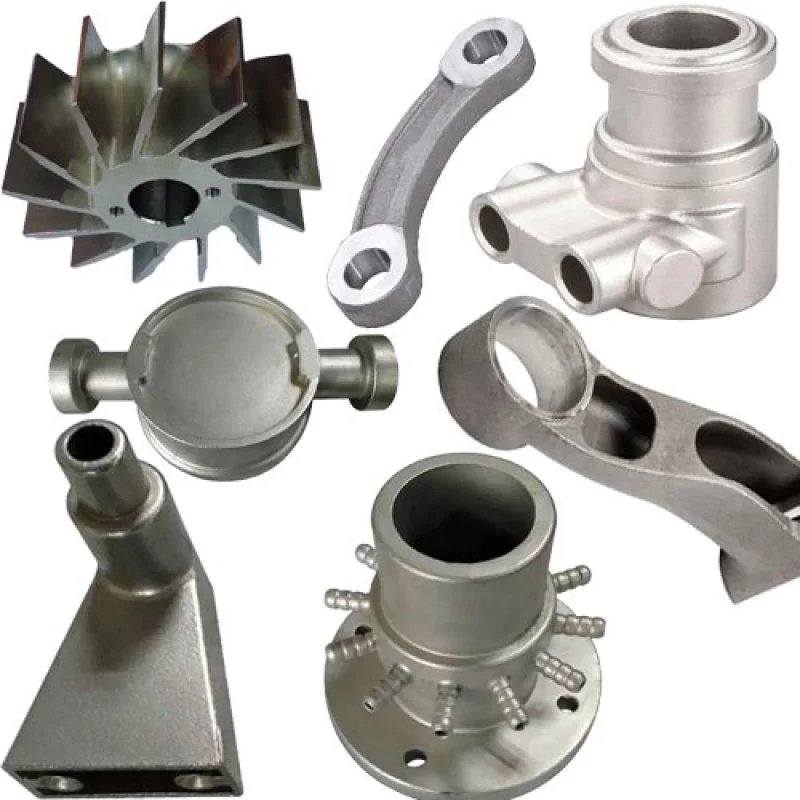

Choose lost wax when your part has thin walls, complex internal passages, or cast surfaces that must stay finish-ready. Valve internals, pump impellers, small housings with threaded bosses, and clamping hardware with fine detail all fit. Tolerances typically land around ISO 8062 CT5–CT6 for small features, roughly two grades tighter than a green sand casting of the same size.

Do not choose it for large, simple blocks. If your part weighs over roughly 50 kg, has thick uniform walls, and needs no fine detail, a resin sand casting will cost you less per piece. We will tell you honestly at the quote stage — pushing a simple part into investment casting wastes your money as much as our capacity.

The Wax Tooling Decision That Sets Your Unit Price

Wax tooling is where most of the upfront money sits, and the way it is built affects your piece price for years. A single-cavity die costs least to cut but produces one pattern per cycle. A multi-cavity die costs more upfront and pays back on volume, because pattern output per press cycle goes up and the per-pattern labor falls. For hardware-sized parts, we typically recommend single or two-cavity tooling below a few thousand pieces a year, and multi-cavity above that.

Two smaller decisions also move the number. First, whether the runner and gate layout is designed for manual or robotic assembly — robotic handling needs more consistent pattern geometry and slightly more tooling work, but it removes labor from every cycle. Second, whether you want the pattern printed for a prototype phase. Printing costs a fraction of a die, lets you test fit and function on real castings, and the design changes you make afterward cost nothing in tooling terms. Most of our long-running parts went through a printed-pattern round before a die was cut.

Defects We Watch For, and How They Get Prevented

Investment casting has its own failure modes, and knowing them helps you read a supplier's quality claims. Shell cracking during pour shows up as finning or rough surface — prevented by controlled shell thickness and a properly ramped firing cycle. Non-metallic inclusions come from shell material spalling into the cavity, which is why shell handling between dips matters more than most buyers realize. Misruns happen when thin sections lose heat before the metal arrives, so wall thickness and gate placement get reviewed together, not separately. And wax pattern distortion — from storage heat or careless handling — carries straight through to the finished part, which is why pattern storage conditions are part of the process, not an afterthought.

On your side, the useful questions at audit are simple: how is shell thickness checked, how often are shells inspected before pour, and what happens to a heat that fails tensile. A foundry that answers those three clearly is usually controlling the process rather than inspecting defects out at the end.

Sizes, Grades and What You Get With Each Batch

  • Weight range: typically from tens of grams up to about 50 kg per piece, depending on the alloy and wall section.
  • Materials: grey iron, ductile iron and cast steel, poured to ASTM A536, ASTM A48 or EN-GJS / EN-GJL equivalents as your drawing calls out.
  • Surface: as-cast roughness is fine enough that many faces need no machining; shot blasting is available where you want a uniform matte finish.
  • Documentation: every heat comes with chemical analysis and tensile results; EN 10204 3.1 certificates on request.

Tooling, Samples and Lead Times — What to Expect

Wax tooling is the main upfront cost. For most hardware-sized parts, aluminum alloy tooling runs 2–3 weeks to cut, and first article samples follow 1–2 weeks after the first pour. If you are not ready to commit to tooling, we can print patterns for prototype quantities so you can test the design before spending on a die. Bulk production runs on the same tooling, so the sample you approve is the part you receive in volume.

One scheduling note that saves friction: wax tooling and the sample approval are sequential, so a project that needs parts in hand by a fixed date should start tooling at least ten weeks out. If your deadline is tighter, say so at inquiry — sometimes a printed-pattern bridge batch covers the gap while the die is being cut.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

What is the minimum order quantity for investment castings?

There is no fixed MOQ. Prototype runs of a few dozen pieces on printed patterns are fine. Once we move to wax tooling, the tooling cost is amortized over your annual volume, so the more you order per release, the lower the unit price lands.

Can you hold tighter tolerances than CT5 on small holes?

Small critical holes are usually drilled rather than cast, because drilling is cheaper than fighting shell distortion. Tell us which holes are functional, and we will cast the rest and machine only what matters.

Is lost wax the same process as lost foam?

No. Lost wax uses a wax pattern inside a ceramic shell; lost foam uses a foam pattern buried in dry sand that the metal vaporizes as it fills. They suit different part families — we produce both and will recommend one based on your geometry.

What is the thinnest wall you can cast reliably?

On small parts, walls around 2 mm are achievable in the right alloy and section, but thin walls only work when the surrounding geometry feeds them properly. Send the drawing rather than a number — the answer depends on where that wall sits.

Do you do the machining and finishing as well?

Yes. Castings can ship as-cast, shot blasted, machined on our CNC centers, or finished with your specified coating. One supplier carrying casting and machining removes the argument about who owns a dimensional problem.

How do you check the parts before shipping?

Chemical composition per heat, tensile and hardness coupons, 100% visual inspection, and dimensional sampling per AQL. Critical dimensions you list on the drawing get gauged on every piece, not sampled.

What files do you need to quote?

A 3D model (STEP preferred) or a 2D drawing with tolerances, the material grade, annual quantity, and any machining or coating requirements. We reply with unit price, tooling cost and a schedule, usually within two working days.
