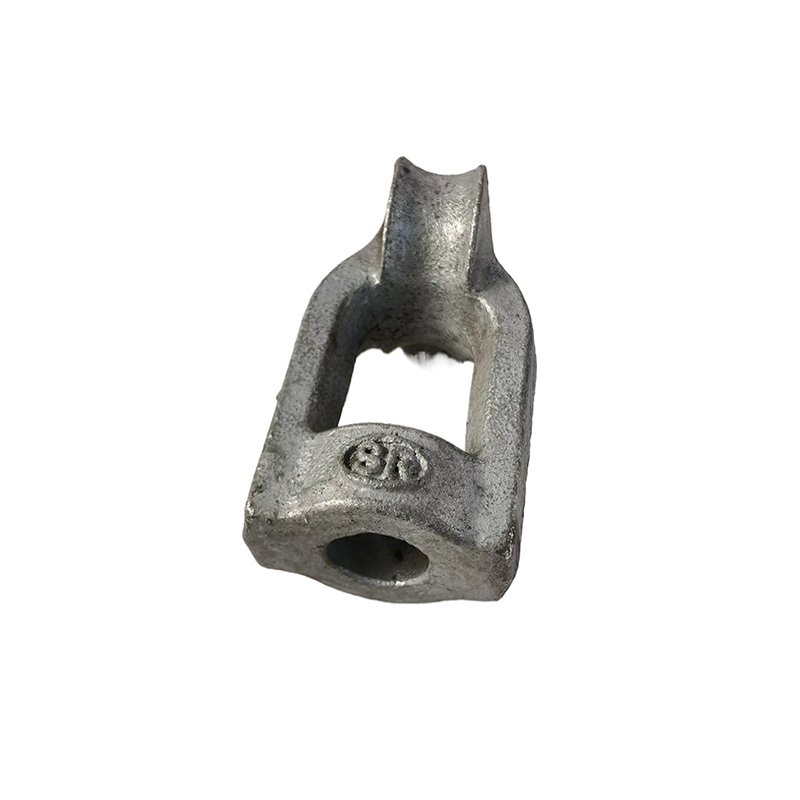

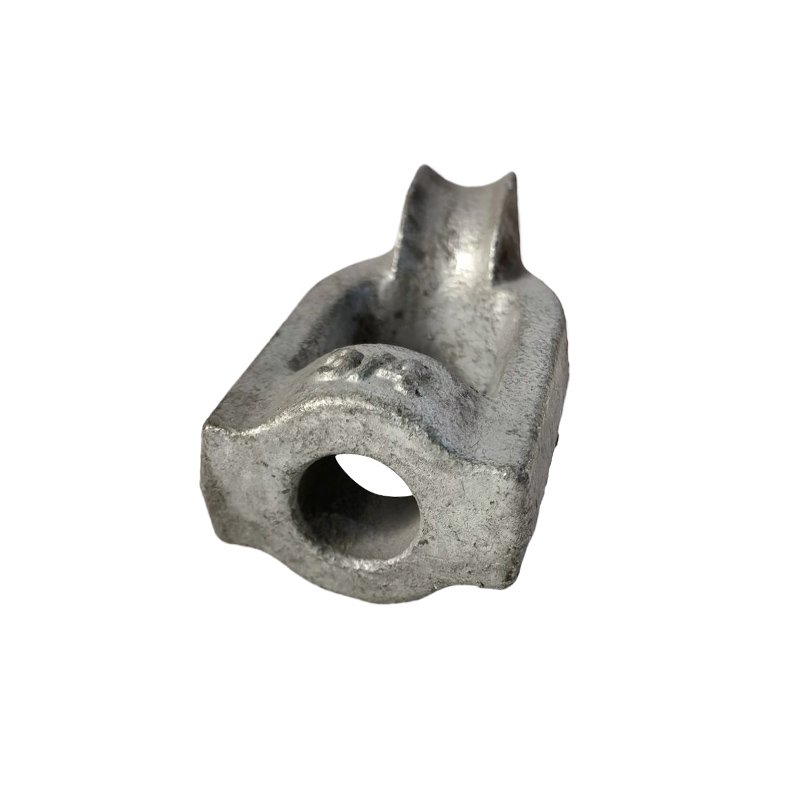

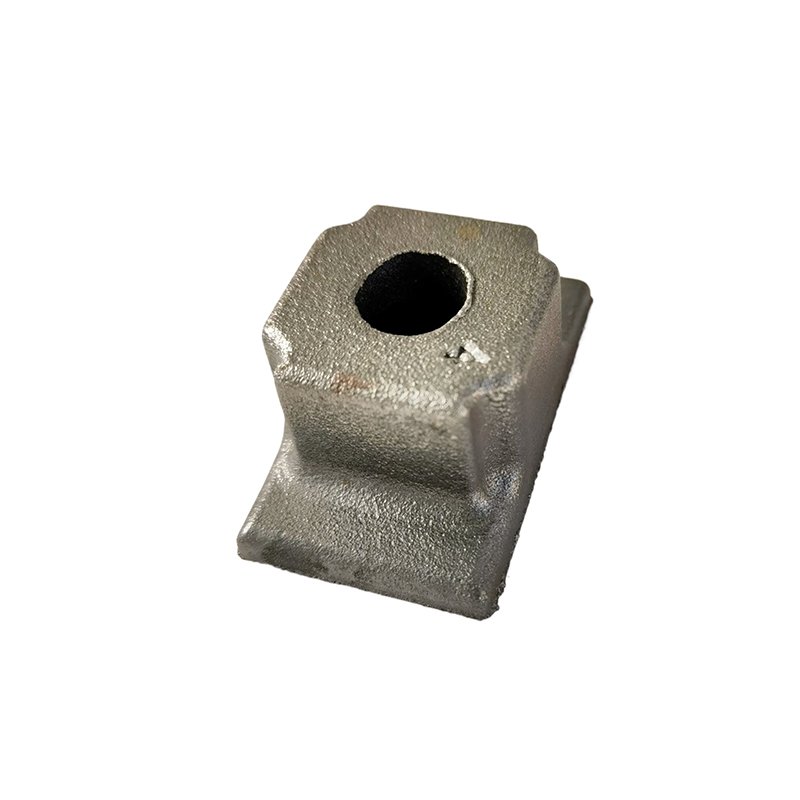

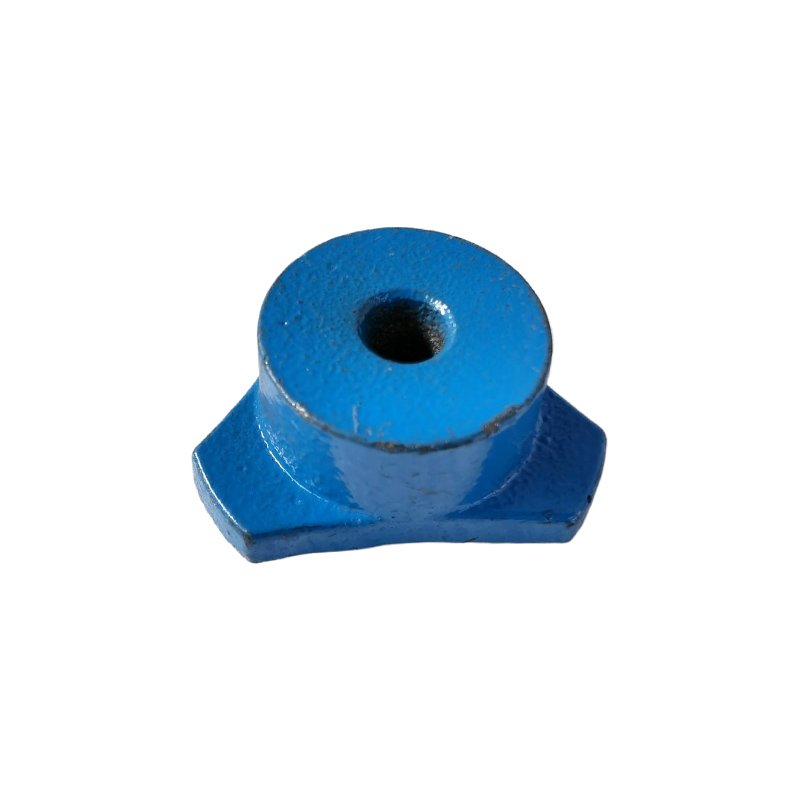

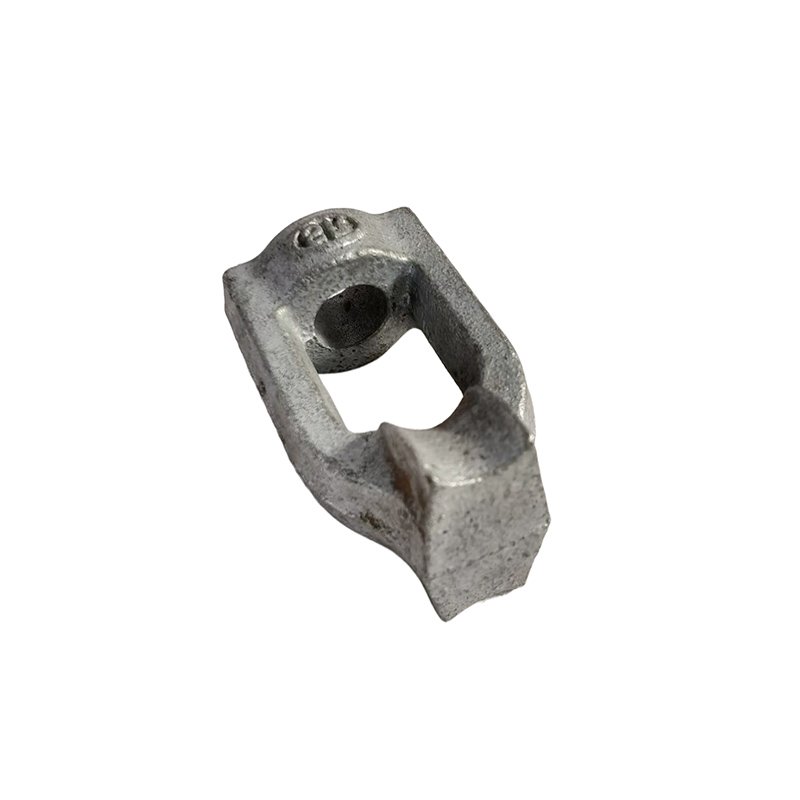

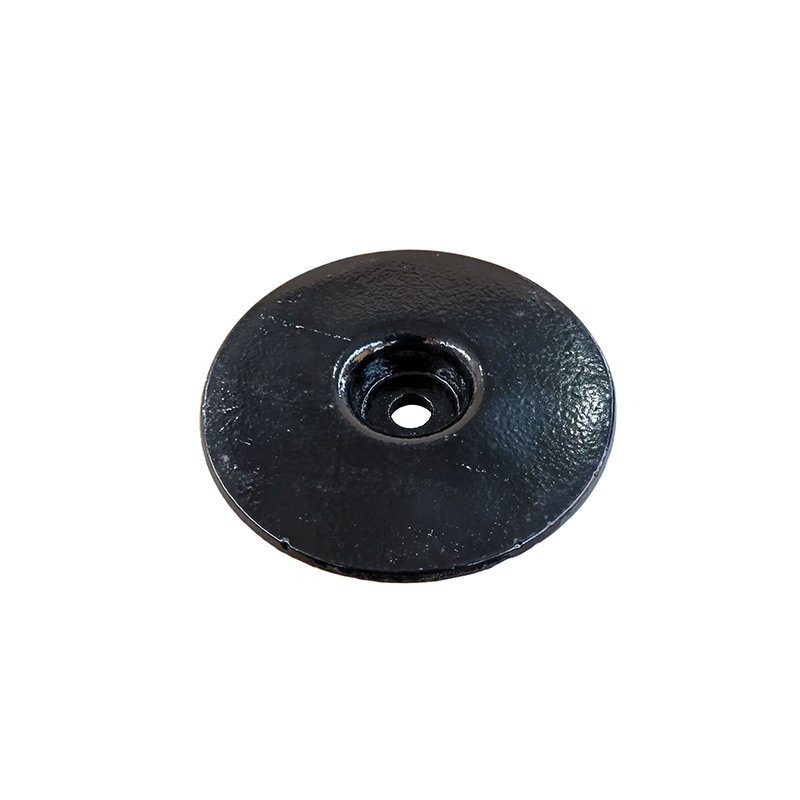

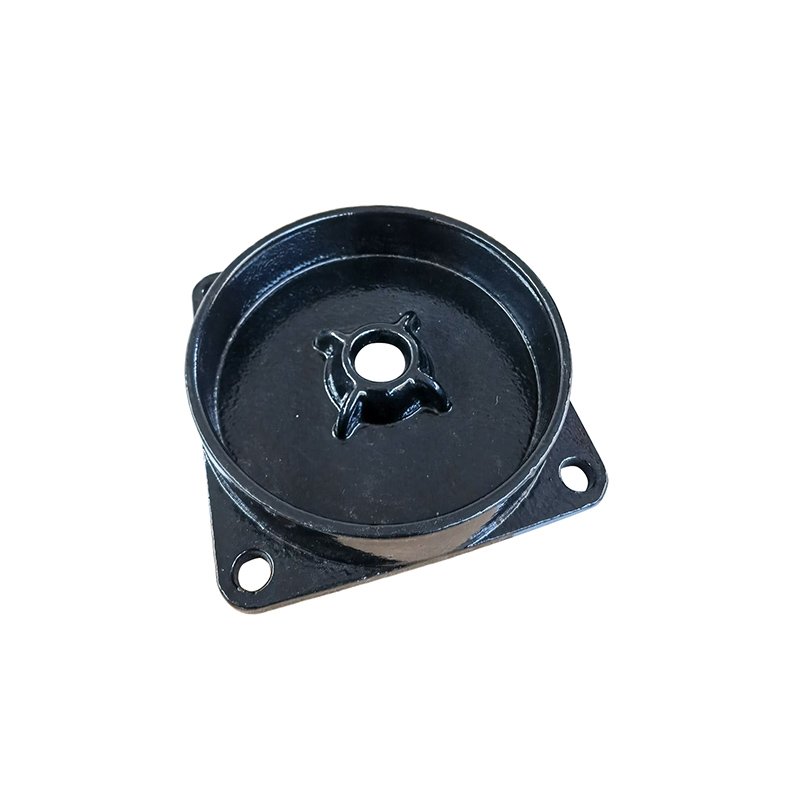

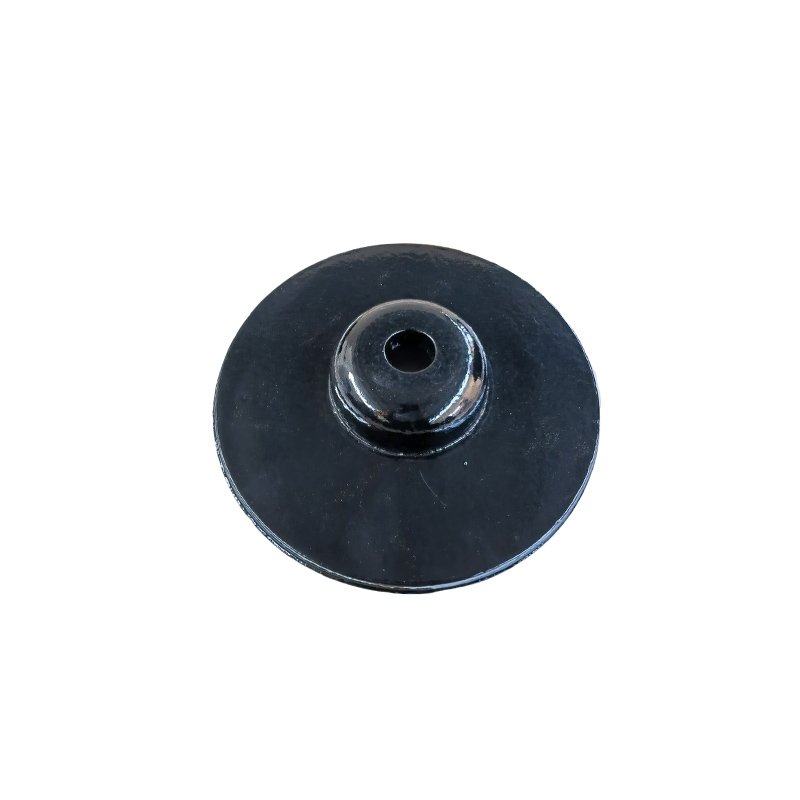

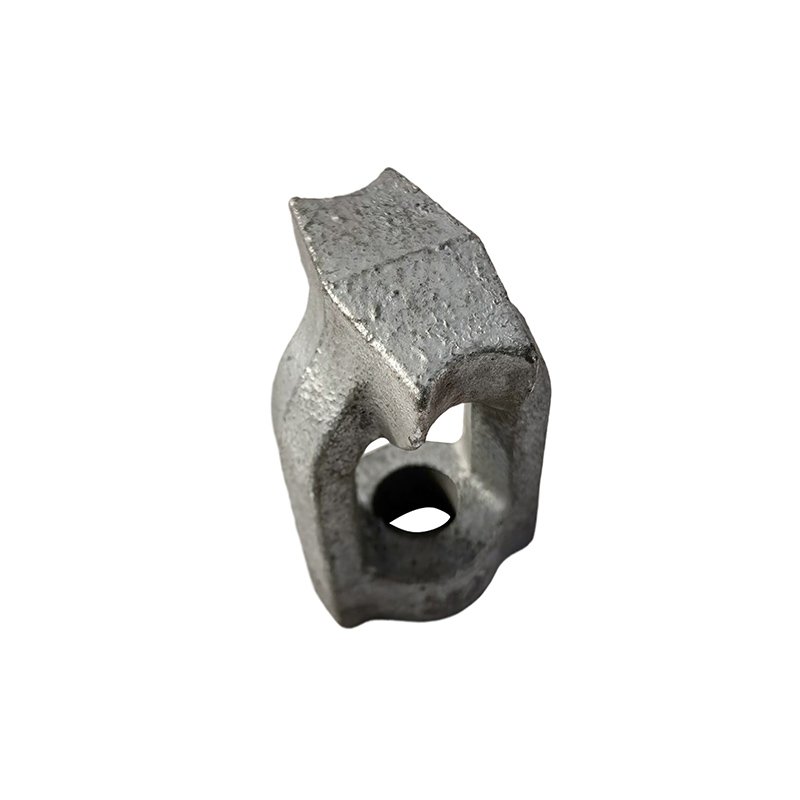

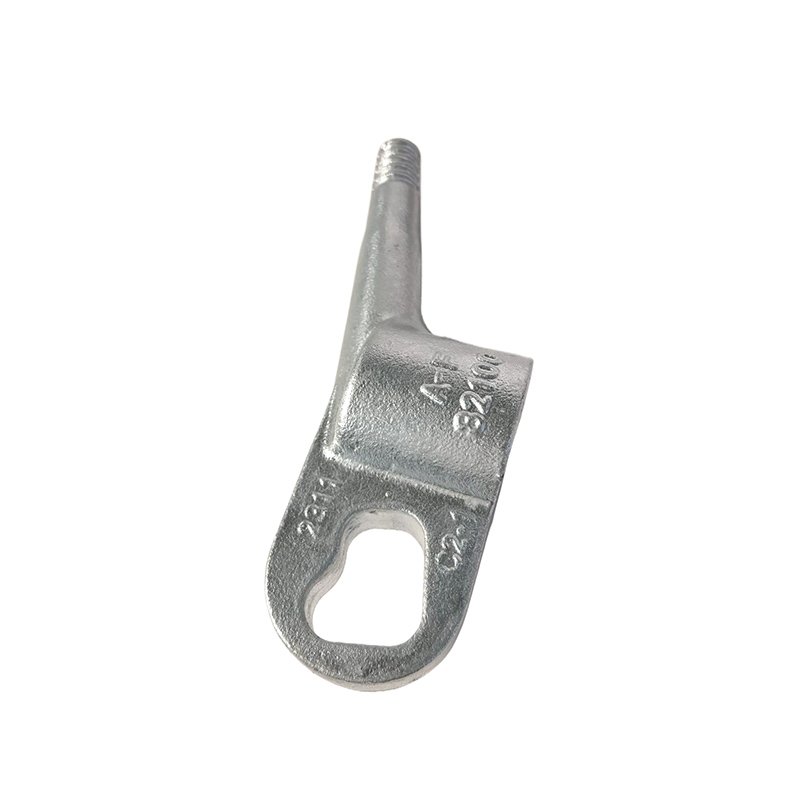

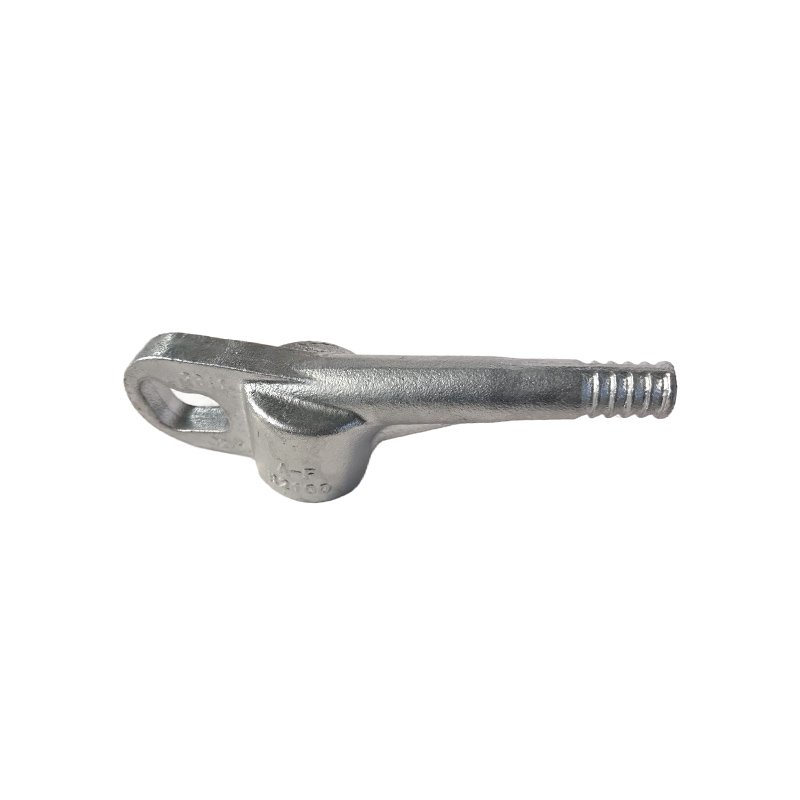

Lost Foam Casting for Iron Parts Without a Parting Line

Lost foam is the process you reach for when the shape will not come out of a two-part mould. The pattern is polystyrene, it stays in the sand, and the metal vaporises it on the way in. There is no parting line, no draft, and no core to place and remove, which changes what a casting can look like.

What Lost Foam Does That Sand Moulding Cannot

Three things, and each one solves a specific design problem.

No parting line means no flash and no mismatch. On a part with a machined face across the middle, green sand leaves a line that has to be ground and can leave a step of 0.3 mm. Lost foam has no line there at all, so the face can be cast closer to finished and machined with less stock.

No draft means vertical walls. A green sand pattern with a 200 mm deep pocket needs 1 to 1.5 degrees of draft per side, which is 5 mm of taper on a wall. Lost foam can hold the wall parallel, which matters on a housing where a straight bore or a constant wall is the point.

No cores means internal passages. An oil gallery, a water jacket, a cable duct: in green sand each is a core that must be made, set, located and removed. In lost foam it is a shape in the foam, cast in place with nothing to extract.

The Pattern Is the Mould, and It Burns Away

A polystyrene bead is expanded in an aluminium tool, glued into an assembly with the gating, coated with a refractory wash, and buried in dry sand that is vibrated tight. Metal is poured on top, the foam vaporises ahead of the front, and the gas escapes through the coating and the sand.

The consequence is that the pattern is consumed every time. That sounds expensive and is not, because the aluminium tool is cheap compared with a metal mould and the foam bead costs cents. It also means a design change costs a new tool but not a new pattern per part.

The process is less forgiving than green sand in one respect: if the foam is under-expanded, the density varies, and the metal front advances unevenly, producing a fold or a cold shut that looks like a crack.

Where the Process Stops Being Economic

Lost foam has a cost per mould that is higher than green sand, so it needs either a bigger part or a smaller quantity to make sense.

Small parts at high volume belong on the automatic green sand line, where the mould cost is amortised over thousands of pieces an hour. Lost foam on a 500 gram bracket is a waste of the process's advantages and carries a price premium.

Large parts at any volume belong on lost foam, because green sand would need a flask, a core and a pattern that costs more than the tool. From about 50 kg upward, it is usually the cheaper route, and up to 200 kg it is the practical one for us.

The third case is geometric: a part with internal passages or no draft, at any size, where green sand would need cores that cost more than the foam tool.

Design Rules Specific to Lost Foam

The rules are fewer than for green sand and different in kind.

Wall thickness should be as uniform as the function allows. The foam has to be packed at a consistent density, and a sudden change from 6 mm to 25 mm creates a section where the metal front slows, the coating is stressed and a lap can form.

Minimum wall is about 3.5 mm on a part under 20 kg, and 4 to 5 mm above that. Thinner walls are possible but the foam bead size sets a floor.

Horizontal surfaces facing upward collect gas and are where pinholes appear. If a drawing has a large flat top, we will suggest a small draft or a rib pattern to let the gas escape.

Holes can be cast from about 8 mm diameter upward. Below that, the foam is too fragile to survive the coating and the sand vibration.

Defects You Only Get With Foam

Three failure modes are specific to the process, and a buyer should know them because they look like something else.

Carbon pickup: the pyrolysed foam leaves carbon at the surface, which in ductile iron can produce a lustrous carbon defect, a wrinkled skin that looks like a lap. Controlled by the coating permeability and the pouring temperature.

Gas porosity at the top of a section, from gas that could not escape through the coating. Controlled by coating thickness and by the sand's permeability.

Collapse or distortion, when the foam softens before the metal arrives and the sand pressure deforms it. Controlled by the sand compaction and the metal velocity.

None of these is visible from the outside on a painted part, which is why first-article sectioning matters more here than in green sand.

Tooling Cost and the Crossover Point

The foam tool is an aluminium cavity, water-cooled, with the bead injectors and the venting built in. For a part of 10 to 30 kg, the tool typically costs 40 to 60 percent of what a green sand pattern and core box would cost for the same part.

That changes the quantity at which a new part becomes viable. A part that would need 600 pieces to justify green sand tooling can justify lost foam tooling at 150 to 250 pieces.

Where the tooling does not help is on a simple part at high volume, because the per-mould cost dominates and green sand wins. We will run that comparison at quotation rather than assume the process we have is the process you need.

Dimensional Behaviour: What to Expect

Lost foam holds tolerance well in some directions and poorly in others.

Across a dimension that crosses no parting line, the repeatability is good, often plus or minus 0.3 mm on a 200 mm dimension, because there is no mismatch to add variation.

Along a long thin section, the foam can distort during filling, and the tolerance is closer to CT11 or CT12.

Holes cast in place tend to run slightly oval because the foam compresses under sand pressure, so a hole that will be used as a location should be cast undersize and drilled.

For a part that will be machined on all functional faces, none of this matters. For a part bought near-net-shape, it matters a lot, and we will say which dimensions we expect to move.

Lost Foam Against Investment Casting

Both processes make a part without a parting line, and buyers sometimes treat them as alternatives. They are not, and the difference is the pattern material and the tolerance.

Investment casting uses a wax pattern and a ceramic shell. It holds tighter tolerances, down to CT5 or CT6, and a better surface, and it can cast a 1 mm wall. It costs far more per kilo and it is limited in size.

Lost foam uses polystyrene and a refractory wash. It holds CT9 to CT11, casts 3.5 mm walls, and goes up to 200 kg. It costs a fraction of investment casting per piece at medium volume.

The dividing line is usually the tolerance on an as-cast feature. If a part needs a 0.2 mm tolerance on a hole that will not be machined, investment casting is the answer. If the functional faces will be machined anyway, lost foam does the same job for less.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

What is the largest part you pour in lost foam?

Around 200 kg. Above that the flask and the sand handling become the constraint rather than the process.

Can lost foam cast a part with a 3 mm wall?

Down to about 3.5 mm on a part under 20 kg, and only if the section is short. A long 3 mm wall will not fill reliably.

Is the surface finish better than green sand?

Smoother, typically Ra 6 to 12 micrometres against 12 to 25 for green sand, because the foam pattern is smoother than a sand mould face.

Why is the tooling cheaper than a pattern?

Because it is an aluminium cavity rather than a pattern plus a core box plus a flask arrangement, and it does not have to survive the same handling.

Can you cast internal oil galleries?

Yes, and it is one of the best reasons to use the process. Bring the passage geometry to the quotation and we will confirm the minimum section.

What lead time applies to a new lost foam part?

Five to seven weeks including tool, first article and approval, longer if the tool needs a design iteration.
