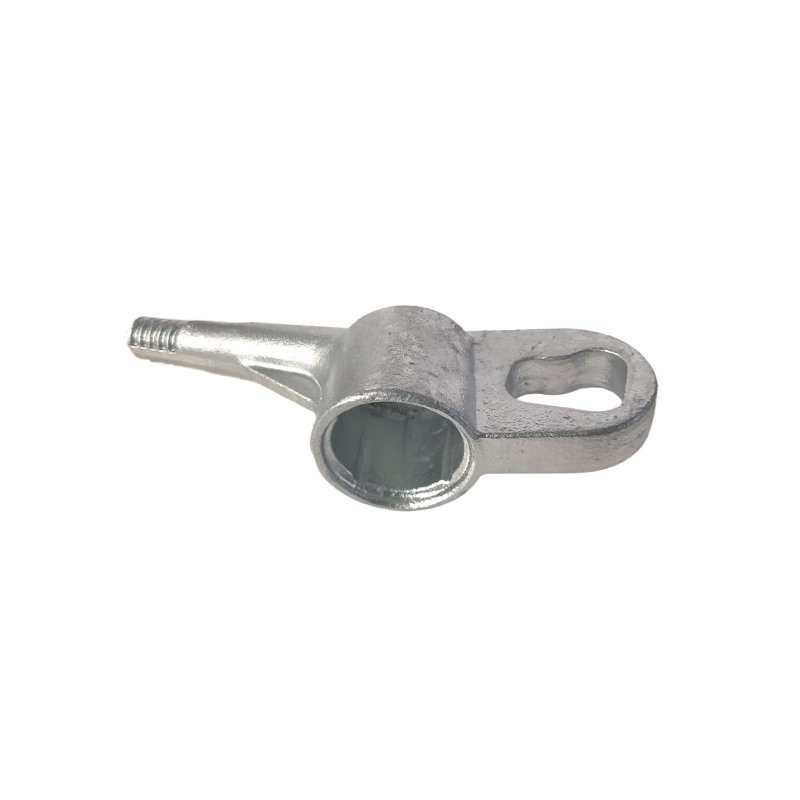

Ductile Iron Guy Clamps for Pole and Tower Guy Wires

A guy clamp is a small part holding a large force. On a 33 kV tangent pole with a 30 degree line angle, the guy wire may carry 40 kN, and every bit of that passes through two castings the size of a hand. When one slips, the pole leans; when one breaks, the pole comes down.

What a Guy Clamp Actually Has to Hold

Three loads, and only one of them is obvious. The design load is the static tension the guy was sized for. The second is the transient from wind gust, ice shedding or a conductor break, which can double the static tension for a fraction of a second. The third is the one that causes most failures: the alternating load from aeolian vibration and galloping, which works on the clamp-wire interface for twenty years.

A clamp that passes a tensile test on day one can still fail in service if the grip relaxes under vibration. That is why the grip geometry matters more than the material strength.

Wedge, Bolt or Compression: Three Ways to Grip a Strand

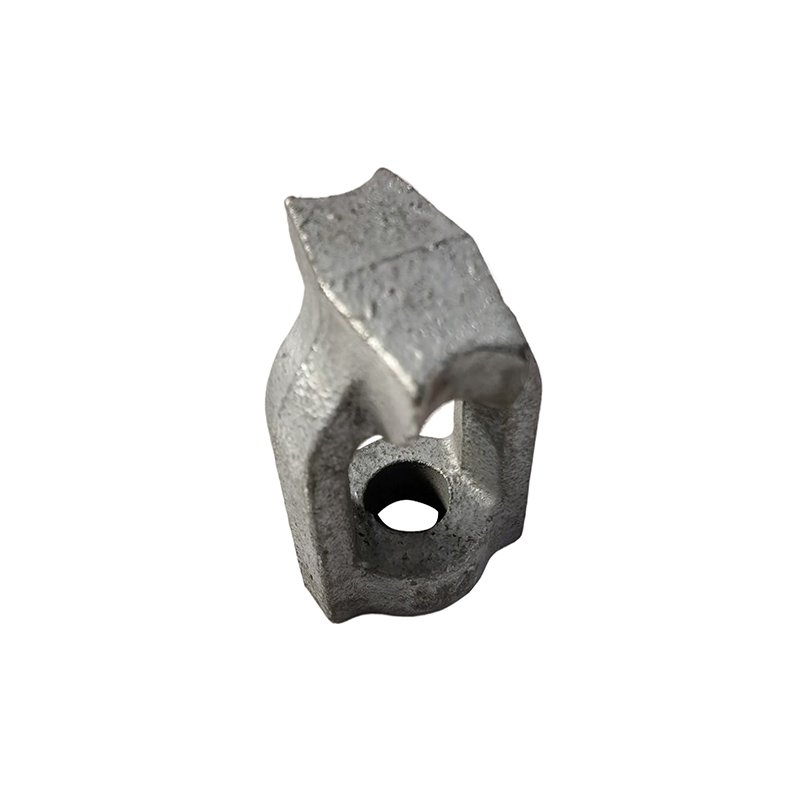

The wedge clamp uses a tapered body and a wedge that is driven in as the wire tensions. The harder the wire pulls, the tighter the wedge seats. It is fast to install, needs no torque wrench, and it is what most utilities specify for distribution guys because a lineman can fit it with a hammer.

The bolted clamp uses two plates and U-bolts to squeeze the strand. It is more tolerant of wire diameter variation and can be re-tensioned, but it depends on the installer reaching the specified torque. Under-torque it slips; over-torque it crushes the strand and starts a corrosion cell.

The compression clamp is crimped on with a press. It gives the most consistent grip and the best fatigue performance, and it cannot be reused. For transmission and for anywhere the guy is not accessible later, it is the right answer.

The Geometry That Stops a Guy from Slipping

Grip comes from three features working together: the taper angle, the groove profile and the surface finish.

The taper on a wedge body is typically 6 to 10 degrees included. Steeper and the wedge can back out under vibration; shallower and the clamp needs a longer body, which costs material and space on the pole.

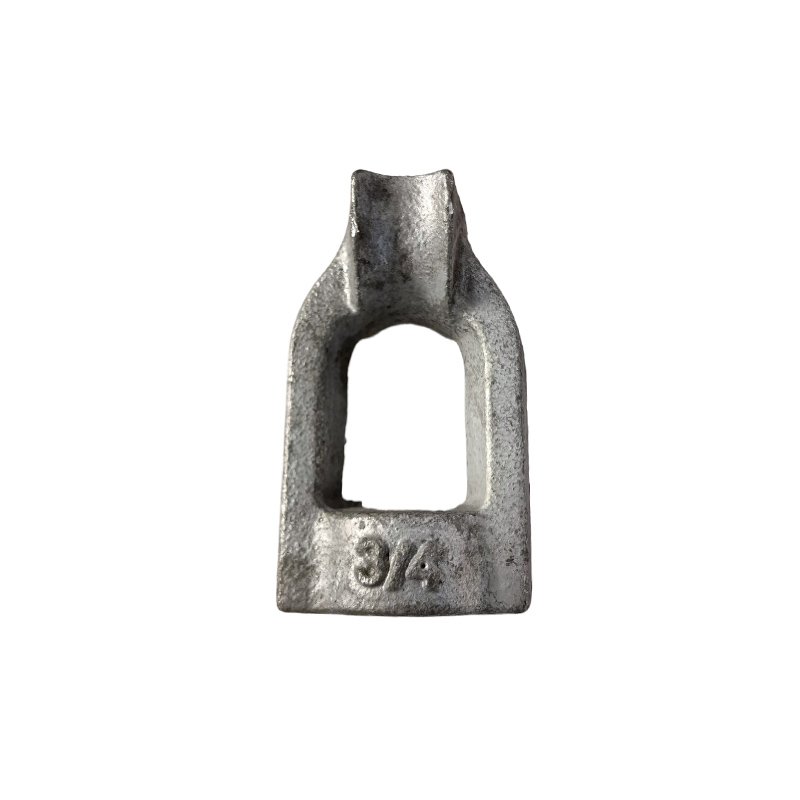

The groove is where most of the engineering sits. A smooth V-groove grips by friction alone and needs high bolt load. A groove with a helical or serrated profile lets the individual strands seat into it, so the load transfers through bearing rather than friction. We cast the serrations, which is cheaper than machining them and gives a consistent profile batch to batch.

Surface finish matters because a cast surface that is too rough initiates fatigue in the strand. Shot blasting to a controlled profile, then galvanizing, gives a surface that grips without abrading the wire.

Angle, Preload and the Load the Pole Sees

The clamp does not see the guy tension in isolation. It sees the vector sum of the guy tension and the angle at which the guy meets the pole, and that determines the bending moment at the attachment point.

A guy at 45 degrees to the pole carries 1.41 times the horizontal load it is resisting. At 30 degrees it carries 2 times. Most utilities specify a lead-to-height ratio of 1:1, which puts the guy at 45 degrees and keeps both the tension and the anchor load reasonable. When a pole is short or the right of way is tight, the angle gets steeper and the clamp load rises fast.

The practical consequence: the same clamp that is adequate at 45 degrees may be marginal at 30. If your drawing does not state the guy angle, we will ask, because it changes the safety factor more than the material grade does.

Galvanizing Thickness Where It Counts

Overhead line hardware is bought to a coating standard, usually ASTM A153 for hardware or ISO 1461 for general fabrication. The two are not identical: A153 requires a minimum coating that varies with part thickness, and for thin sections it is higher than the ISO 1461 default.

On a guy clamp, the coating has to survive two things: twenty years of weather, and the abrasion of the wedge seating. We galvanize after machining and after the grooves are formed, then chase the threads, because a 90 micrometre coating on an M16 thread will stop the nut from running on.

One detail we check after dipping rather than before: hole gauges. Hot-dip coating builds up inside a close-tolerance hole and can close a 17 mm hole to 16.4 mm, which is enough to stop a bolt.

Casting Defects That Only Show Under Load

A guy clamp is a small part with a thick section and a thin section, which is the classic recipe for shrinkage porosity. The thick boss around the bolt hole freezes last, and unless it is fed by a riser, it pulls a cavity.

On the outside, the part looks perfect. Under a 40 kN proof load, the cavity becomes a crack origin.

We control this three ways. Risers sized to feed the boss, verified on the first article by sectioning a sample. Radiography on the first article and on a sampling basis afterwards, for clamps destined for transmission work. And a proof load test on a sample from each batch, which finds the parts that would have failed in service.

Testing: What We Can Prove and What We Cannot

We can prove tensile strength, elongation and chemical composition on every heat. We can proof load a sample of clamps to 2.5 times the design load and record any slip. We can measure coating thickness and check thread gauging.

What we cannot prove in-house is fatigue life. That needs a resonant fatigue rig running millions of cycles, and we do not have one. If your specification calls for a fatigue qualification, we will say so at quotation and either arrange it through a partner or work to a design standard that has already done the testing.

Being clear about the boundary is more useful than claiming a capability we do not have, especially on a part where failure means a pole on the ground.

Installation: Torque, Twist and the First Week

Most guy clamp problems appear in the first week after installation, and most of them are installation.

A wedge clamp that is set with the wire at an angle to the body seats on one edge and grips a fraction of the strand. It holds the design load on the test bench and slips on the pole, because the test bench pulled straight.

A bolted clamp that is tightened on one side first twists the body and opens the opposite jaw. The clamp then has half its intended grip and no visible sign of it.

The first week is when the wire relaxes and the clamp takes its final seat. A clamp that has slipped will show a bright mark on the strand and a polished area inside the groove. That is why a re-inspection after a week is worth more than a thicker casting: it catches the installation error before the pole leans.

We supply an installation sheet with every batch, and on request a torque wrench specification. It costs nothing and prevents the failure mode that no amount of testing in the plant can find.

Frequently Asked Questions

What wire sizes can your guy clamps take?

From 6 mm to 19 mm strand in the standard range, in both galvanized steel and aluminium-clad steel. Above that we cast to drawing rather than to a standard body.

Can the clamp be used on both distribution and transmission lines?

Mechanically yes, but the coating and testing requirements differ. Transmission work usually calls for radiographic sampling and a higher galvanizing thickness, which we quote separately.

How much slip is acceptable in a proof test?

Typically 2 mm at the design load, with no movement at 1.5 times design load. Your specification governs, and we test to whatever figure it states.

Do you supply the wedge or the U-bolts?

Both, in matched sets, because a clamp and its wedge have to be made to the same taper. Mixing brands is where most slip problems start.

What is the typical lead time?

Four to five weeks for a repeat pattern, six to eight for a new one including sample approval.

Can you match an existing utility standard?

Yes. Send the standard number or a sample, and we will confirm at quotation whether our existing pattern complies or a new one is needed.
