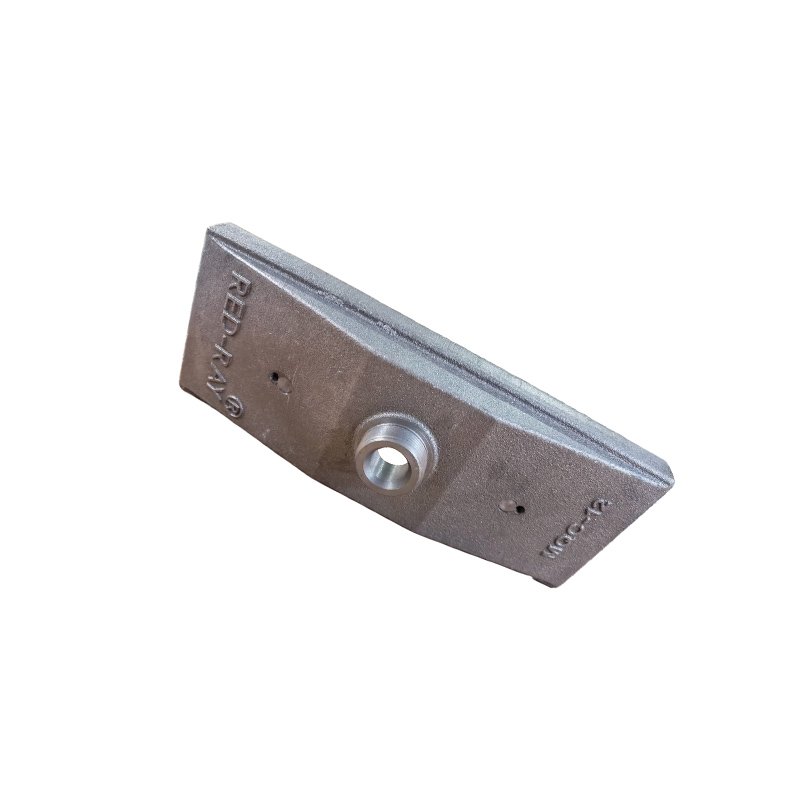

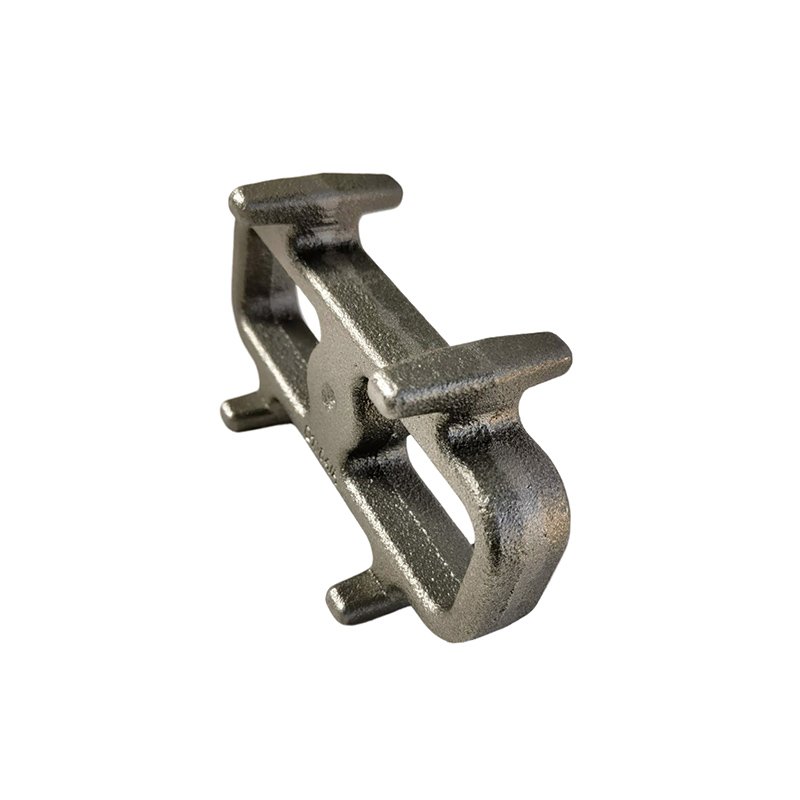

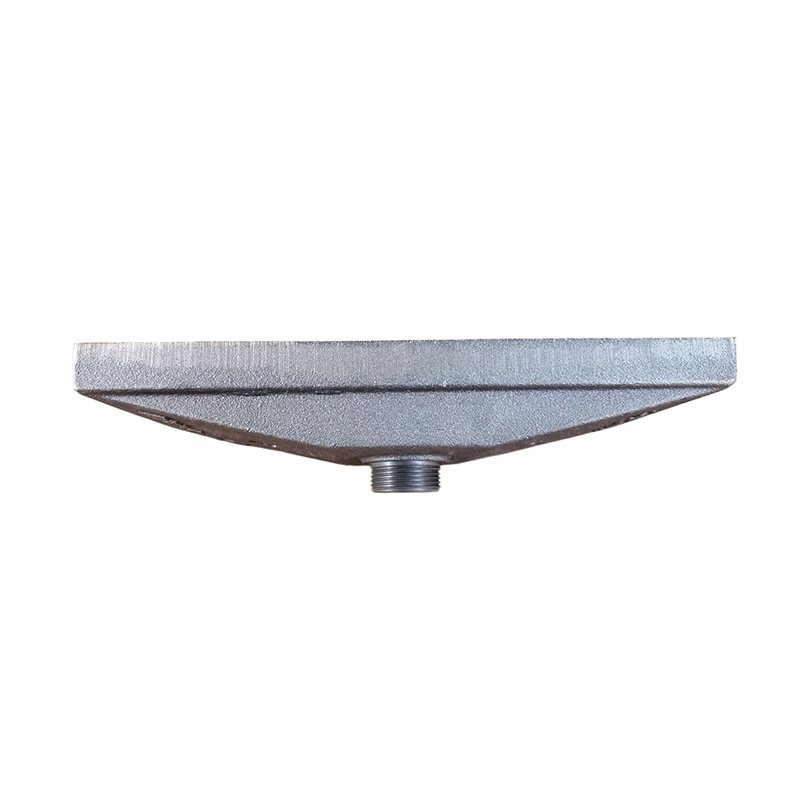

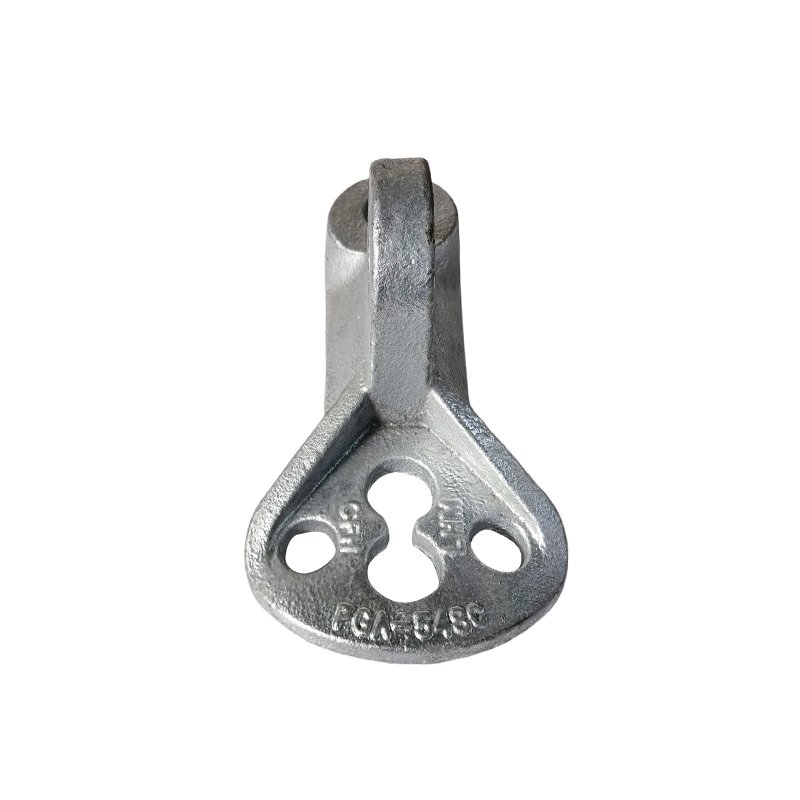

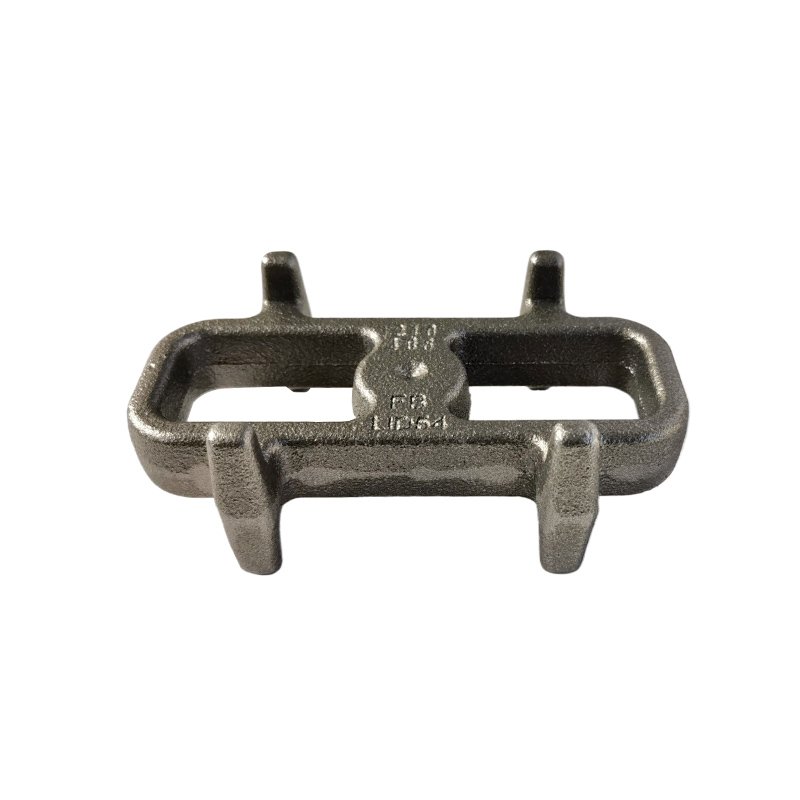

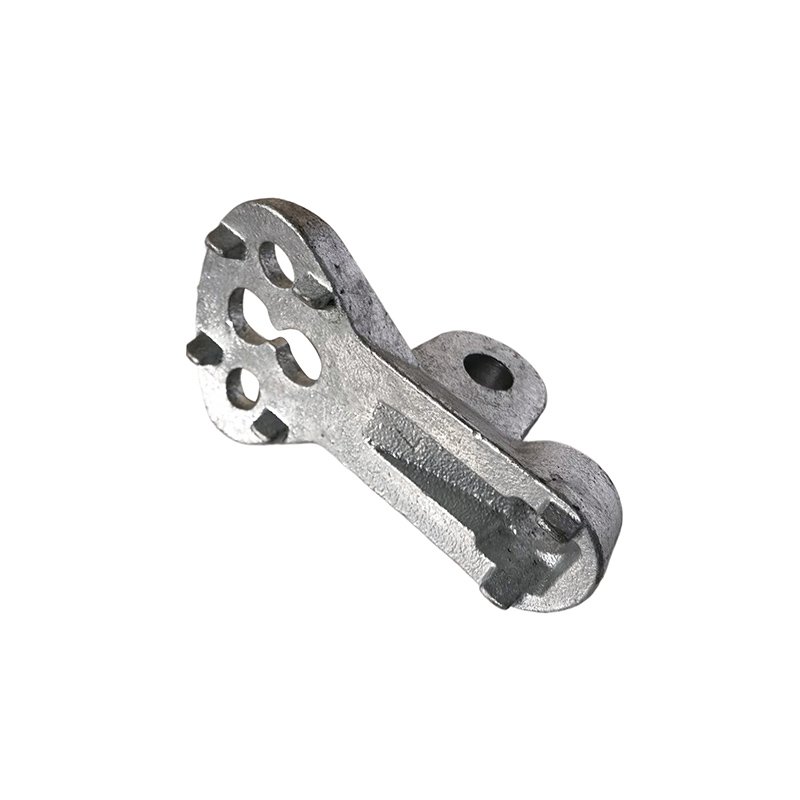

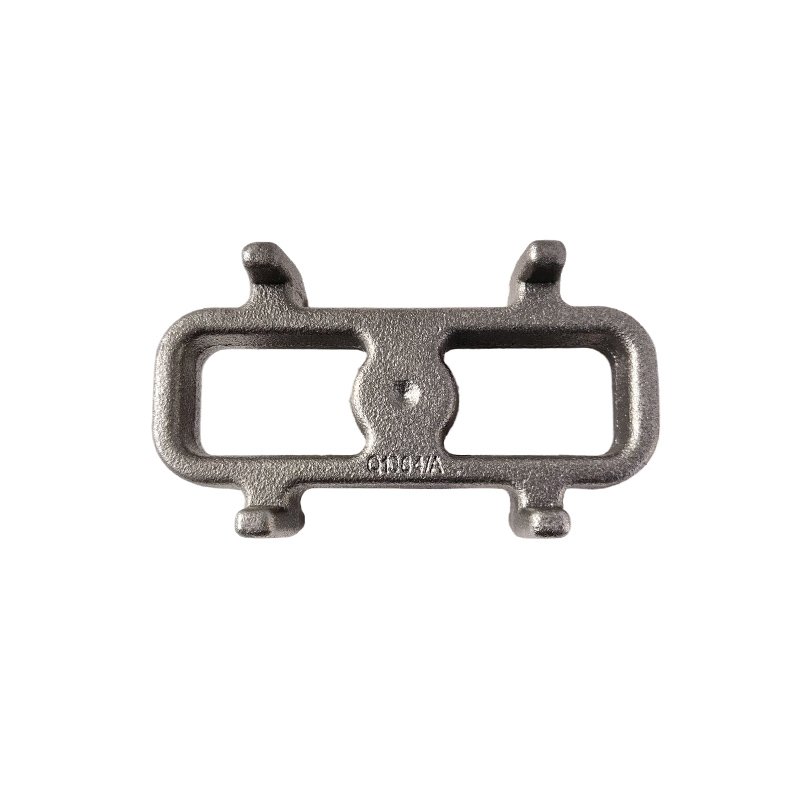

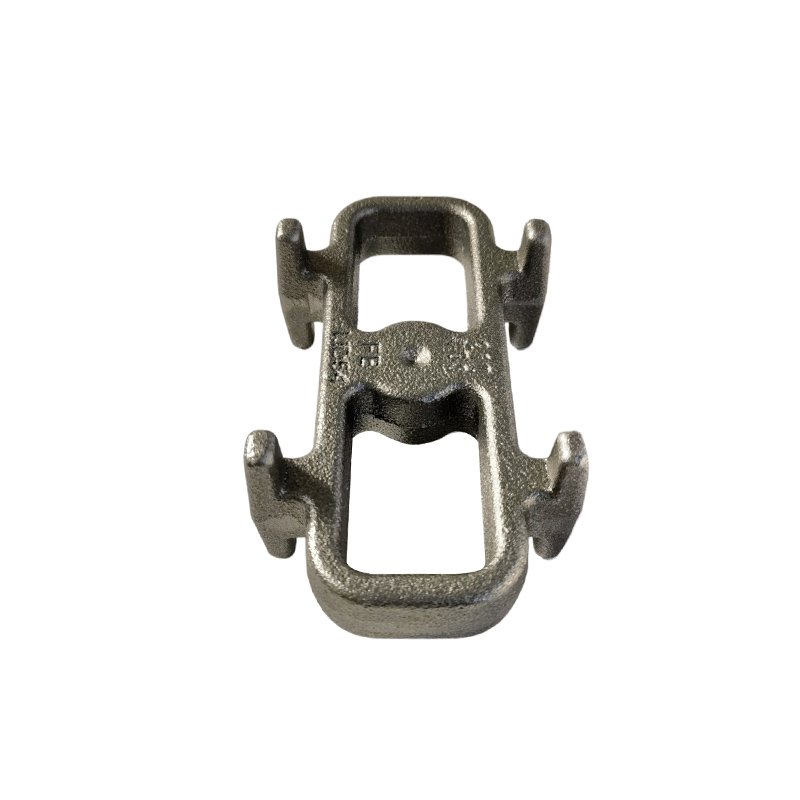

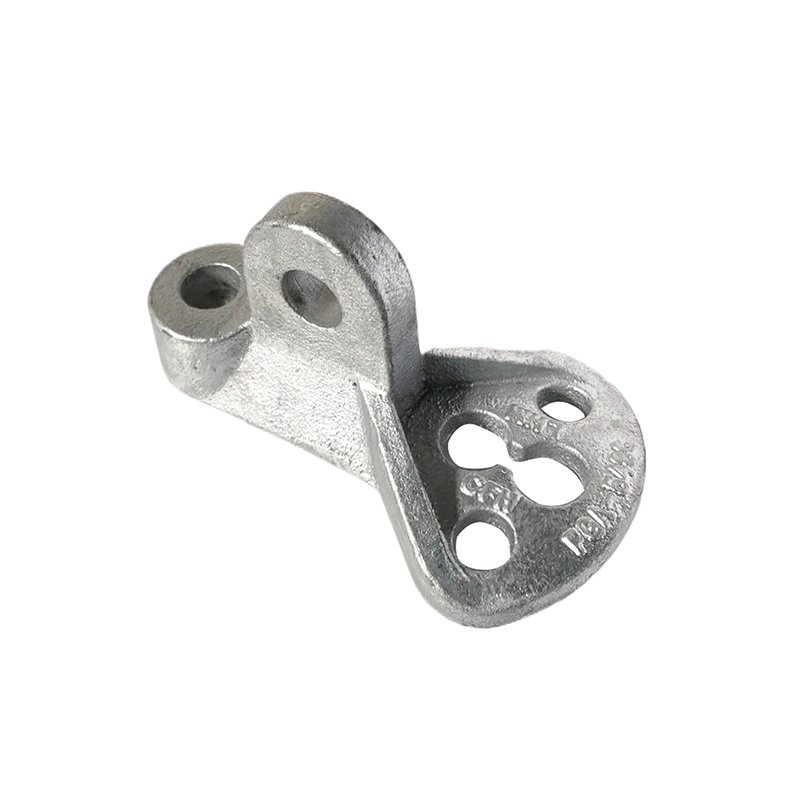

Ductile Iron Guardrail Brackets for Highway Barriers

A guardrail bracket is a small part with a legal consequence. It holds a W-beam at the right height and the right offset from the post, and if it fails, the rail does not redirect the vehicle, it spears it.

A Guardrail Bracket Is a Safety Component

It is not a structural bracket in the ordinary sense. It is part of a system that has been crash tested as a whole, and changing the bracket changes the system.

That means a bracket is rarely designed from first principles. It is either specified by a highway authority standard, or it is a replacement for a part in a tested system, and the replacement has to match the original's geometry and strength.

If you are designing a new barrier, the bracket comes out of the crash test, not out of a catalogue. If you are replacing an existing bracket, the drawing is the specification.

Loads: Impact, Wind and the One Nobody Calculates

The impact load is the obvious one. A vehicle striking the rail at 100 km/h generates a force that the rail distributes over several posts, and each bracket sees a share of it.

Wind load on a long rail run is the second, and on an exposed bridge it can be substantial: a 100 km/h wind on a 4 metre rail section produces a lateral force of around 1.5 kN, which the brackets transfer to the posts.

The third is the one that causes most failures, and it is installation: a bracket that is bolted with the wrong torque, or a post that is out of alignment, puts a bending load on the bracket that it was never designed for. A bracket that fails in a storm usually failed first at installation.

Blockout Geometry and the Deflection Distance

The blockout is the offset between the rail and the post, and it exists to keep the vehicle's wheels away from the post during a collision. A typical offset is 150 to 200 mm on a W-beam barrier.

The bracket sets that offset, which means its length is a safety dimension, not a convenience one. A bracket that is 20 mm short changes the deflection behaviour of the whole system.

It also means the bracket has to be stiff in the direction of the offset. A bracket that bends under impact reduces the offset exactly when it is needed, which is why the section is usually a deep channel rather than a flat plate.

Bolt Patterns That Match the Post and the Rail

Two interfaces, both fixed by standards. The rail side takes the W-beam's slot pattern, and the post side takes the post's bolt holes, which vary between steel posts, timber posts and concrete posts.

The rail slot allows vertical adjustment during installation, typically plus or minus 25 mm, so the rail can be set to the correct height despite post setting tolerance.

The post side usually has a fixed pattern with a slotted hole for alignment. A bracket with a fixed pattern on both sides is difficult to install on a real road, where posts are rarely perfectly spaced.

We drill to the drawing, and we will ask which standard the pattern follows if it is not stated.

Why Ductile Iron and Not Steel Plate

A welded plate bracket is common and works. It has a weld at the corner where the impact load concentrates, and the weld is the fatigue-sensitive feature.

A casting removes the weld, and the fillet that replaces it is smoother than a weld toe, which improves the fatigue category. It also allows a section that tapers from the post end to the rail end, which a fabricated bracket cannot do without a press.

The casting also holds the bolt hole positions in the right relationship, which a welded bracket achieves only if the jig is accurate and the weld does not pull.

Grey iron is not acceptable for a guardrail bracket. The impact requirement demands elongation, and grey iron has almost none.

Galvanizing for Roadside Service

A roadside bracket is exposed to salt, grit, freeze-thaw and UV, and it is expected to last 20 to 30 years with no maintenance.

Hot-dip galvanizing at 85 micrometres minimum, to ISO 1461 or the highway authority's specification, is the standard. On coastal roads, a duplex system of galvanizing plus a paint topcoat is used, which roughly doubles the life.

Two casting details matter. Drain holes, because a closed section traps zinc. And no sharp edges, because the coating pulls back and leaves the thinnest film where corrosion starts.

We cast the drain holes and radius the edges, and we report coating thickness at defined points.

Installation Tolerance on a Highway

A highway crew installs hundreds of brackets in a day, from a truck, with a impact wrench. The bracket has to tolerate that.

Slotted holes, a bolt head that a standard socket fits, and a nut that can be started by hand are the practical requirements. A bracket that needs a specific orientation, or a bolt that has to be held from behind the post, will be installed wrong.

The height setting is the critical one: the rail has to sit at the correct height above the road surface, and the slot gives the adjustment. A bracket without a slot forces the crew to adjust the post, which they will not do.

Inspection, Certification and Replacement

A guardrail bracket is usually supplied against a highway authority standard, with a certificate of conformity to the drawing and the coating standard.

In service, the inspection is visual: a bent bracket, a missing bolt or a coating failure. A bracket that has been hit should be replaced rather than straightened, because the material has yielded and its properties have changed.

We mark each casting with the part number and the heat, so a replacement can be traced to the batch it came from. On a highway, that traceability is what closes an incident report.

Terminals, Transitions and the Parts Around the Bracket

A guardrail system is more than posts and rail. The ends are where the energy is managed, and the parts around the bracket decide whether the system works.

A terminal at the end of a barrier has to either anchor the rail or let it gate away from the vehicle. A turned-down terminal buries the rail end in the ground, which is cheap and dangerous if the rail spears through the verge. A crash cushion absorbs the energy and costs more.

A transition connects two barrier types, usually a W-beam to a concrete or a bridge parapet. The stiffness changes at that point, and the transition has to make it gradual, or the vehicle snags on the stiff side.

The bracket's role in both cases is to hold the rail at the correct height and offset through the transition, which may mean a different bracket from the standard run. If you are specifying a transition, send the whole detail, not the bracket drawing alone.

Replacing a Bracket on an Existing Barrier

Most guardrail brackets are not sold for new roads, they are sold to replace damaged ones.

The replacement has to match the post spacing, the rail height and the blockout distance of the original system, and those are not always on a drawing. A maintenance crew will measure the existing bracket and order to those dimensions, which is why a worn sample is a perfectly good specification.

The complication is that systems get modified over forty years. A post may have been replaced with a different section, a rail may have been raised, and the bracket that fits is not the one in the original manual.

We keep the common patterns and will match a sample, and we will say when the sample does not match any standard pattern, because that usually means the barrier has been altered and the replacement should be checked by an engineer.
