Cast Iron Electrical Power Accessories for Pole Line Work

Zhaoyuqi Machinery custom-sand-casts iron electrical power accessories — the cast iron brackets, clamps, supports and connector bodies that mount onto poles and towers and work together with power fittings (line hardware) in overhead transmission and distribution. For more than 20 years we have supplied ductile and grey iron accessory castings to buyer drawings for utility and power-infrastructure projects.

What Power Accessories Are, and Where They Sit on the Line

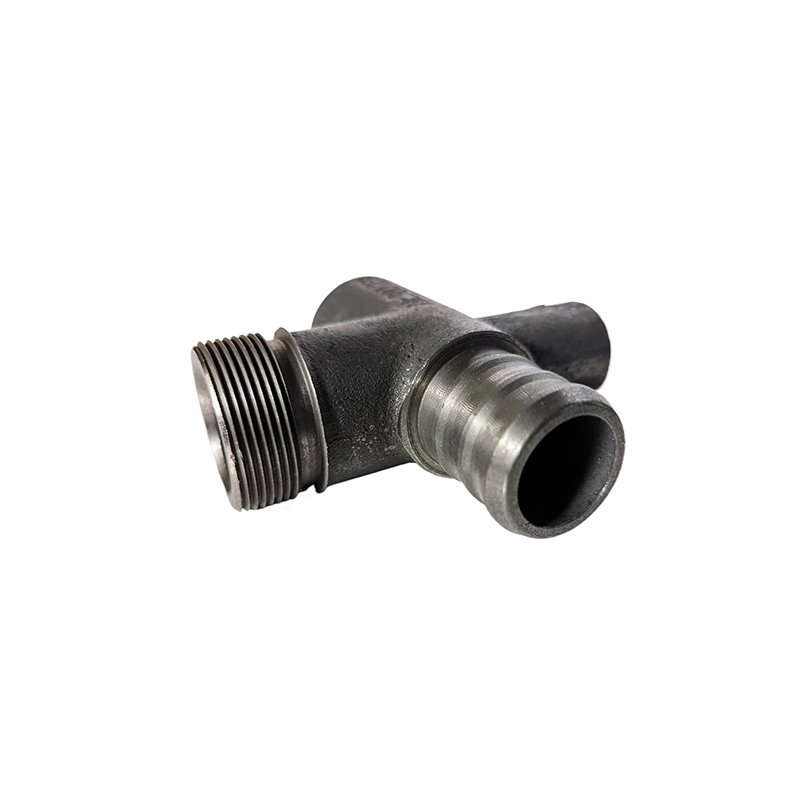

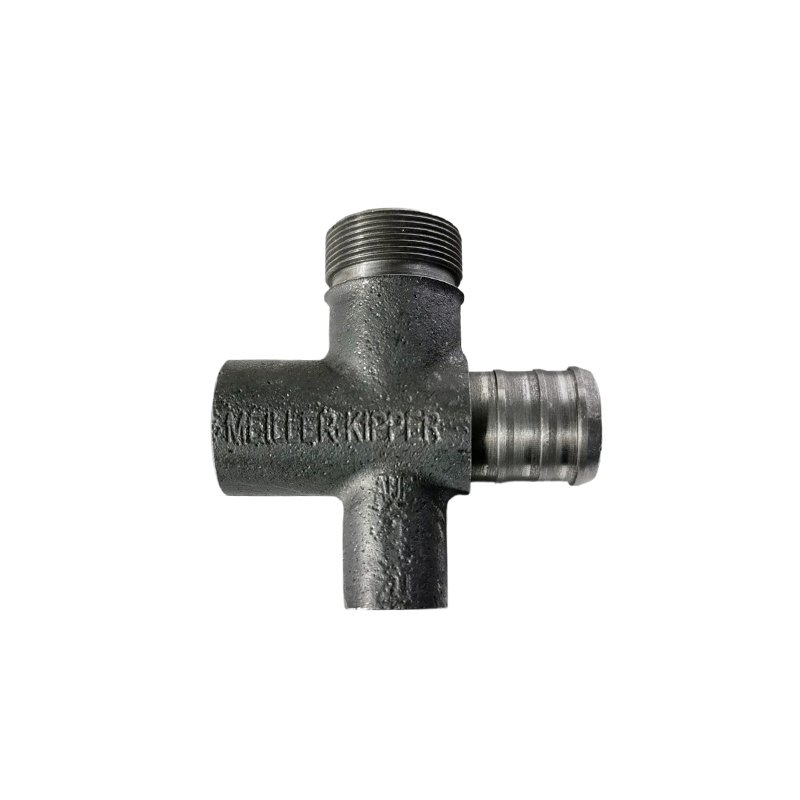

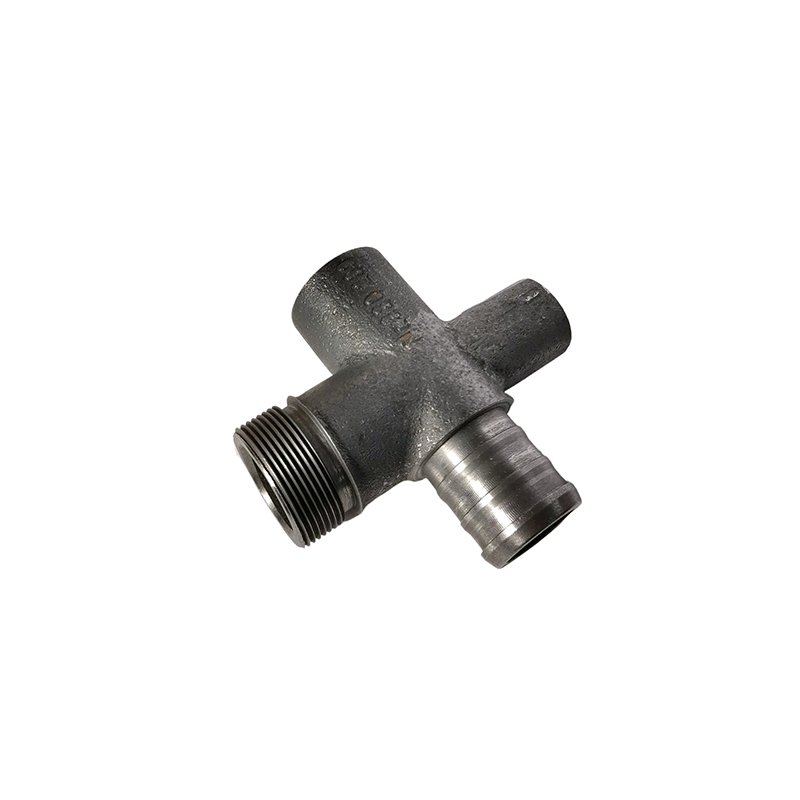

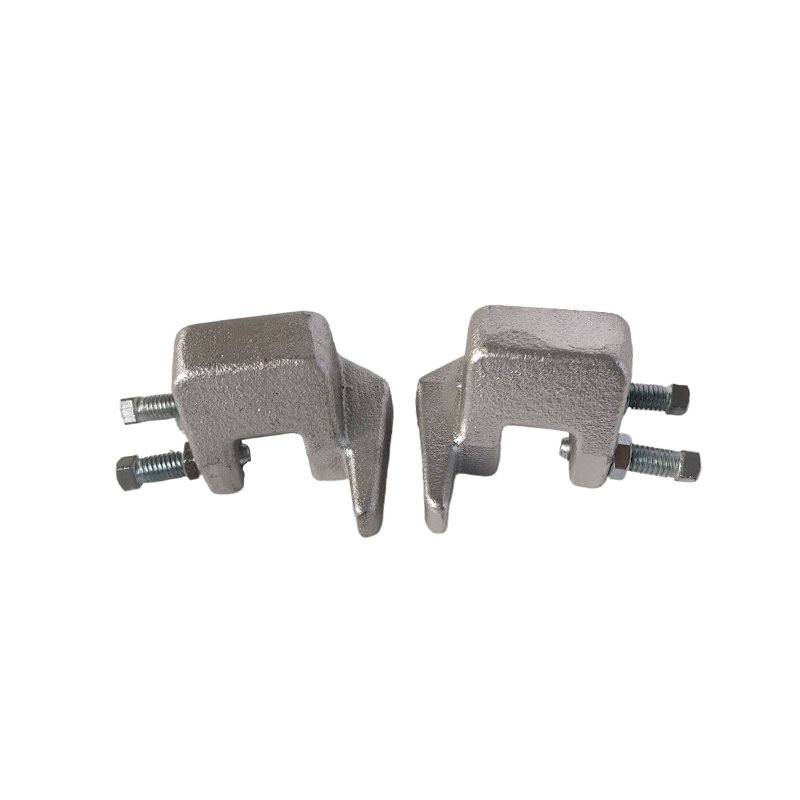

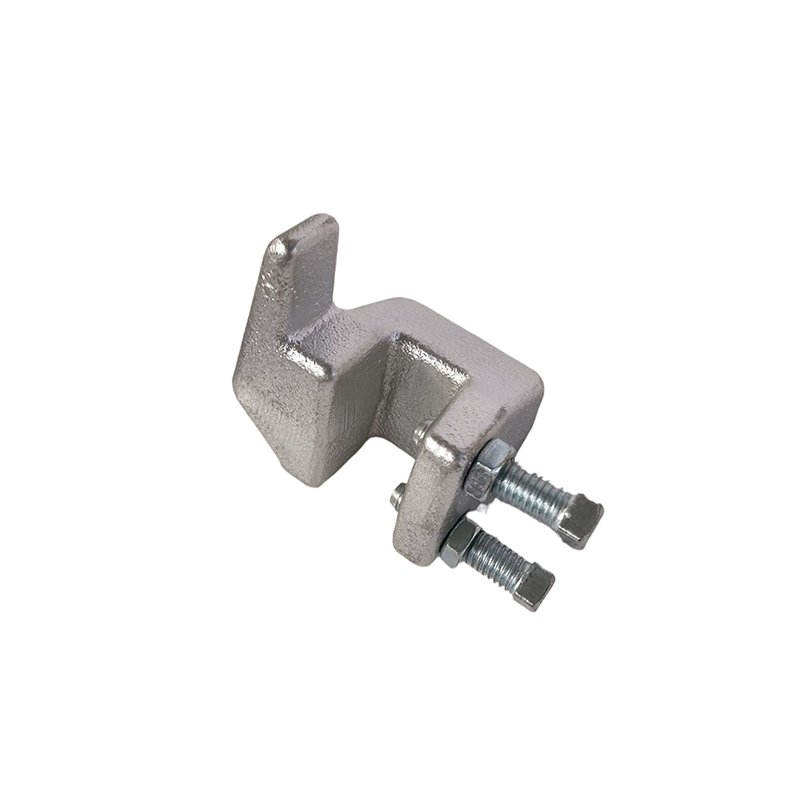

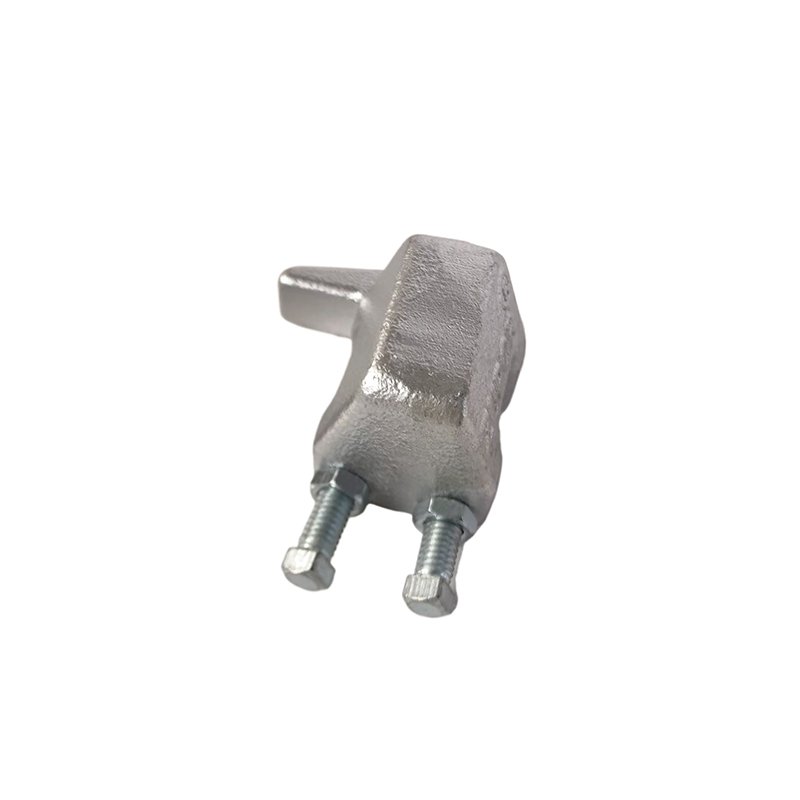

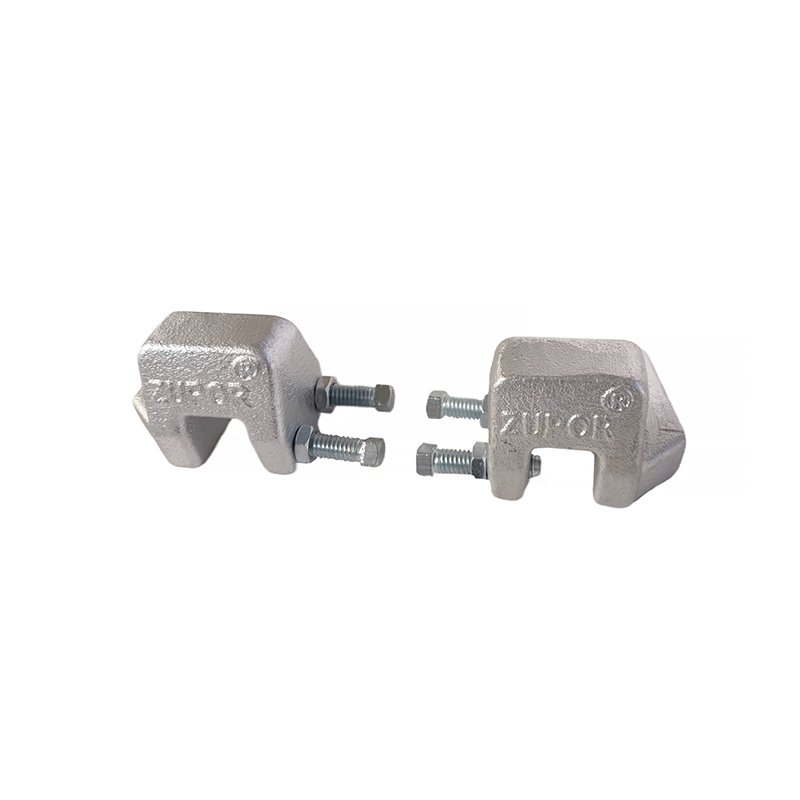

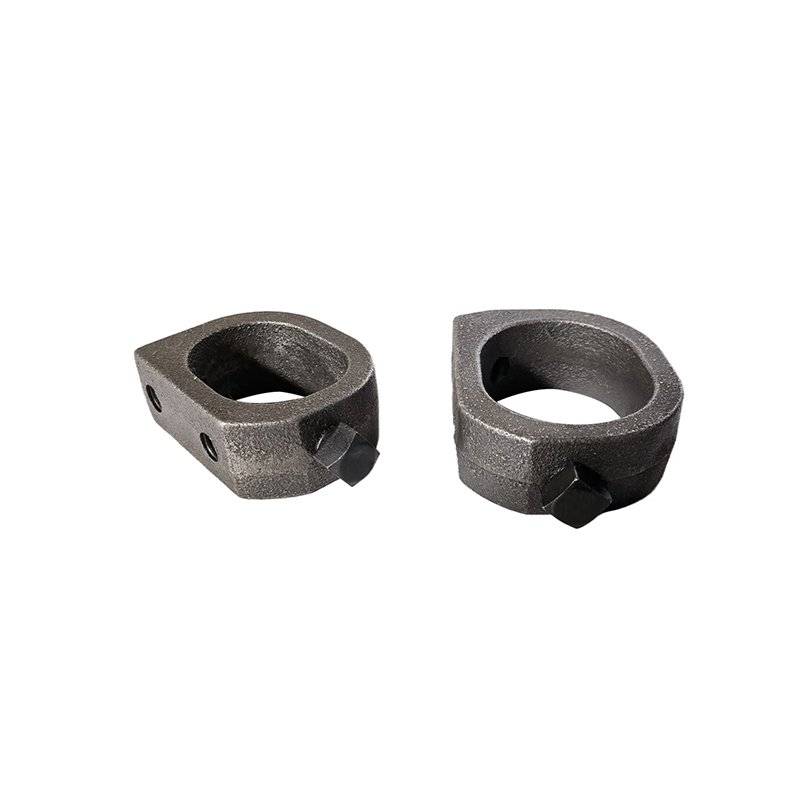

Electrical power accessories are the cast iron parts that hold an overhead line together between the conductor and the structure: pole-top supports, cross-arm brackets, clamp bodies, anchor and suspension fitting bases, earthing terminals, equipment mounting plates and pole-mounted attachment castings. They carry the mechanical load from conductors, insulators and fittings into the pole or tower, which is why the loaded ones are specified in iron rather than pressed steel.

In service the same part does three jobs at once. It transfers static tension and wind span, it survives ice and short-circuit forces without cracking, and it stays outdoors for twenty to thirty years under whatever coating the utility buys. Most of what we pour goes into transmission and distribution line hardware bodies, pole and tower attachment supports, cross-arm fittings, and anchor, suspension and clamp components that pair with insulators and line fittings.

Material, Moulding and the Finish That Survives Weather

Loaded accessories such as clamp bodies, brackets and anchor bases are cast in ductile iron with a spheroidization rate of at least 90%, because a brittle section fails without warning when wind reverses. Static plates, covers and base castings go in grey iron, which is dimensionally stable, damps vibration and costs less per piece. Where a utility specifies steel for a particular item, carbon and stainless grades are poured through our workshop rather than subcontracted.

Moulding runs on a fully automatic clay sand line at 0.5 to 50 kg per accessory, with pig iron bought directly from steel mills so melt chemistry is known before the first heat. After shake-out every piece is shot blasted, then machined where it actually matters: mounting and bolt holes are drilled, tapped or CNC-bored, and mating faces are brought flat to print. Primer and top coat follow for standard outdoor exposure, with a heavier system for coastal or industrial lines, and galvanizing where the specification names it.

Accessory Types, Weight Range and What We Can Hold

The family is wider than most catalogues suggest: connector yokes, jumper lugs, spacer bars, pole brackets, clamp bodies, earthing terminals, equipment mounting plates, and transition castings for substations and line runs. Everything is produced from your drawing rather than a shelf pattern, so hole spacing, load rating and mounting geometry follow your design instead of forcing a redesign around our catalogue.

Weight splits by process. Most accessories sit between 0.5 and 50 kg, which is the working range of the automatic line. Equipment housings, switchgear frames and base plates from 50 to 200 kg are poured by lost foam casting when the shape suits it, avoiding hard tooling for medium quantities. Ductile sections start near 5 mm wall. Machined faces hold your drawing tolerance; as-cast faces carry normal foundry tolerance, and at quotation we say which faces need machining rather than leaving it to be discovered at fitting.

From Drawing to First Batch: How the Timeline Runs

Week one is drawing review. We check draft, section change, cored holes and whether the load path suits iron, then return feasibility notes with a firm quotation covering piece price, tooling and sample cost. Pattern making and the first sample casting take two to four weeks depending on size and core complexity, and the sample ships with material and dimensional reports rather than on its own.

Approval locks the setup for repeat orders. Bulk then runs on the same pattern with parameters recorded, and every batch is cast, shot blasted, machined and inspected 100% dimensionally and visually before packing. Cast logos and part numbers on non-critical faces are standard on repeat orders, and machined faces travel in wooden crates with foam separations rather than loose in a carton. If a utility requires a bolt hole pattern that is on no standard, settle it at week one: a pattern change after tooling is cut is the most expensive revision in this product family.

What a Custom Accessory Order Actually Costs and When

Hardware buyers budget the unit price and then get surprised by everything around it, so here is how a custom accessory order for overhead line work typically unfolds with us. Week one is drawing review and a firm quotation — engineering checks castability and returns feasibility notes alongside the price, not weeks later. Weeks two to four cover pattern making and the first sample casting. After you approve the sample, bulk production runs on the locked pattern, and repeat releases skip straight to production scheduling.

The costs split the same way: tooling once, then unit price. Tooling depends on casting complexity — a flat bracket costs a fraction of a multi-cored clamp body. Unit price follows weight, grade and finish. Galvanizing and machining are the two options that move price most, so decide them early rather than discovering the coating cost after the fact.

One practical note for tender projects: if your bid deadline falls inside the tooling-plus-sample window, tell us the date. We can price the order with a sample for approval after award, which is how most utility framework contracts with us run.

Accessory Types and What Each One Tests

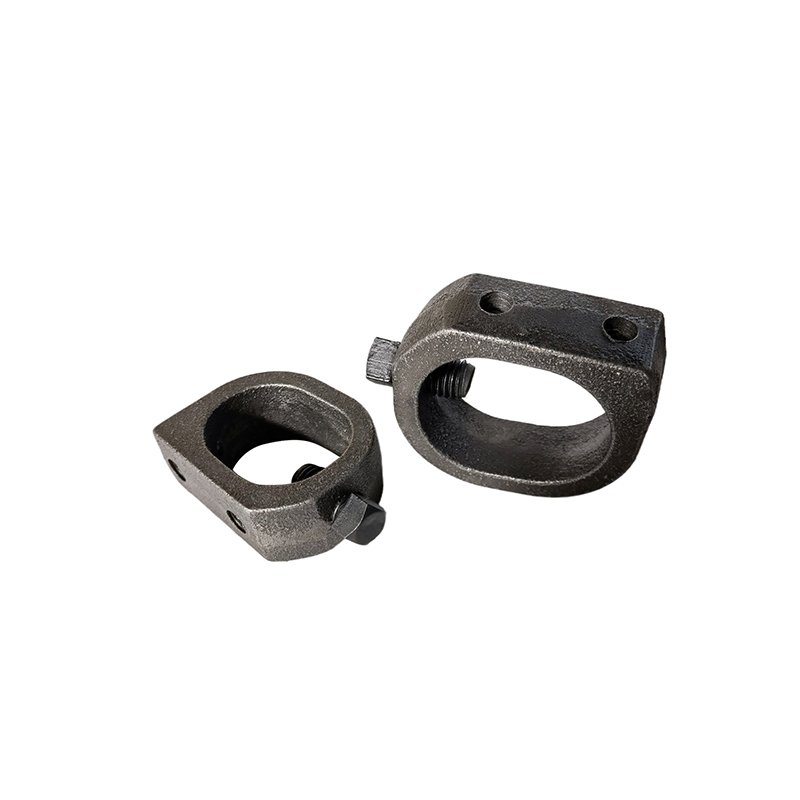

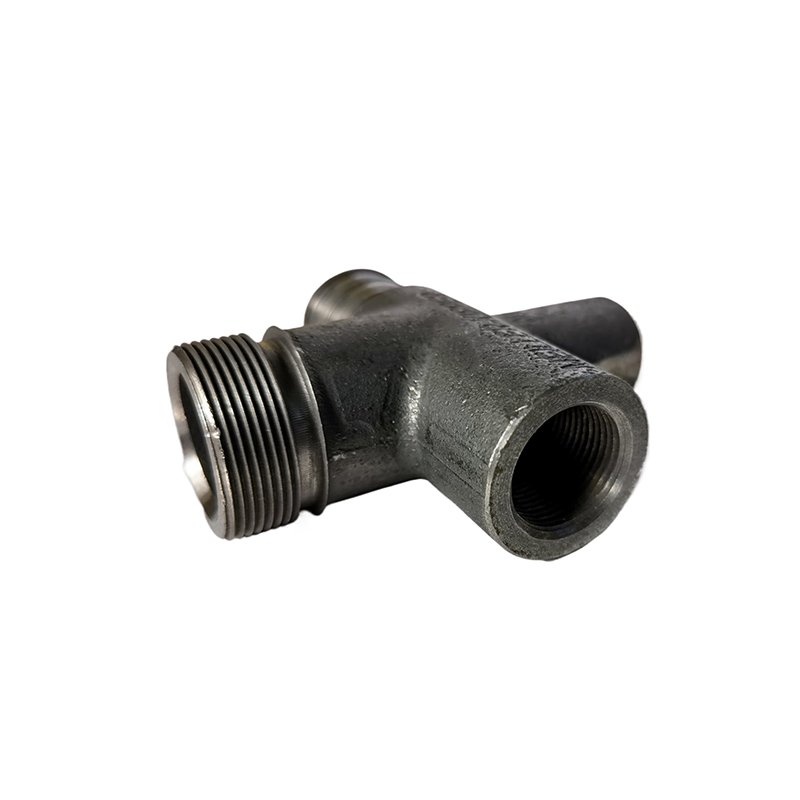

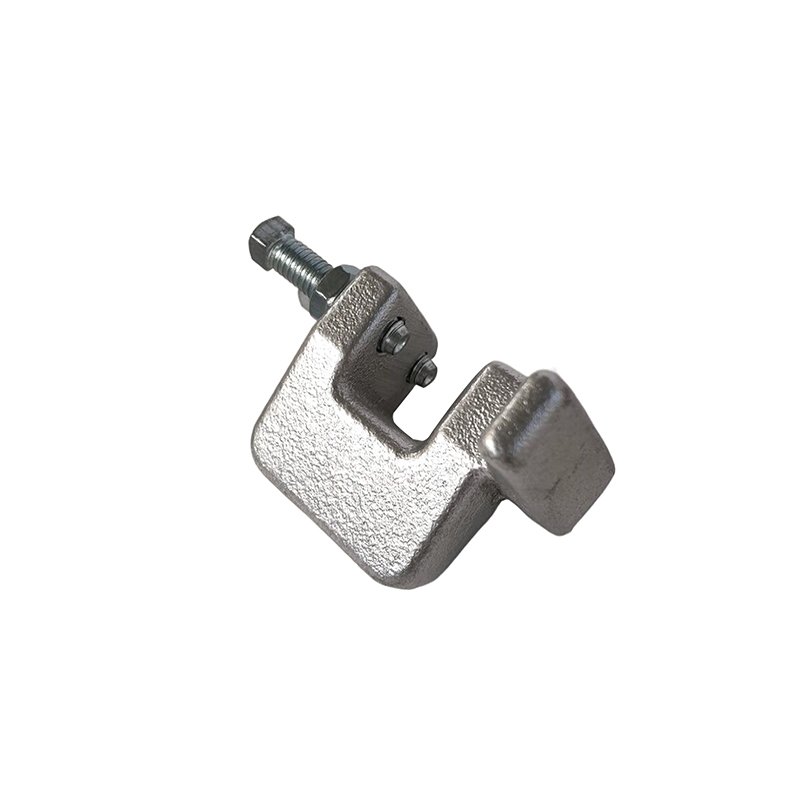

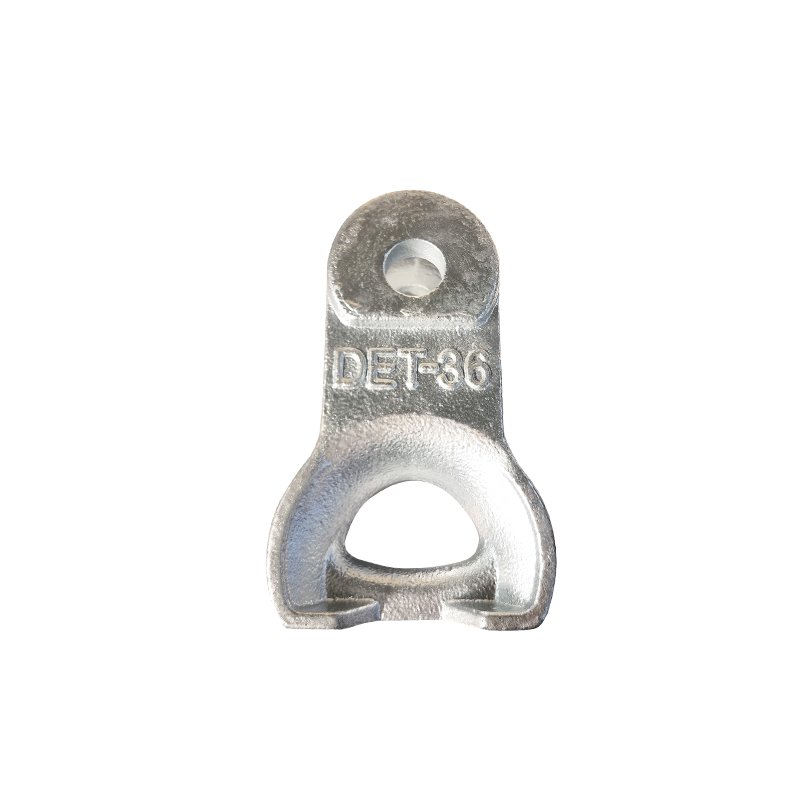

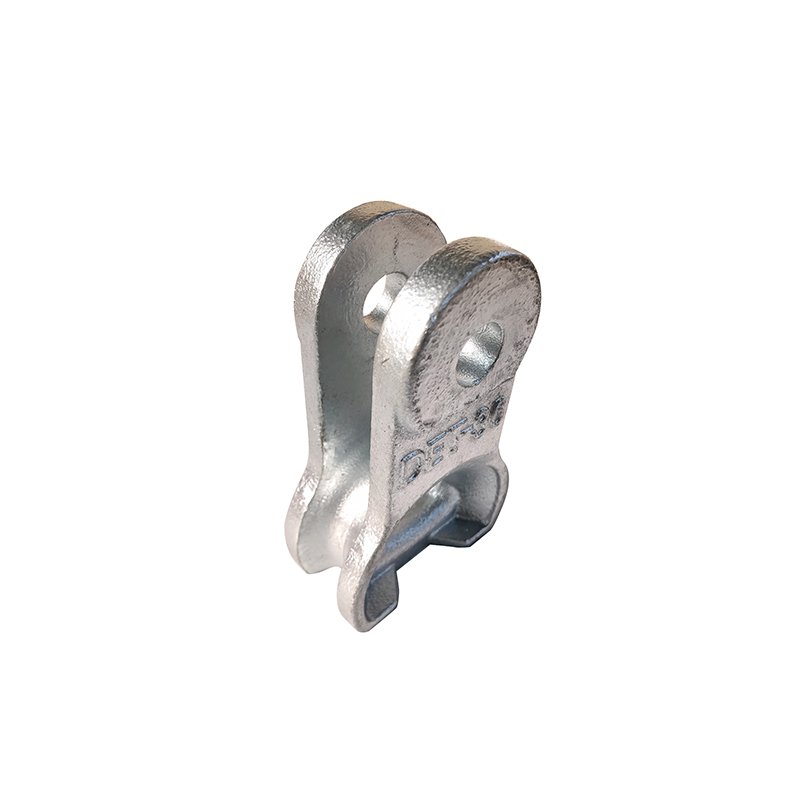

Overhead line accessories look similar in a catalogue and behave very differently in service. Angle and suspension brackets carry static conductor load plus wind swing; their weak point is usually the bolt hole edge, so wall thickness around the hole matters more than overall section. Guy attachments take sustained tension in one direction and are vulnerable to bending fatigue at the eye; the casting needs a generous transition from eye to shank. Tap and connector bodies are tightened repeatedly by crews, which loads threads and seats rather than the body. And transformer mounting iron carries the heaviest static load in the family, where flatness of the mounting face decides whether the transformer sits square.

Knowing which category your part falls into tells us what to control. It also tells you what to ask for on the inspection report: hole position and edge distance for brackets, eye concentricity for guy attachments, thread gauging for connector bodies, and flatness for mounting iron.

Sampling, Approval and the Paperwork Utilities Ask For

Utility procurement usually needs more than a good casting. A typical approval package includes first article dimensional reports against the drawing, material certificates tied to the heat, coating thickness readings, and sometimes a sample for the utility's own mechanical test. We produce these as standard QC output, so assembling the package is a matter of formatting rather than re-testing.

Two details save time. First, name the coating standard (ASTM A153, ISO 1461, or your utility's own spec) at inquiry — coating thickness acceptance is where approval packages most often bounce back. Second, tell us if the approval sample must come from the production pattern rather than a prototype pattern; most utilities require this, and it changes the schedule slightly because the pattern has to be finished before the sample is cast.

Repeat Orders and Pattern Maintenance

Accessories bought year after year live or die on pattern condition. A pattern that is stored badly, or run without maintenance, gradually loses dimension — and the drift shows up as hole position errors three years into a contract, when nobody suspects the tooling. Patterns are stored in-house, inspected before each production run, and repaired or replaced when wear is measurable.

For buyers, there is a simple protection: reference the original approval sample on every purchase order. That single line makes the standard objective, and it is the reason our repeat customers receive hardware that still bolts up to the same jig years later.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

Can you produce accessories to match hardware we already buy?

Send the existing piece or its drawing. We measure and reproduce it, including hole pattern and finish, and quote tooling plus unit price. Matching an incumbent part is one of the most common ways customers start with us.

What quantity makes custom tooling worthwhile?

There is no universal number, but annual volumes in the low thousands usually amortize bracket-class tooling within the first year. Below that, ask whether an existing pattern can be adapted to your hole layout — adaptation costs less than new tooling.

How are small accessory items packed for export?

Bulk in cartons for light hardware, wooden cases for heavier brackets, with itemized packing lists. Mixed containers of several accessory types are routine.

Who owns the tooling?

You do, once paid for. Patterns are stored and maintained here for repeat orders, and we will not run your part for anyone else without your written agreement.

What if our utility requires a specific bolt hole pattern not on your standard?

That is normal. Hole patterns are set by the drilling fixture, so a custom pattern costs a fixture change rather than new casting tooling — usually a small addition, quoted separately.

Do you handle mixed orders of castings and purchased hardware?

We can consolidate castings with purchased fasteners into one shipment with a single packing list, which simplifies customs entry and site receiving.

Why Work With Zhaoyuqi

On every electrical power accessory casting we produce, the 100% inspection happens before packing — dimensions, bolt holes and surface all checked to the drawing standard. This is drawing-based OEM production running from sample approval to bulk sand casting, backed by a 10,000 t/y output and a regular 30-day lead time. For a quotation, send the accessory drawing with your annual quantity.
