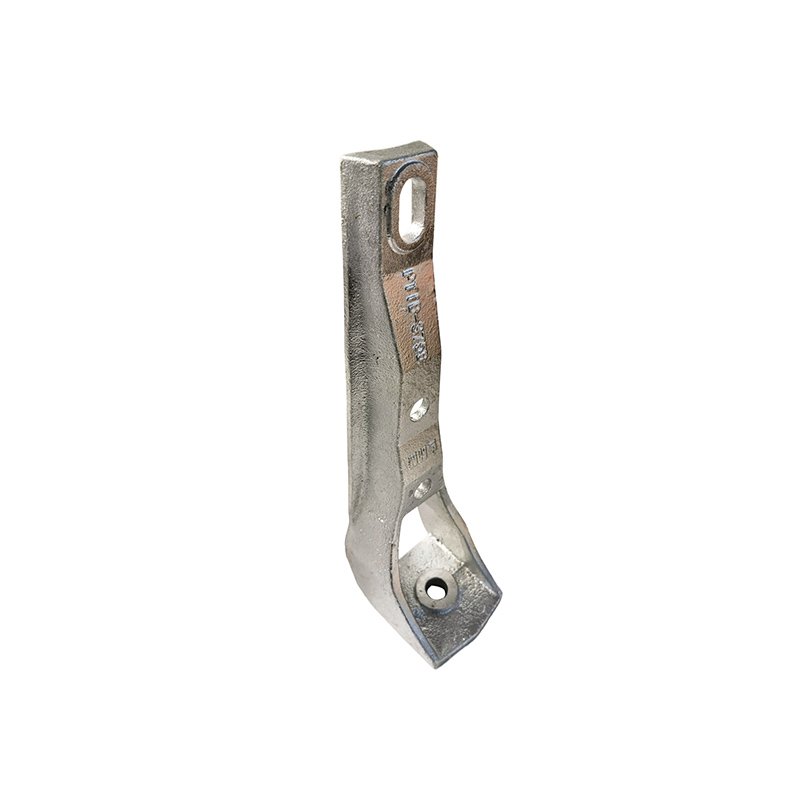

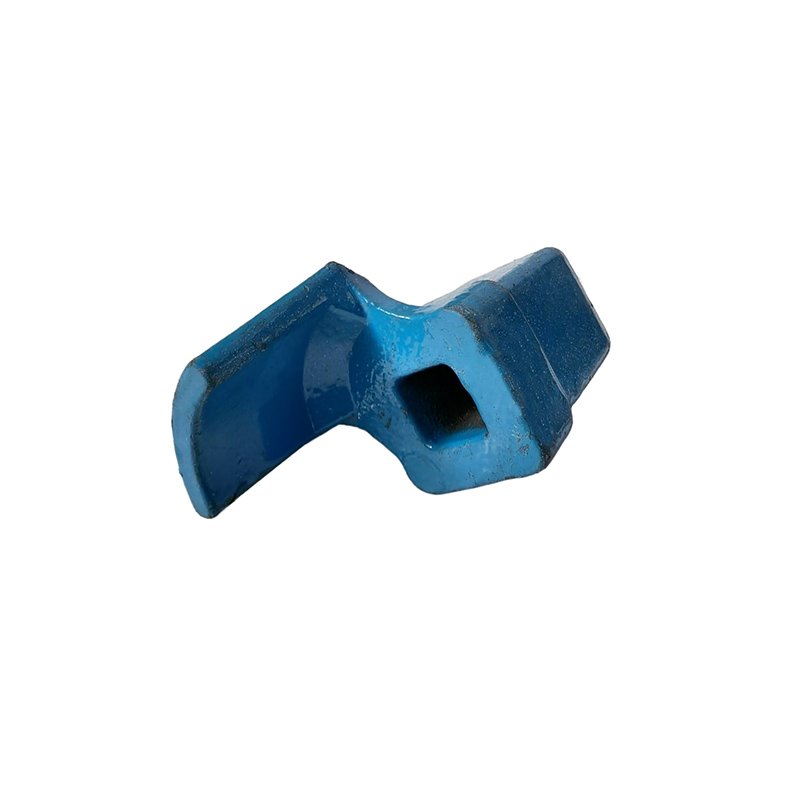

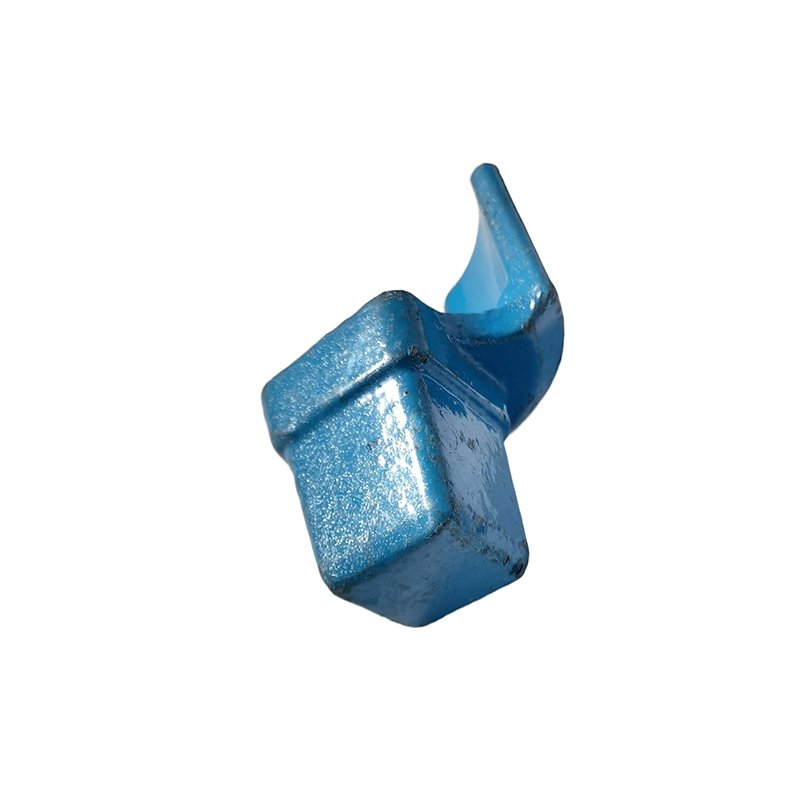

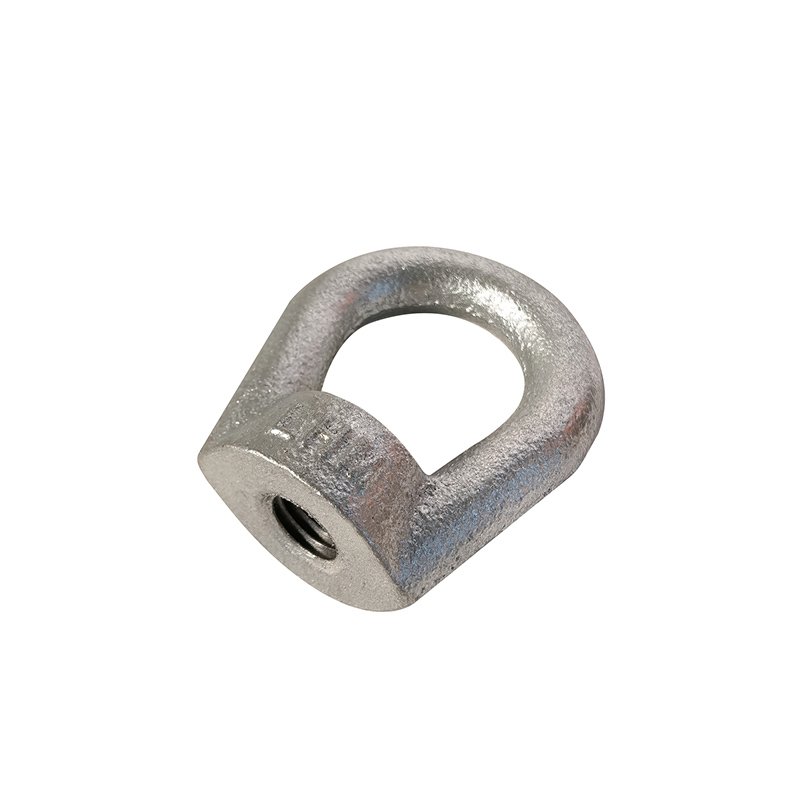

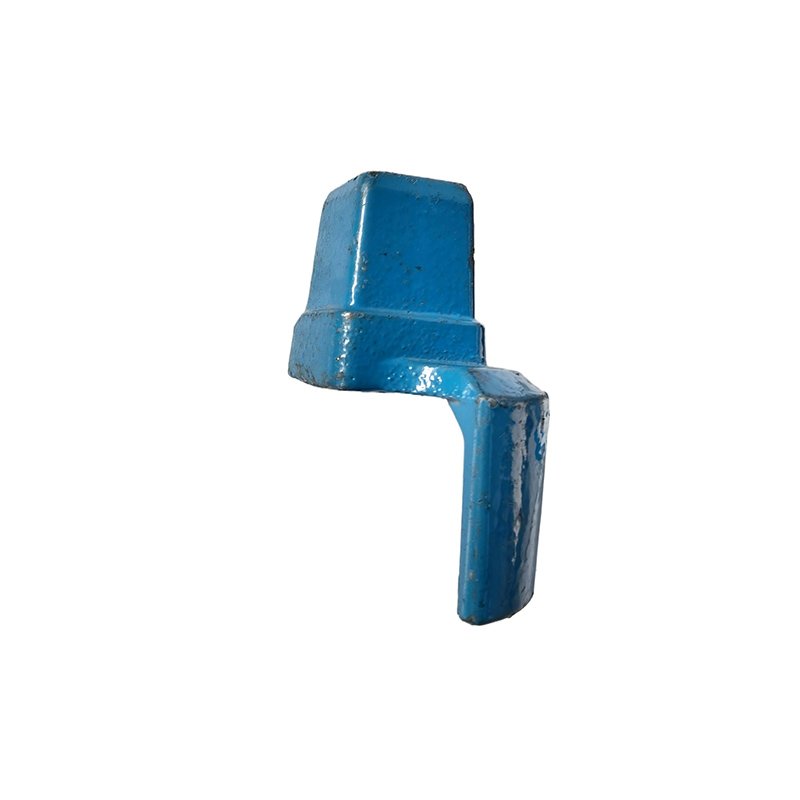

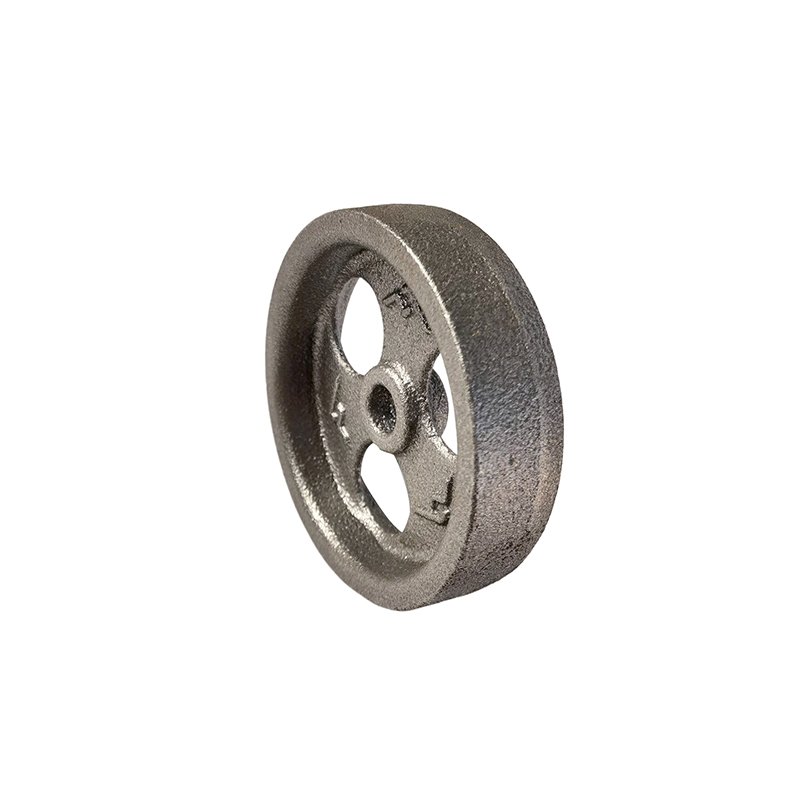

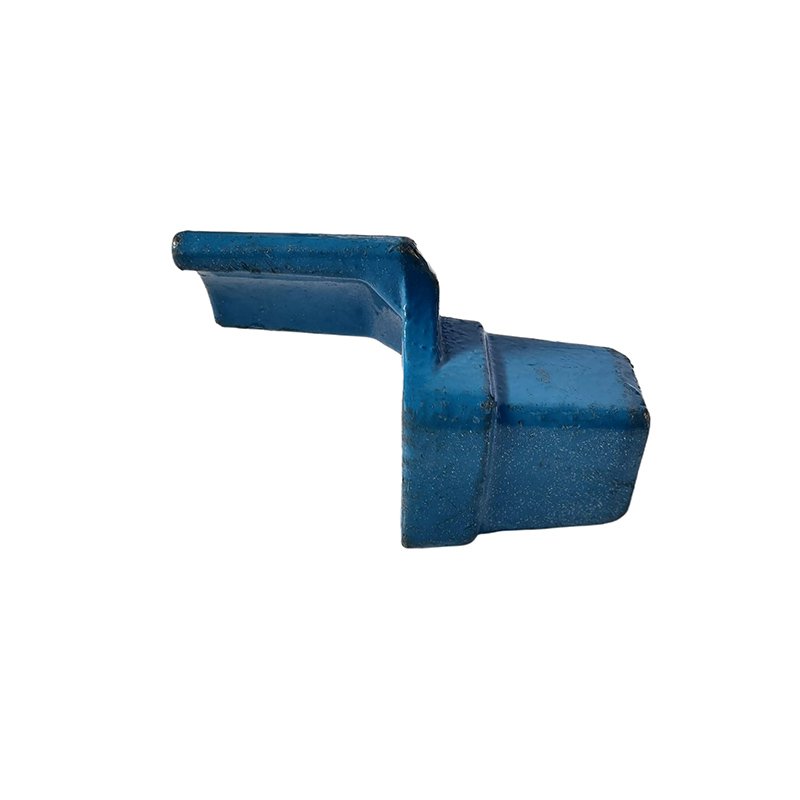

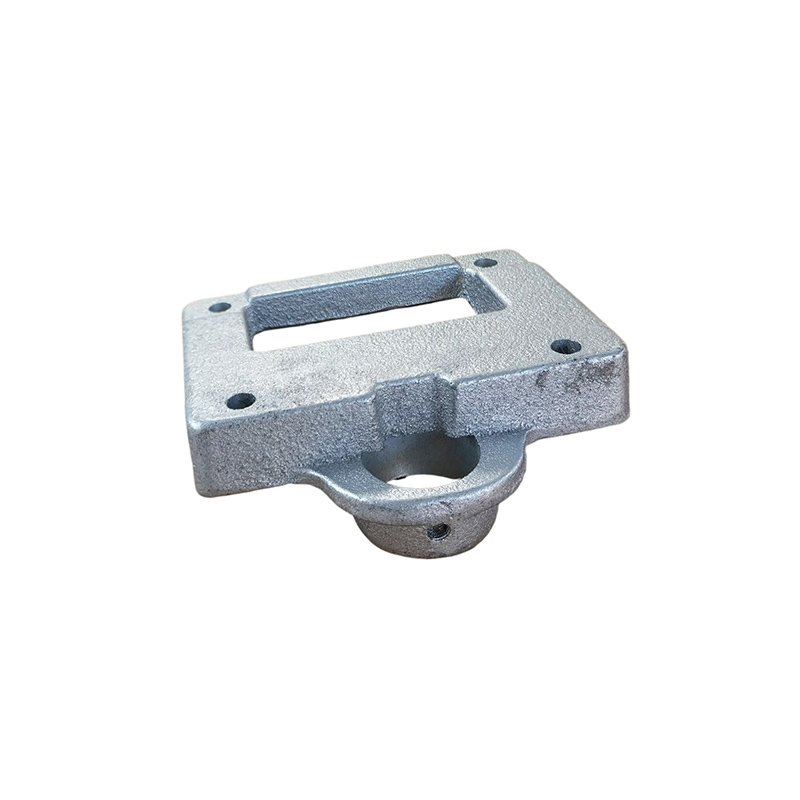

Ductile Iron Electrical Hardware for Overhead Distribution

Electrical hardware on an overhead line is mechanical hardware with an electrical job. It has to carry a conductor, hold an insulator and stay earthed, and it has to do all three without creating a path for current where there should not be one.

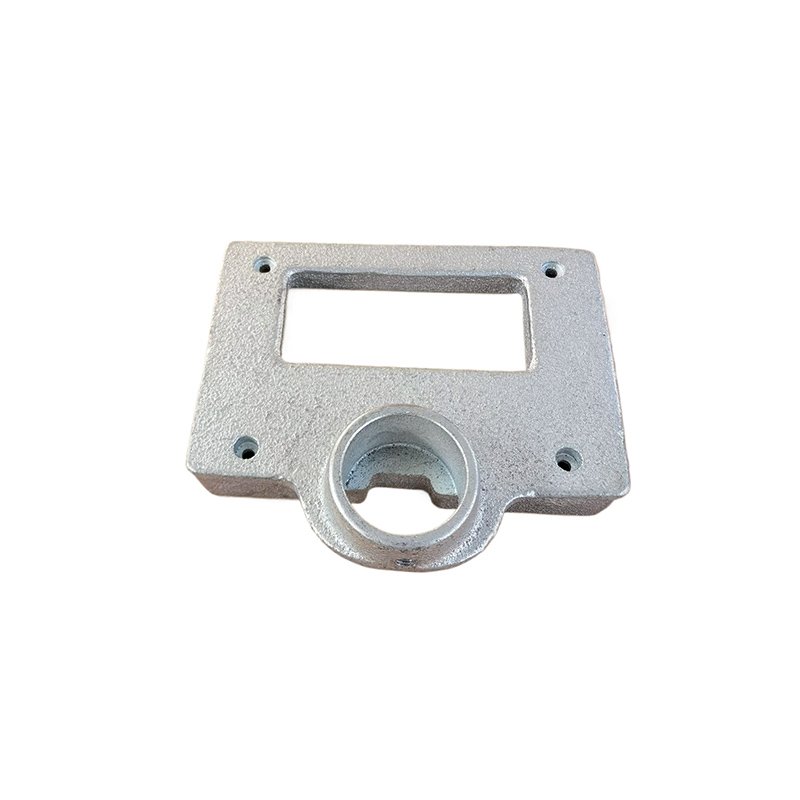

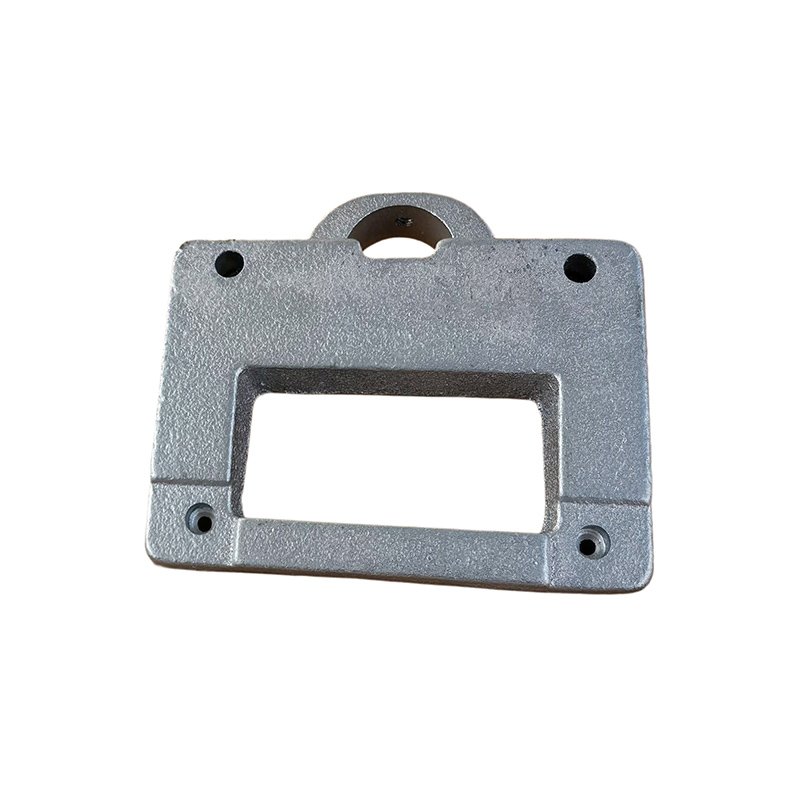

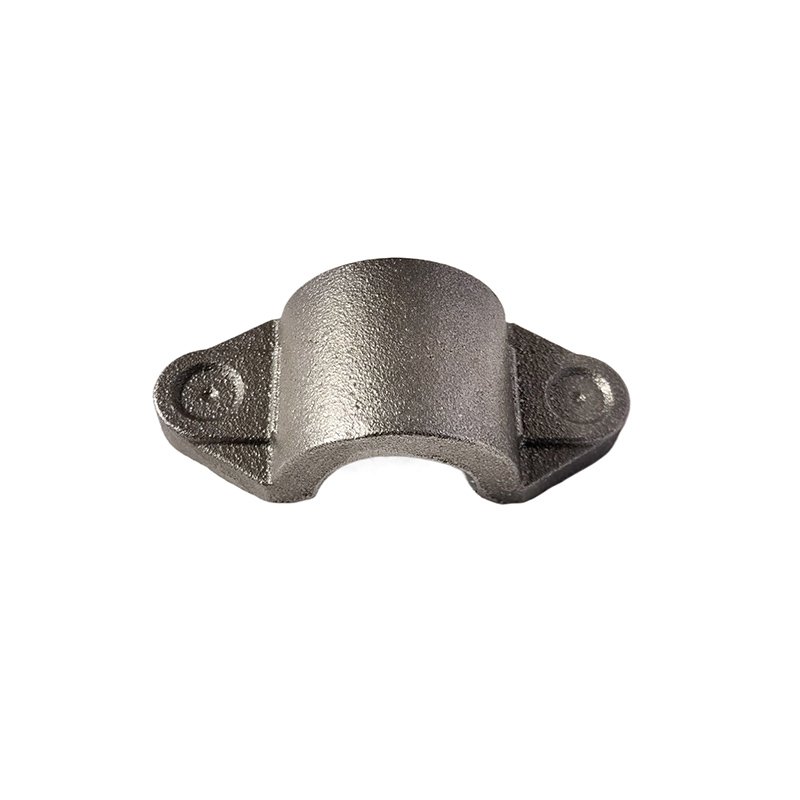

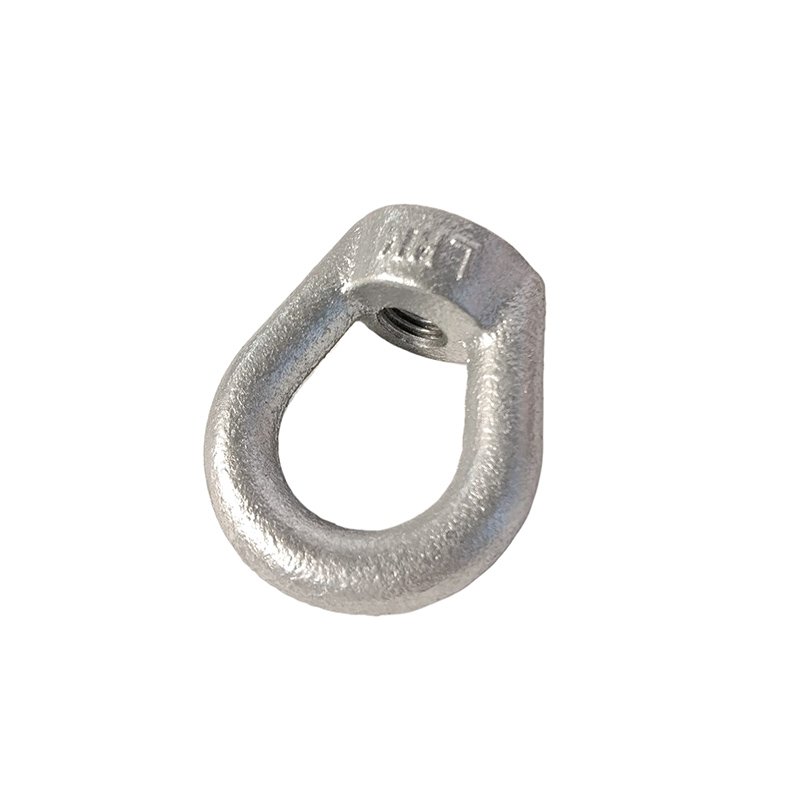

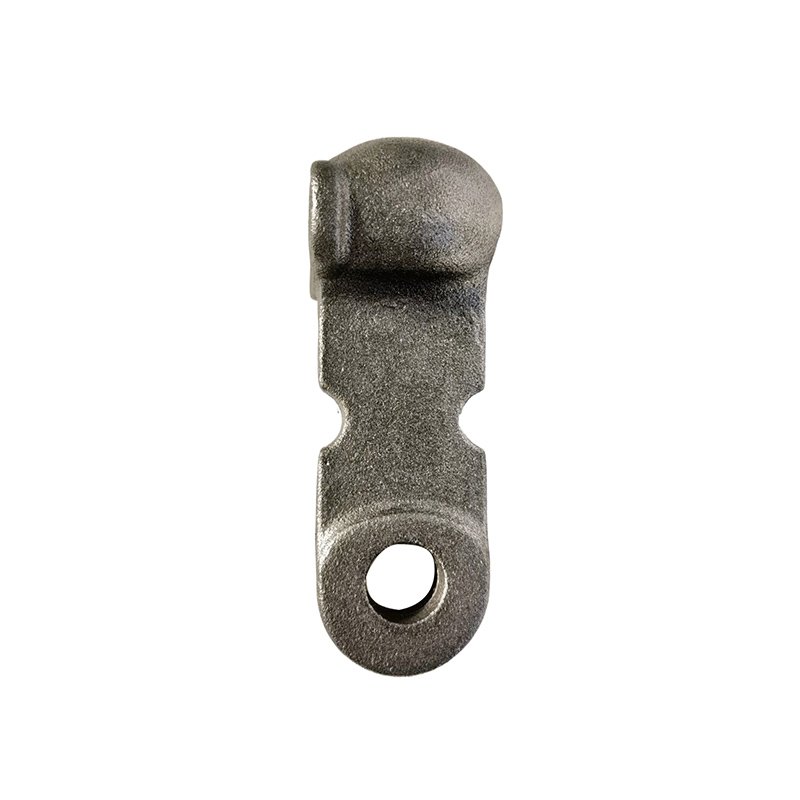

Electrical Hardware Is Mechanical Hardware With an Electrical Job

The mechanical job is straightforward: hold the conductor, resist wind and ice, survive a short circuit. The electrical job is subtler and it is where castings get redesigned after the first flashover.

A metal bracket bolted to a wooden pole is at some potential between the line and earth, decided by the leakage path across the insulator and the pole surface. If the bracket's shape gives that leakage path a short cut, the line flashes over in wet weather and nobody can work out why.

So the shape matters as much as the strength, and a casting can give a shape that a fabrication cannot.

Creepage, Clearance and the Shape That Provides Them

Clearance is the shortest distance through air between two conductive points. Creepage is the distance along the surface of the insulating material between them. Both have to be at least the value the voltage class requires, with an allowance for pollution.

On a metal casting, the creepage path is along the metal itself, so the design has to break that path. That is what a shed, a rib or a standoff does: it forces the surface path to go around an obstacle and adds length without adding bulk.

A cast bracket can include a rain shed that a welded bracket cannot, and that shed may be the difference between a 300 mm creepage path and a 450 mm one on the same footprint.

If your drawing does not show the creepage requirement, we will ask for the voltage class and the pollution level, because the shape may need to change before the pattern is cut.

Grounding: Continuity Through a Coated Part

Every metal part on a pole has to be bonded to earth, and hot-dip galvanizing is a poor conductor at the joint. Two galvanized surfaces in contact have a resistance that depends on the contact pressure and the oxide film, and it can be high enough to fail a continuity test.

The standard answers are a star washer that bites through the coating, a masked area for the ground connection, or a separate copper bond.

Masking is the cleanest and needs to be designed in: a small uncoated pad, with a cast boss around it, so the ground clamp lands on bare iron. We cast the pad and mask it during galvanizing, and we mark it with a ground symbol.

Where a part is powder coated, the same problem is worse, because powder is a better insulator than zinc.

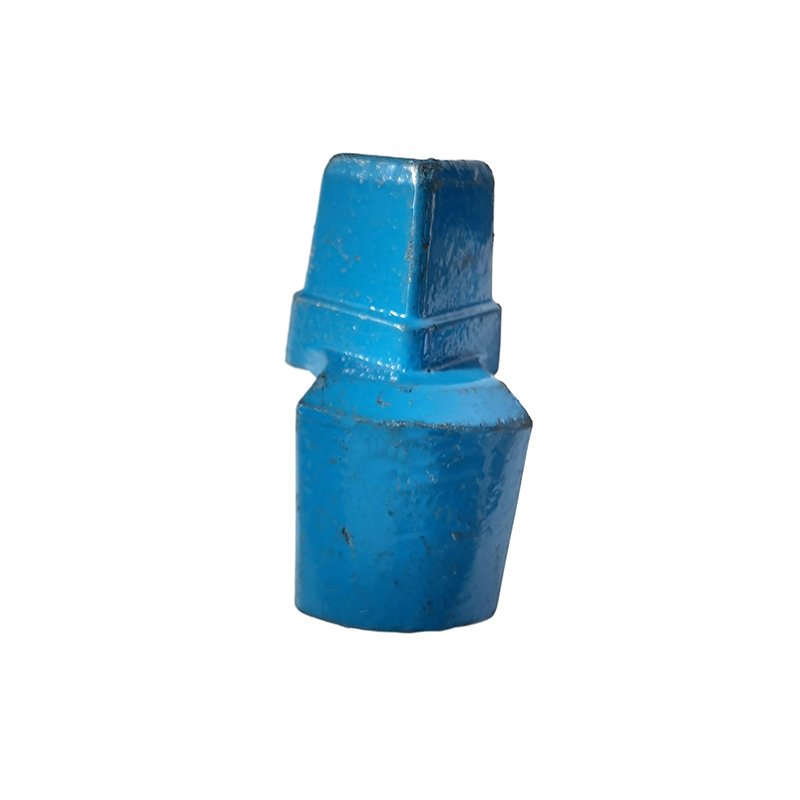

Insulator Pins and the Bending Load

An insulator pin holds a porcelain or composite insulator, and the load arrives as a bending moment at the pin's root. On a 33 kV line with a 1 kN conductor tension and a 200 mm pin, the root sees 200 Nm, and that is before wind.

The pin is a cantilever, so its diameter at the root and the fillet where it meets the base decide whether it survives. A sharp transition from a 25 mm pin to a 60 mm base is a stress concentration of about 2.5, which cuts the fatigue life by more than half.

We cast the pin with a generous fillet, 8 to 10 mm, and, on higher-voltage designs, with a taper that spreads the load over the length rather than concentrating it at the base.

Corona, Edges and the Voltage Where It Starts

Corona starts at sharp edges and at small radius points where the electric field concentrates. Below about 33 kV it is usually a nuisance; above 66 kV it becomes a source of radio interference, ozone and eventual erosion of the fitting.

A casting can be designed with generous edge radii, but it can also be a source of the problem: a rough as-cast surface, a sharp parting line or a gate stub left unground will all produce corona at a lower voltage than a smooth surface.

For hardware above 66 kV, we specify a smoother as-cast finish, grind the parting line flush on the field-facing surfaces and check the radii on the first article. It costs a finishing operation and it removes a class of complaint that is very hard to diagnose in service.

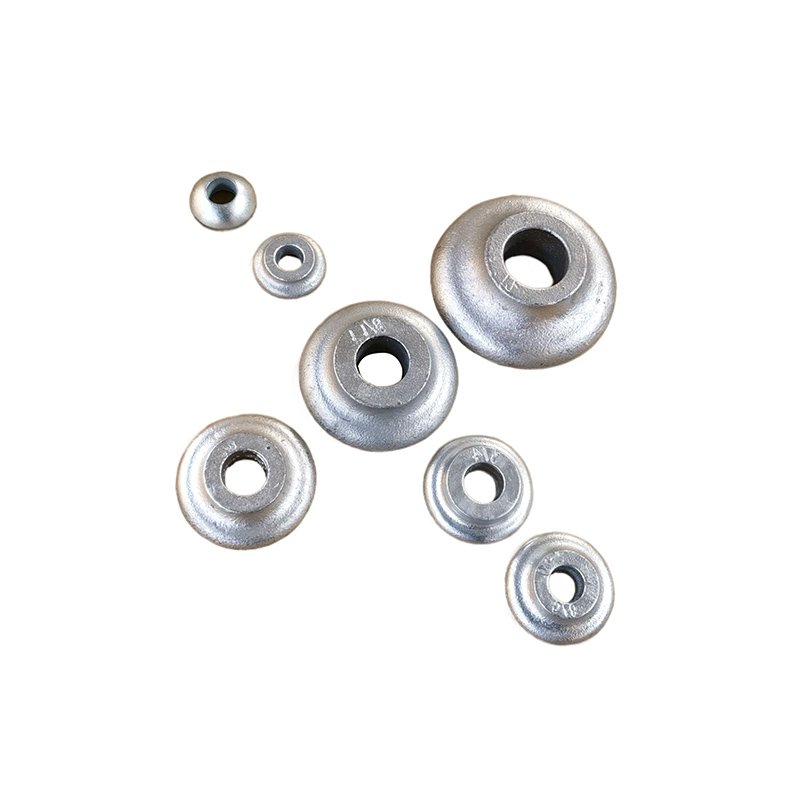

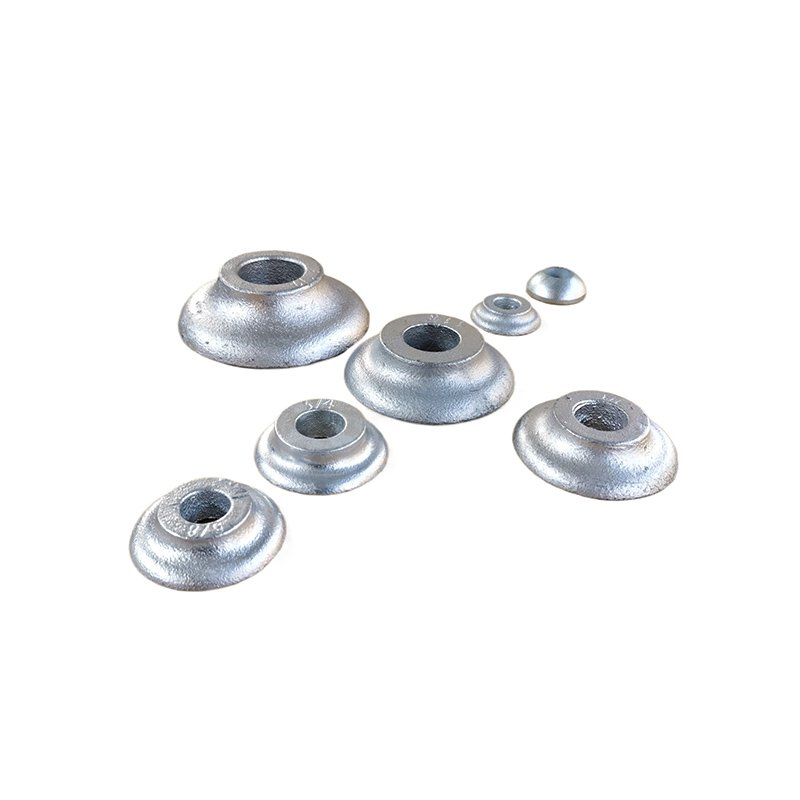

Galvanizing, Conductivity and the Bolt Interface

Galvanizing protects the iron and insulates the joint slightly. The two requirements conflict at every bolted connection.

The practical resolution is to rely on bolt pressure to break through the coating at the contact faces, and to specify a bolt with enough tension to do it. A galvanized bolt at the correct torque will displace the zinc at the thread and under the head and make a low-resistance joint. An under-torqued bolt will not, and the joint will heat under fault current.

Where a connection carries fault current regularly, we recommend a brazed or bolted copper bond rather than relying on the mechanical joint.

Testing: Mechanical, Electrical and the Gap Between

We can test the mechanical side: tensile, bending, proof load, galvanizing thickness, thread gauging.

The electrical tests that matter, such as a power arc test or a corona inception test, are done in a high-voltage laboratory and are not something a foundry can offer. If your specification requires them, they are a type test on the design, not a batch test on the castings.

What we can do is supply the material and dimensional evidence that the design assumed, and make sure the castings do not introduce a defect that would change the electrical behaviour.

Standards and Marking for Utility Acceptance

Most utilities buy electrical hardware to their own standard, or to a national one such as ANSI C135 or BS 3288. Those standards specify the material, the galvanizing, the proof load and the marking.

Marking is usually the manufacturer's name or symbol, the standard number and the strength class, cast in or stamped so it survives galvanizing. A part that cannot be identified after twenty years on a pole is a part nobody can replace correctly.

We cast the marking into the pattern and will quote to any standard that names a material and a test we can perform, and say plainly when a test has to be done outside.

Pollution, Creepage Distance and Shed Design

Creepage distance is specified per kilovolt, and the figure depends on how dirty the air is.

In a clean rural area, 16 mm per kV is typical. In an industrial or coastal area with conductive pollution, it rises to 25 or 31 mm per kV, and in a desert with sand and salt it can be higher still.

On a metal fitting, the creepage path runs along the metal surface, so the design has to interrupt it. A shed, a rib or a standoff forces the path around an obstacle, and a well-placed shed can add 40 percent to the creepage distance on the same footprint.

The shed also has to shed water, which means it needs a downward slope and no upward-facing pocket. A shed that holds water is worse than no shed, because the water bridges the path it was meant to lengthen.

If your specification names a creepage distance, send it with the drawing. It changes the shape, and the shape has to change before the pattern is cut.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

Can you cast hardware for 110 kV and above?

Mechanically yes, but corona and radio interference requirements usually push those fittings to aluminium. We will say when iron is the wrong material rather than quote it.

How do you handle grounding continuity?

With a masked uncoated pad, marked with a ground symbol, so the clamp lands on bare iron. A star washer alone is not reliable on thick galvanizing.

Which galvanizing standard do you work to?

ASTM A153 or ISO 1461, at 70 to 90 micrometres, with threads chased after coating.

Do you test creepage distance?

We measure it on the first article against the drawing. The requirement itself comes from the voltage class and the pollution level, which the customer specifies.

Can you supply insulator pins to match an existing insulator?

Yes. Send the insulator catalogue number or a sample, and we will match the pin diameter, thread and cotter hole.

What is the lead time for a utility order?

Five to six weeks for a repeat pattern, seven to nine for a new one including galvanizing and sample approval.
