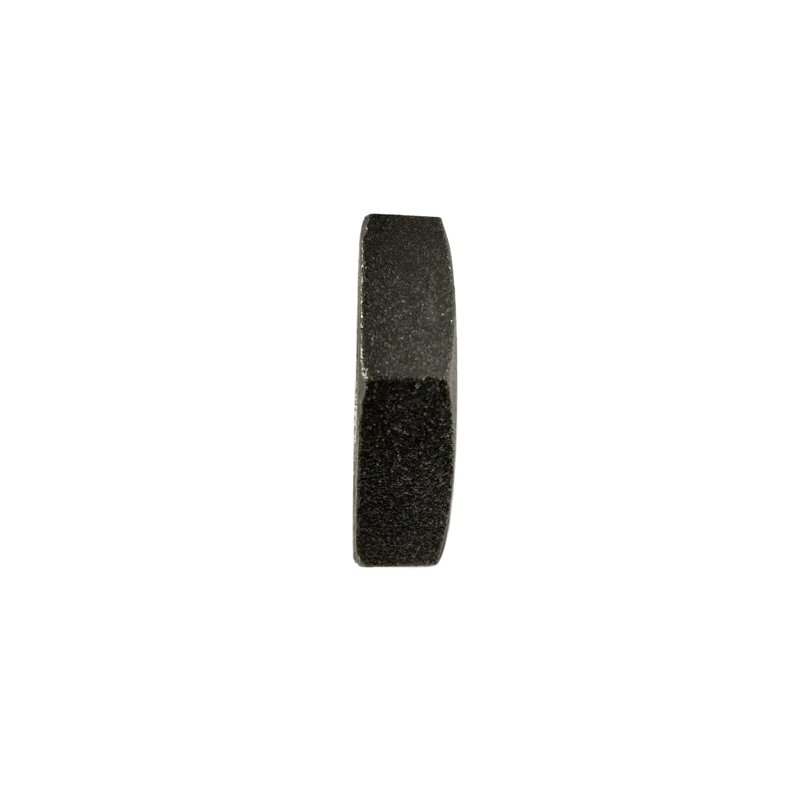

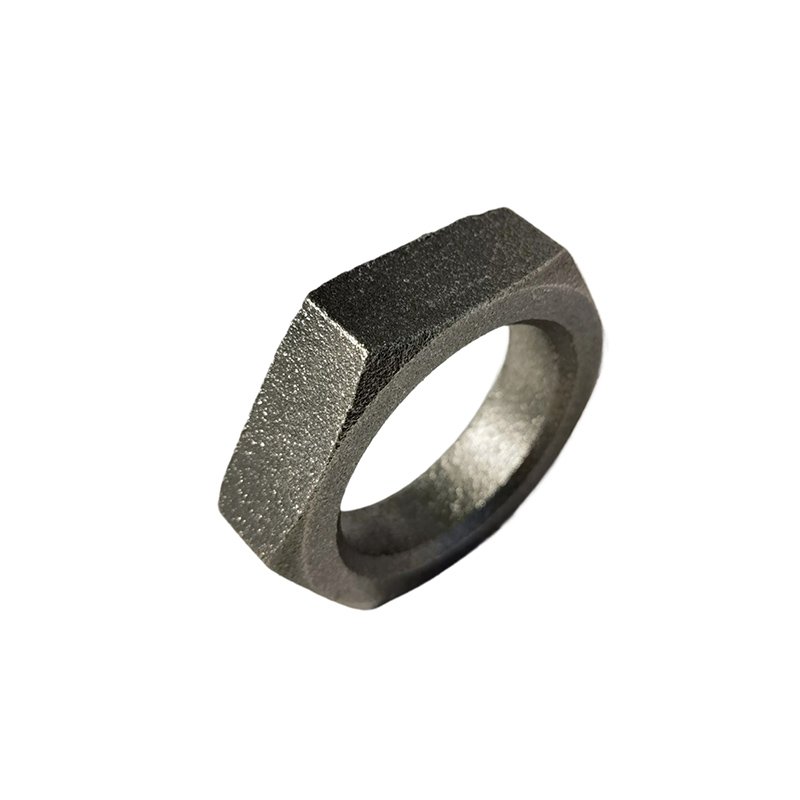

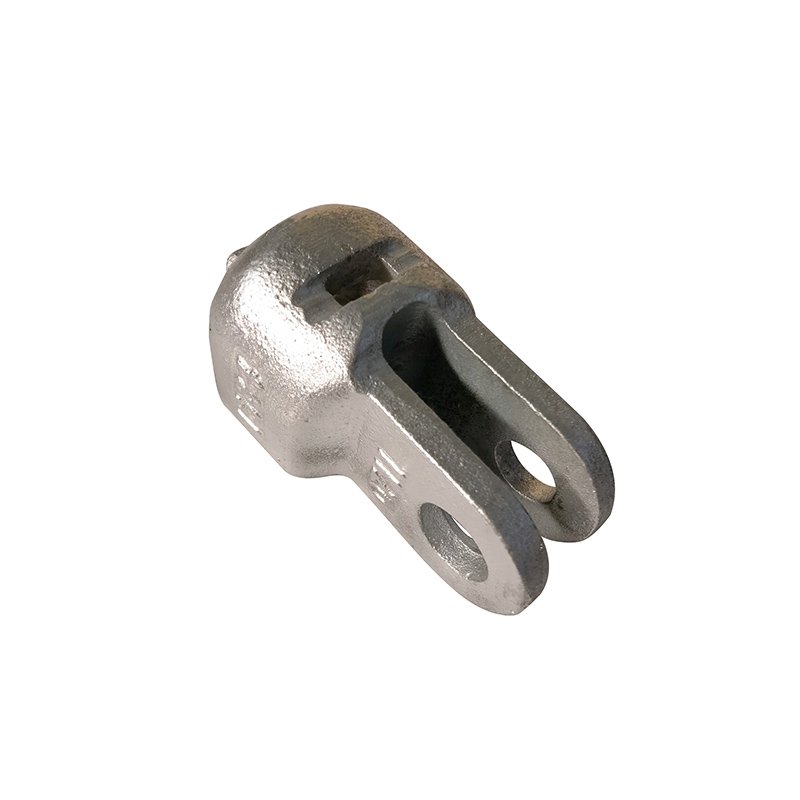

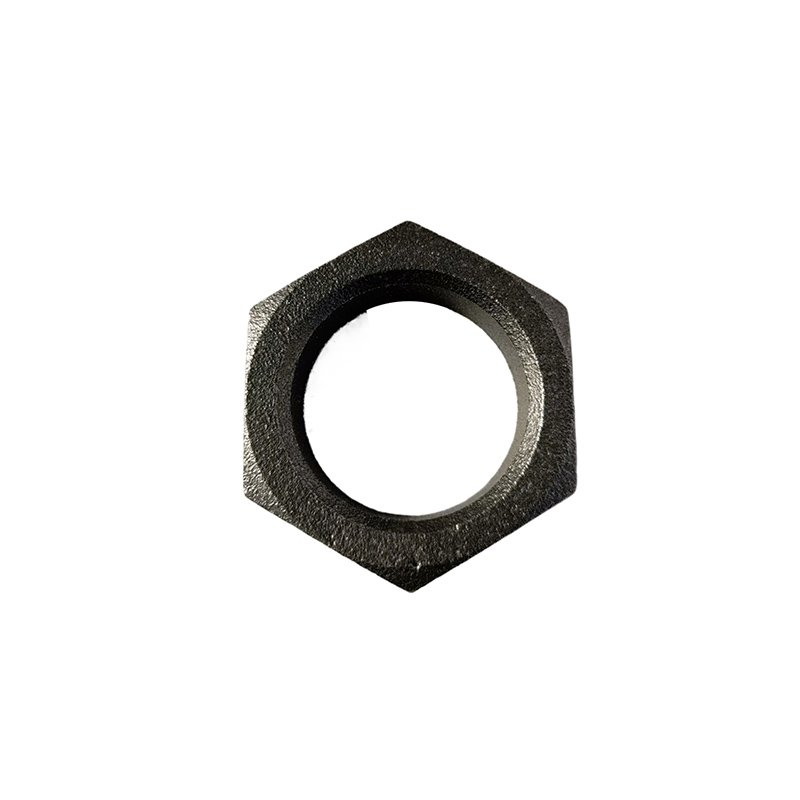

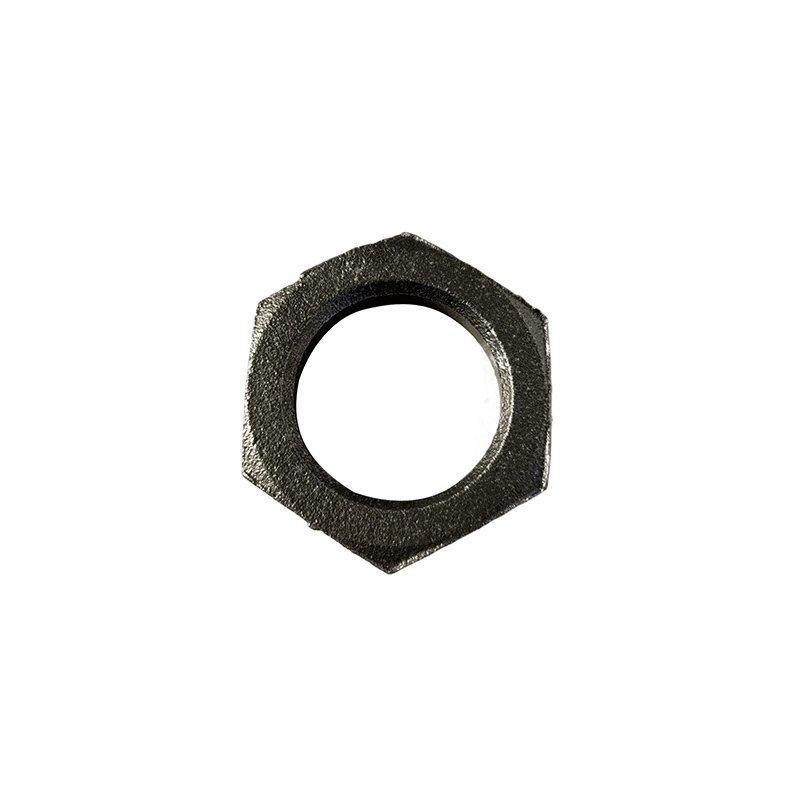

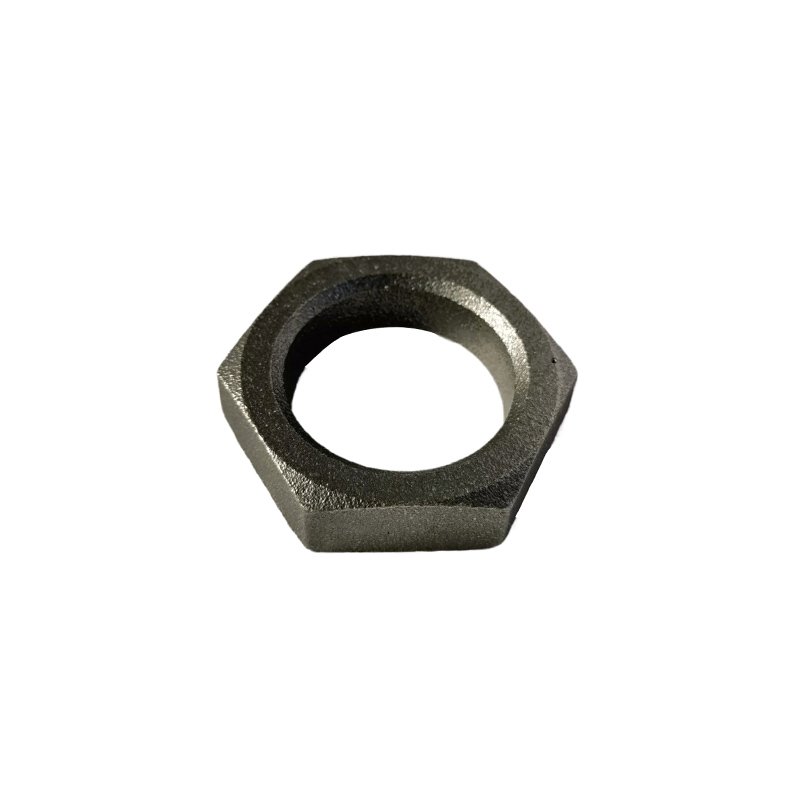

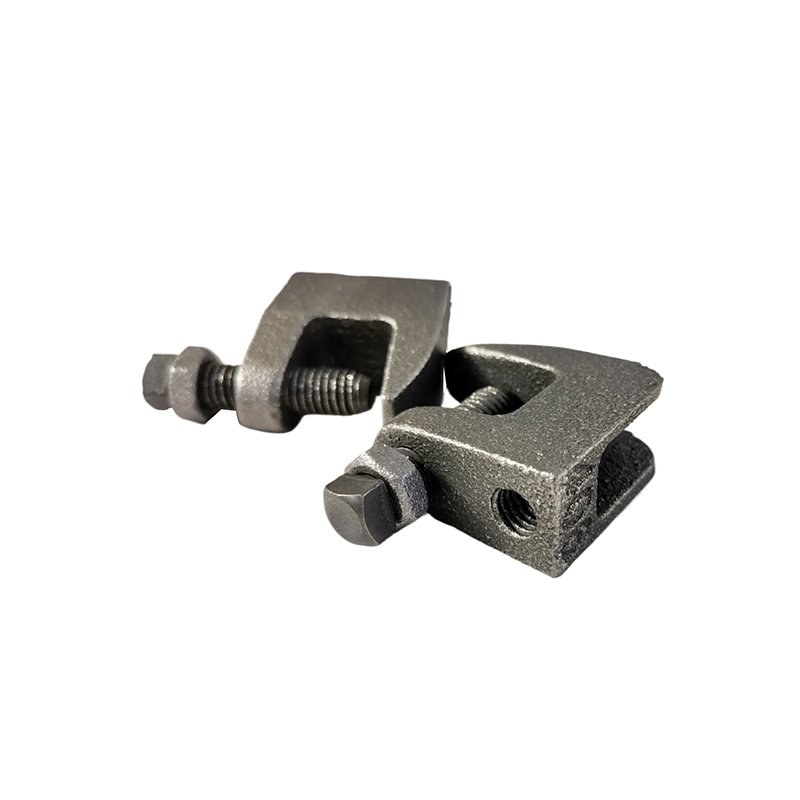

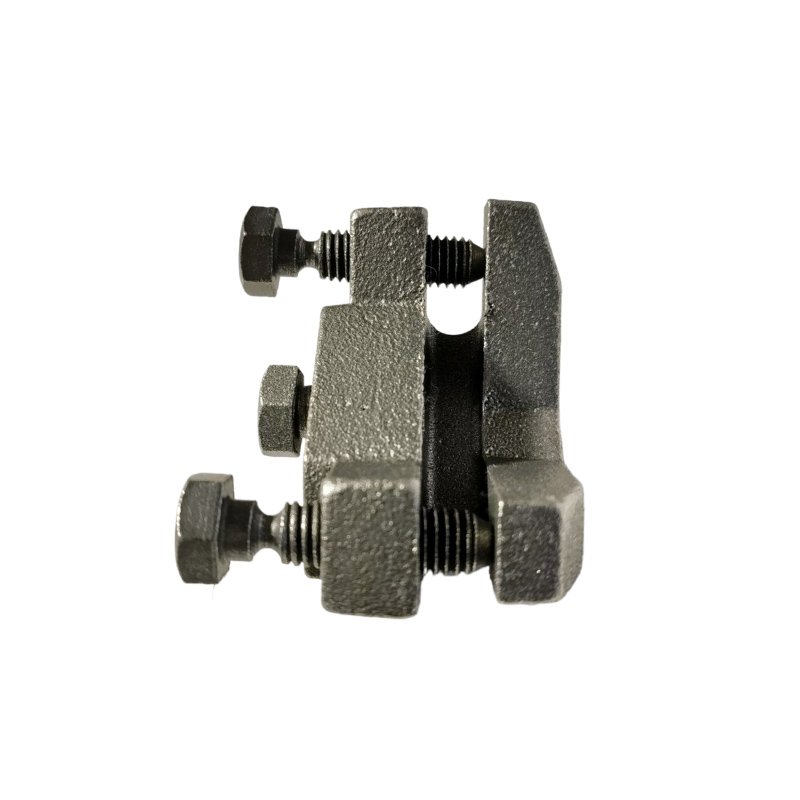

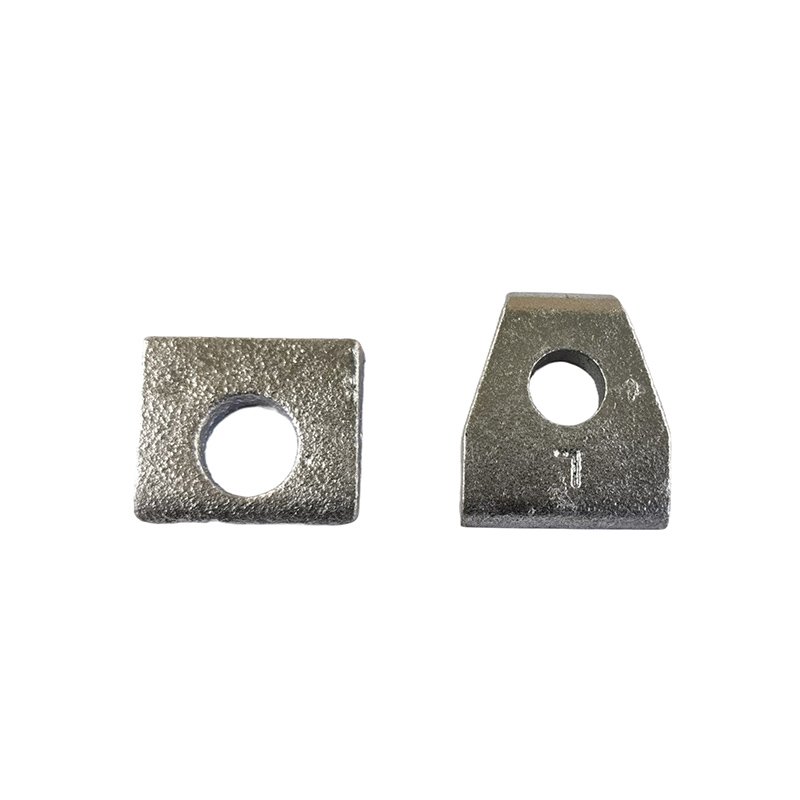

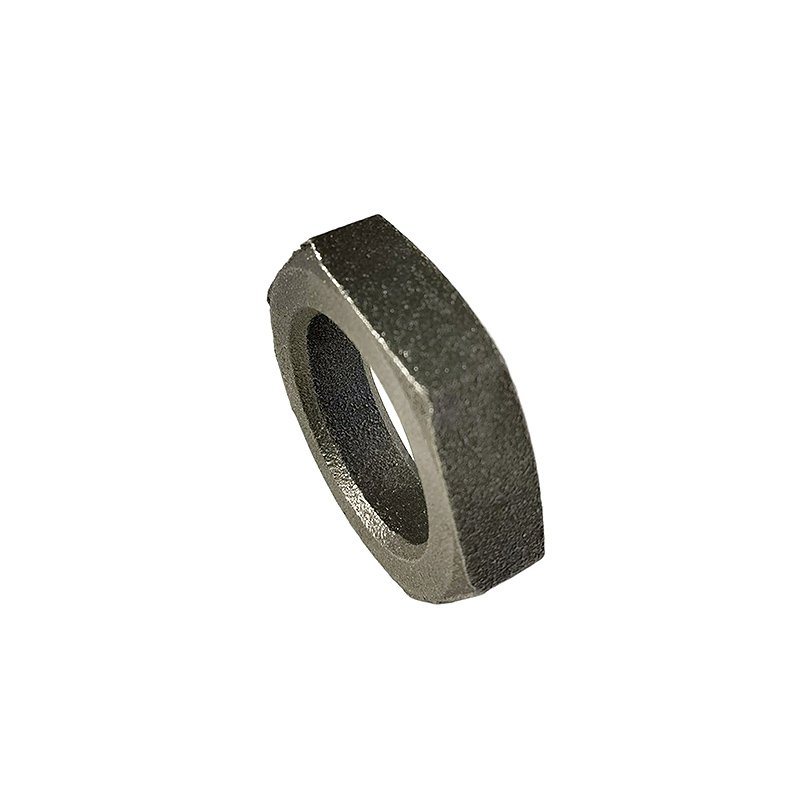

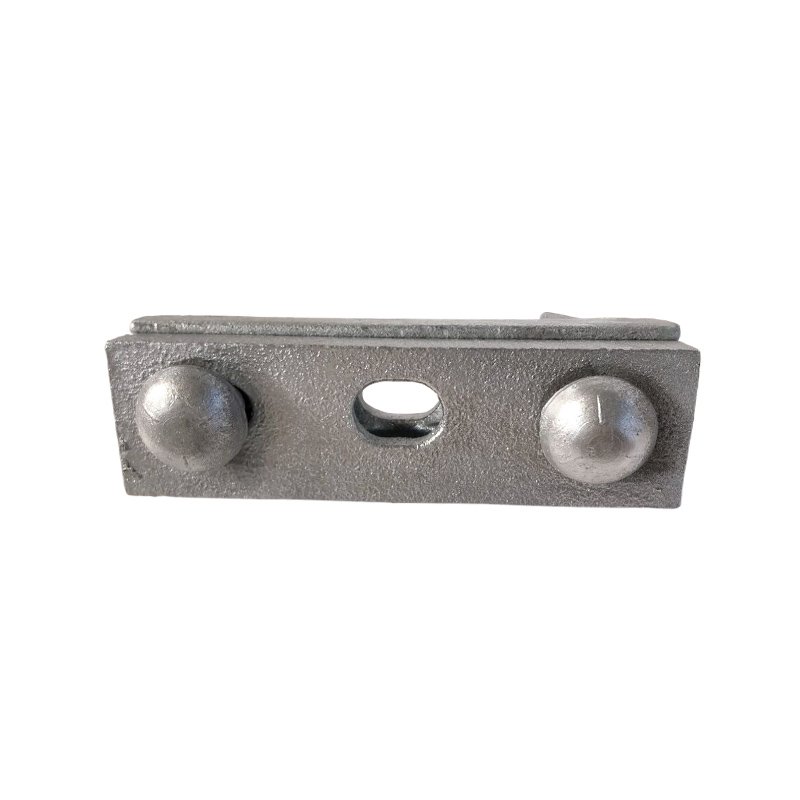

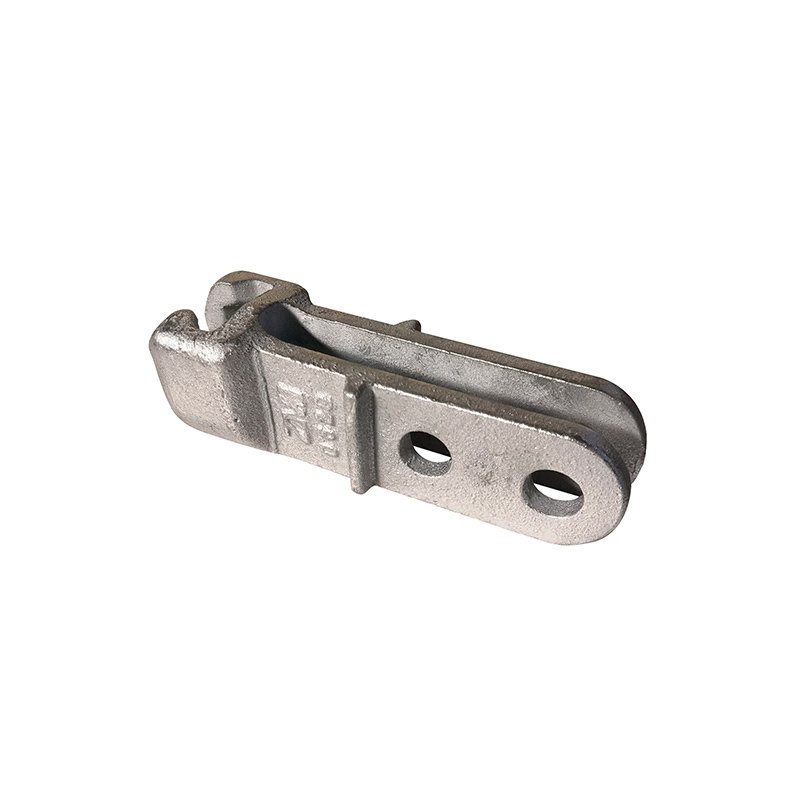

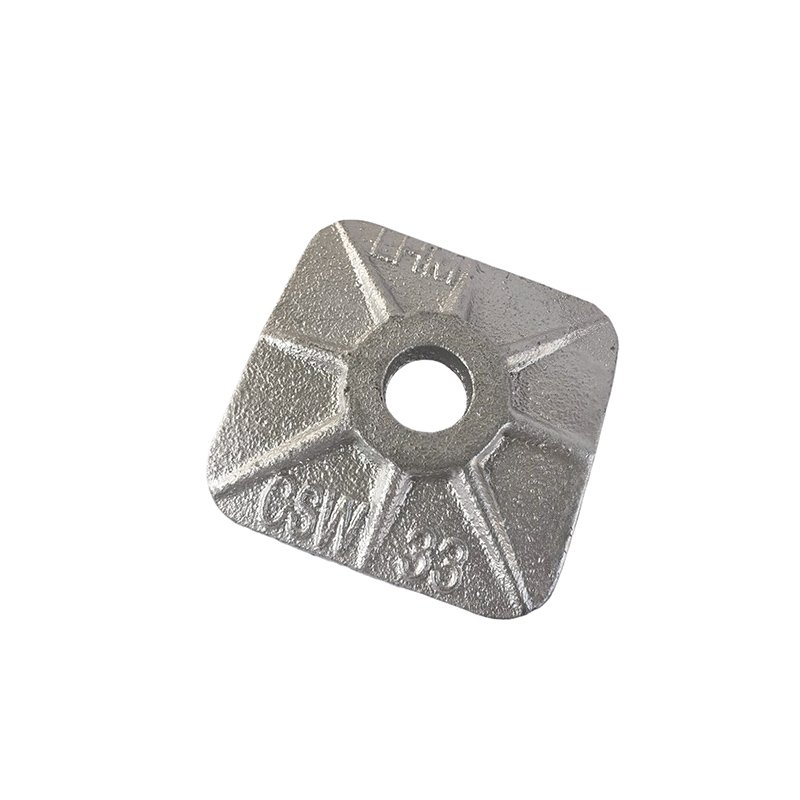

Ductile Iron Casting Parts Verified Heat by Heat

Product Details

Every foundry brochure says ductile iron with a spheroidisation rate above 90 percent. Very few say how they know, and fewer still can show a certificate that ties a specific casting to a specific heat. That gap is where buyers get hurt, because ductile iron that is not actually ductile behaves like grey iron with a better label.

What "Ductile" Actually Promises

Ductile iron is not a grade, it is a structure. The graphite has to be spherical, and the spheres have to be numerous and evenly distributed. When they are, the material yields before it breaks, and elongation of 15 to 18 percent is normal on the common grades.

When the structure is wrong, the same chemistry produces flake graphite, and the part behaves like grey iron: strong in compression, brittle in tension, and prone to cracking at a bolt hole. The difference is not visible on the outside. It shows up in a tensile test, in a micrograph, or in service.

So the promise of ductile iron is really a promise about process control, and it should be bought that way.

Nodularity: the Number Buyers Quote and Rarely Verify

Nodularity is the percentage of graphite that is fully spherical. Above 90 percent, the properties are consistent. Below about 85 percent, tensile strength and elongation fall quickly, and a part can pass a hardness check while failing in fatigue.

The measurement is metallographic: a polished section, etched, examined at 100x, and graded against a reference chart. It is a small sample of a large part, which is why it is done per heat rather than per casting.

The process levers are magnesium treatment and inoculation. Magnesium drives the graphite spherical; if it is insufficient, oxidised or fades before the mould fills, the structure reverts. Inoculation after the magnesium treatment keeps the graphite fine and counters the tendency to form carbides in thin sections.

We check every heat. The result goes on the certificate with the tensile and elongation figures, and it can be traced to the castings poured from that heat.

Grades, and How They Map Between Standards

The common European grades are EN-GJS-400-15, 450-10, 500-7 and 600-3, where the first number is tensile strength in MPa and the second is elongation. The Chinese equivalents are QT400-15, QT450-10, QT500-7 and QT600-3. The American system is ASTM A536, expressed as 60-40-18, 65-45-12, 80-55-06 and so on, where the numbers are tensile, yield and elongation in ksi and percent.

The mapping is close but not exact, and the differences matter at the edges. A 65-45-12 is roughly a 450-10, but the yield requirement is specified differently. If your drawing cites one system and your customer's inspection cites another, settle it before the first heat rather than after.

We pour all four common grades and will recommend the lowest one that satisfies the duty, because higher strength costs machinability and money.

Wall Thickness and the Sections Where Ductility Fades

Ductility is not uniform through a casting. A thick section cools slowly, the graphite grows coarser and the matrix becomes more ferritic; a thin section cools fast and may form carbides, which are hard and brittle.

In practice, ductile iron at 5 to 15 mm wall behaves as the grade says. Below 4 mm, chill and carbide formation become likely, and elongation drops even though the tensile test from the coupon still looks fine. Above 25 mm, the section is prone to shrinkage porosity unless it is properly fed, and the porosity is what fails, not the metal.

If your part has a 3 mm rib attached to a 30 mm boss, the drawing has a problem that no grade can fix. We would rather discuss gating and section design at quotation than deliver a part that meets the certificate and cracks in service.

Heat Treatment: When Annealing Is Necessary

As-cast ductile iron is usually adequate. Where it is not, the reason is normally one of three.

Carbides in thin sections, which raise hardness and reduce machinability. A ferritising anneal at 900 to 950 degrees followed by controlled cooling dissolves them.

A requirement for higher elongation than the as-cast structure gives, typically on parts that will be formed or bent after casting. The same anneal applies.

A requirement for wear resistance, where the part needs a harder matrix. Normalising or quenching and tempering produces a pearlitic or martensitic structure, at the cost of elongation.

Heat treatment adds cost and a week to the lead time. We will say at quotation whether the drawing actually needs it, and sometimes the answer is that a different grade would do the job without it.

Machining Ductile Iron: Different From Grey

Ductile iron machines differently from grey, and a shop that treats them the same will break tools. The nodules smear rather than break, so the chip is stringier, and the material work-hardens at the cut. Feeds and speeds that work on grey iron produce built-up edge and poor finish on ductile.

Practically, that means slightly lower surface speed, a sharper edge and a more rigid setup. It also means the machined surface on ductile iron can look smeared if the tool is dull, which is a finish problem rather than a metallurgical one.

On our side, we control the as-cast surface and the machining allowance so the first cut is below any chilled skin. A casting with 0.5 mm of allowance and a chilled surface will destroy an insert in one pass.

The Certificate That Travels With the Parts

Every shipment carries a certificate listing the heat number, the chemical analysis, the tensile and yield strength, the elongation and the nodularity. The heat number is cast or stamped on the part or on the batch label, so a casting in the field can be traced back to the metal it was poured from.

That traceability is the practical difference between buying ductile iron and buying "ductile iron". When a customer has a failure, the certificate tells them within an hour whether the material was the cause or whether the design was.

If a third-party inspection is required, we can arrange it and issue the report alongside our own. We would rather have the inspector in the plant than have the customer discover a problem at their end.

Ductile Iron Against Steel and Forging

Buyers often ask why a part is ductile iron rather than steel, and the answer is usually shape, not strength.

A forged steel part needs a die and a press, and the shape has to be forgeable, which means no internal cavities and a limited section change. A casting can have a cored passage, a rib and a boss in one piece, and the tooling costs a fraction of a forging die.

Steel wins where elongation above 20 percent is needed, where the part will be welded, or where impact toughness at low temperature is specified. Ductile iron's transition temperature is higher than steel's, and a part that must survive minus 40 degrees is usually steel.

On machinability, ductile iron is easier than steel at the same strength, which shows up in the finished price. On weight, they are similar, because the densities are close; a ductile part is lighter only because the shape can be thinner where the load allows.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

Can you supply material certificates to EN 10204 3.1?

Yes, for heats where the certificate is requested at order. The 3.1 format requires the inspection to be independent of the manufacturing department, which we arrange through a partner laboratory.

What is the difference between QT500-7 and EN-GJS-500-7?

In practice very little; the Chinese and European grades are near-equivalents. The test coupon shape and the sampling position may differ, which is worth agreeing before the first article.

Do you pour austempered ductile iron?

No. ADI needs a controlled austempering line, which we do not operate. We will say so rather than quote a grade we cannot verify.

How do you avoid porosity in heavy sections?

Riser design, chill placement and a pouring temperature that keeps the metal liquid long enough to feed. On heavy parts we section the first article to prove the feeding worked.

Can ductile iron parts be welded?

With difficulty, and the weld is not the same material. We do not recommend welding a ductile casting that carries load, and we will say that plainly rather than supply a repair procedure.

What is your typical lead time?

Four to five weeks for a repeat pattern, six to eight for a new one including sample and approval.
