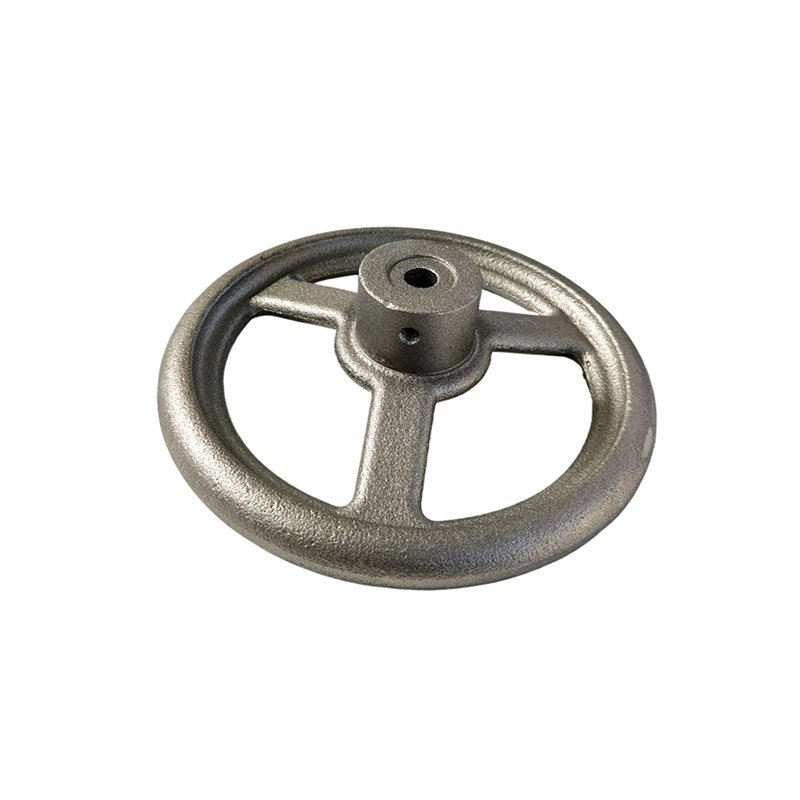

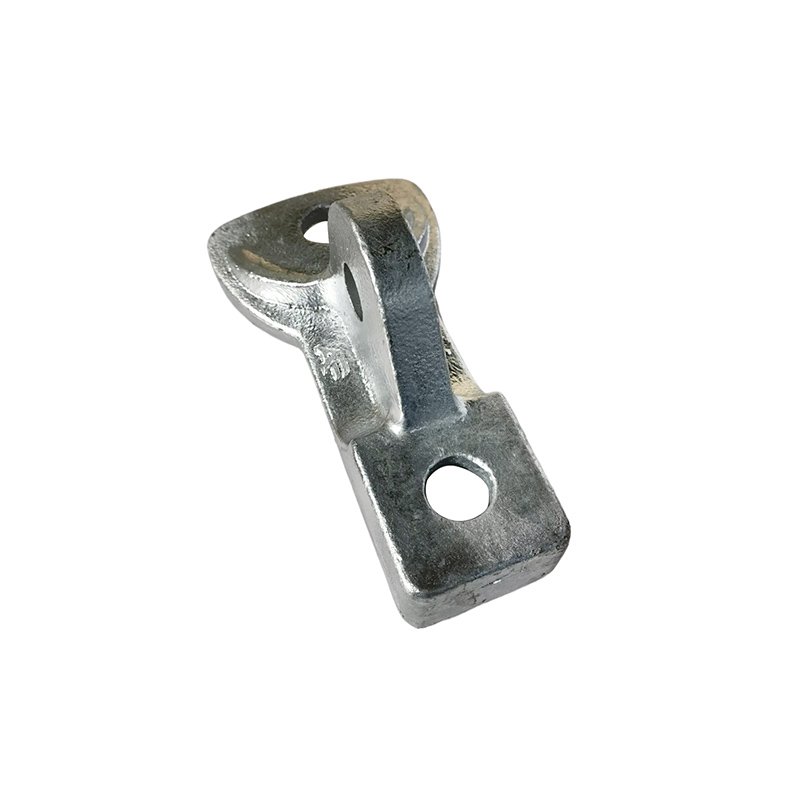

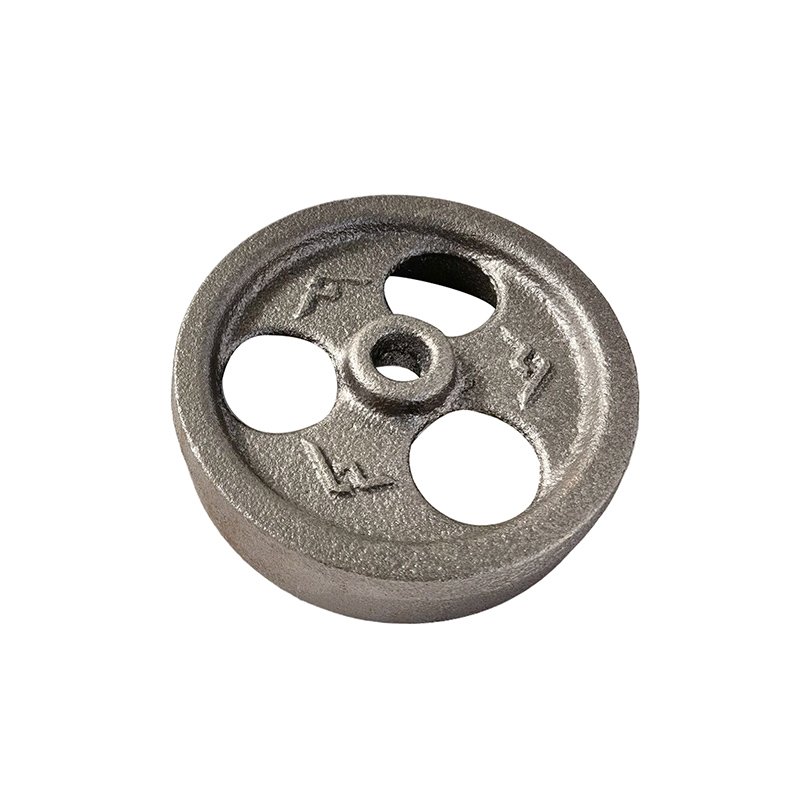

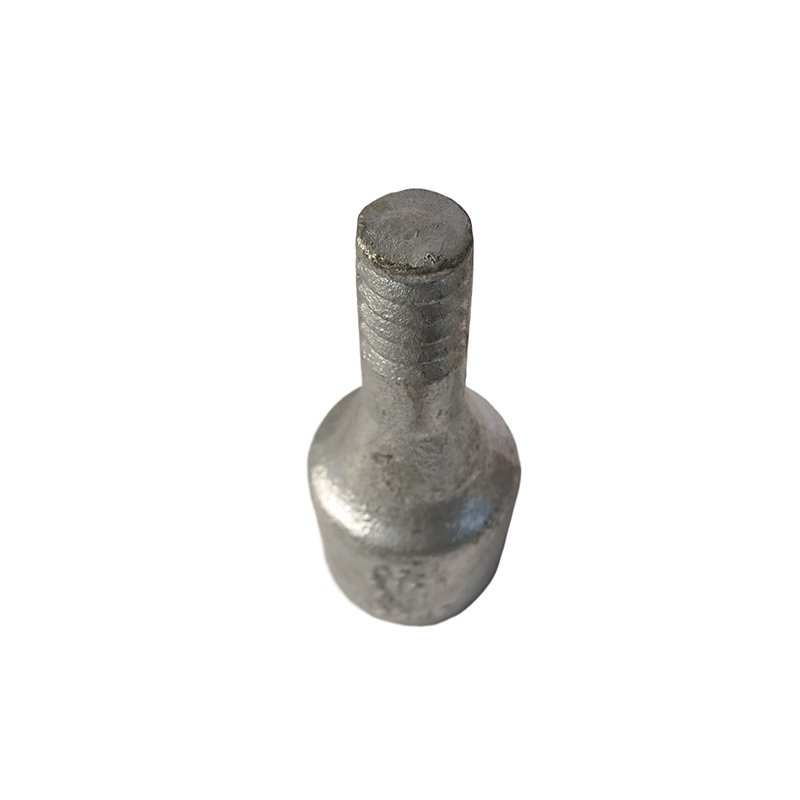

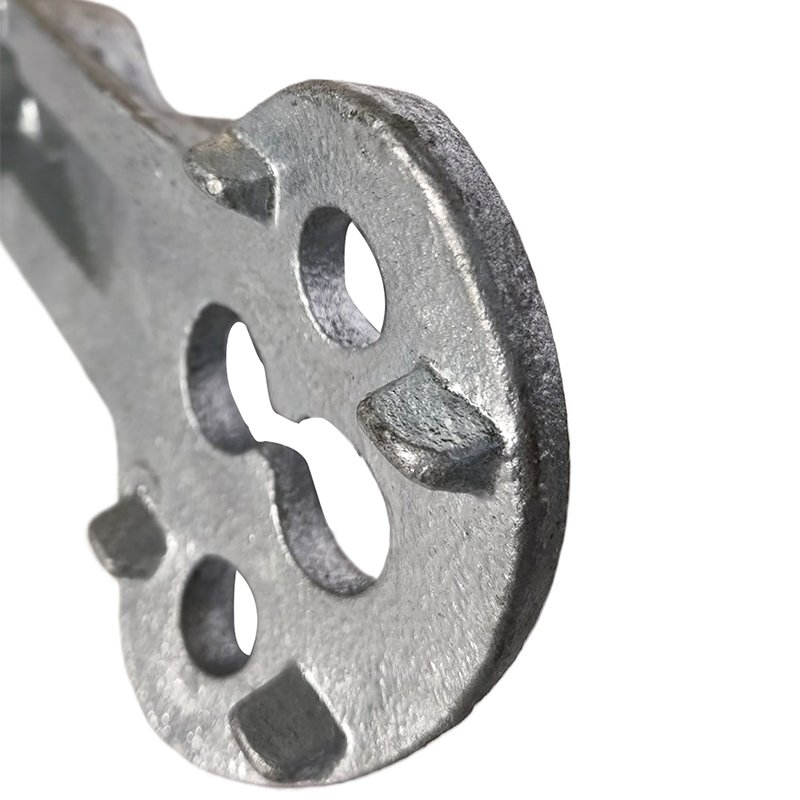

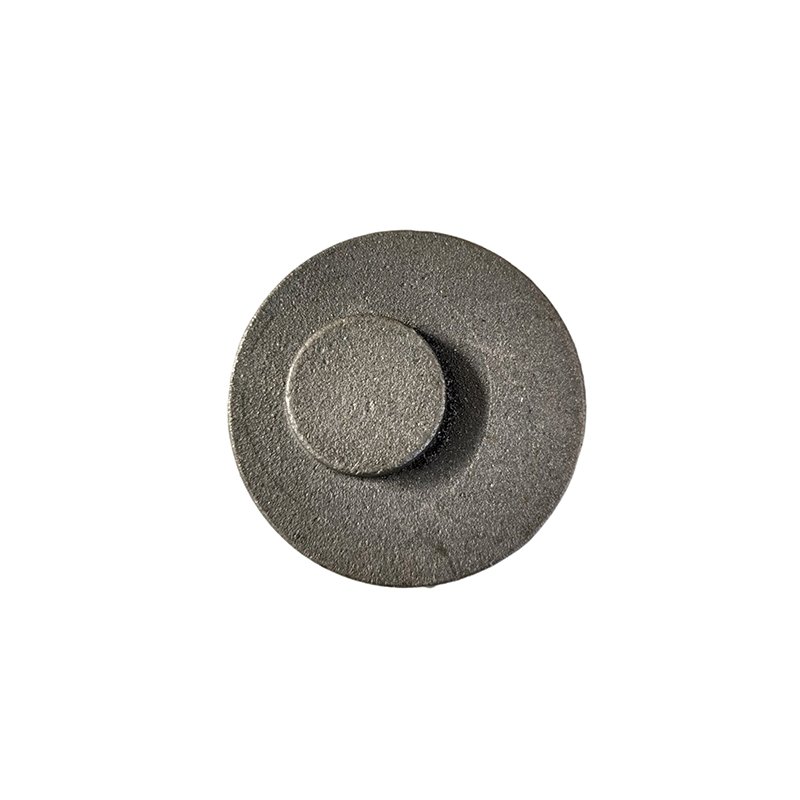

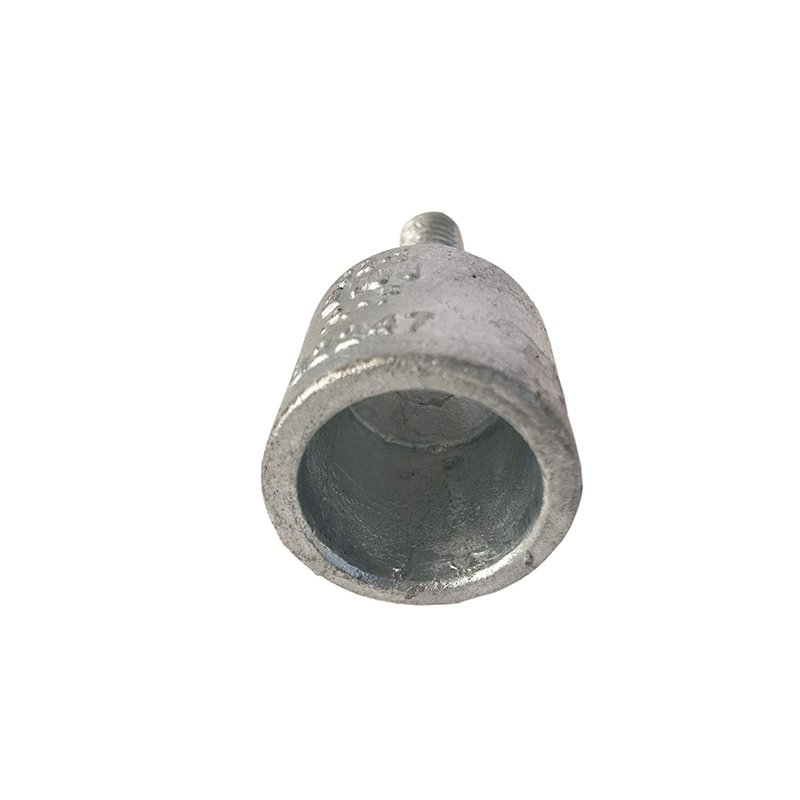

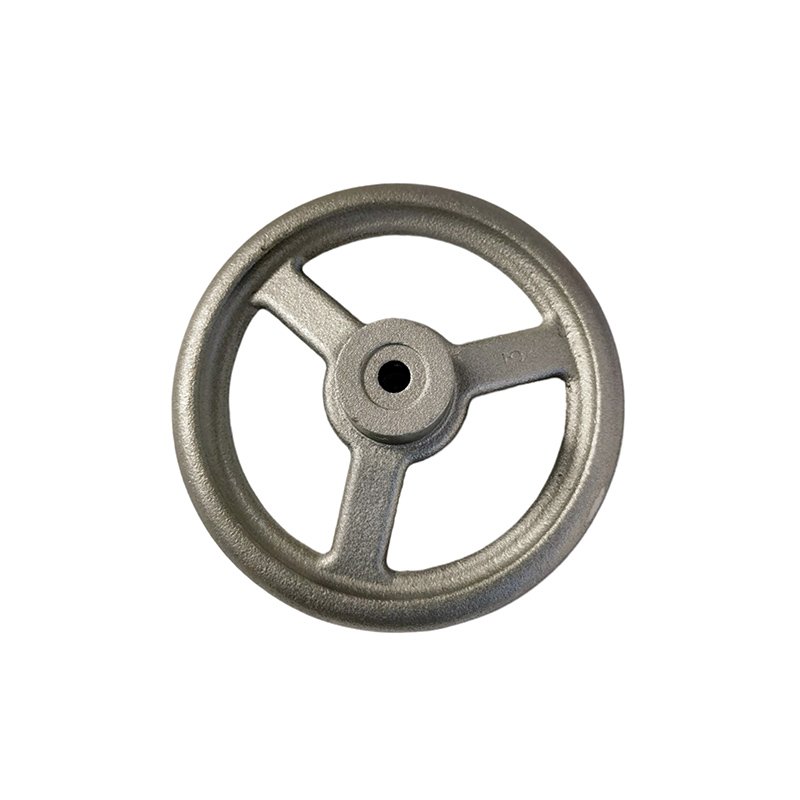

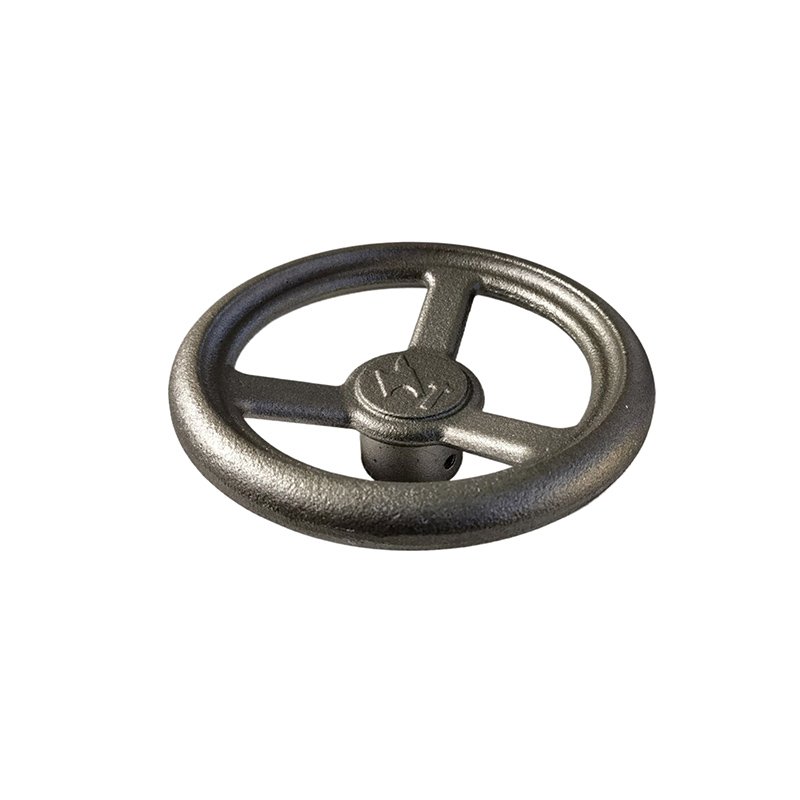

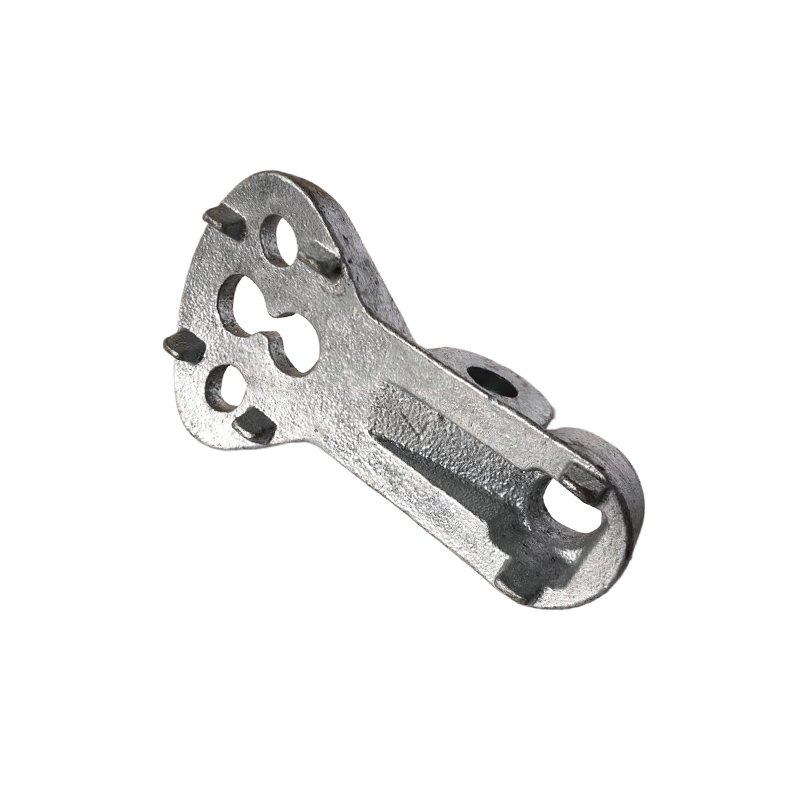

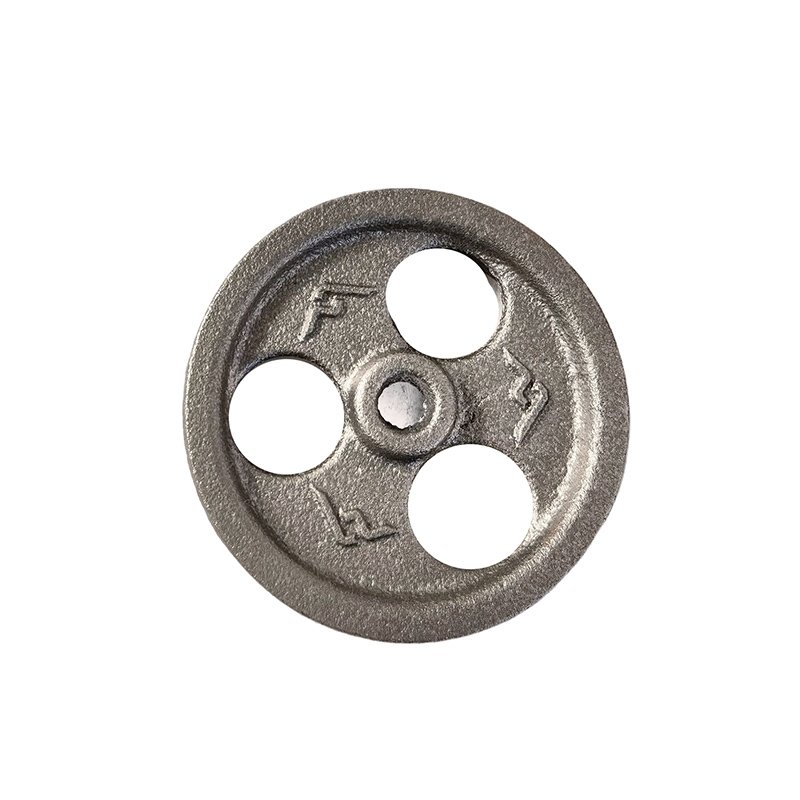

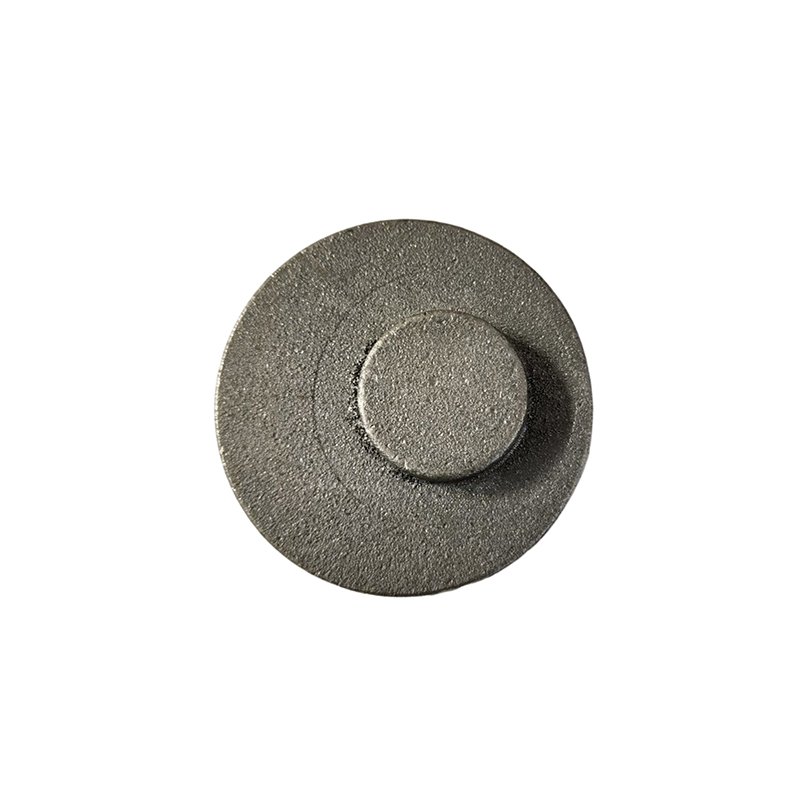

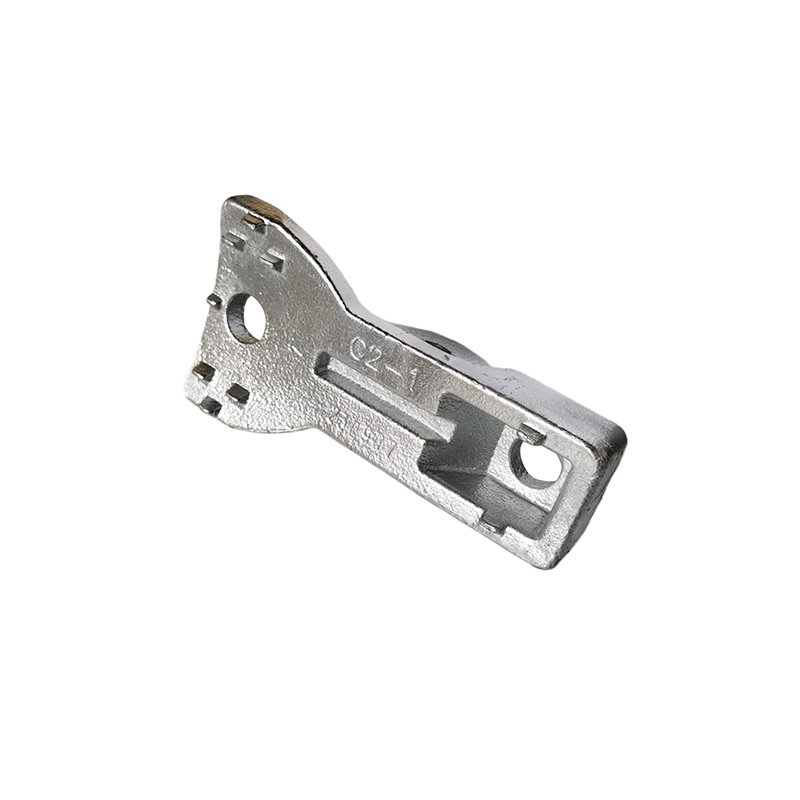

Custom Iron Casting Parts: From Your Drawing to Series

Custom means the part did not exist before you sent the drawing. That sounds obvious, and it is where most of the cost and delay in a casting project comes from: not from the pouring, but from the decisions made before a pattern is cut and the ones made after the first sample arrives.

What Custom Means at a Foundry

A catalogue foundry sells shapes it already makes. A custom foundry sells a process: your geometry, converted into a mould, poured in a grade you specify, machined to the faces that matter, inspected to a plan you agree.

The process has fixed stages, and each one has a cost and a duration. Drawing review, quotation, pattern, first article, approval, series production. Skipping a stage does not save time, it moves the cost later, usually to a place where it is ten times larger.

Everything below is about those stages, because that is what a buyer is actually buying when they place a custom order.

The Five Things a Quote Needs

A drawing alone produces a guess. Five inputs produce a price.

The drawing, in PDF or STEP, with tolerances and material stated. A STEP file lets us check wall thickness and draft in software before quoting; a PDF alone means we quote with assumptions.

The grade, or the duty if the grade is open. A load case is enough for us to recommend one.

The quantity, split into trial and annual. The trial quantity sets the tooling amortisation, and the annual quantity sets whether the part belongs on an automatic line or a short-run process.

The finishing requirement: as-cast, machined, coated, assembled. Each adds a stage and a lead time.

The standard, if there is one: ASTM, EN, GB, or a customer specification. A standard changes the testing, and the paperwork follows it.

Design Feedback Before Tooling, Not After

The most valuable thing a foundry can do for a custom part is tell you what will not cast before the pattern exists. Four issues come up constantly.

Section change. A 20 mm boss on a 6 mm wall is a hot spot and will be porous unless it is fed or cored. Core the boss or add a taper.

Draft. A vertical wall with no draft cannot be stripped from a green sand mould. One degree per side is the practical minimum, and lost foam is the alternative if the wall must be straight.

Sharp corners. An internal sharp corner concentrates stress and is difficult to fill. A 3 mm fillet is free in the mould.

Machining allowance. A face marked for machining needs 2 to 3 mm of stock, and that stock has to be in the pattern. A drawing with a machined face and no allowance produces a part that cleans up under size.

We send these notes with the quotation, not after the sample. A note at quotation is free; a change after tooling is a new pattern.

Sample Approval: the Cheapest Place to Change Your Mind

The first article is the moment when a misunderstanding is still inexpensive. It costs a few hundred dollars to change a pattern at that point and several thousand after series production starts.

So measure the sample the way you will measure production, and check the features that matter to assembly, not only the ones dimensioned. If a bore has to accept a bearing, fit the bearing. If a bracket has to clear a frame, bolt it to the frame.

The approval should be in writing, with the measured report attached. That report becomes the reference for every subsequent batch, and it is what a dispute is settled against two years later.

Tooling Ownership and Storage

The pattern is paid for once, by the customer, and it belongs to the customer. We store it at no charge while the part is active, and we do not use it for anyone else.

If the customer moves the part to another foundry, the pattern goes with them or is scrapped on written instruction. We do not hold tooling hostage over a price disagreement, and we will say that at the start rather than at the end.

What we do ask is that a pattern not be modified without telling us, because a pattern that has been altered by a third party and then returned is a source of dimensional arguments nobody wins.

From First Article to Series: What Changes

Very little should change, and that is the point. The pattern is locked, the gating is fixed, the machining programme is proven, and the inspection plan is agreed.

What does change is the sampling rate. The first article is inspected fully; series production is inspected to a plan, with critical features checked every batch and the rest sampled.

The other change is the process drift. Patterns wear, sand changes, and a dimension that was nominal on the first article can sit at the edge of tolerance a year later. That is why we keep the first-article report and compare against it, rather than just checking against the drawing.

Change Control on a Running Part

A running part will be changed eventually: a revision, a cost reduction, a supplier change on the customer's side. How that is handled decides whether the change is invisible or catastrophic.

Every change goes through a written record: what changed, why, which pattern or programme was affected, whether a new first article is required, and from which batch the change applies.

A change to a machined feature usually needs a new first article. A change to a coating does not, but it does need a note in the batch record. A change to the material grade always needs a new sample and a new certificate.

The failure mode we guard against is a silent change, where the customer's drawing is revised and the foundry keeps making the old part. It happens more often than anyone admits, and it is prevented by one email per revision.

When the Drawing Is the Problem

Sometimes the honest answer is that the part should not be a casting. Three cases.

The quantity is too low. Under about 100 pieces a year, a machined or fabricated part is often cheaper overall, and we will say so.

The tolerance is too tight for casting and the part is small. A 0.05 mm tolerance on an as-cast face is not achievable; if the part needs that, it needs machining, and if machining removes most of the shape, the casting is not adding value.

The geometry is a plate. A flat part with a few holes is cheaper laser cut and bent than cast, and a casting adds nothing but weight and lead time.

Saying this costs us a quote and earns the next three.

Terms, Payment and What Changes the Price

A casting quotation has more variables than a catalogue price, and a buyer should know which ones move.

Quantity is the obvious one, and it works through tooling amortisation and setup, not through the iron. A doubling of the batch typically reduces the piece price by 8 to 15 percent, and most of that is in the first hundred pieces.

Machining is the second. Each additional machined face adds a setup, and a part with four machined faces can cost 40 percent more than the same casting with one.

Material grade is the third, and it is smaller than buyers expect: the difference between grey and ductile iron is often 10 to 15 percent, not double.

What does not change the price much is the complexity of the cast shape, within reason. A part with ribs and bosses costs about the same as a plain block of the same weight, because the moulding time is similar. That is the freedom casting gives, and it is worth using.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

What do you need to quote a custom part?

A drawing in PDF or STEP, the material or the duty, the trial and annual quantity, the finishing requirement and any standard that applies.

How long does a custom part take from drawing to first article?

Three to four weeks for a simple part with an existing pattern family, five to seven for a new pattern, longer if the design needs an iteration.

Can you work from a sample instead of a drawing?

Yes. We measure it, produce a drawing for your approval, and cast from that. It adds about a week and removes the risk of a misread dimension.

Who owns the pattern?

The customer who paid for it. We store it free while the part is active and release it on written instruction.

What happens if the first article does not match?

We correct the pattern or the machining at our cost if the drawing was followed incorrectly, and at shared cost if the drawing itself was ambiguous. Either way it is settled before series production.

Can you handle a part that is currently imported?

Yes, and it is a common starting point. Send the drawing or a sample plus the annual volume, and we will quote with the tooling separated so the payback is visible.
