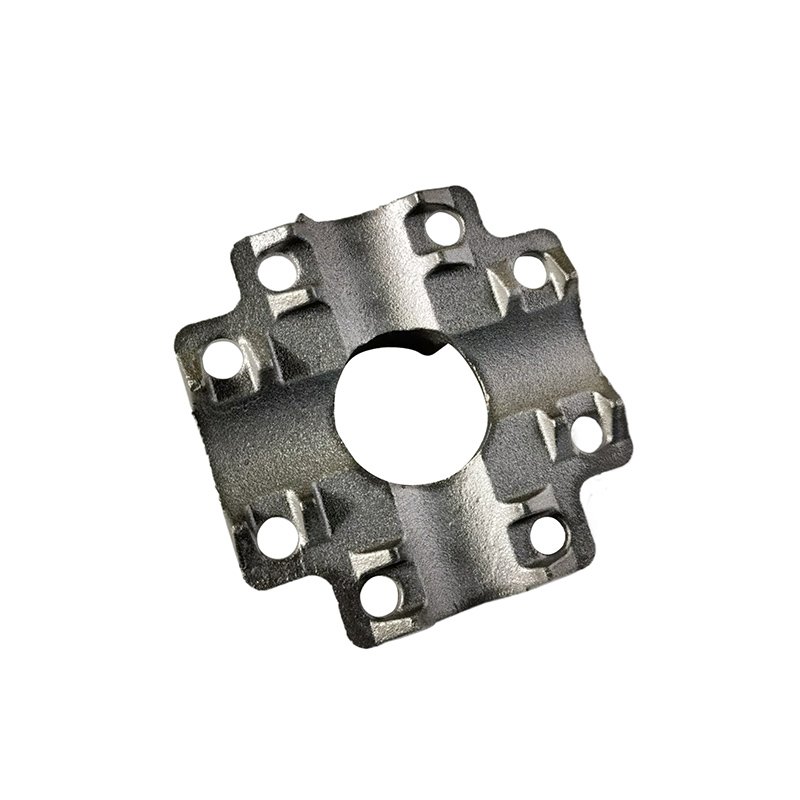

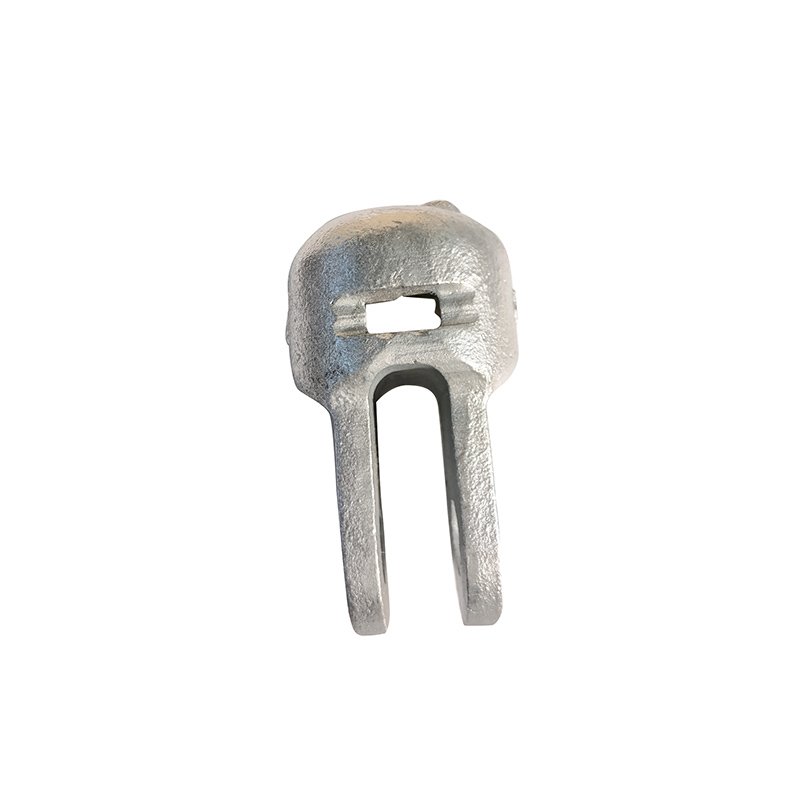

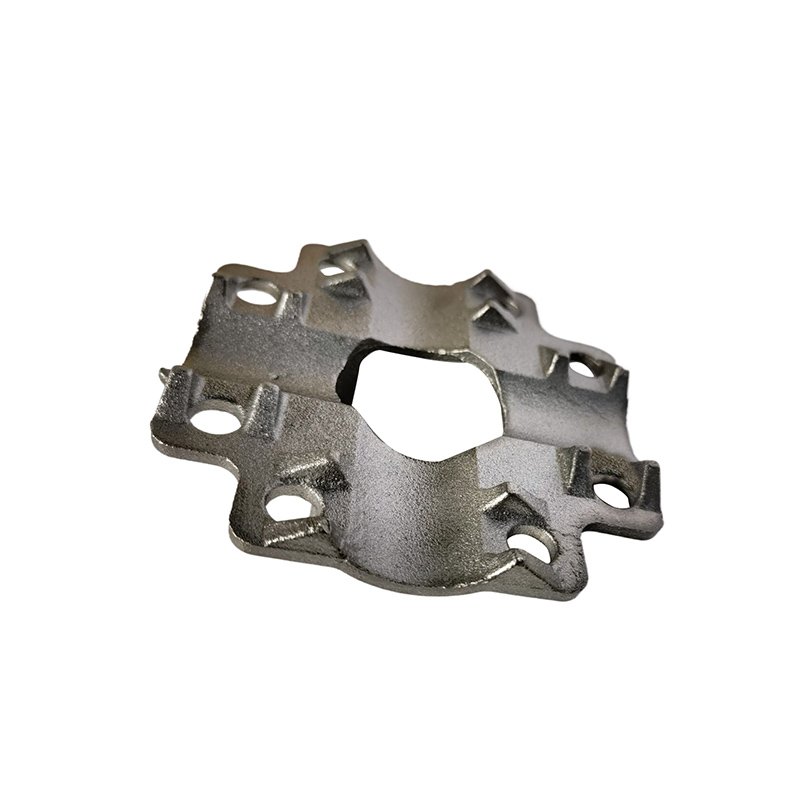

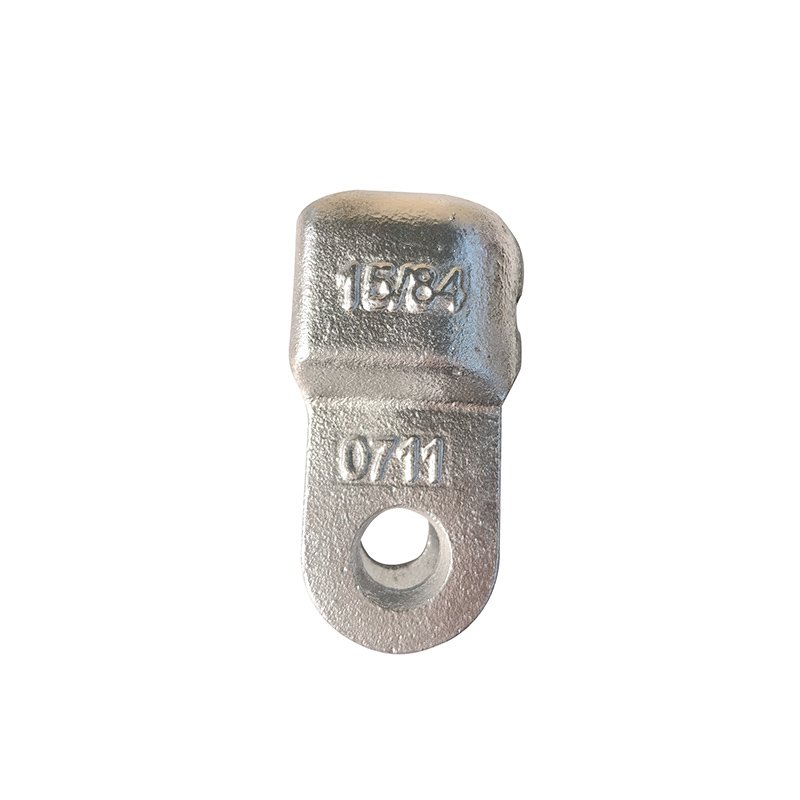

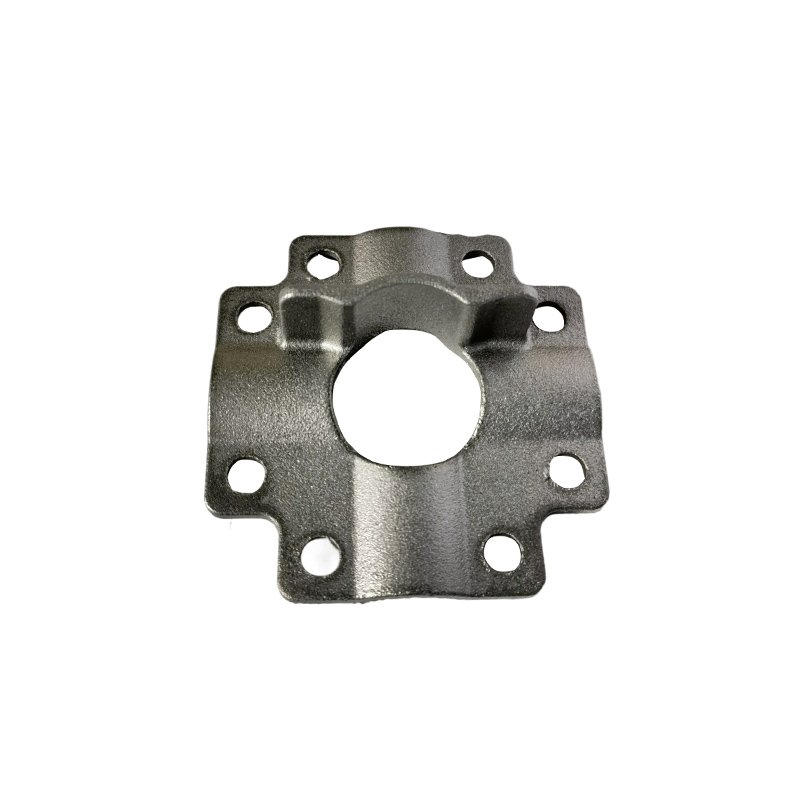

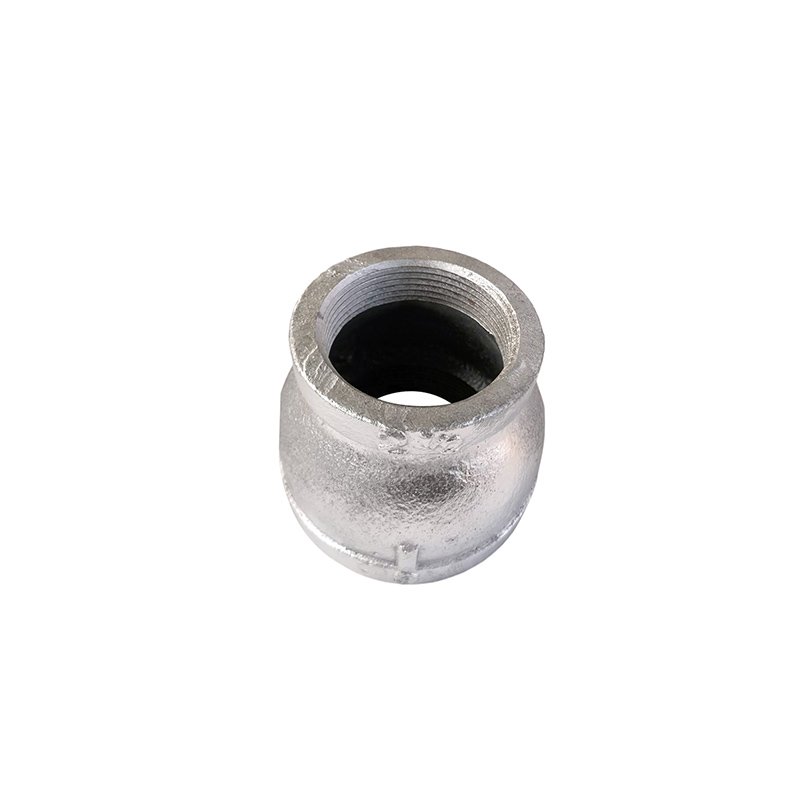

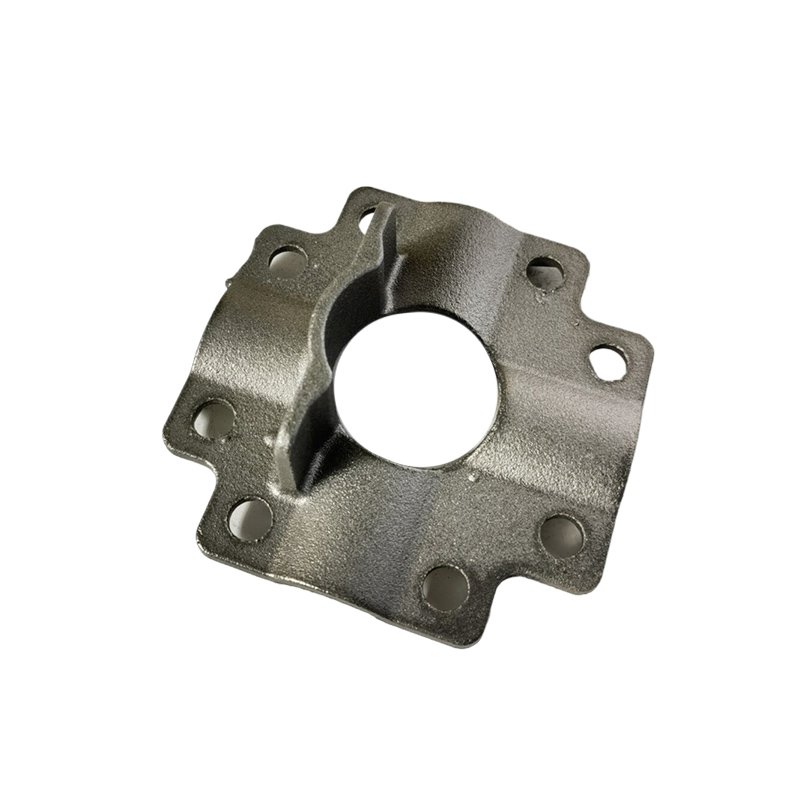

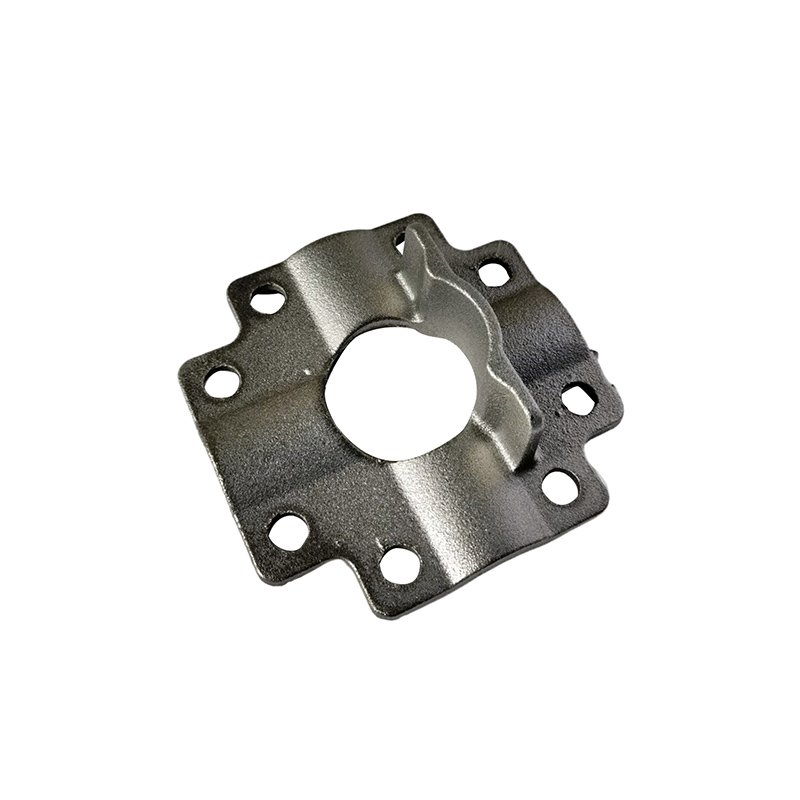

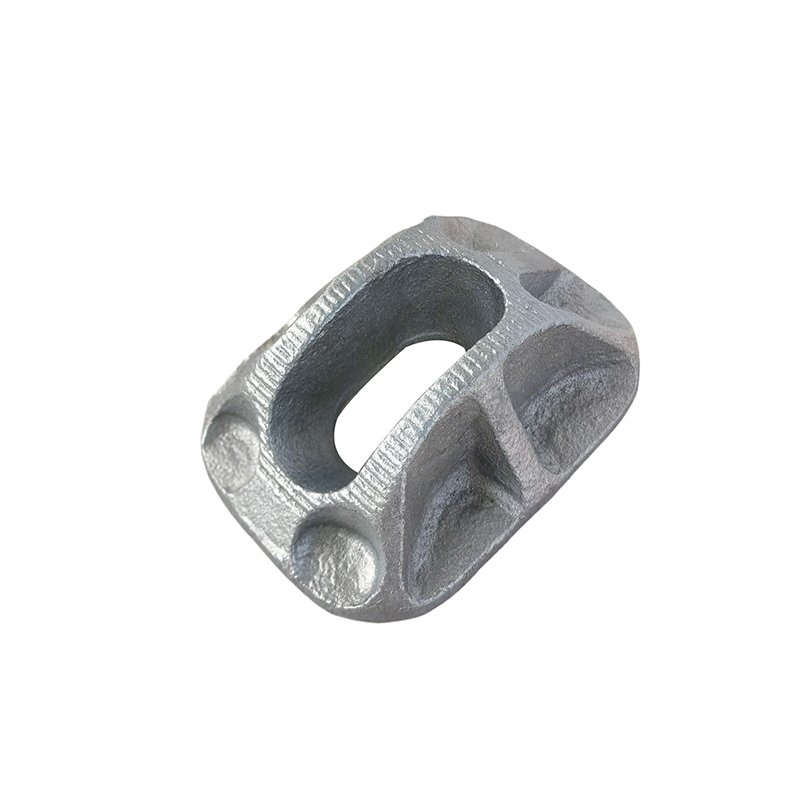

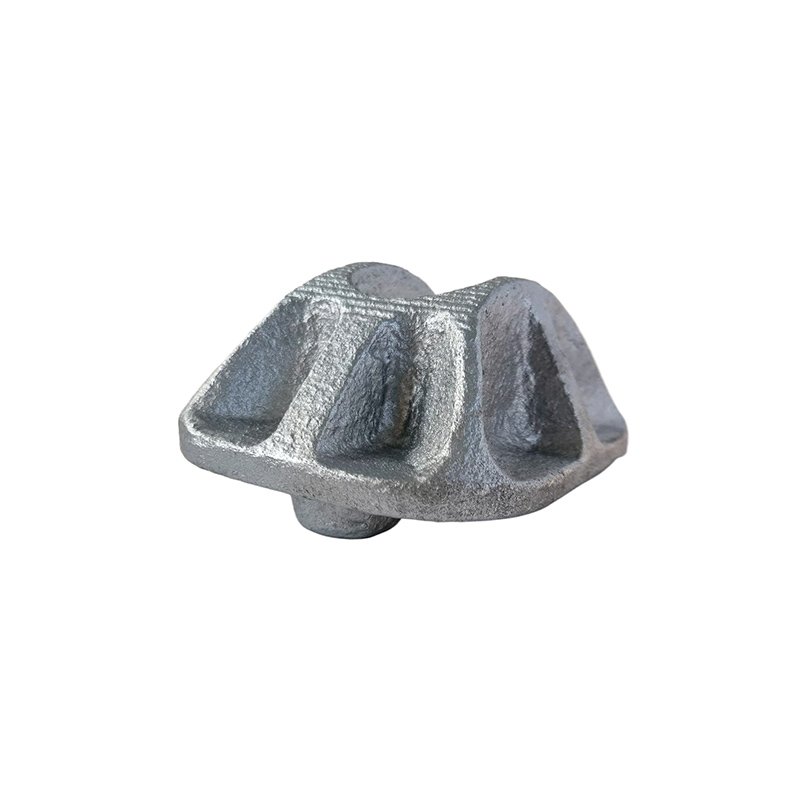

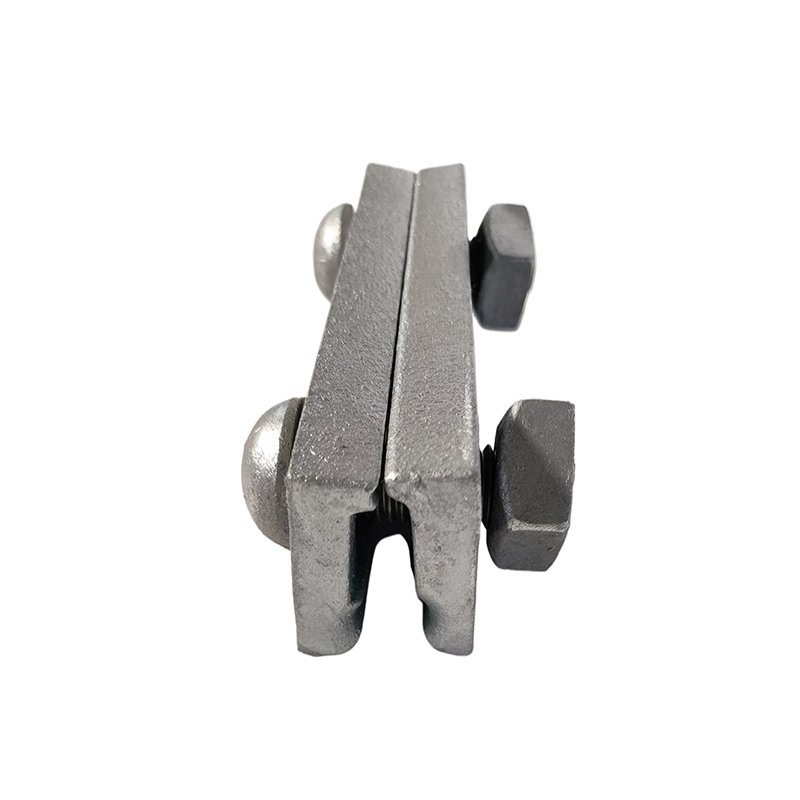

Moulding: Automatic clay sand line, green sand bonded with bentonite, no resin binder.
Material: Grey iron EN-GJL-250 and ductile iron EN-GJS-500-7.
Weight range: 0.5-50 kg per piece.
Minimum wall: 4.5-5 mm under 5 kg, 5-6 mm above that; thinner sections need shell mould.
Draft: 1-1.5 degrees on vertical faces, because the pattern has to come out of the sand.
Machining: Shot blasting, drilling, tapping, CNC on request.
Inspection: 100% visual and dimensional first-off, with chemical and tensile per heat.
Capacity: 10,000 t per year on the automatic line alone.
Lead time: 25-30 days on repeat, 6 weeks if a new pattern plate is needed.
Category: Clay Sand Casting
Two parts with the same function can differ by 40 percent in price, and the difference is almost always in the drawing rather than in the foundry. This page is about the design decisions that move the number, written for the person who has to sign the drawing rather than the person who pours the metal.
A green sand mould is sand held together by clay and water, squeezed around a pattern. It is strong enough to hold a shape and weak enough that a thin section will collapse or a deep pocket will tear on stripping.
It can hold a wall of 4 to 5 mm on a small part, a pocket 100 mm deep with draft, and a section change if the change is gradual. It cannot hold a 2 mm wall, a vertical pocket 200 mm deep, or a section that goes from 5 mm to 40 mm in one step without a shrink cavity.
Knowing those limits before the drawing is frozen is worth more than any negotiation afterwards, because a pattern change costs ten times what a drawing change costs.
The single biggest driver of both cost and quality is how uniform the wall is. A part with a consistent 8 mm wall fills evenly and freezes evenly. A part with a 25 mm boss on an 8 mm wall has a hot spot at the boss, which pulls metal from the wall and leaves porosity exactly where the load is.
The fix is usually free: core the boss so its wall matches the parent, or add a taper that spreads the transition over three times the thickness difference.
Thick sections also cost money directly. A 25 mm wall weighs three times what an 8 mm wall does, and the price of a casting is largely the price of the iron plus the cost of the mould.
Where a thick section is genuinely needed for stiffness, a rib pattern usually does the same job with less metal and better casting behaviour.
Draft is the taper that lets the pattern come out of the sand. Standard is 1 to 1.5 degrees per side, and it is not negotiable on a green sand mould: without it, the sand tears and the casting has a rough patch.
On a 100 mm deep pocket, 1 degree per side is 1.75 mm of taper on each wall, which is usually invisible. On a 300 mm deep pocket it is 5 mm per side, which can matter for a bore that must be parallel.
The parting line is where the two halves of the mould meet. It leaves a small step, and it should be placed where it does not affect function or appearance. If it lands on a machined face, it disappears; if it lands on a sealing surface, it does not.
We show the parting line on the quotation drawing. If it lands badly, that is the moment to change it, not after the sample.
A core is a separate sand shape placed in the mould to create an internal cavity. It costs once to make, once to set, and once to remove, and it introduces a locating tolerance that the rest of the casting does not have.
A part with one core is routine. A part with four cores is a core assembly: the cores must not touch each other except where designed, the core prints must support them, and the dimensional stack grows with each one.
Where a design can replace a core with a machined feature, it is often cheaper. A 30 mm through hole that would need a core can be cast solid and drilled, and the drilling may cost less than the core, particularly on a small batch.
Where the cavity is complex and must be cast, lost foam may remove the core entirely.
Three options, three cost points.
Cast holes, formed by a core or a pattern feature, are free but limited: minimum diameter around 8 mm, and the hole will be draft-tapered and slightly oval.
Cored holes, formed by a core print, give a straighter hole down to about 10 mm and can be quite long.
Drilled holes give the tolerance and finish a fastener needs, at the cost of an operation.
The rule we use: if the hole locates a bolt and the position matters, drill it. If it is a clearance hole for a cable or a drain, cast it. If it is a deep hole in a thick section and you want to avoid a core, cast it solid and drill it.
Every face that will be machined needs stock, typically 2 to 3 mm. That stock has to be in the pattern, and it changes the casting weight and the cost.
The mistake is marking a face for machining that does not need it, or marking a tolerance that implies machining without saying so. A drawing with a general tolerance of plus or minus 0.5 mm and a note saying "critical surfaces machined" leaves the foundry guessing which surfaces are critical.
We ask for the machined faces to be marked explicitly, and we quote on that basis. If a customer later decides a face does not need machining, we can often remove the allowance and reduce the price, but only if the pattern has not been cut.
A general tolerance block is a blunt instrument. It applies the same number to a 5 mm feature and a 300 mm feature, and it usually ends up either too loose for the critical dimensions or too tight for the rest.
A better approach is to tolerance by feature. Bolt hole positions plus or minus 0.3 mm. Bores that take a bearing, plus or minus 0.02 mm and machined. Wall thickness, plus or minus 1 mm, because nobody measures it and it does not matter.
That approach gives the foundry a clear picture of where to spend effort, and it usually reduces cost because the non-critical features can be left as-cast.
In order of impact, from the quotes we have reworked.
Remove the machining allowance from faces that do not touch anything. Two or three faces per part is typical.
Increase a fillet from 2 mm to 5 mm. Removes a stress riser and improves filling.
Replace a cored hole with a cast solid section and a drilled hole, when the batch is small.
Reduce a 25 mm boss to a 10 mm wall with a rib, when the boss only holds a bolt.
Standardize the material to the grade you actually need rather than the highest one in the family.
None of these changes the function. All of them show up in the price.
For a part under about 200 mm and above a few hundred pieces a year, casting usually beats machining from solid. Below that, the pattern cost dominates.
The comparison is not piece price alone. A machined part has a known price at any quantity and no tooling. A casting has a tooling cost and a lower piece price, so the total cost crosses over at a quantity that depends on the part's complexity.
As a rough guide: a bracket with four machined faces, where casting removes three of them, crosses over at around 150 pieces. A simple block with one bore crosses over at 500, because machining it was cheap to begin with.
Weight matters too. A casting can be thinner where the load allows, and a machined part is usually a constant section because that is what the stock is. On a part where weight matters, casting wins at any quantity.
Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.
4.5 to 5 mm on parts under 5 kg, 5 to 6 mm above that. Below 4 mm the metal may not fill reliably.
Not in green sand. Lost foam can, and it is the right process for a part that genuinely needs parallel walls.
2 to 3 mm on faces that will be machined, more on large faces where distortion is likely. We state the assumption at quotation.
Yes, but a change to a cast feature means a pattern change. A change to a machined feature usually does not.
ISO 8062 CT10 to CT13, which is roughly plus or minus 0.5 to 1.5 mm depending on the dimension.
No. It is part of the quotation, and it is the part most likely to save you money.
