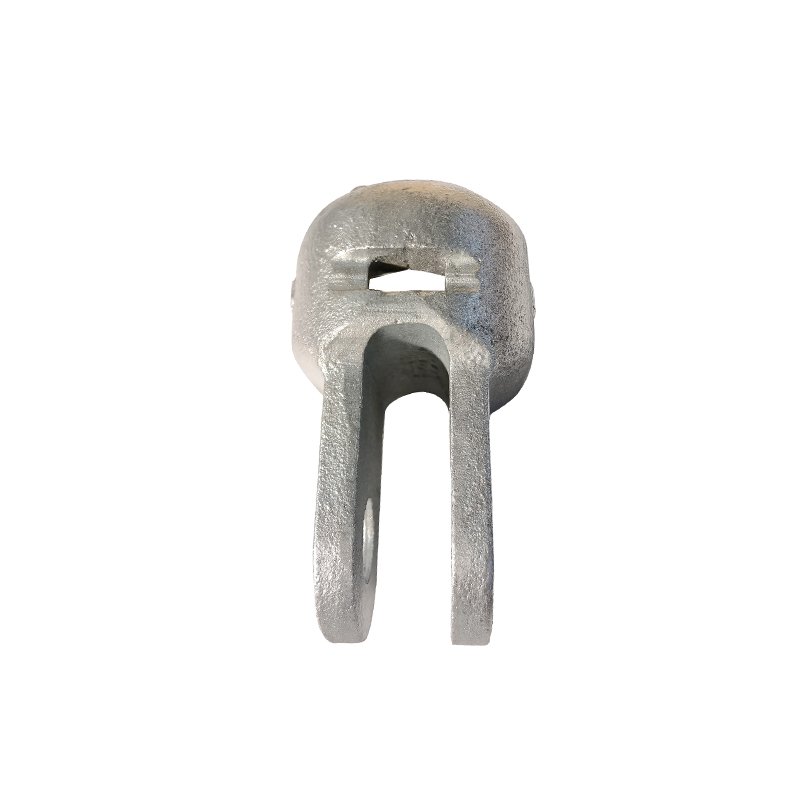

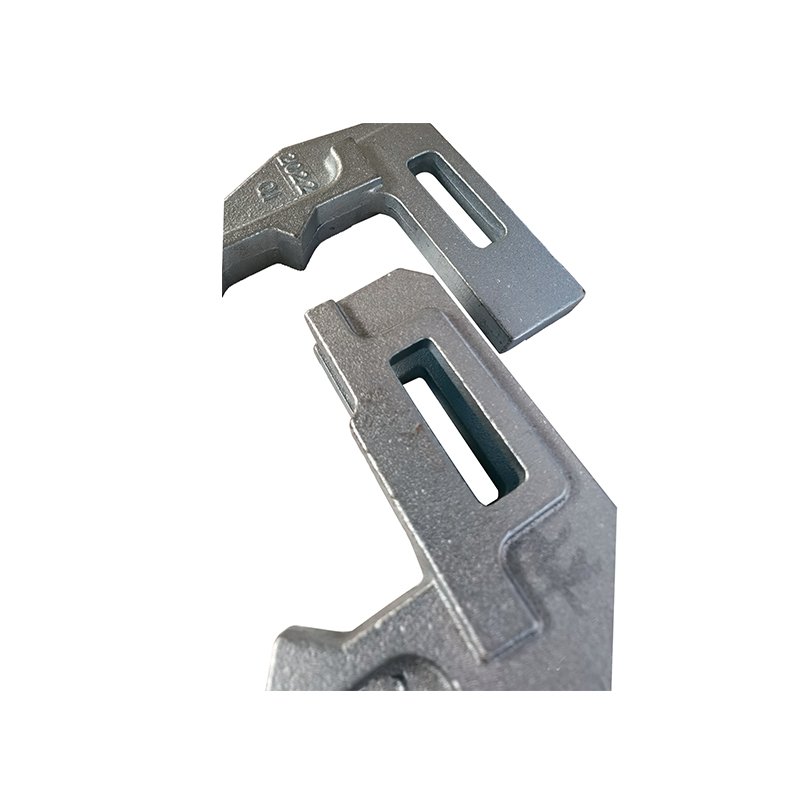

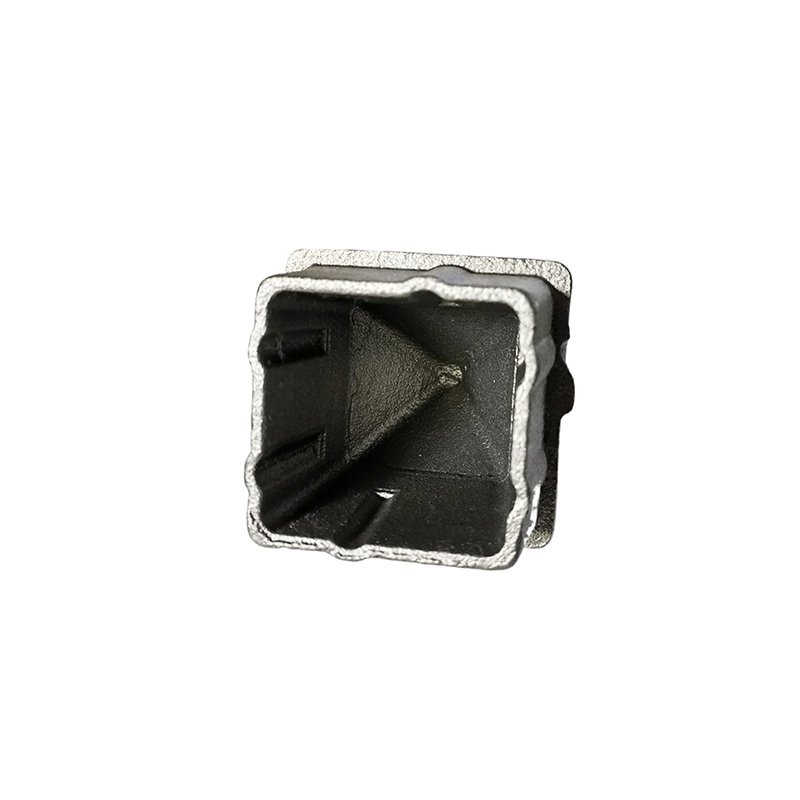

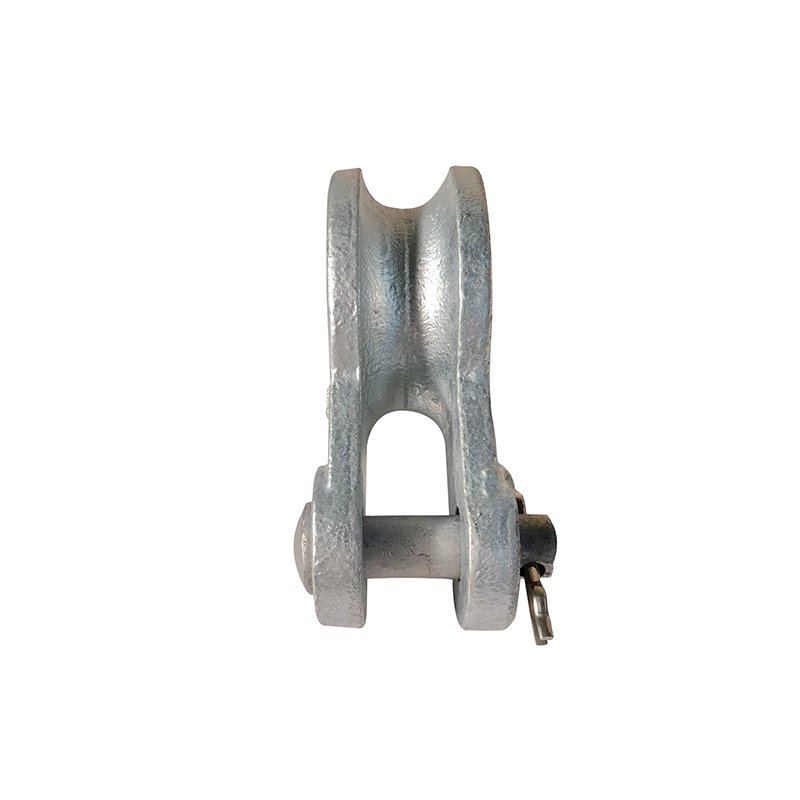

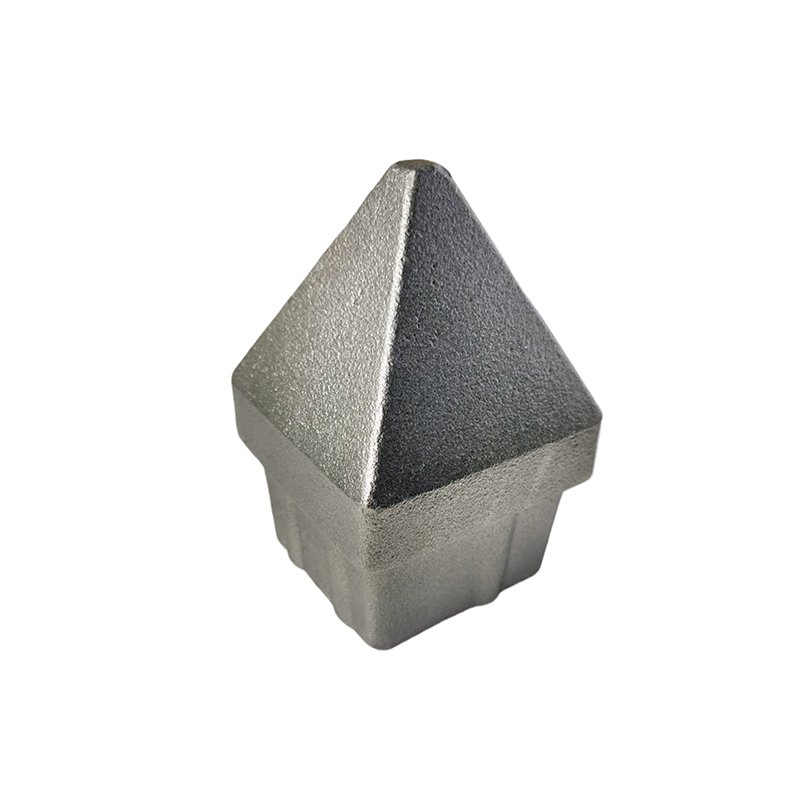

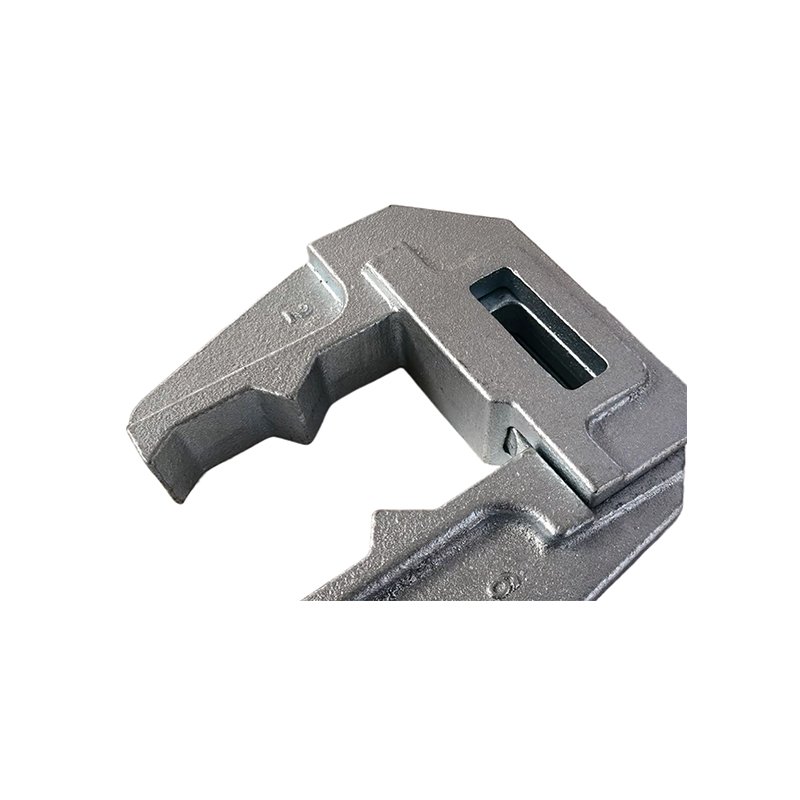

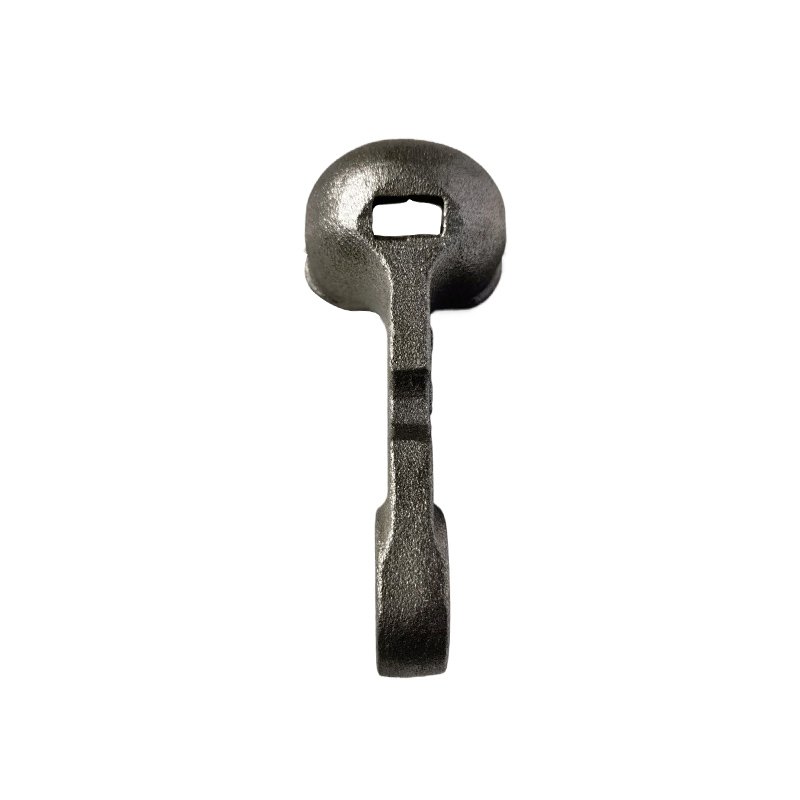

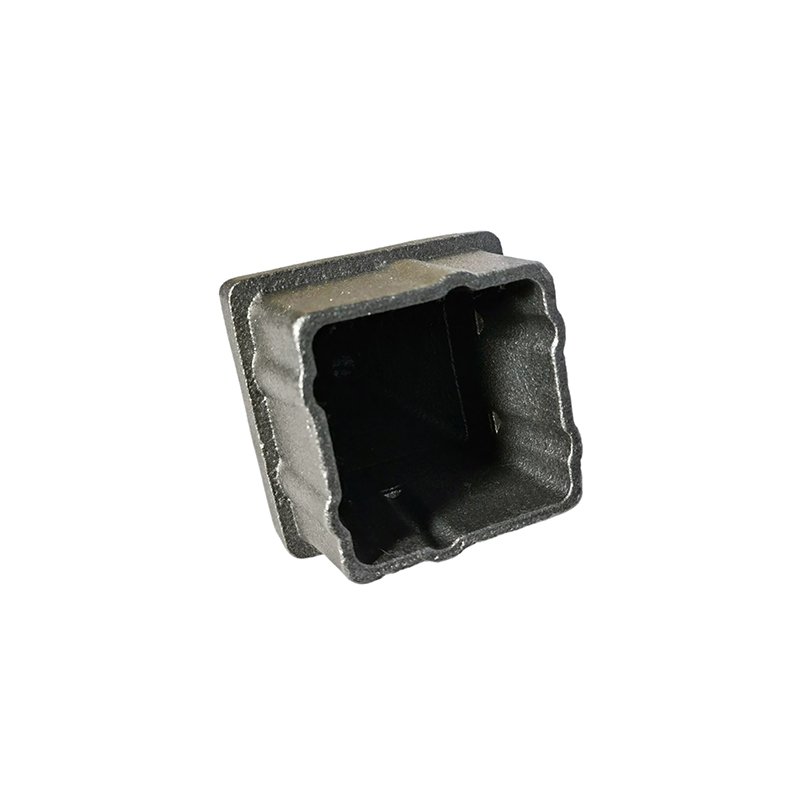

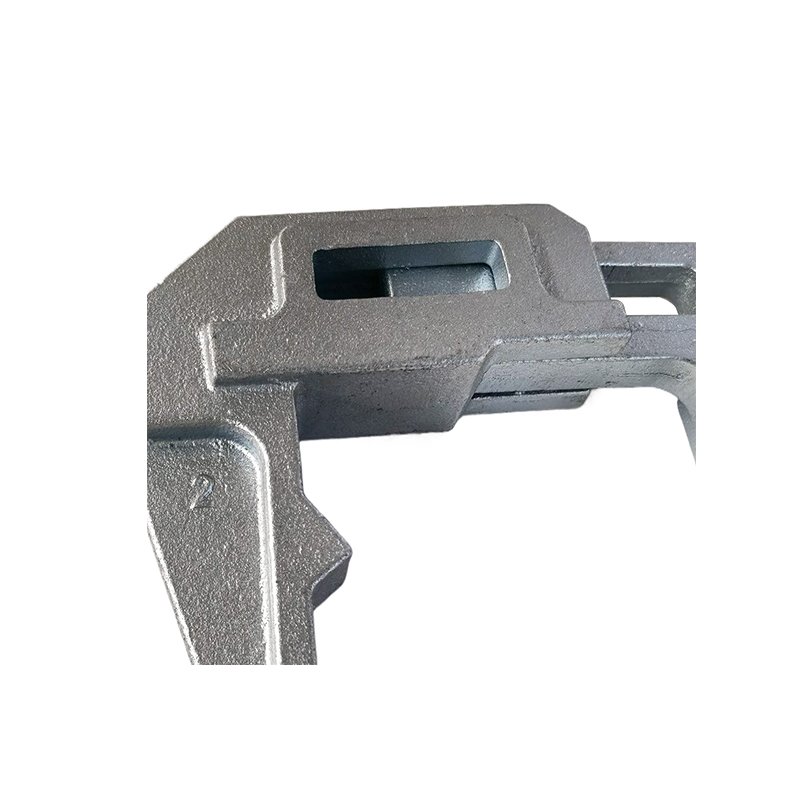

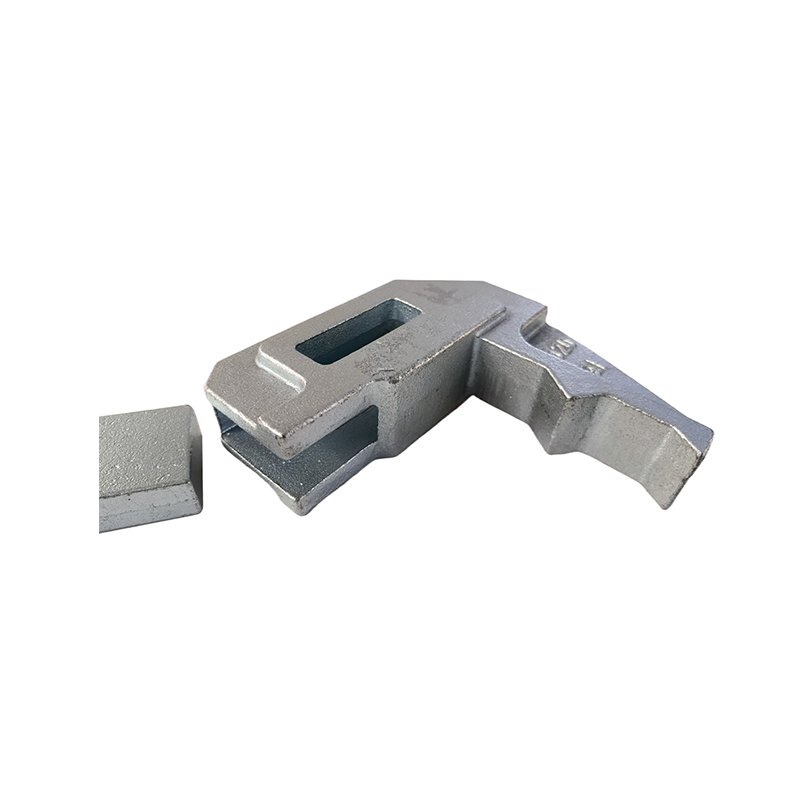

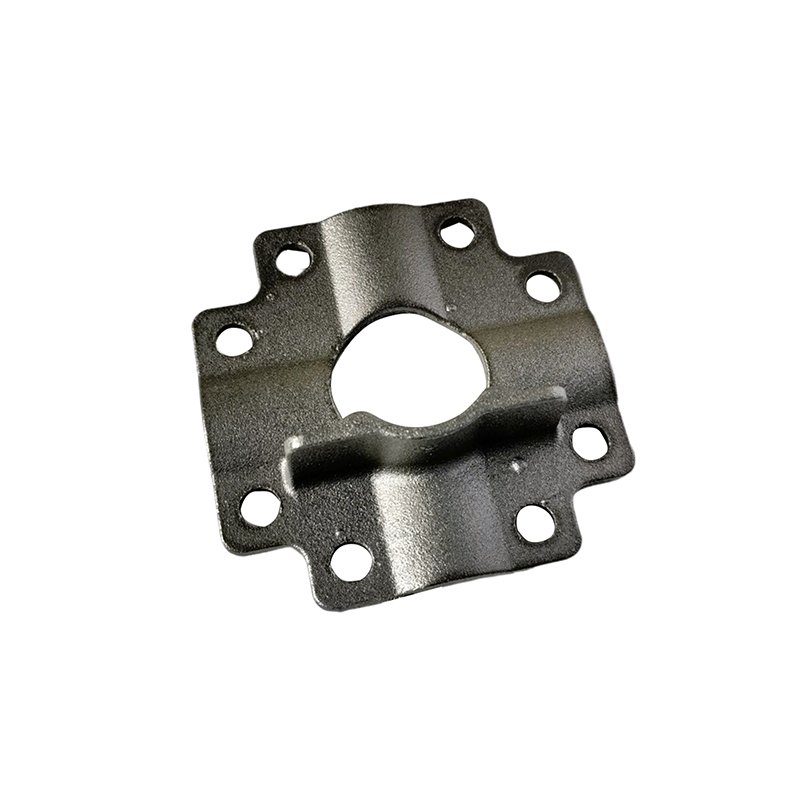

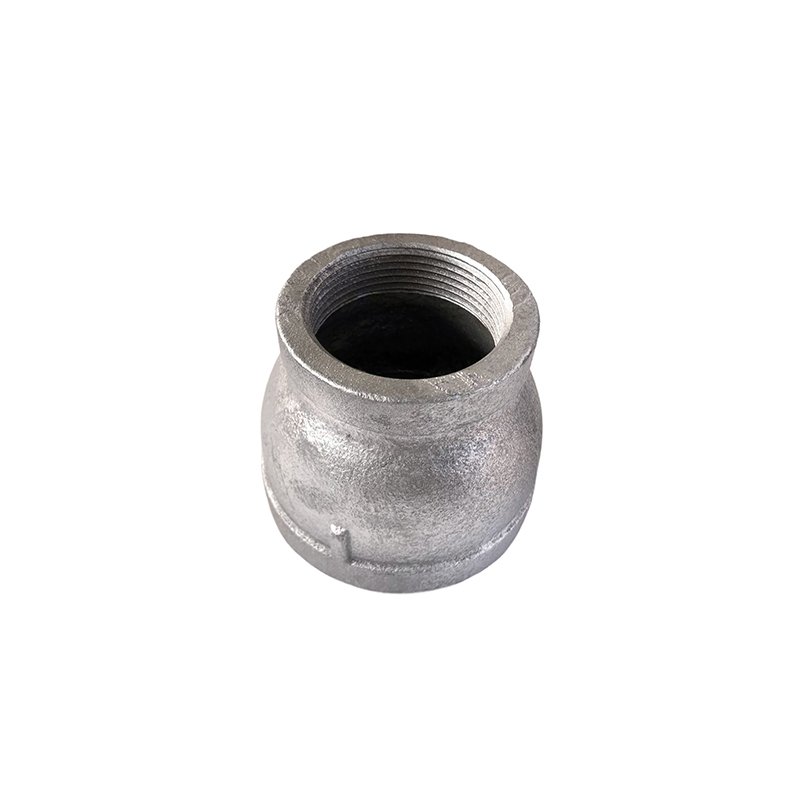

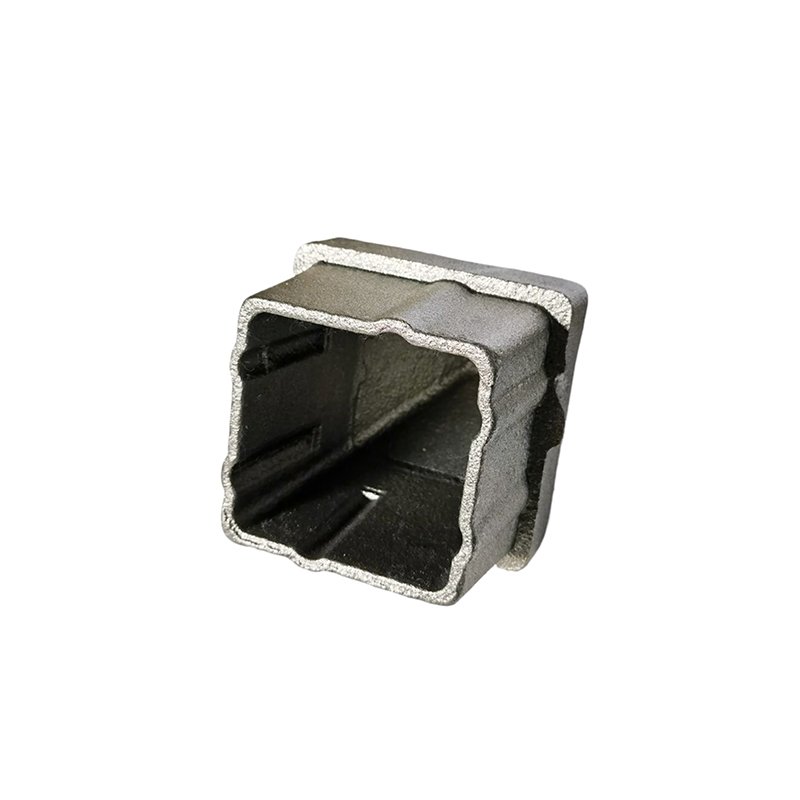

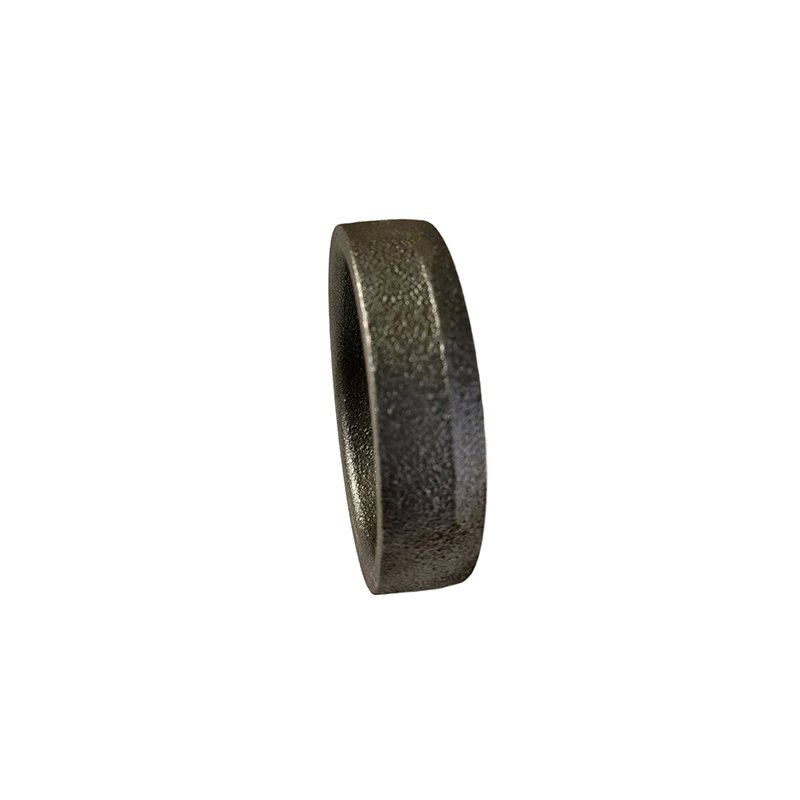

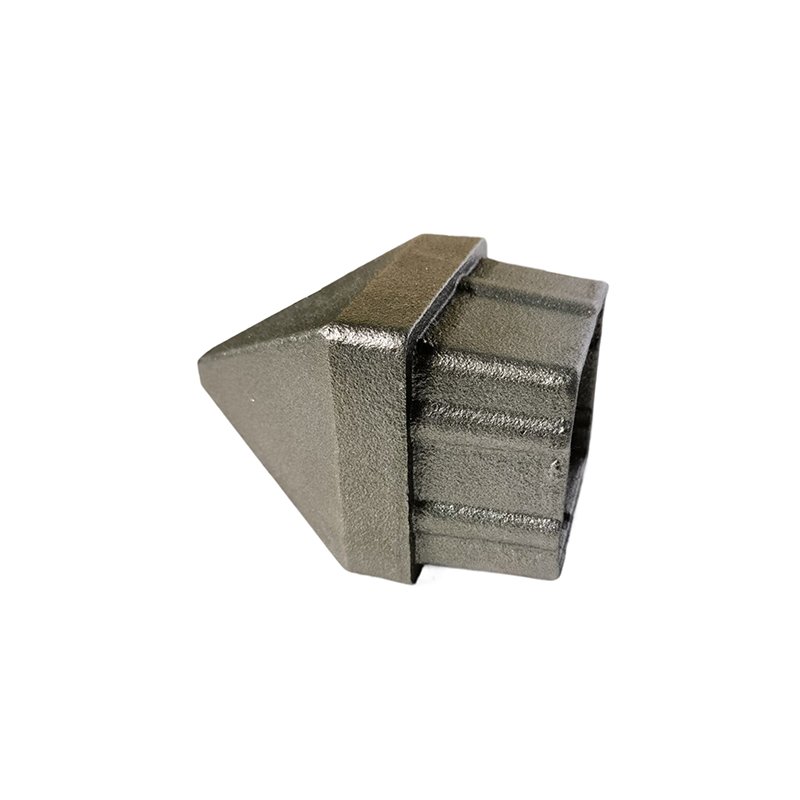

Clay Sand Casting on an Automatic Moulding Line

Clay sand casting, also called green sand, is the process that makes most of the world's iron castings. The name does not mean the sand is green; it means the bond is clay and the mould is not baked. It is fast, cheap and repeatable, and almost all of its quality comes from one thing buyers never see: how well the sand is controlled.

What a Clay Sand Line Actually Is

Sand, bentonite clay, water and a small amount of additives are mixed, blown into a flask around a pattern, squeezed under high pressure, stripped, and sent to pouring. After the casting is shaken out, the sand is cooled, reconditioned and returned to the mixer.

The cycle runs continuously, which is why the process is cheap per mould. A mould that takes twenty seconds to make cannot afford expensive sand, and a sand system that circulates hundreds of tonnes a day has to be controlled automatically rather than by eye.

On our line the moulding is fully automatic, which matters for consistency: the squeeze pressure, the sand fill and the strip are the same for the ten-thousandth mould as for the first.

Sand Control: the Part Buyers Never See

Green sand is a mixture that has to hold a shape and then collapse when the metal is in. Four properties decide whether it does.

Green strength is the mould's ability to stay intact during handling. Too low and the mould edges crumble, which shows up as sand inclusion in the casting.

Compactability is how much the sand can be squeezed. It drifts as the sand heats and dries, and it has to be corrected continuously by adding water and clay.

Permeability is how easily gas escapes. Too low and the casting gets blowholes; too high and the metal penetrates the sand and produces a rough surface.

Moisture is the variable that moves fastest. A tenth of a percent changes the strength measurably, which is why the mixer is controlled by a moisture probe rather than a recipe.

When a foundry has a bad week of scrap, the cause is more often the sand than the metal.

Moulding Rate and What It Means for Your Order

An automatic line makes moulds quickly, which sets a floor on the economic batch. Setting up a pattern, adjusting the sand and running the first moulds takes a shift; after that, the marginal cost per mould is low.

That means small orders carry a setup cost that has nothing to do with the metal. A 200 piece order of a 3 kg bracket costs more per piece than a 2,000 piece order, and the difference is the pattern change and the first-off inspection, not the iron.

For repeat customers we schedule pattern changes in blocks, so several parts run in the same week and the setup is shared. If your order is small and regular, tell us the annual quantity rather than the release quantity, and we can usually improve the price.

Why 0.5 to 50 kg Is the Sweet Spot

The line is designed around a flask size, and the flask sets the working range. Below 500 grams, the gating and the handling dominate the cost, and the part is better on a different process. Above 50 kg, the flask is too small and the mould handling becomes the constraint.

Inside that band, the process is efficient in a way that is hard to beat. A 5 kg housing with a moderate section, cast on an automatic line, is one of the cheapest precision metal parts you can buy.

Outside the band, the alternatives are lost foam for larger parts, shell moulding for smaller high-accuracy parts, and investment casting for small complex parts. We run all three, which is why we will tell you when your part belongs on another line rather than force it onto this one.

Pattern Life and the Cost of a Changeover

A pattern on an automatic line takes more abuse than on a hand line: it is squeezed at high pressure, stripped mechanically and handled by a machine. Metal patterns last for tens of thousands of moulds; wooden ones are for prototypes.

Pattern wear shows up first as a change in dimension, then as a rough surface where the sand sticks. We measure patterns on a schedule and reface or replace them before the castings drift out of tolerance.

The cost of a changeover is mostly time: stripping the pattern, fitting the new one, adjusting the sand, running first-off samples and getting approval to continue. On a large order that cost is trivial; on a small one it is the price.

Where Green Sand Beats the Other Processes

Cost per piece at volume is the obvious one. A green sand mould costs a fraction of a shell mould or a lost foam mould, and the sand is reused.

Flexibility of shape is the second. Green sand handles a part with a moderate draft, a simple core and a section between 4 and 40 mm without special measures. It is the default because it is the most forgiving.

Speed is the third. A repeat order on an existing pattern can be poured within days, where a lost foam part needs foam beads moulded and glued first.

And the sand itself is recyclable, which matters more every year as disposal costs rise. Over 90 percent of the sand is reused after reconditioning.

Where It Loses, and What We Suggest Instead

Draft. A deep pocket in green sand needs 1 to 1.5 degrees per side, and on a 200 mm deep pocket that is 5 mm of taper. If the drawing needs a straight wall, lost foam does it.

Cores. Every internal passage needs a core, and each core costs money to make, set and remove. A part with four internal passages is a core assembly, not a casting. Lost foam casts the passages directly.

Surface. Green sand gives Ra 12.5 to 25 micrometres, which is fine for a painted part and not fine for a cosmetic one. Shell moulding gets to Ra 6 and costs more.

Thin walls. Below 4 mm, green sand struggles to fill and the mould may not strip cleanly. Shell moulding handles 2.5 mm better.

We will name the alternative at quotation when the drawing points to one.

Energy, Emissions and the Sand Loop

A green sand foundry is an energy consumer and a dust producer, and both are increasingly part of what a customer audits.

Melting is the largest energy load, followed by sand preparation and the moulding line. Induction melting is more efficient than cupola and produces less dust, which is why most new capacity is induction.

The sand loop is the environmental story that matters most. Over 90 percent of the sand is reclaimed, which means the waste stream is small and the fresh sand purchase is a fraction of what it would be in a once-through process. The dust collected from the sand system is the main residue, and it is handled separately.

For a customer with a supplier code of conduct, the useful documents are the energy source, the waste handling and the emissions permits. We can supply them, and we would rather be asked before the audit than after.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

What is the difference between green sand and dry sand?

Green sand keeps its moisture and is used as-mixed. Dry sand is baked before pouring, which gives a stronger mould and a better surface, at a much higher cost per mould. We run green sand.

Can you cast a part with an undercut?

Only with a loose piece or a core, both of which add cost. A deep undercut usually means the part belongs on lost foam.

How many pieces make an order worthwhile?

Around 300 for a new pattern to spread the tooling, and 100 for a repeat pattern. Below that we will still quote and show you the setup cost separately.

What tolerance does the line hold?

ISO 8062 CT10 to CT13 as-cast, depending on the dimension and the parting line. Machined faces go to plus or minus 0.05 mm.

Do you use recycled sand?

Yes, over 90 percent of the sand is reclaimed and reconditioned in-house. Fresh sand is added to replace what is lost with the castings and the dust.

How long does a pattern last?

A metal pattern on the automatic line lasts tens of thousands of moulds. We inspect on a schedule and reface before dimensions drift.
