Cast Steel Castings for Valve, Pump and Mining Components

When Your Part Leaves Iron Behind: the Case for Cast Steel

Iron solves most casting problems cheaply. Steel takes over where iron stops: service temperatures grey iron will not hold through, impact loads that would crack a brittle section, and pressure-boundary parts where ductility is not negotiable. If your part lives in a valve body under cycling pressure, a pump casing on a cold start line, or equipment that sees shock loads in mining and material handling, cast steel is not a premium choice — it is the correct one.

The trade-offs are real and worth saying plainly. Steel castings cost more than iron, need heat treatment to reach their properties, and machine with more care. What you buy with that cost is a casting that bends before it breaks and holds its rated load at temperatures and pressures where iron parts retire.

Grades and Heat Treatment We Work With

Carbon and low-alloy steel castings run to the common international designations — WCB-class carbon steels and the low-temperature and alloy variants your standard calls out, with stainless grades available for corrosive duty. Every casting is heat treated to the condition its grade requires, normalized or quenched-and-tempered as the specification states, because the mechanical properties in the standard only exist after the correct treatment.

Heat treatment is also where schedules slip on steel projects, and it is worth knowing why. A quench-and-temper cycle cannot be shortened without changing the properties, and a furnace full of castings does not care about your delivery date. We schedule heat treatment as a fixed block in the quotation rather than treating it as slack time, which is why our steel lead times read longer than iron ones and are more reliable for it.

Where Cast Steel Earns Its Keep

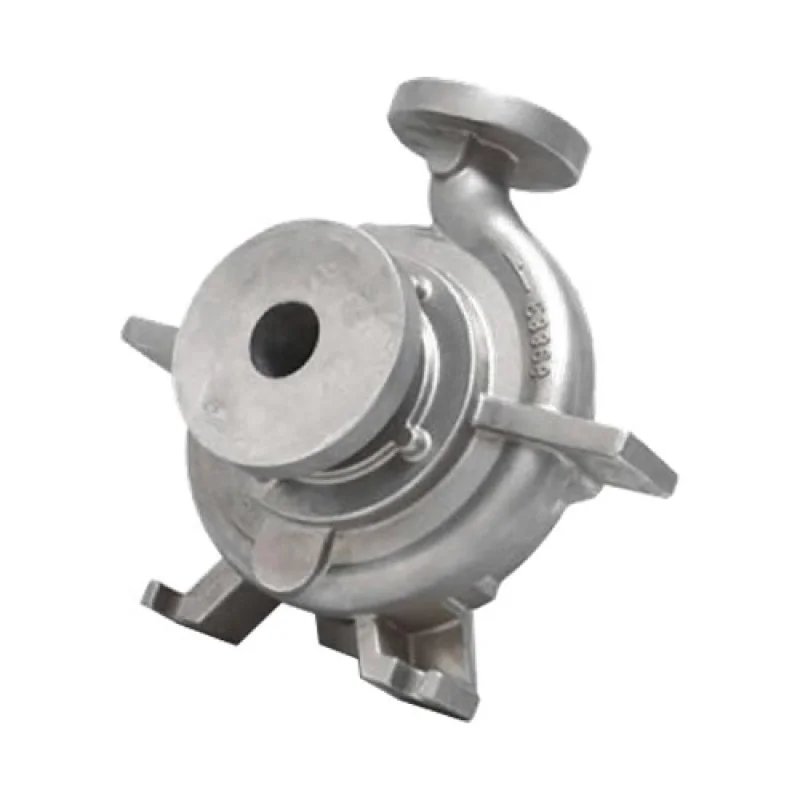

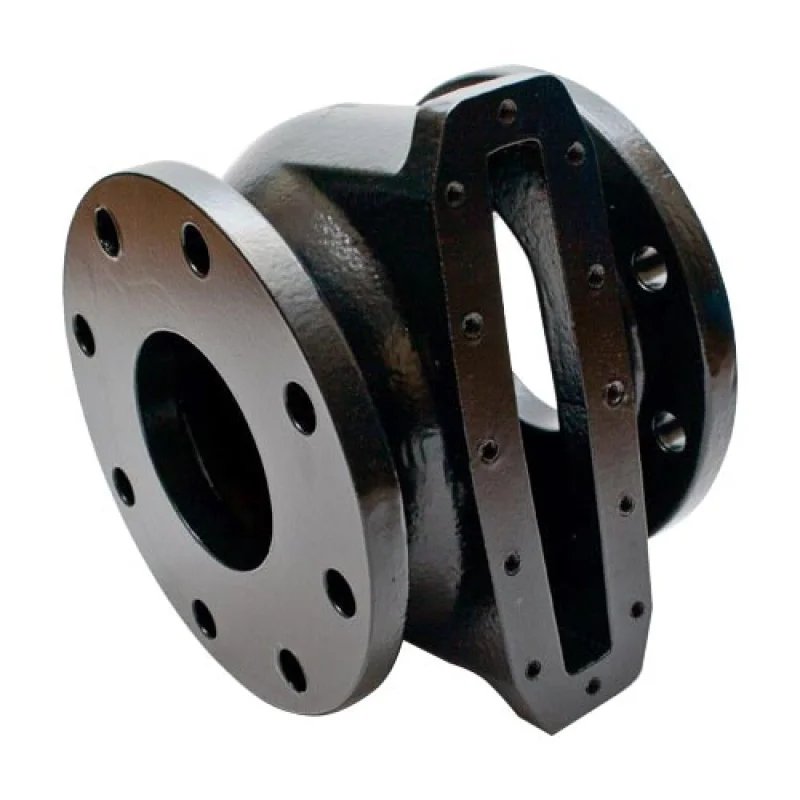

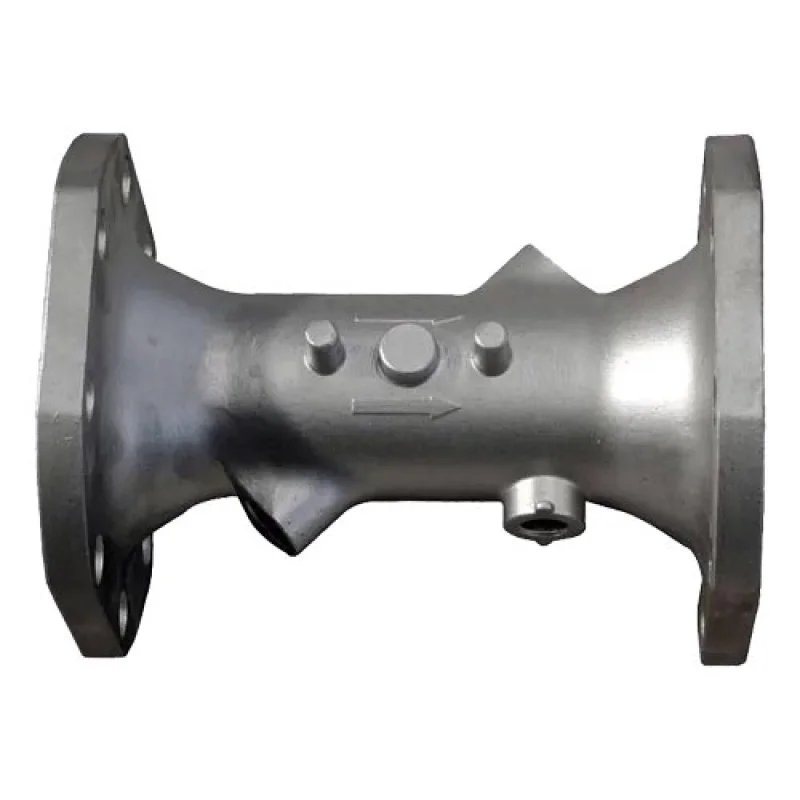

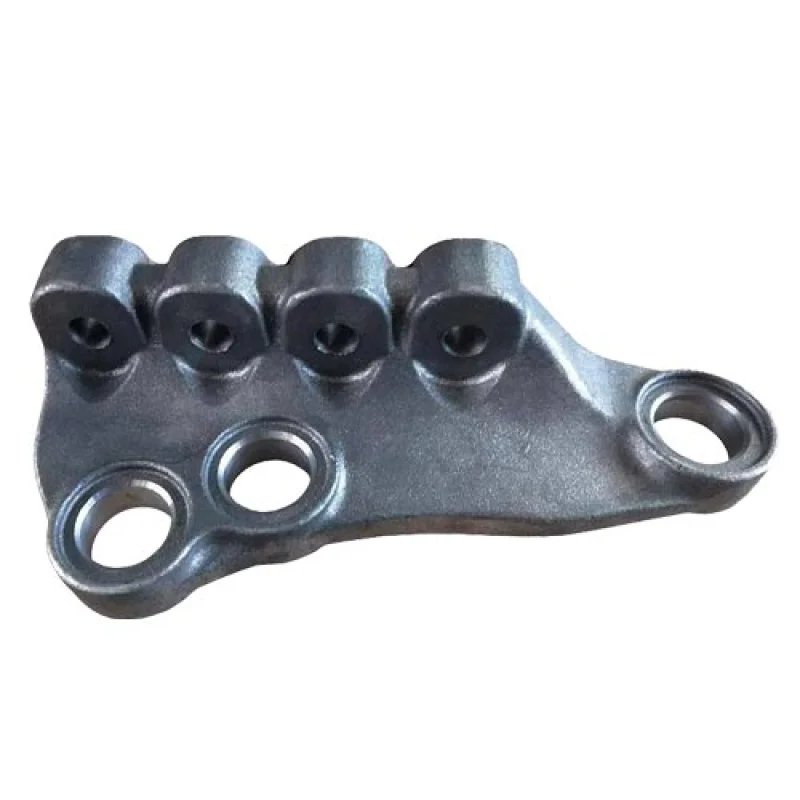

Steel is the expensive route, so it is worth being precise about when it pays. Valve bodies and bonnets live with pressure cycling and thermal shock, and steel's ductility absorbs both without the cracking a grey iron section would show at the same wall thickness. Pump casings and impellers face erosion plus impact from the pumped media, which calls for a grade that deforms rather than spalls. Mining and crushing equipment takes repeated shock loads on the same lug, and that is where iron sections fail first. Railway and heavy machinery components such as couplers, buffers and load-bearing brackets are normally specified to a steel grade by the customer's own standard, so the material is not a choice at all. Our rule of thumb: quote steel when the part is thick-walled, welded or impact-loaded; below that, ductile iron is cheaper and usually sufficient.

NDT Scope: What to Specify and What It Costs

Steel castings are usually bought with an inspection scope attached, and the scope drives price as much as the casting does. Surface examination by magnetic particle or penetrant finds cracks and indications at or near the surface; volumetric examination by radiography or ultrasonic testing looks inside the section for shrinkage and inclusions. For pressure-boundary parts, the standard you buy to typically defines which areas get which examination and at what acceptance level.

The practical advice: specify by standard and by area, not by percentage. "100% radiography" on a large casting can cost more than the casting itself, and much of that cost buys examination of sections that will be machined away. Most experienced buyers define critical zones — the pressure boundary, the flange-to-wall transition — and apply full examination there, with visual and surface methods elsewhere. That gives you the assurance you need at a fraction of blanket testing.

Welding, Repair and Post-Cast Operations

Steel castings can be welded, and weld repair is normal industry practice when it follows an approved procedure. The points that matter: the repair procedure is qualified, the preheat and post-heat follow the material's requirement, and the repaired area is re-examined to the same acceptance level as the original. A supplier who welds without procedure qualification and calls it "touch-up" is the one to avoid.

Post-cast operations also include machining and coating, and on steel they interact with heat treatment. Machining before final heat treatment risks distortion; machining after means the hardened surface is cut, which is fine but changes tooling and time. We plan the sequence per part and quote it as a route, so nobody discovers the interaction mid-production.

Quoting a Steel Casting: What Changes Versus Iron

Three things move a steel casting quote: heat treatment route, testing scope, and machining allowance — steel sections cut differently than iron, and the pattern is built with that in mind. Send the drawing with the grade, the governing standard, and the test scope your acceptance criteria require; the quote will itemize casting, heat treatment, testing and machining separately so you can see where the money goes.

Where the Money Sits in a Steel Casting Price

Steel castings are priced differently from iron ones, and knowing the breakdown helps you negotiate the right line. Metal cost is a smaller share than most buyers expect, because steel is cheaper per kilogram than the alloying and melting energy suggest. Melting and refining energy is a real line. Heat treatment is a fixed furnace cost per batch, which is why small batches of steel castings look expensive per piece — the furnace does not scale down. Testing follows the scope you specify. And yield matters more than on iron: heavy feeding and large risers mean a bigger share of poured metal never ships as your part.

That last point is where a supplier's skill shows. A rigging design that raises yield from 55% to 65% on a 500 kg casting saves roughly 80 kg of metal and melting energy per piece, every piece. When quotes differ by more than metal prices explain, ask about yield and heat treatment batch size. Those two numbers usually account for the gap, and both are legitimate conversations rather than haggling.

Frequently Asked Questions

Can you convert an existing iron part to cast steel?

Usually, with section adjustments — steel shrinks more on solidification and needs heavier feeding, so the drawing gets reviewed rather than copied. Send the iron drawing and the reason for the change.

Do you supply test certificates with steel castings?

Heat chemistry and mechanical results are standard; the certificate level, including 3.1 type documentation, is set by your order requirements.

What tolerances can steel castings hold as-cast?

Comparable to good sand casting practice, with machining on functional surfaces to close the rest. Steel castings are designed expecting machining on critical features.

How long does a first article take?

Pattern, pour, heat treatment and inspection — longer than an iron first article because heat treatment sits in the middle. We commit a date with the quotation.

Which standards do you work to for steel castings?

Common ASTM and EN steel casting grades and their inspection practices. Name the standard on your drawing; if it is one we do not already run, that is a quote-stage conversation.

Can you supply small quantities of steel castings?

Yes, down to single pieces on loose patterns, though the economics favor small batches over singles once pattern cost is counted. Steel is more forgiving of low volume than most people expect.
