Cast Iron Nuts Cast and Tapped to Your Thread Standard

A nut looks like the simplest part in a bill of materials and is often the one that decides whether an assembly survives. It is a thread surrounded by just enough material to carry the bolt's load, and every design choice, from grade to height to thread class, is about that load path.

A Nut Is a Thread, Not a Lump of Iron

The load in a bolted joint travels from the bolt threads into the nut threads, then out into the nut body and the clamped part. If the nut is too soft, the threads deform and the joint loses preload. If it is too hard or too brittle, the nut cracks at the first thread under shock. If it is too short, the threads strip before the bolt breaks, which is the wrong failure order: you want the bolt to fail first, because a broken bolt is obvious and a stripped nut is not.

That is the principle behind nut height. A nut should be tall enough that the bolt shank breaks before the threads strip, which for a standard metric thread means roughly 0.8 times the nominal diameter in height. Going taller adds cost and adds nothing.

Why Cast Nuts Still Exist in a Forged World

Most nuts in the world are forged or cold headed from bar. Casting wins in four specific cases.

Shape. A nut with a flange, a captive feature, a locating spigot or an asymmetric body cannot be headed from bar without additional machining. Casting gives the shape in one piece.

Size. Above about M36, forging equipment and bar stock costs climb steeply. A cast nut at M48 or M64 is routine.

Material. When the specification calls for a particular iron grade rather than a steel, casting is the only route.

Volume with variation. A family of similar nuts in five sizes, each at 500 pieces a year, is awkward for a forger and straightforward for a foundry with a pattern family.

Thread Engagement and the Height That Matters

Engagement is measured in thread pitches, and the useful rule is that the first six engaged threads carry about 70 percent of the load. Beyond eight threads, additional height contributes almost nothing to strength.

For a cast iron nut on a steel bolt, we normally design for 1.0 to 1.2 times the nominal diameter in full thread engagement, because cast iron is weaker in shear than steel. On a ductile nut the figure can drop to 0.8 times, because the material's shear strength is closer to the bolt's.

The other half of engagement is the thread class. A cast and tapped nut usually runs to 6H for metric or 2B for UNC. If the nut is galvanized, the tapping has to be oversize to allow for coating, or the nut is tapped after coating. We do the latter on anything above M20, because tapping a coated nut removes the coating from the threads and leaves bare iron in the most corrosion-prone place.

Grey or Ductile: Matching the Nut to the Bolt

Grey iron nuts are cheap, machine well and are adequate for static joints at moderate load: guardrail fixings, signage, enclosure hardware, non-structural assembly. They are not adequate where the joint sees shock or vibration, because grey iron has almost no elongation and a cracked nut gives no warning.

Ductile iron nuts at 450 to 500 MPa with 15 percent elongation are the choice for structural and dynamic joints: pole line hardware, machine mounts, suspension fixings. They cost 20 to 30 percent more and they behave like a proper fastener.

The match matters more than the absolute grade. A ductile nut on a grade 8.8 bolt is a reasonable pairing. A grey iron nut on a grade 10.9 bolt is a mismatch, because the nut will strip before the bolt reaches its proof load.

Tapping: Cut, Roll or Cast

Cut tapping is the default. It removes material, produces a clean thread, and works in any iron grade. For a cast nut with a cored hole, cut tapping is fast and the thread flank quality is good.

Roll forming is faster and produces a stronger thread because the grain follows the thread form, but it needs a hole of precise diameter and it works better in ductile than in grey iron. We use it where the volume justifies the tooling.

Cast threads are possible and are used on very large nuts where tapping would need a machine bigger than the part justifies. They are also visibly coarser, and they only make sense when the nut is not going to be removed often.

Porosity in a Nut Is a Leak Path for Load

A nut is mostly wall, and the wall is where the load travels. Shrinkage porosity in the wall reduces the shear area exactly where the thread root needs it.

The risk is highest in thick-walled nuts, because the section freezes slowly and the last metal to solidify has nowhere to draw from. We control it with a properly sized riser and, on critical parts, a radiographic check on the first article.

A second defect is more insidious: dross or slag trapped in the cored hole. The tap cuts through it, the thread looks fine, and the nut fails the proof load because the thread flank has a void behind it. Mould filling and pouring temperature control are the fix, not inspection.

Volume, Tooling and the Price Curve

Cast nuts become competitive against forged nuts somewhere between 500 and 2,000 pieces per size, per year, depending on the shape and the material.

Below that, the pattern and the setup dominate, and the piece price looks high. Above about 20,000 pieces a year, a forger will usually beat us on a simple hex nut, and we will say so rather than quote a price that loses money on both sides.

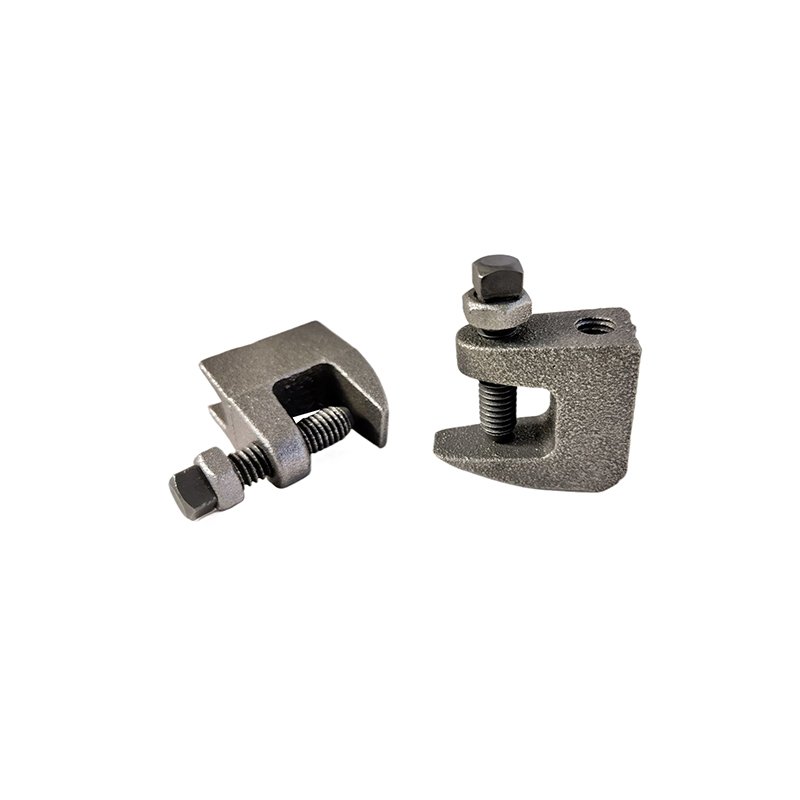

Where casting keeps winning at high volume is on shapes that forging cannot make: flanged nuts with an integral washer face, nuts with a locating collar, nuts with a cast-in marking that survives galvanizing. On those, the absence of a second machining operation keeps the price competitive at any volume.

Counting, Packing and the Cost of a Wrong Count

A nut order is a count, not a weight. A carton marked 5,000 that contains 4,960 stops an assembly line, and the recount costs more than the 40 nuts.

We count by weight on a calibrated scale, with the piece weight established from a counted sample, and we record the count on the label. For high-value or high-volume parts, we count by a machine counter and reconcile against the weight.

Packing matters for a plated nut. A galvanized nut in a cardboard box will absorb moisture and develop white rust in transit, which looks like a defect even when the coating is intact. We bag in a vapour-barrier liner for sea freight, and we will say so if the destination is humid.

Where a customer supplies their own bins or wants a specific carton weight for manual handling, we pack to that. It is a small detail that decides whether the parts go straight to the line or to a sorting table.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

Which thread standards can you tap?

Metric coarse and fine, UNC and UNF, BSW and BSP, plus special pitches. Send the standard number and the class; we confirm gauging at quotation.

Can nuts be supplied galvanized with the threads still usable?

Yes. Above M20 we tap after galvanizing so the threads stay clean. Below that we tap oversize to allow for the coating, and we gauge every batch.

What proof load can a cast iron nut take?

It depends on grade and wall thickness, but as a guide a ductile iron nut at M20 will take the proof load of a grade 8.8 bolt. Grey iron will not, and we will tell you that before you order.

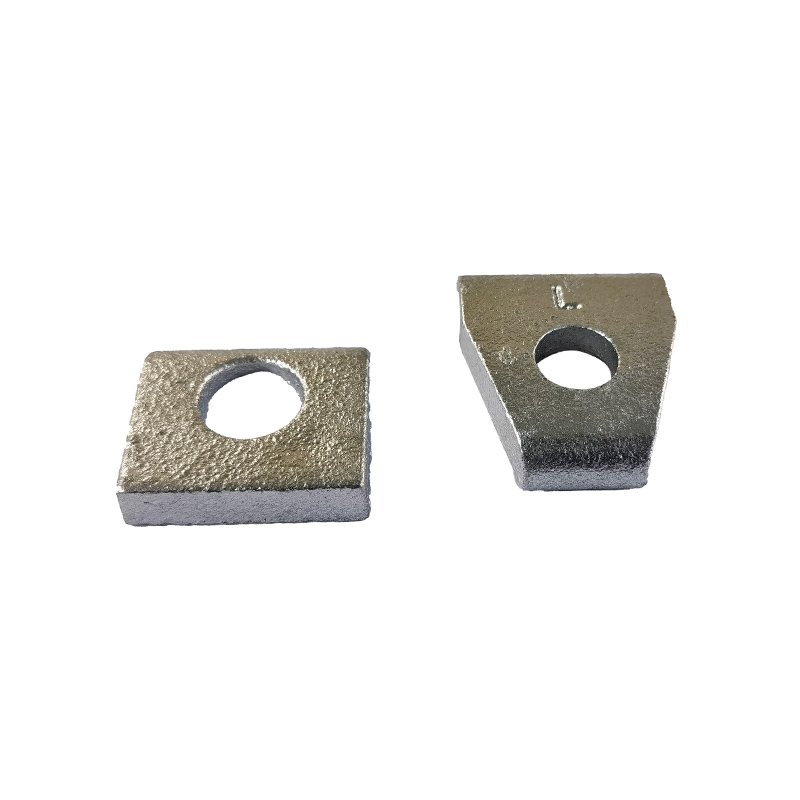

Do you cast the nut with the hole already in?

Yes, the hole is cored, which saves drilling and keeps the thread concentric with the body. Core shift is held to about 0.5 mm.

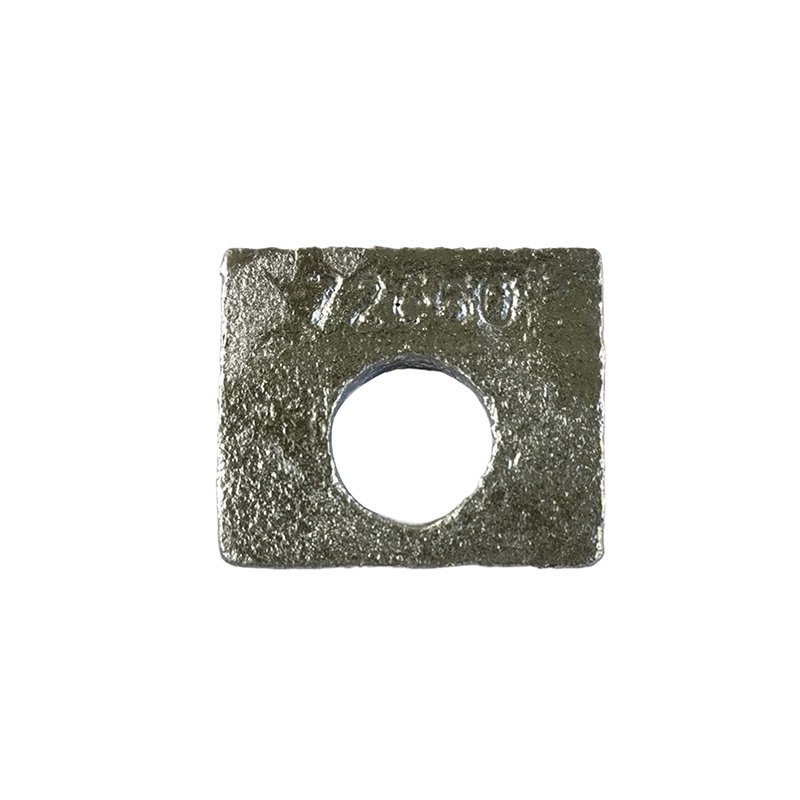

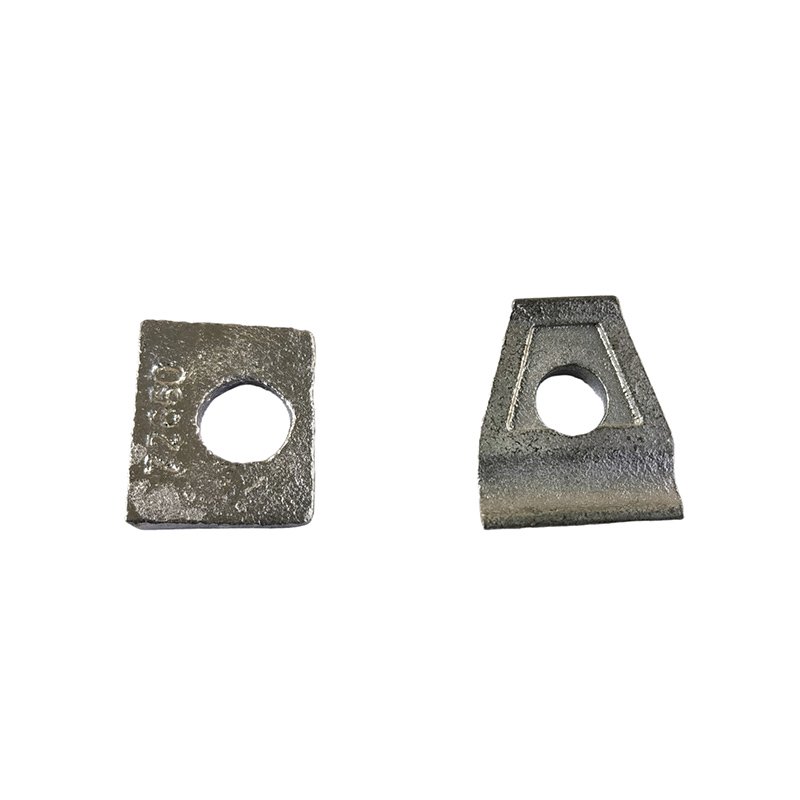

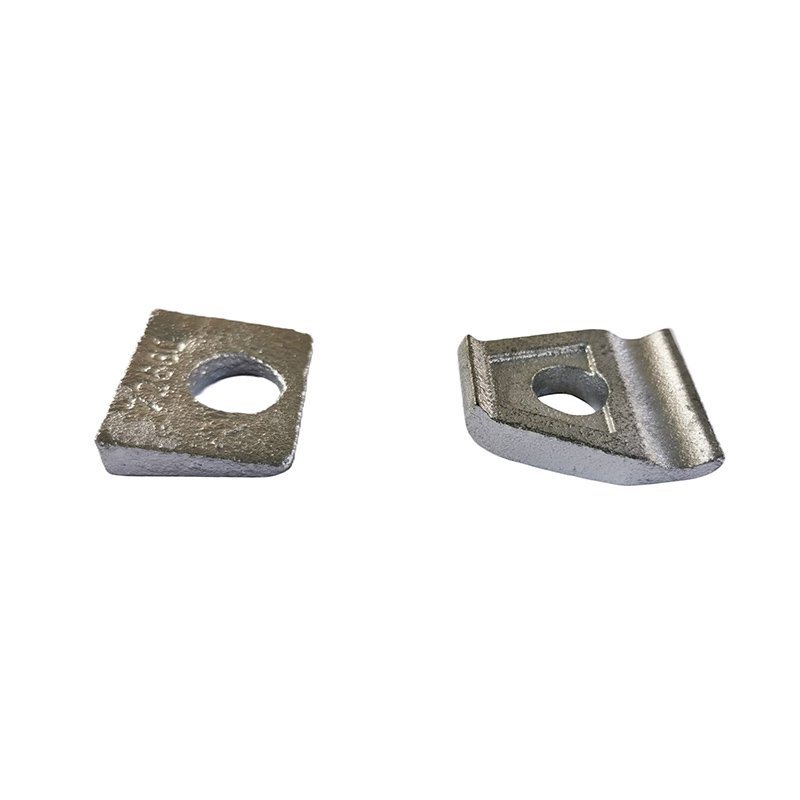

Can you mark the nut with a grade symbol?

Yes, cast in raised characters on one face. It survives galvanizing and paint, unlike an ink mark.

What is the largest nut you can cast?

Up to about 8 kg per piece on the automatic line, larger by lost foam. Above that we would quote a different process.
